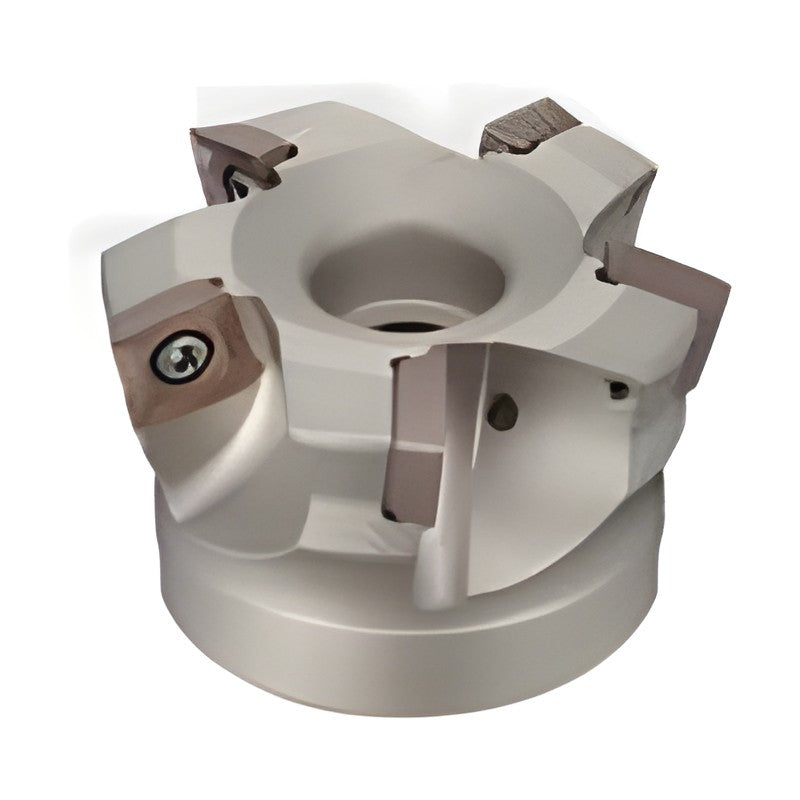

Sumitomo Electric Hardmetal SEC-Wave Mill WFXH 12000RS High-Feed Shell Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WFXH 12000RS High-Feed Shell Cutter

High-efficiency multi-function high-feed cutter of the SEC-Wave Mill series using WFX-series inserts for roughing, ramping and helical milling.

Key features

  • Uses WFX-series inserts
  • High-feed roughing with ramping and helical milling capability
  • ACS grades for stainless steel and difficult-to-cut materials
WFXH12050RS Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 28.2 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.3 | Stock: Yes
WFXH12063RS Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 41.1 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.4 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WFXH 12000RS High-Feed Shell Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (2)

WFXH12050RS, WFXH12063RS

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WFXH12050RSMax cutting dia DCX (mm): 50 | Cutting dia DC (mm): 28.2 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.3 | Stock: Yes
WFXH12063RSMax cutting dia DCX (mm): 63 | Cutting dia DC (mm): 41.1 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.4 | Stock: Yes
