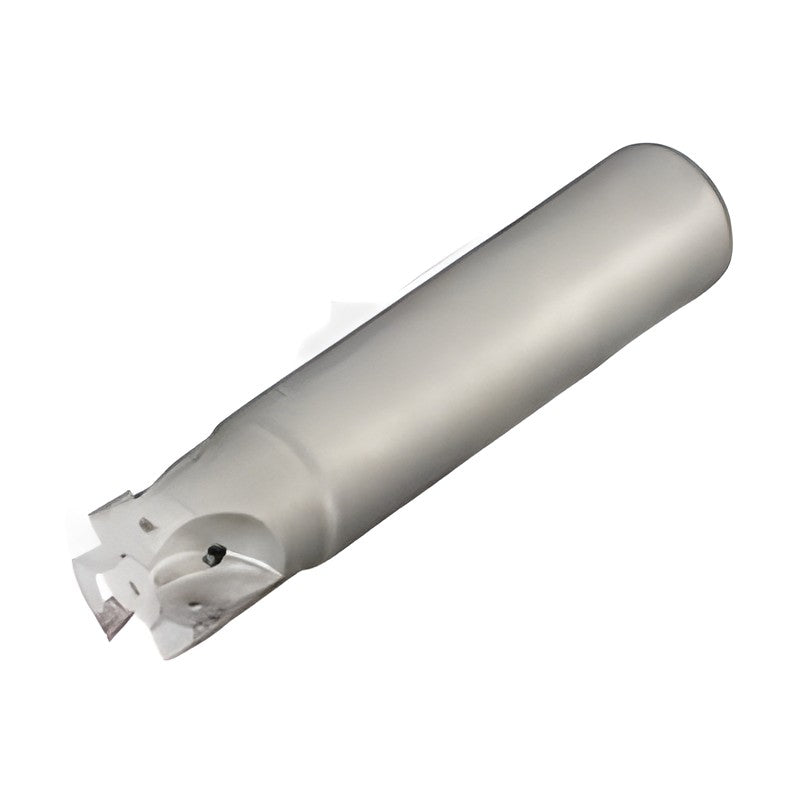

Sumitomo Electric Hardmetal SEC-Wave Mill WFXM 08000E Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WFXM 08000E Shank Type Milling Cutter

Indexable shoulder milling cutter using screw-clamped SOMT/SOET 0803 or 1204 inserts with 4 usable corners, giving good wall accuracy in corner milling (fine pitch version).

Key features

  • 4 usable corners per insert
  • Convex cutting edge secures edge strength
  • Flat edge reduces steps in wall machining
  • Wiper function improves surface finish
  • New ACS grades for stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
Pitch Fine pitch
WFXM08025E DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 3 | Stock: Yes
WFXM08032E DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 4 | Stock: Yes
WFXM08040E DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 4 | Stock: Yes
WFXM08050E DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 5 | Stock: Yes
WFXM08063E DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 6 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WFXM 08000E Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (5)

WFXM08025E, WFXM08032E, WFXM08040E, WFXM08050E, WFXM08063E

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WFXM08025EDC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 3 | Stock: Yes
WFXM08032EDC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 4 | Stock: Yes
WFXM08040EDC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 4 | Stock: Yes
WFXM08050EDC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 5 | Stock: Yes
WFXM08063EDC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 6 | Stock: Yes
