• Sumitomo Electric Hardmetal SEC-Wave Mill WGC 3000EW Shank Type Milling Cutter
1 1

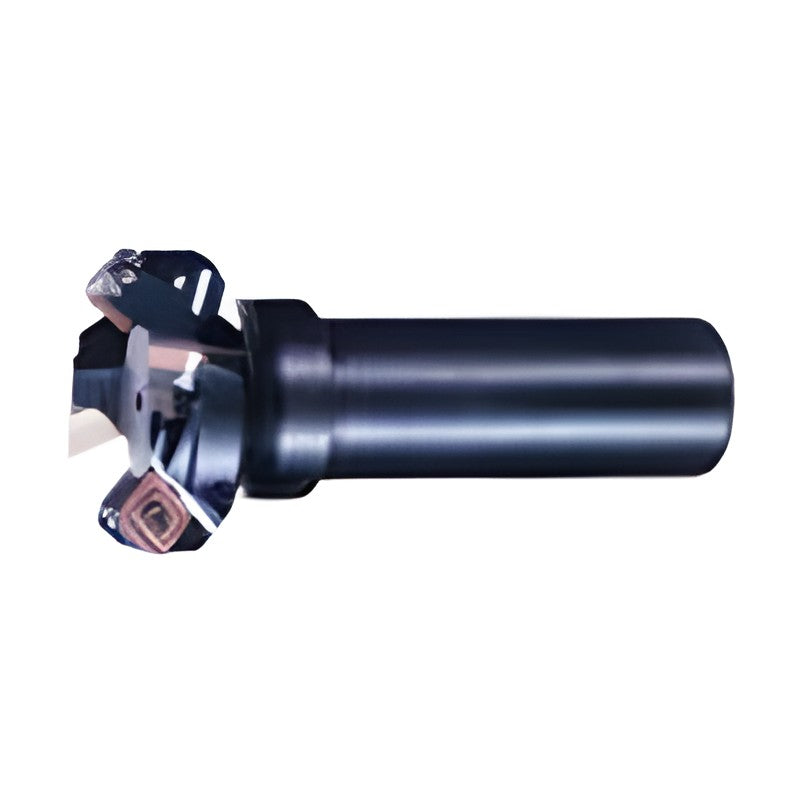

Sumitomo Electric Hardmetal SEC-Wave Mill WGC 3000EW Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WGC 3000EW Shank Type Milling Cutter

Indexable face milling cutter of the Wave Mill family using SEET/SEMT 0903 or 13T3 inserts for general face milling of steel, cast iron and non-ferrous metals.

Key features

  • Wave Mill cutter for general-purpose face milling
  • Uses SEET/SEMT positive square inserts
  • Wiper inserts available for improved surface finish

Specifications

Insert Not included (sold separately)
WGC3020EW DC (mm): 20 | DCX max cutting dia (mm): 29 | DMM shank dia (mm): 20 | LH head length (mm): 40 | LF length (mm): 100 | Teeth: 2 | Stock: Yes
WGC3025EW DC (mm): 25 | DCX max cutting dia (mm): 34 | DMM shank dia (mm): 20 | LH head length (mm): 40 | LF length (mm): 100 | Teeth: 3 | Stock: Yes
WGC3032EW DC (mm): 32 | DCX max cutting dia (mm): 41 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 4 | Stock: Yes
WGC3040EW DC (mm): 40 | DCX max cutting dia (mm): 49 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 4 | Stock: Yes
WGC3050EW DC (mm): 50 | DCX max cutting dia (mm): 59 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 5 | Stock: Yes
WGC3063EW DC (mm): 63 | DCX max cutting dia (mm): 72 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 6 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WGC 3000EW Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (6)

WGC3020EW, WGC3025EW, WGC3032EW, WGC3040EW, WGC3050EW, WGC3063EW

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WGC3020EWDC (mm): 20 | DCX max cutting dia (mm): 29 | DMM shank dia (mm): 20 | LH head length (mm): 40 | LF length (mm): 100 | Teeth: 2 | Stock: Yes
WGC3025EWDC (mm): 25 | DCX max cutting dia (mm): 34 | DMM shank dia (mm): 20 | LH head length (mm): 40 | LF length (mm): 100 | Teeth: 3 | Stock: Yes
WGC3032EWDC (mm): 32 | DCX max cutting dia (mm): 41 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 4 | Stock: Yes
WGC3040EWDC (mm): 40 | DCX max cutting dia (mm): 49 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 4 | Stock: Yes
WGC3050EWDC (mm): 50 | DCX max cutting dia (mm): 59 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 5 | Stock: Yes
WGC3063EWDC (mm): 63 | DCX max cutting dia (mm): 72 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 6 | Stock: Yes
