• Sumitomo Electric Hardmetal SEC-Wave Mill WGC 3000R(S) Milling Cutter
1 1

Sumitomo Electric Hardmetal SEC-Wave Mill WGC 3000R(S) Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WGC 3000R(S) Milling Cutter

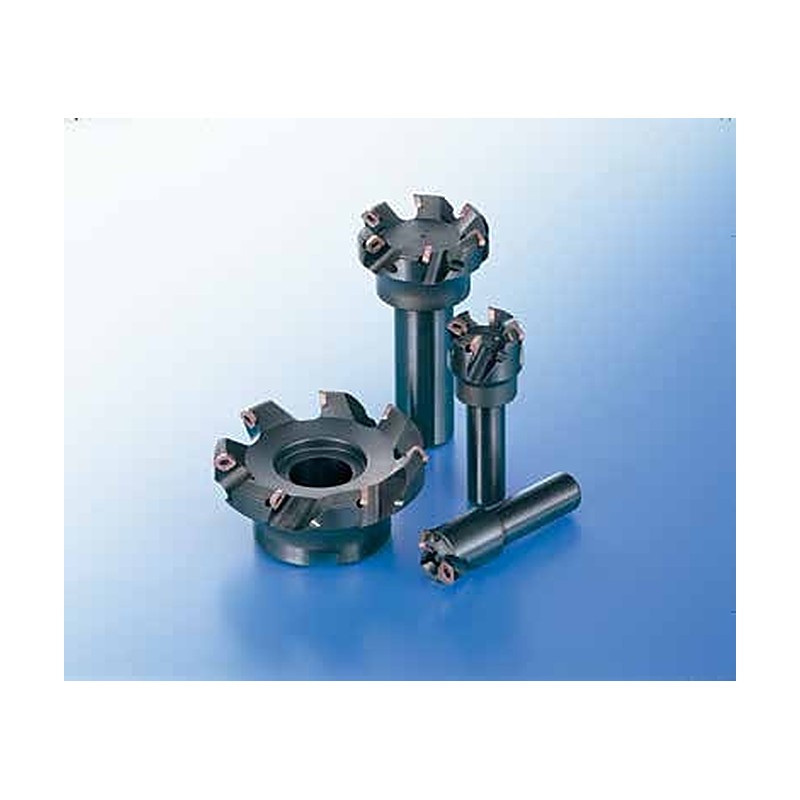

Indexable face milling cutter of the Wave Mill family using SEET/SEMT 0903 or 13T3 inserts for general face milling of steel, cast iron and non-ferrous metals.

Key features

  • Wave Mill cutter for general-purpose face milling
  • Uses SEET/SEMT positive square inserts
  • Wiper inserts available for improved surface finish

Specifications

Insert Not included (sold separately)
WGC3032RS DC (mm): 32 | DCX max cutting dia (mm): 41 | DCSFMS boss dia (mm): 32 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 4 | Stock: Yes
WGC3040RS DC (mm): 40 | DCX max cutting dia (mm): 49 | DCSFMS boss dia (mm): 32 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 4 | Stock: Yes
WGC3050RS DC (mm): 50 | DCX max cutting dia (mm): 59 | DCSFMS boss dia (mm): 40 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 5 | Stock: Yes
WGC3063RS DC (mm): 63 | DCX max cutting dia (mm): 72 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 6 | Stock: Yes
WGC3080R DC (mm): 80 | DCX max cutting dia (mm): 89 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 13 | Teeth: 6 | Weight (kg): 1.1 | Stock: Yes
WGC3100R DC (mm): 100 | DCX max cutting dia (mm): 109 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 7 | Weight (kg): 1.5 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WGC 3000R(S) Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (6)

WGC3032RS, WGC3040RS, WGC3050RS, WGC3063RS, WGC3080R, WGC3100R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WGC3032RSDC (mm): 32 | DCX max cutting dia (mm): 41 | DCSFMS boss dia (mm): 32 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 4 | Stock: Yes
WGC3040RSDC (mm): 40 | DCX max cutting dia (mm): 49 | DCSFMS boss dia (mm): 32 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 4 | Stock: Yes
WGC3050RSDC (mm): 50 | DCX max cutting dia (mm): 59 | DCSFMS boss dia (mm): 40 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 5 | Stock: Yes
WGC3063RSDC (mm): 63 | DCX max cutting dia (mm): 72 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 6 | Stock: Yes
WGC3080RDC (mm): 80 | DCX max cutting dia (mm): 89 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 13 | Teeth: 6 | Weight (kg): 1.1 | Stock: Yes
WGC3100RDC (mm): 100 | DCX max cutting dia (mm): 109 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 7 | Weight (kg): 1.5 | Stock: Yes
