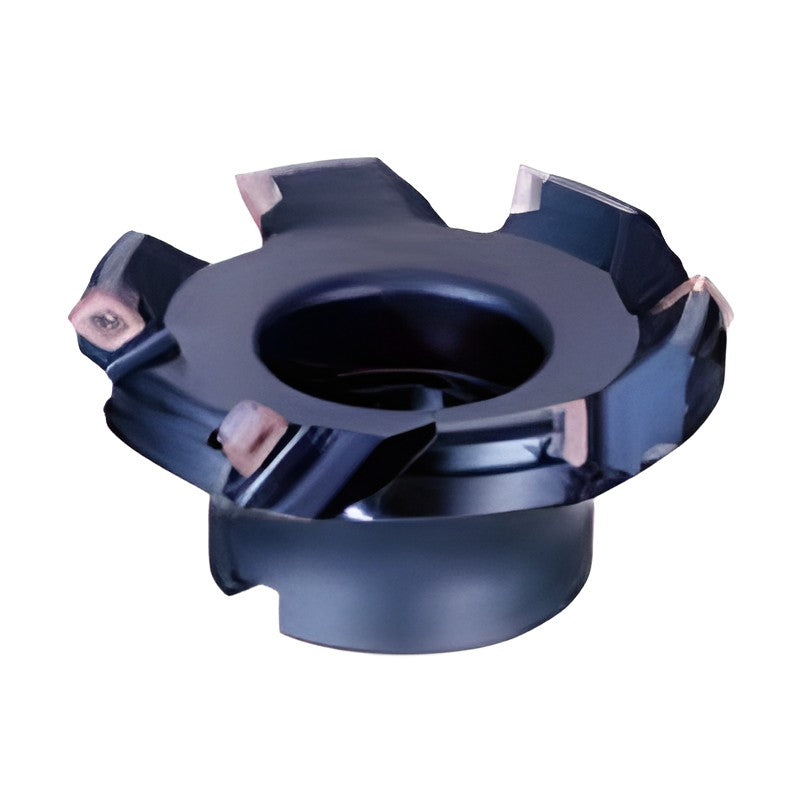

Sumitomo Electric Hardmetal SEC-Wave Mill WGC 4000R(S) Milling Cutter

Indexable face milling cutter of the Wave Mill family using SEET/SEMT 0903 or 13T3 inserts for general face milling of steel, cast iron and non-ferrous metals.

Key features

Wave Mill cutter for general-purpose face milling
Uses SEET/SEMT positive square inserts
Wiper inserts available for improved surface finish

Specifications

Insert	Not included (sold separately)

WGC4040RS		DC (mm): 40 \| DCX max cutting dia (mm): 52 \| DCSFMS boss dia (mm): 32 \| LF length (mm): 40 \| DCB bore dia (mm): 16 \| KWW keyway width (mm): 8.4 \| KDP keyway depth (mm): 5.6 \| CBDP mounting depth (mm): 18 \| D1 (mm): 14 \| D2 (mm): 9 \| Teeth: 3 \| Stock: Yes
WGC4050RS		DC (mm): 50 \| DCX max cutting dia (mm): 62 \| DCSFMS boss dia (mm): 40 \| LF length (mm): 40 \| DCB bore dia (mm): 22 \| KWW keyway width (mm): 10.4 \| KDP keyway depth (mm): 6.3 \| CBDP mounting depth (mm): 20 \| D1 (mm): 18 \| D2 (mm): 11 \| Teeth: 3 \| Stock: Yes
WGC4063RS		DC (mm): 63 \| DCX max cutting dia (mm): 76 \| DCSFMS boss dia (mm): 50 \| LF length (mm): 40 \| DCB bore dia (mm): 22 \| KWW keyway width (mm): 10.4 \| KDP keyway depth (mm): 6.3 \| CBDP mounting depth (mm): 20 \| D1 (mm): 18 \| D2 (mm): 11 \| Teeth: 4 \| Stock: Yes
WGC4080R		DC (mm): 80 \| DCX max cutting dia (mm): 93 \| DCSFMS boss dia (mm): 60 \| LF length (mm): 50 \| DCB bore dia (mm): 25.4 \| KWW keyway width (mm): 9.5 \| KDP keyway depth (mm): 6 \| CBDP mounting depth (mm): 25 \| D1 (mm): 20 \| D2 (mm): 13 \| Teeth: 4 \| Weight (kg): 1 \| Stock: Yes
WGC4100R		DC (mm): 100 \| DCX max cutting dia (mm): 113 \| DCSFMS boss dia (mm): 70 \| LF length (mm): 50 \| DCB bore dia (mm): 31.75 \| KWW keyway width (mm): 12.7 \| KDP keyway depth (mm): 8 \| CBDP mounting depth (mm): 32 \| D1 (mm): 46 \| Teeth: 5 \| Weight (kg): 1.5 \| Stock: Yes
WGC4125R		DC (mm): 125 \| DCX max cutting dia (mm): 138 \| DCSFMS boss dia (mm): 80 \| LF length (mm): 63 \| DCB bore dia (mm): 38.1 \| KWW keyway width (mm): 15.9 \| KDP keyway depth (mm): 10 \| CBDP mounting depth (mm): 38 \| D1 (mm): 56 \| Teeth: 6 \| Weight (kg): 2.6 \| Stock: Yes
WGC4160R		DC (mm): 160 \| DCX max cutting dia (mm): 173 \| DCSFMS boss dia (mm): 100 \| LF length (mm): 63 \| DCB bore dia (mm): 50.8 \| KWW keyway width (mm): 19.1 \| KDP keyway depth (mm): 11 \| CBDP mounting depth (mm): 38 \| D1 (mm): 72 \| Teeth: 7 \| Weight (kg): 4 \| Stock: Yes
WGC4200R		DC (mm): 200 \| DCX max cutting dia (mm): 213 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| D1 (mm): 130 \| Teeth: 8 \| Weight (kg): 6.6 \| Stock: Yes

Milling CuttersSumitomo Electric Hardmetal

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WGC 4000R(S) Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (8)

WGC4040RS, WGC4050RS, WGC4063RS, WGC4080R, WGC4100R, WGC4125R, WGC4160R, WGC4200R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	WGC4040RS	DC (mm): 40 \| DCX max cutting dia (mm): 52 \| DCSFMS boss dia (mm): 32 \| LF length (mm): 40 \| DCB bore dia (mm): 16 \| KWW keyway width (mm): 8.4 \| KDP keyway depth (mm): 5.6 \| CBDP mounting depth (mm): 18 \| D1 (mm): 14 \| D2 (mm): 9 \| Teeth: 3 \| Stock: Yes
	WGC4050RS	DC (mm): 50 \| DCX max cutting dia (mm): 62 \| DCSFMS boss dia (mm): 40 \| LF length (mm): 40 \| DCB bore dia (mm): 22 \| KWW keyway width (mm): 10.4 \| KDP keyway depth (mm): 6.3 \| CBDP mounting depth (mm): 20 \| D1 (mm): 18 \| D2 (mm): 11 \| Teeth: 3 \| Stock: Yes
	WGC4063RS	DC (mm): 63 \| DCX max cutting dia (mm): 76 \| DCSFMS boss dia (mm): 50 \| LF length (mm): 40 \| DCB bore dia (mm): 22 \| KWW keyway width (mm): 10.4 \| KDP keyway depth (mm): 6.3 \| CBDP mounting depth (mm): 20 \| D1 (mm): 18 \| D2 (mm): 11 \| Teeth: 4 \| Stock: Yes
	WGC4080R	DC (mm): 80 \| DCX max cutting dia (mm): 93 \| DCSFMS boss dia (mm): 60 \| LF length (mm): 50 \| DCB bore dia (mm): 25.4 \| KWW keyway width (mm): 9.5 \| KDP keyway depth (mm): 6 \| CBDP mounting depth (mm): 25 \| D1 (mm): 20 \| D2 (mm): 13 \| Teeth: 4 \| Weight (kg): 1 \| Stock: Yes
	WGC4100R	DC (mm): 100 \| DCX max cutting dia (mm): 113 \| DCSFMS boss dia (mm): 70 \| LF length (mm): 50 \| DCB bore dia (mm): 31.75 \| KWW keyway width (mm): 12.7 \| KDP keyway depth (mm): 8 \| CBDP mounting depth (mm): 32 \| D1 (mm): 46 \| Teeth: 5 \| Weight (kg): 1.5 \| Stock: Yes
	WGC4125R	DC (mm): 125 \| DCX max cutting dia (mm): 138 \| DCSFMS boss dia (mm): 80 \| LF length (mm): 63 \| DCB bore dia (mm): 38.1 \| KWW keyway width (mm): 15.9 \| KDP keyway depth (mm): 10 \| CBDP mounting depth (mm): 38 \| D1 (mm): 56 \| Teeth: 6 \| Weight (kg): 2.6 \| Stock: Yes
	WGC4160R	DC (mm): 160 \| DCX max cutting dia (mm): 173 \| DCSFMS boss dia (mm): 100 \| LF length (mm): 63 \| DCB bore dia (mm): 50.8 \| KWW keyway width (mm): 19.1 \| KDP keyway depth (mm): 11 \| CBDP mounting depth (mm): 38 \| D1 (mm): 72 \| Teeth: 7 \| Weight (kg): 4 \| Stock: Yes
	WGC4200R	DC (mm): 200 \| DCX max cutting dia (mm): 213 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| D1 (mm): 130 \| Teeth: 8 \| Weight (kg): 6.6 \| Stock: Yes
