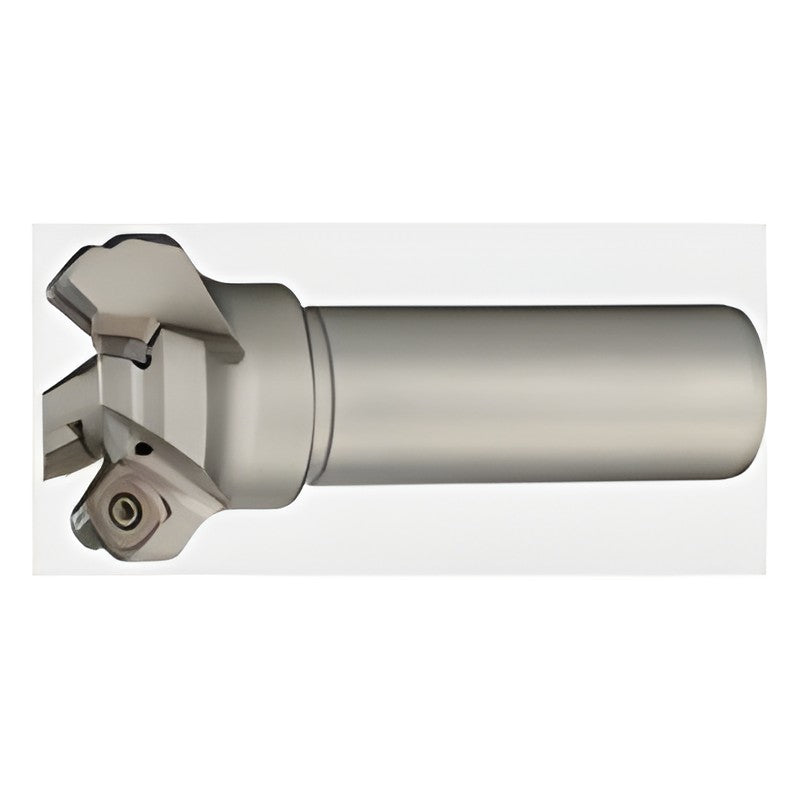

Sumitomo Electric Hardmetal SEC-Wave Mill WGX 13000EW Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WGX 13000EW Shank Type Milling Cutter

Indexable face milling cutter with SEET/SEMT 13T3 square inserts; the high-rake low-resistance breakers and self-wiper edge give high-quality finished surfaces on steel, stainless steel, cast iron, non-ferrous and difficult-to-cut materials.

Key features

  • Low-resistance high-rake breakers designed for WGX
  • Self-wiper edge and improved runout for fine surface finish
  • Chamfered edge suppresses burrs and edge chipping
  • 4 breaker types plus wiper inserts in many grades
  • Left-hand shell type available on request

Specifications

Insert Not included (sold separately)
WGX13032EW DC (mm): 32 | DCX max cutting dia (mm): 44 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 3 | Stock: Yes
WGX13040EW DC (mm): 40 | DCX max cutting dia (mm): 52 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 3 | Stock: Yes
WGX13050EW DC (mm): 50 | DCX max cutting dia (mm): 62 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 4 | Stock: Yes
WGX13063EW DC (mm): 63 | DCX max cutting dia (mm): 76 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 5 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WGX 13000EW Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (4)

WGX13032EW, WGX13040EW, WGX13050EW, WGX13063EW

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WGX13032EWDC (mm): 32 | DCX max cutting dia (mm): 44 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 3 | Stock: Yes
WGX13040EWDC (mm): 40 | DCX max cutting dia (mm): 52 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 3 | Stock: Yes
WGX13050EWDC (mm): 50 | DCX max cutting dia (mm): 62 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 4 | Stock: Yes
WGX13063EWDC (mm): 63 | DCX max cutting dia (mm): 76 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 125 | Teeth: 5 | Stock: Yes
