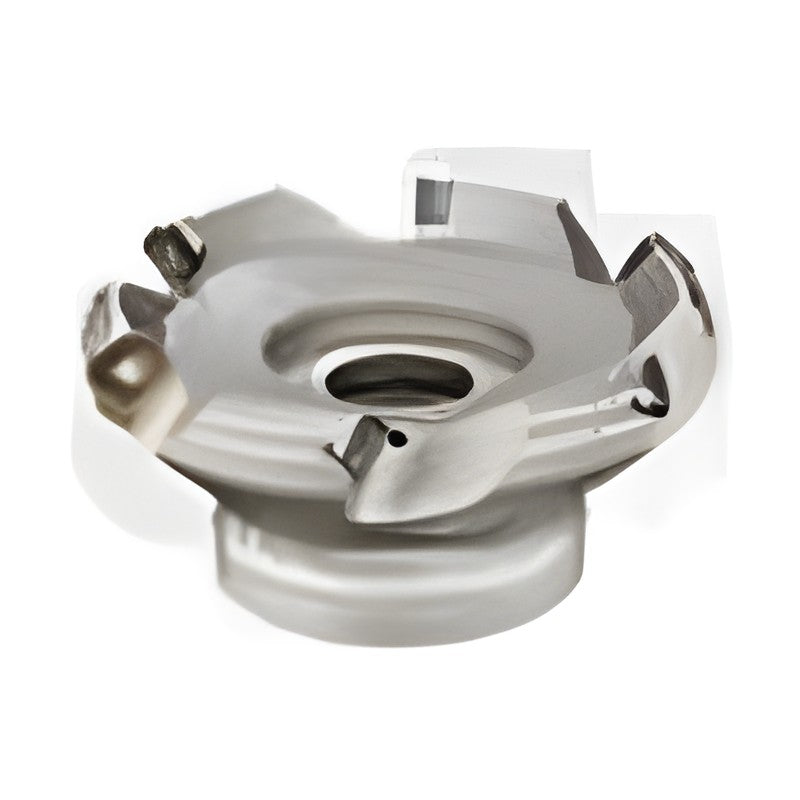

Sumitomo Electric Hardmetal SEC-Wave Mill WGX 13000R/L(S) Milling Cutter

Indexable face milling cutter with SEET/SEMT 13T3 square inserts; the high-rake low-resistance breakers and self-wiper edge give high-quality finished surfaces on steel, stainless steel, cast iron, non-ferrous and difficult-to-cut materials.

Key features

Low-resistance high-rake breakers designed for WGX
Self-wiper edge and improved runout for fine surface finish
Chamfered edge suppresses burrs and edge chipping
4 breaker types plus wiper inserts in many grades
Left-hand shell type available on request

Specifications

Insert	Not included (sold separately)

WGX13040RS		DC (mm): 40 \| DCX max cutting dia (mm): 52 \| DCSFMS boss dia (mm): 32 \| LF length (mm): 40 \| DCB bore dia (mm): 16 \| KWW keyway width (mm): 8.4 \| KDP keyway depth (mm): 5.6 \| CBDP mounting depth (mm): 18 \| D1 (mm): 14 \| Teeth: 3 \| Weight (kg): 0.3 \| Hand: Right \| Stock: Yes
WGX13050RS		DC (mm): 50 \| DCX max cutting dia (mm): 62 \| DCSFMS boss dia (mm): 40 \| LF length (mm): 40 \| DCB bore dia (mm): 22 \| KWW keyway width (mm): 10.4 \| KDP keyway depth (mm): 6.3 \| CBDP mounting depth (mm): 20 \| D1 (mm): 18 \| Teeth: 3 \| Weight (kg): 0.4 \| Hand: Right \| Stock: Yes
WGX13063RS		DC (mm): 63 \| DCX max cutting dia (mm): 76 \| DCSFMS boss dia (mm): 50 \| LF length (mm): 40 \| DCB bore dia (mm): 22 \| KWW keyway width (mm): 10.4 \| KDP keyway depth (mm): 6.3 \| CBDP mounting depth (mm): 20 \| D1 (mm): 18 \| Teeth: 4 \| Weight (kg): 0.6 \| Hand: Right \| Stock: Yes
WGX13080RS		DC (mm): 80 \| DCX max cutting dia (mm): 93 \| DCSFMS boss dia (mm): 55 \| LF length (mm): 50 \| DCB bore dia (mm): 27 \| KWW keyway width (mm): 12.4 \| KDP keyway depth (mm): 7 \| CBDP mounting depth (mm): 25 \| D1 (mm): 20 \| Teeth: 4 \| Weight (kg): 1.2 \| Hand: Right \| Stock: Yes
WGX13100RS		DC (mm): 100 \| DCX max cutting dia (mm): 113 \| DCSFMS boss dia (mm): 70 \| LF length (mm): 50 \| DCB bore dia (mm): 32 \| KWW keyway width (mm): 14.4 \| KDP keyway depth (mm): 8.5 \| CBDP mounting depth (mm): 32 \| D1 (mm): 46 \| Teeth: 5 \| Weight (kg): 1.6 \| Hand: Right \| Stock: Yes
WGX13125RS		DC (mm): 125 \| DCX max cutting dia (mm): 138 \| DCSFMS boss dia (mm): 80 \| LF length (mm): 63 \| DCB bore dia (mm): 40 \| KWW keyway width (mm): 16.4 \| KDP keyway depth (mm): 9.5 \| CBDP mounting depth (mm): 29 \| D1 (mm): 52 \| Teeth: 6 \| Weight (kg): 2.8 \| Hand: Right \| Stock: Yes
WGX13160RS		DC (mm): 160 \| DCX max cutting dia (mm): 173 \| DCSFMS boss dia (mm): 100 \| LF length (mm): 63 \| DCB bore dia (mm): 40 \| KWW keyway width (mm): 16.4 \| KDP keyway depth (mm): 9.5 \| CBDP mounting depth (mm): 29 \| D1 (mm): 88 \| Teeth: 7 \| Weight (kg): 4.5 \| Hand: Right \| Stock: Yes
WGX13200RS		DC (mm): 200 \| DCX max cutting dia (mm): 213 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 60 \| KWW keyway width (mm): 25.7 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| D1 (mm): 130 \| Teeth: 8 \| Weight (kg): 7.1 \| Hand: Right \| Stock: Yes
WGX13250RS		DC (mm): 250 \| DCX max cutting dia (mm): 263 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 60 \| KWW keyway width (mm): 25.7 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| D1 (mm): 160 \| Teeth: 10 \| Weight (kg): 9.8 \| Hand: Right \| Stock: Yes
WGX13080R		DC (mm): 80 \| DCX max cutting dia (mm): 93 \| DCSFMS boss dia (mm): 60 \| LF length (mm): 50 \| DCB bore dia (mm): 25.4 \| KWW keyway width (mm): 9.5 \| KDP keyway depth (mm): 6 \| CBDP mounting depth (mm): 25 \| D1 (mm): 20 \| Teeth: 4 \| Weight (kg): 1.2 \| Hand: Right \| Stock: Yes
WGX13100R		DC (mm): 100 \| DCX max cutting dia (mm): 113 \| DCSFMS boss dia (mm): 70 \| LF length (mm): 63 \| DCB bore dia (mm): 31.75 \| KWW keyway width (mm): 12.7 \| KDP keyway depth (mm): 8 \| CBDP mounting depth (mm): 32.5 \| D1 (mm): 46 \| Teeth: 5 \| Weight (kg): 2.3 \| Hand: Right \| Stock: Yes
WGX13125R		DC (mm): 125 \| DCX max cutting dia (mm): 138 \| DCSFMS boss dia (mm): 80 \| LF length (mm): 63 \| DCB bore dia (mm): 38.1 \| KWW keyway width (mm): 15.9 \| KDP keyway depth (mm): 10 \| CBDP mounting depth (mm): 35.5 \| D1 (mm): 55 \| Teeth: 6 \| Weight (kg): 2.9 \| Hand: Right \| Stock: Yes
WGX13160R		DC (mm): 160 \| DCX max cutting dia (mm): 173 \| DCSFMS boss dia (mm): 100 \| LF length (mm): 63 \| DCB bore dia (mm): 50.8 \| KWW keyway width (mm): 19.1 \| KDP keyway depth (mm): 11 \| CBDP mounting depth (mm): 38 \| D1 (mm): 72 \| Teeth: 7 \| Weight (kg): 4.5 \| Hand: Right \| Stock: Yes
WGX13200R		DC (mm): 200 \| DCX max cutting dia (mm): 213 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| D1 (mm): 130 \| Teeth: 8 \| Weight (kg): 7.1 \| Hand: Right \| Stock: Yes
WGX13250R		DC (mm): 250 \| DCX max cutting dia (mm): 263 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| D1 (mm): 150 \| Teeth: 10 \| Weight (kg): 11.1 \| Hand: Right \| Stock: Yes

Milling CuttersSumitomo Electric Hardmetal

15 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WGX 13000R/L(S) Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (15)

WGX13040RS, WGX13050RS, WGX13063RS, WGX13080RS, WGX13100RS, WGX13125RS, WGX13160RS, WGX13200RS, WGX13250RS, WGX13080R + 5 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	WGX13040RS	DC (mm): 40 \| DCX max cutting dia (mm): 52 \| DCSFMS boss dia (mm): 32 \| LF length (mm): 40 \| DCB bore dia (mm): 16 \| KWW keyway width (mm): 8.4 \| KDP keyway depth (mm): 5.6 \| CBDP mounting depth (mm): 18 \| D1 (mm): 14 \| Teeth: 3 \| Weight (kg): 0.3 \| Hand: Right \| Stock: Yes
	WGX13050RS	DC (mm): 50 \| DCX max cutting dia (mm): 62 \| DCSFMS boss dia (mm): 40 \| LF length (mm): 40 \| DCB bore dia (mm): 22 \| KWW keyway width (mm): 10.4 \| KDP keyway depth (mm): 6.3 \| CBDP mounting depth (mm): 20 \| D1 (mm): 18 \| Teeth: 3 \| Weight (kg): 0.4 \| Hand: Right \| Stock: Yes
	WGX13063RS	DC (mm): 63 \| DCX max cutting dia (mm): 76 \| DCSFMS boss dia (mm): 50 \| LF length (mm): 40 \| DCB bore dia (mm): 22 \| KWW keyway width (mm): 10.4 \| KDP keyway depth (mm): 6.3 \| CBDP mounting depth (mm): 20 \| D1 (mm): 18 \| Teeth: 4 \| Weight (kg): 0.6 \| Hand: Right \| Stock: Yes
	WGX13080RS	DC (mm): 80 \| DCX max cutting dia (mm): 93 \| DCSFMS boss dia (mm): 55 \| LF length (mm): 50 \| DCB bore dia (mm): 27 \| KWW keyway width (mm): 12.4 \| KDP keyway depth (mm): 7 \| CBDP mounting depth (mm): 25 \| D1 (mm): 20 \| Teeth: 4 \| Weight (kg): 1.2 \| Hand: Right \| Stock: Yes
	WGX13100RS	DC (mm): 100 \| DCX max cutting dia (mm): 113 \| DCSFMS boss dia (mm): 70 \| LF length (mm): 50 \| DCB bore dia (mm): 32 \| KWW keyway width (mm): 14.4 \| KDP keyway depth (mm): 8.5 \| CBDP mounting depth (mm): 32 \| D1 (mm): 46 \| Teeth: 5 \| Weight (kg): 1.6 \| Hand: Right \| Stock: Yes
	WGX13125RS	DC (mm): 125 \| DCX max cutting dia (mm): 138 \| DCSFMS boss dia (mm): 80 \| LF length (mm): 63 \| DCB bore dia (mm): 40 \| KWW keyway width (mm): 16.4 \| KDP keyway depth (mm): 9.5 \| CBDP mounting depth (mm): 29 \| D1 (mm): 52 \| Teeth: 6 \| Weight (kg): 2.8 \| Hand: Right \| Stock: Yes
	WGX13160RS	DC (mm): 160 \| DCX max cutting dia (mm): 173 \| DCSFMS boss dia (mm): 100 \| LF length (mm): 63 \| DCB bore dia (mm): 40 \| KWW keyway width (mm): 16.4 \| KDP keyway depth (mm): 9.5 \| CBDP mounting depth (mm): 29 \| D1 (mm): 88 \| Teeth: 7 \| Weight (kg): 4.5 \| Hand: Right \| Stock: Yes
	WGX13200RS	DC (mm): 200 \| DCX max cutting dia (mm): 213 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 60 \| KWW keyway width (mm): 25.7 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| D1 (mm): 130 \| Teeth: 8 \| Weight (kg): 7.1 \| Hand: Right \| Stock: Yes
	WGX13250RS	DC (mm): 250 \| DCX max cutting dia (mm): 263 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 60 \| KWW keyway width (mm): 25.7 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| D1 (mm): 160 \| Teeth: 10 \| Weight (kg): 9.8 \| Hand: Right \| Stock: Yes
	WGX13080R	DC (mm): 80 \| DCX max cutting dia (mm): 93 \| DCSFMS boss dia (mm): 60 \| LF length (mm): 50 \| DCB bore dia (mm): 25.4 \| KWW keyway width (mm): 9.5 \| KDP keyway depth (mm): 6 \| CBDP mounting depth (mm): 25 \| D1 (mm): 20 \| Teeth: 4 \| Weight (kg): 1.2 \| Hand: Right \| Stock: Yes
	WGX13100R	DC (mm): 100 \| DCX max cutting dia (mm): 113 \| DCSFMS boss dia (mm): 70 \| LF length (mm): 63 \| DCB bore dia (mm): 31.75 \| KWW keyway width (mm): 12.7 \| KDP keyway depth (mm): 8 \| CBDP mounting depth (mm): 32.5 \| D1 (mm): 46 \| Teeth: 5 \| Weight (kg): 2.3 \| Hand: Right \| Stock: Yes
	WGX13125R	DC (mm): 125 \| DCX max cutting dia (mm): 138 \| DCSFMS boss dia (mm): 80 \| LF length (mm): 63 \| DCB bore dia (mm): 38.1 \| KWW keyway width (mm): 15.9 \| KDP keyway depth (mm): 10 \| CBDP mounting depth (mm): 35.5 \| D1 (mm): 55 \| Teeth: 6 \| Weight (kg): 2.9 \| Hand: Right \| Stock: Yes
	WGX13160R	DC (mm): 160 \| DCX max cutting dia (mm): 173 \| DCSFMS boss dia (mm): 100 \| LF length (mm): 63 \| DCB bore dia (mm): 50.8 \| KWW keyway width (mm): 19.1 \| KDP keyway depth (mm): 11 \| CBDP mounting depth (mm): 38 \| D1 (mm): 72 \| Teeth: 7 \| Weight (kg): 4.5 \| Hand: Right \| Stock: Yes
	WGX13200R	DC (mm): 200 \| DCX max cutting dia (mm): 213 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| D1 (mm): 130 \| Teeth: 8 \| Weight (kg): 7.1 \| Hand: Right \| Stock: Yes
	WGX13250R	DC (mm): 250 \| DCX max cutting dia (mm): 263 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| D1 (mm): 150 \| Teeth: 10 \| Weight (kg): 11.1 \| Hand: Right \| Stock: Yes
