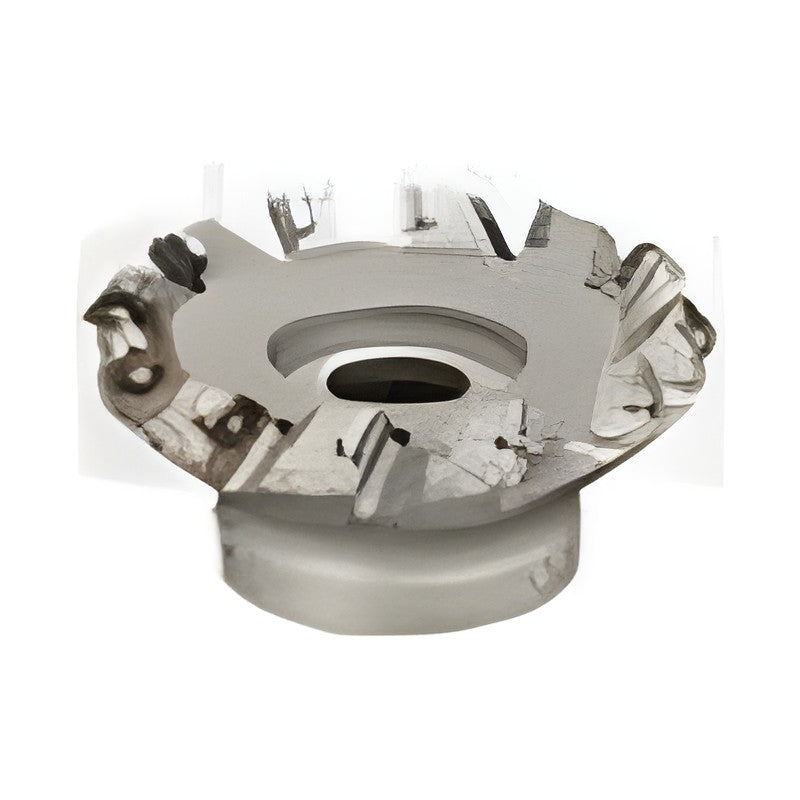

Sumitomo Electric Hardmetal SEC-Wave Mill WGXF 13000R/L(S) Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WGXF 13000R/L(S) Milling Cutter

Indexable face milling cutter with SEET/SEMT 13T3 square inserts; the high-rake low-resistance breakers and self-wiper edge give high-quality finished surfaces on steel, stainless steel, cast iron, non-ferrous and difficult-to-cut materials (extra-fine pitch version).

Key features

  • Low-resistance high-rake breakers designed for WGX
  • Self-wiper edge and improved runout for fine surface finish
  • Chamfered edge suppresses burrs and edge chipping
  • 4 breaker types plus wiper inserts in many grades
  • Left-hand shell type available on request

Specifications

Insert Not included (sold separately)
Pitch Extra-fine pitch
WGXF13050RS DC (mm): 50 | DCX max cutting dia (mm): 62 | DCSFMS boss dia (mm): 40 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | Teeth: 5 | Weight (kg): 0.4 | Hand: Right | Stock: Yes
WGXF13063RS DC (mm): 63 | DCX max cutting dia (mm): 76 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | Teeth: 6 | Weight (kg): 0.6 | Hand: Right | Stock: Yes
WGXF13080RS DC (mm): 80 | DCX max cutting dia (mm): 93 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | Teeth: 8 | Weight (kg): 1.1 | Hand: Right | Stock: Yes
WGXF13100RS DC (mm): 100 | DCX max cutting dia (mm): 113 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8.5 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 10 | Weight (kg): 1.5 | Hand: Right | Stock: Yes
WGXF13125RS DC (mm): 125 | DCX max cutting dia (mm): 138 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.5 | CBDP mounting depth (mm): 29 | D1 (mm): 52 | Teeth: 12 | Weight (kg): 2.7 | Hand: Right | Stock: Yes
WGXF13160RS DC (mm): 160 | DCX max cutting dia (mm): 173 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.5 | CBDP mounting depth (mm): 29 | D1 (mm): 88 | Teeth: 16 | Weight (kg): 4.5 | Hand: Right | Stock: Yes
WGXF13200RS DC (mm): 200 | DCX max cutting dia (mm): 213 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 130 | Teeth: 20 | Weight (kg): 6.9 | Hand: Right | Stock: Yes
WGXF13250RS DC (mm): 250 | DCX max cutting dia (mm): 263 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 160 | Teeth: 24 | Weight (kg): 9.6 | Hand: Right | Stock: Yes
WGXF13080R DC (mm): 80 | DCX max cutting dia (mm): 93 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | Teeth: 8 | Weight (kg): 1.1 | Hand: Right | Stock: Yes
WGXF13100R DC (mm): 100 | DCX max cutting dia (mm): 113 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32.5 | D1 (mm): 46 | Teeth: 10 | Weight (kg): 2.1 | Hand: Right | Stock: Yes
WGXF13125R DC (mm): 125 | DCX max cutting dia (mm): 138 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | Teeth: 12 | Weight (kg): 2.8 | Hand: Right | Stock: Yes
WGXF13160R DC (mm): 160 | DCX max cutting dia (mm): 173 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | D1 (mm): 72 | Teeth: 16 | Weight (kg): 4.5 | Hand: Right | Stock: Yes
WGXF13200R DC (mm): 200 | DCX max cutting dia (mm): 213 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 130 | Teeth: 20 | Weight (kg): 6.9 | Hand: Right | Stock: Yes
WGXF13250R DC (mm): 250 | DCX max cutting dia (mm): 263 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 150 | Teeth: 24 | Weight (kg): 10.9 | Hand: Right | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WGXF 13000R/L(S) Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (14)

WGXF13050RS, WGXF13063RS, WGXF13080RS, WGXF13100RS, WGXF13125RS, WGXF13160RS, WGXF13200RS, WGXF13250RS, WGXF13080R, WGXF13100R + 4 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WGXF13050RSDC (mm): 50 | DCX max cutting dia (mm): 62 | DCSFMS boss dia (mm): 40 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | Teeth: 5 | Weight (kg): 0.4 | Hand: Right | Stock: Yes
WGXF13063RSDC (mm): 63 | DCX max cutting dia (mm): 76 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | Teeth: 6 | Weight (kg): 0.6 | Hand: Right | Stock: Yes
WGXF13080RSDC (mm): 80 | DCX max cutting dia (mm): 93 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | Teeth: 8 | Weight (kg): 1.1 | Hand: Right | Stock: Yes
WGXF13100RSDC (mm): 100 | DCX max cutting dia (mm): 113 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8.5 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 10 | Weight (kg): 1.5 | Hand: Right | Stock: Yes
WGXF13125RSDC (mm): 125 | DCX max cutting dia (mm): 138 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.5 | CBDP mounting depth (mm): 29 | D1 (mm): 52 | Teeth: 12 | Weight (kg): 2.7 | Hand: Right | Stock: Yes
WGXF13160RSDC (mm): 160 | DCX max cutting dia (mm): 173 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.5 | CBDP mounting depth (mm): 29 | D1 (mm): 88 | Teeth: 16 | Weight (kg): 4.5 | Hand: Right | Stock: Yes
WGXF13200RSDC (mm): 200 | DCX max cutting dia (mm): 213 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 130 | Teeth: 20 | Weight (kg): 6.9 | Hand: Right | Stock: Yes
WGXF13250RSDC (mm): 250 | DCX max cutting dia (mm): 263 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 160 | Teeth: 24 | Weight (kg): 9.6 | Hand: Right | Stock: Yes
WGXF13080RDC (mm): 80 | DCX max cutting dia (mm): 93 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | Teeth: 8 | Weight (kg): 1.1 | Hand: Right | Stock: Yes
WGXF13100RDC (mm): 100 | DCX max cutting dia (mm): 113 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32.5 | D1 (mm): 46 | Teeth: 10 | Weight (kg): 2.1 | Hand: Right | Stock: Yes
WGXF13125RDC (mm): 125 | DCX max cutting dia (mm): 138 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | Teeth: 12 | Weight (kg): 2.8 | Hand: Right | Stock: Yes
WGXF13160RDC (mm): 160 | DCX max cutting dia (mm): 173 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | D1 (mm): 72 | Teeth: 16 | Weight (kg): 4.5 | Hand: Right | Stock: Yes
WGXF13200RDC (mm): 200 | DCX max cutting dia (mm): 213 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 130 | Teeth: 20 | Weight (kg): 6.9 | Hand: Right | Stock: Yes
WGXF13250RDC (mm): 250 | DCX max cutting dia (mm): 263 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 150 | Teeth: 24 | Weight (kg): 10.9 | Hand: Right | Stock: Yes
