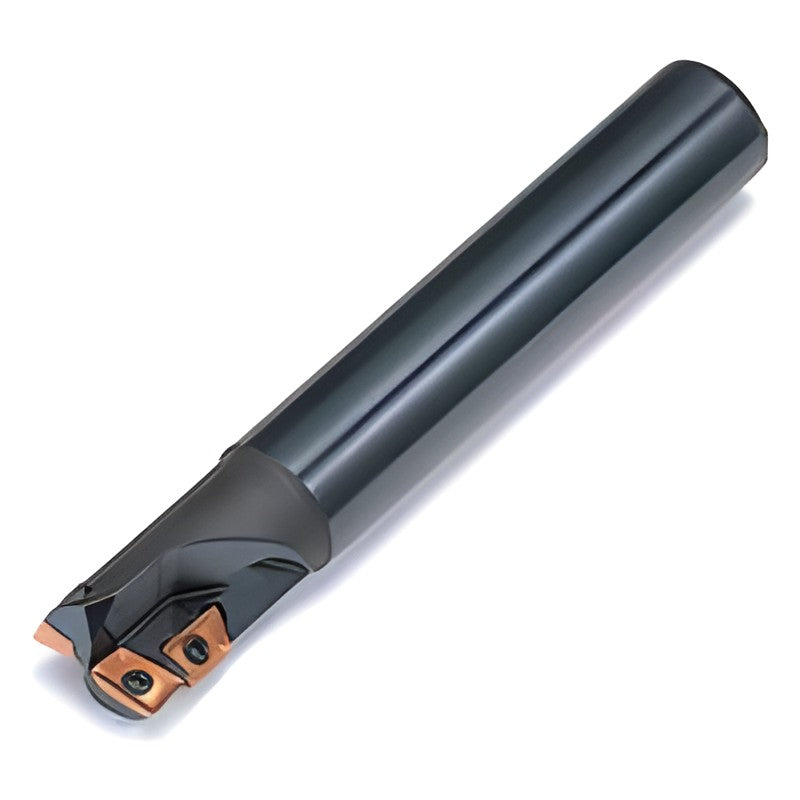

Sumitomo Electric Hardmetal SEC-Wave Multi-Function WMM 2000E/EL/ELH/EXLH Shank Cutter

Sumitomo Electric Hardmetal SEC-Wave Multi-Function WMM 2000E/EL/ELH/EXLH Shank Cutter

Multi-function shank type cutter using Wave Mill inserts for slotting, side milling, ramping, pocketing, drilling and helical milling with one tool.

Key features

  • One tool for side milling, slotting and drilling
  • Suited to ramping, helical and pocket milling
  • Low cutting force
  • Single insert type for easy tool management
WMM2020E Cutting dia DC (mm): 20 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 35 | Overall length LF (mm): 130 | Total teeth: 3 | Effective teeth: 1 | Stock: Yes
WMM2021E Cutting dia DC (mm): 21 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 35 | Overall length LF (mm): 130 | Total teeth: 3 | Effective teeth: 1 | Stock: Yes
WMM2025E Cutting dia DC (mm): 25 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 140 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM2026E Cutting dia DC (mm): 26 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 140 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM2030E Cutting dia DC (mm): 30 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 25 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Total teeth: 5 | Effective teeth: 1 | Stock: Yes
WMM2020EL Cutting dia DC (mm): 20 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 60 | Overall length LF (mm): 185 | Total teeth: 3 | Effective teeth: 1 | Stock: Yes
WMM2021EL Cutting dia DC (mm): 21 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 35 | Overall length LF (mm): 185 | Total teeth: 3 | Effective teeth: 1 | Stock: Yes
WMM2025EL Cutting dia DC (mm): 25 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 75 | Overall length LF (mm): 220 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM2026EL Cutting dia DC (mm): 26 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 220 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM2030EL Cutting dia DC (mm): 30 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 25 | Head length LH (mm): 50 | Overall length LF (mm): 230 | Total teeth: 5 | Effective teeth: 1 | Stock: Yes
WMM2020ELH Cutting dia DC (mm): 20 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 60 | Overall length LF (mm): 185 | Total teeth: 3 | Effective teeth: 1 | Stock: Yes
WMM2021ELH Cutting dia DC (mm): 21 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 35 | Overall length LF (mm): 185 | Total teeth: 3 | Effective teeth: 1 | Stock: Yes
WMM2025ELH Cutting dia DC (mm): 25 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 75 | Overall length LF (mm): 220 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM2026ELH Cutting dia DC (mm): 26 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 220 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM2030ELH Cutting dia DC (mm): 30 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 25 | Head length LH (mm): 50 | Overall length LF (mm): 230 | Total teeth: 5 | Effective teeth: 1 | Stock: Yes
WMM2022EXLH Cutting dia DC (mm): 22 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 35 | Overall length LF (mm): 250 | Total teeth: 3 | Effective teeth: 1
WMM2027EXLH Cutting dia DC (mm): 27 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 320 | Total teeth: 4 | Effective teeth: 1
WMM2030EXLH Cutting dia DC (mm): 30 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 25 | Head length LH (mm): 50 | Overall length LF (mm): 350 | Total teeth: 5 | Effective teeth: 1
Milling CuttersSumitomo Electric Hardmetal
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Multi-Function WMM 2000E/EL/ELH/EXLH Shank Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (18)

WMM2020E, WMM2021E, WMM2025E, WMM2026E, WMM2030E, WMM2020EL, WMM2021EL, WMM2025EL, WMM2026EL, WMM2030EL + 8 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WMM2020ECutting dia DC (mm): 20 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 35 | Overall length LF (mm): 130 | Total teeth: 3 | Effective teeth: 1 | Stock: Yes
WMM2021ECutting dia DC (mm): 21 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 35 | Overall length LF (mm): 130 | Total teeth: 3 | Effective teeth: 1 | Stock: Yes
WMM2025ECutting dia DC (mm): 25 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 140 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM2026ECutting dia DC (mm): 26 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 140 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM2030ECutting dia DC (mm): 30 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 25 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Total teeth: 5 | Effective teeth: 1 | Stock: Yes
WMM2020ELCutting dia DC (mm): 20 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 60 | Overall length LF (mm): 185 | Total teeth: 3 | Effective teeth: 1 | Stock: Yes
WMM2021ELCutting dia DC (mm): 21 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 35 | Overall length LF (mm): 185 | Total teeth: 3 | Effective teeth: 1 | Stock: Yes
WMM2025ELCutting dia DC (mm): 25 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 75 | Overall length LF (mm): 220 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM2026ELCutting dia DC (mm): 26 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 220 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM2030ELCutting dia DC (mm): 30 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 25 | Head length LH (mm): 50 | Overall length LF (mm): 230 | Total teeth: 5 | Effective teeth: 1 | Stock: Yes
WMM2020ELHCutting dia DC (mm): 20 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 60 | Overall length LF (mm): 185 | Total teeth: 3 | Effective teeth: 1 | Stock: Yes
WMM2021ELHCutting dia DC (mm): 21 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 35 | Overall length LF (mm): 185 | Total teeth: 3 | Effective teeth: 1 | Stock: Yes
WMM2025ELHCutting dia DC (mm): 25 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 75 | Overall length LF (mm): 220 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM2026ELHCutting dia DC (mm): 26 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 220 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM2030ELHCutting dia DC (mm): 30 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 25 | Head length LH (mm): 50 | Overall length LF (mm): 230 | Total teeth: 5 | Effective teeth: 1 | Stock: Yes
WMM2022EXLHCutting dia DC (mm): 22 | Max depth of cut APMX (mm): 17 | Shank dia DMM (mm): 20 | Head length LH (mm): 35 | Overall length LF (mm): 250 | Total teeth: 3 | Effective teeth: 1
WMM2027EXLHCutting dia DC (mm): 27 | Max depth of cut APMX (mm): 26 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 320 | Total teeth: 4 | Effective teeth: 1
WMM2030EXLHCutting dia DC (mm): 30 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 25 | Head length LH (mm): 50 | Overall length LF (mm): 350 | Total teeth: 5 | Effective teeth: 1
