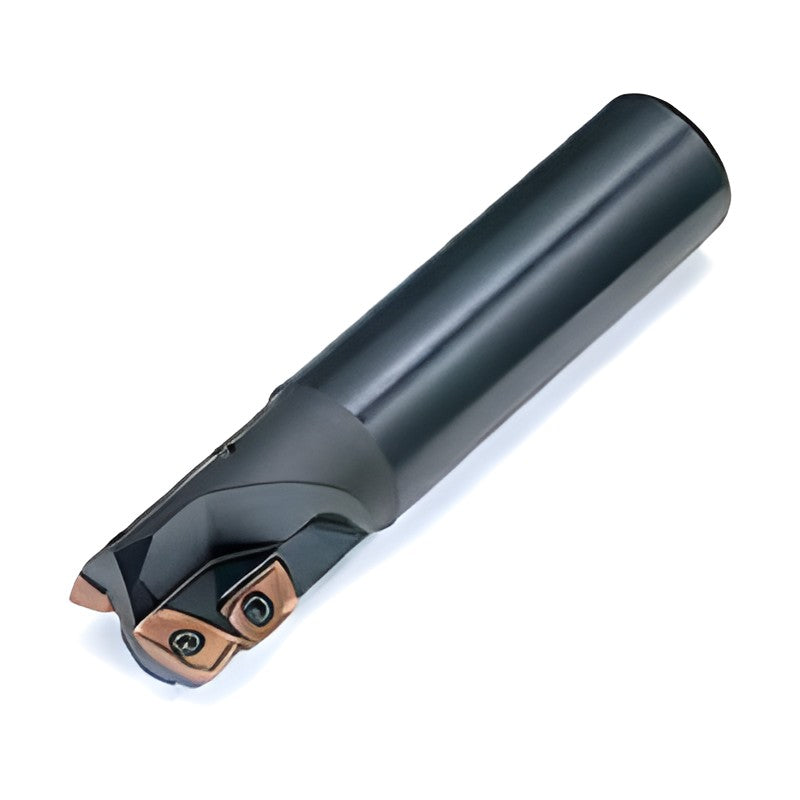

Sumitomo Electric Hardmetal SEC-Wave Multi-Function WMM 3000E/EL/ELH/EXLH Shank Cutter

Sumitomo Electric Hardmetal SEC-Wave Multi-Function WMM 3000E/EL/ELH/EXLH Shank Cutter

Multi-function shank type cutter using Wave Mill inserts for slotting, side milling, ramping, pocketing, drilling and helical milling with one tool.

Key features

  • One tool for side milling, slotting and drilling
  • Suited to ramping, helical and pocket milling
  • Low cutting force
  • Single insert type for easy tool management
WMM3032E Cutting dia DC (mm): 32 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3033E Cutting dia DC (mm): 33 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3035E Cutting dia DC (mm): 35 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3040E Cutting dia DC (mm): 40 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 55 | Overall length LF (mm): 160 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3032EL Cutting dia DC (mm): 32 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 90 | Overall length LF (mm): 230 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3033EL Cutting dia DC (mm): 33 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 230 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3035EL Cutting dia DC (mm): 35 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 230 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3040EL Cutting dia DC (mm): 40 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 55 | Overall length LF (mm): 240 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3032ELH Cutting dia DC (mm): 32 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 90 | Overall length LF (mm): 230 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3033ELH Cutting dia DC (mm): 33 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 230 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3035ELH Cutting dia DC (mm): 35 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 230 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3040ELH Cutting dia DC (mm): 40 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 55 | Overall length LF (mm): 240 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3035EXLH Cutting dia DC (mm): 35 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 370 | Total teeth: 4 | Effective teeth: 1
WMM3040EXLH Cutting dia DC (mm): 40 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 55 | Overall length LF (mm): 420 | Total teeth: 4 | Effective teeth: 1
Milling CuttersSumitomo Electric Hardmetal
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Multi-Function WMM 3000E/EL/ELH/EXLH Shank Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (14)

WMM3032E, WMM3033E, WMM3035E, WMM3040E, WMM3032EL, WMM3033EL, WMM3035EL, WMM3040EL, WMM3032ELH, WMM3033ELH + 4 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WMM3032ECutting dia DC (mm): 32 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3033ECutting dia DC (mm): 33 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3035ECutting dia DC (mm): 35 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3040ECutting dia DC (mm): 40 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 55 | Overall length LF (mm): 160 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3032ELCutting dia DC (mm): 32 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 90 | Overall length LF (mm): 230 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3033ELCutting dia DC (mm): 33 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 230 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3035ELCutting dia DC (mm): 35 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 230 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3040ELCutting dia DC (mm): 40 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 55 | Overall length LF (mm): 240 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3032ELHCutting dia DC (mm): 32 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 90 | Overall length LF (mm): 230 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3033ELHCutting dia DC (mm): 33 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 230 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3035ELHCutting dia DC (mm): 35 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 230 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3040ELHCutting dia DC (mm): 40 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 55 | Overall length LF (mm): 240 | Total teeth: 4 | Effective teeth: 1 | Stock: Yes
WMM3035EXLHCutting dia DC (mm): 35 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 370 | Total teeth: 4 | Effective teeth: 1
WMM3040EXLHCutting dia DC (mm): 40 | Max depth of cut APMX (mm): 39 | Shank dia DMM (mm): 32 | Head length LH (mm): 55 | Overall length LF (mm): 420 | Total teeth: 4 | Effective teeth: 1
