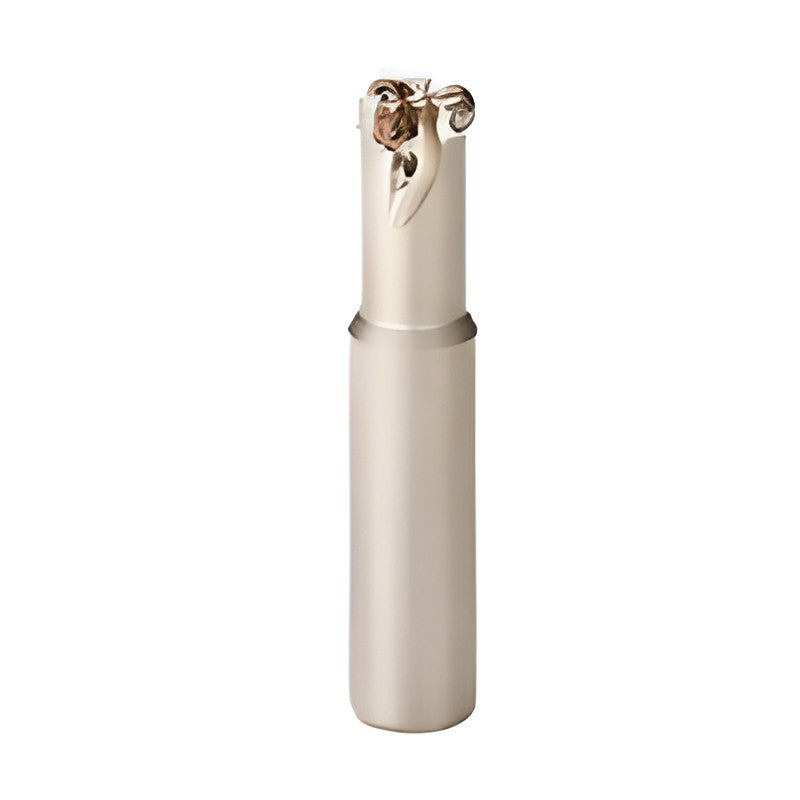

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSE 10000E Shank Type Radius Cutter

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSE 10000E Shank Type Radius Cutter

High-efficiency, high-rigidity radius cutter with a wide insert seat for machining stainless steel and difficult-to-cut materials.

Key features

  • High-rigidity clamp design with wide insert seat
RSE10025E02 Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 20.3 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 2 | Weight (kg): 0.4 | Stock: Yes
RSE10025E03 Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 20.3 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.39 | Stock: Yes
RSE10032E03 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 27.1 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.68 | Stock: Yes
RSE10032E04 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 27.1 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 4 | Weight (kg): 0.67 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSE 10000E Shank Type Radius Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (4)

RSE10025E02, RSE10025E03, RSE10032E03, RSE10032E04

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RSE10025E02Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 20.3 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 2 | Weight (kg): 0.4 | Stock: Yes
RSE10025E03Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 20.3 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.39 | Stock: Yes
RSE10032E03Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 27.1 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.68 | Stock: Yes
RSE10032E04Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 27.1 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 4 | Weight (kg): 0.67 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
