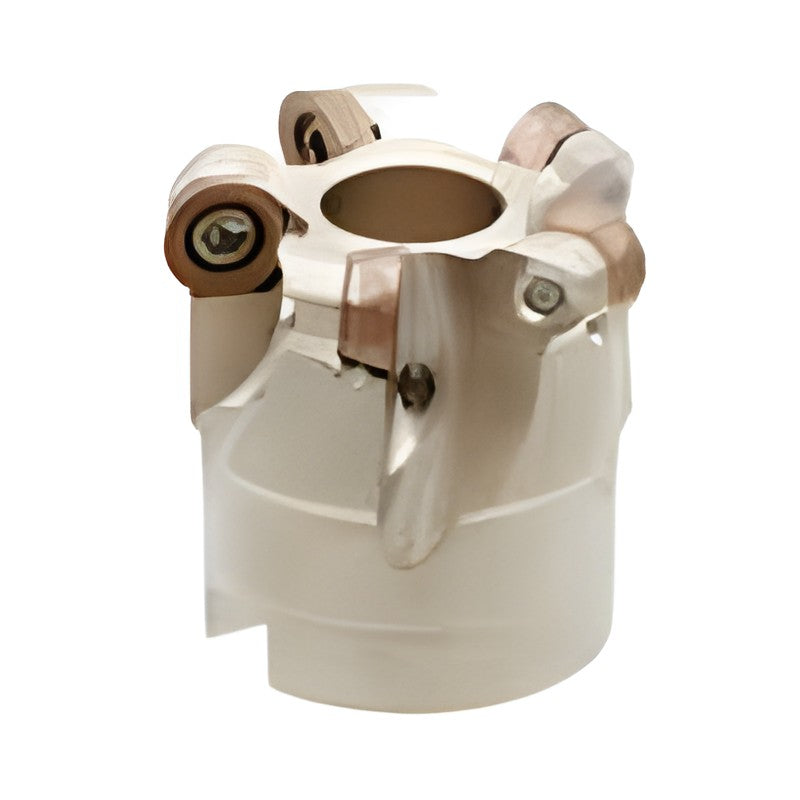

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSE 10000RS Radius Cutter

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSE 10000RS Radius Cutter

High-efficiency, high-rigidity radius cutter with a wide insert seat for machining stainless steel and difficult-to-cut materials.

Key features

  • High-rigidity clamp design with wide insert seat
  • Same body accepts ground 4-corner and M-class 8-corner inserts
RSE10040RS05 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 5 | Weight (kg): 0.16 | Stock: Yes
RSE10050RS06 Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.27 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSE 10000RS Radius Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (2)

RSE10040RS05, RSE10050RS06

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RSE10040RS05Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 5 | Weight (kg): 0.16 | Stock: Yes
RSE10050RS06Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.27 | Stock: Yes
