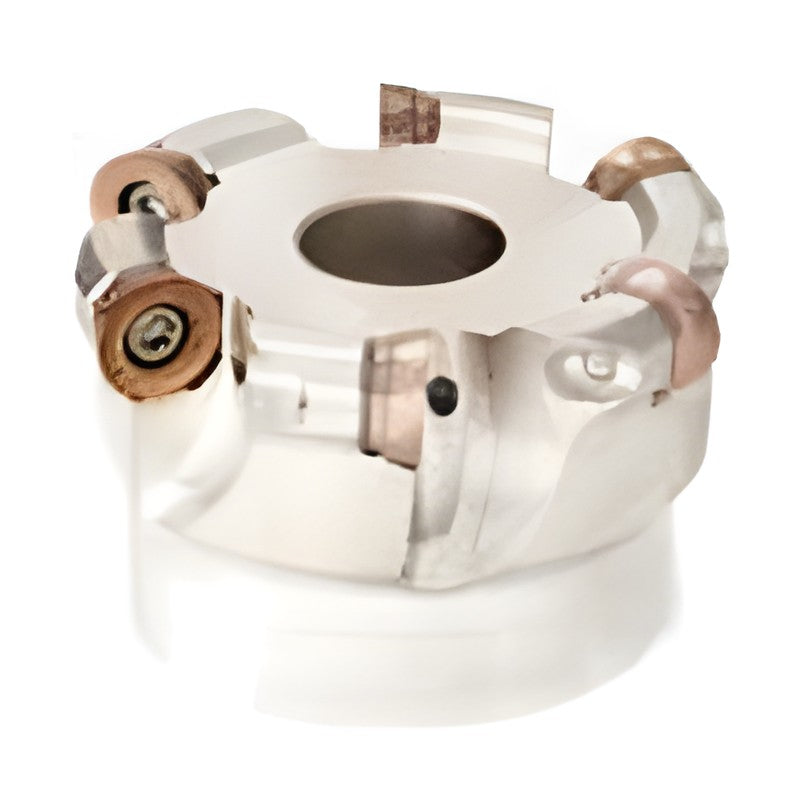

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSE 12000R(S) Radius Cutter

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSE 12000R(S) Radius Cutter

High-efficiency, high-rigidity radius cutter with a wide insert seat for machining stainless steel and difficult-to-cut materials.

Key features

  • High-rigidity clamp design with wide insert seat
  • Same body accepts ground 4-corner and M-class 8-corner inserts
RSE12040RS04 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 13.5 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.15 | Stock: Yes
RSE12042RS04 Max cutting dia DCX (mm): 42 | Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.17 | Stock: Yes
RSE12050RS05 Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 38 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.24 | Stock: Yes
RSE12050RS06 Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 38 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.23 | Stock: Yes
RSE12052RS05 Max cutting dia DCX (mm): 52 | Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.26 | Stock: Yes
RSE12063RS06 Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 51 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.47 | Stock: Yes
RSE12080RS08 Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 68 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 8 | Weight (kg): 0.89 | Stock: Yes
RSE12080R08 Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 68 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 8 | Weight (kg): 0.9 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSE 12000R(S) Radius Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (8)

RSE12040RS04, RSE12042RS04, RSE12050RS05, RSE12050RS06, RSE12052RS05, RSE12063RS06, RSE12080RS08, RSE12080R08

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RSE12040RS04Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 13.5 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.15 | Stock: Yes
RSE12042RS04Max cutting dia DCX (mm): 42 | Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.17 | Stock: Yes
RSE12050RS05Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 38 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.24 | Stock: Yes
RSE12050RS06Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 38 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.23 | Stock: Yes
RSE12052RS05Max cutting dia DCX (mm): 52 | Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.26 | Stock: Yes
RSE12063RS06Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 51 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.47 | Stock: Yes
RSE12080RS08Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 68 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 8 | Weight (kg): 0.89 | Stock: Yes
RSE12080R08Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 68 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 8 | Weight (kg): 0.9 | Stock: Yes
