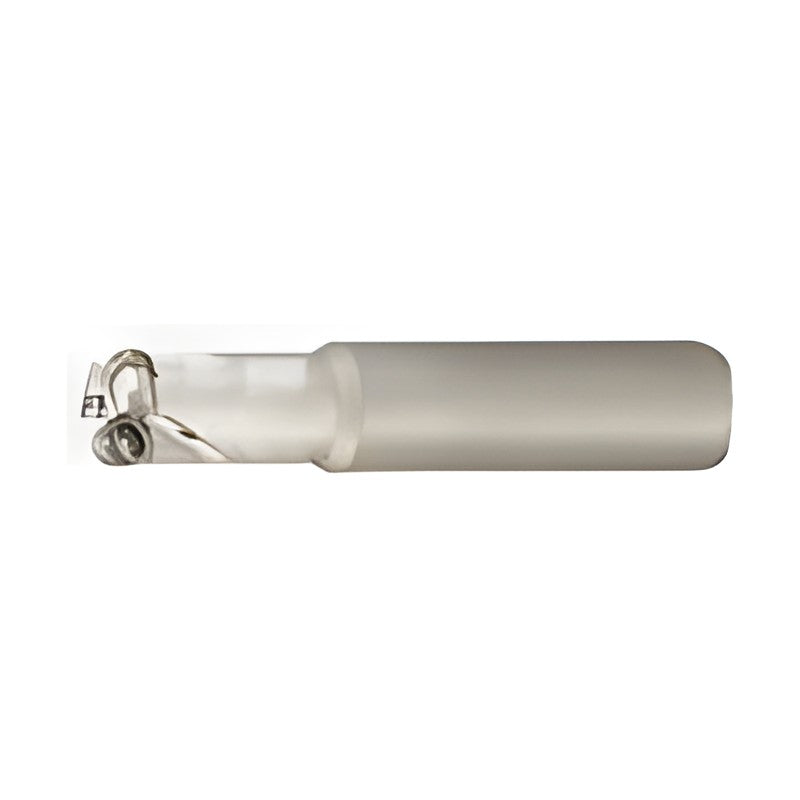

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 08000ES/10000ES/12000ES Shank Type Radius Cutter

Radius (round insert) cutter for die cavity, ramping and helical milling at high efficiency.

Key features

Die cavity, ramping and helical milling
Round RDET inserts

RSX08020ES		Max cutting dia DCX (mm): 20 \| Cutting dia DC (mm): 12 \| Shank dia DMM (mm): 20 \| Neck dia DN (mm): 16.9 \| Head length LH (mm): 30 \| Overall length LF (mm): 100 \| Teeth: 2 \| Weight (kg): 0.3 \| Stock: Yes
RSX08025ES		Max cutting dia DCX (mm): 25 \| Cutting dia DC (mm): 17 \| Shank dia DMM (mm): 25 \| Neck dia DN (mm): 21.9 \| Head length LH (mm): 40 \| Overall length LF (mm): 120 \| Teeth: 3 \| Weight (kg): 0.4 \| Stock: Yes
RSXF08020ES		Max cutting dia DCX (mm): 20 \| Cutting dia DC (mm): 12 \| Shank dia DMM (mm): 20 \| Neck dia DN (mm): 16.9 \| Head length LH (mm): 30 \| Overall length LF (mm): 100 \| Teeth: 3 \| Weight (kg): 0.3 \| Stock: Yes
RSXF08025ES		Max cutting dia DCX (mm): 25 \| Cutting dia DC (mm): 12 \| Shank dia DMM (mm): 25 \| Neck dia DN (mm): 21.9 \| Head length LH (mm): 40 \| Overall length LF (mm): 120 \| Teeth: 4 \| Weight (kg): 0.4 \| Stock: Yes
RSX10025ES		Max cutting dia DCX (mm): 25 \| Cutting dia DC (mm): 15 \| Shank dia DMM (mm): 25 \| Neck dia DN (mm): 20.3 \| Head length LH (mm): 50 \| Overall length LF (mm): 130 \| Teeth: 2 \| Weight (kg): 0.4 \| Stock: Yes
RSX10032ES		Max cutting dia DCX (mm): 32 \| Cutting dia DC (mm): 22 \| Shank dia DMM (mm): 32 \| Neck dia DN (mm): 27.1 \| Head length LH (mm): 50 \| Overall length LF (mm): 130 \| Teeth: 3 \| Weight (kg): 0.7 \| Stock: Yes
RSXF10025ES		Max cutting dia DCX (mm): 25 \| Cutting dia DC (mm): 15 \| Shank dia DMM (mm): 25 \| Neck dia DN (mm): 20.3 \| Head length LH (mm): 50 \| Overall length LF (mm): 130 \| Teeth: 3 \| Weight (kg): 0.4 \| Stock: Yes
RSXF10032ES		Max cutting dia DCX (mm): 32 \| Cutting dia DC (mm): 22 \| Shank dia DMM (mm): 32 \| Neck dia DN (mm): 27.1 \| Head length LH (mm): 50 \| Overall length LF (mm): 130 \| Teeth: 4 \| Weight (kg): 0.7 \| Stock: Yes
RSX12032ES		Max cutting dia DCX (mm): 32 \| Cutting dia DC (mm): 20 \| Shank dia DMM (mm): 32 \| Neck dia DN (mm): 25.6 \| Head length LH (mm): 50 \| Overall length LF (mm): 130 \| Teeth: 2 \| Weight (kg): 0.7 \| Stock: Yes
RSXF12032ES		Max cutting dia DCX (mm): 32 \| Cutting dia DC (mm): 20 \| Shank dia DMM (mm): 32 \| Neck dia DN (mm): 25.6 \| Head length LH (mm): 50 \| Overall length LF (mm): 130 \| Teeth: 3 \| Weight (kg): 0.7 \| Stock: Yes

Milling CuttersSumitomo Electric Hardmetal

10 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 08000ES/10000ES/12000ES Shank Type Radius Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (10)

RSX08020ES, RSX08025ES, RSXF08020ES, RSXF08025ES, RSX10025ES, RSX10032ES, RSXF10025ES, RSXF10032ES, RSX12032ES, RSXF12032ES

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	RSX08020ES	Max cutting dia DCX (mm): 20 \| Cutting dia DC (mm): 12 \| Shank dia DMM (mm): 20 \| Neck dia DN (mm): 16.9 \| Head length LH (mm): 30 \| Overall length LF (mm): 100 \| Teeth: 2 \| Weight (kg): 0.3 \| Stock: Yes
	RSX08025ES	Max cutting dia DCX (mm): 25 \| Cutting dia DC (mm): 17 \| Shank dia DMM (mm): 25 \| Neck dia DN (mm): 21.9 \| Head length LH (mm): 40 \| Overall length LF (mm): 120 \| Teeth: 3 \| Weight (kg): 0.4 \| Stock: Yes
	RSXF08020ES	Max cutting dia DCX (mm): 20 \| Cutting dia DC (mm): 12 \| Shank dia DMM (mm): 20 \| Neck dia DN (mm): 16.9 \| Head length LH (mm): 30 \| Overall length LF (mm): 100 \| Teeth: 3 \| Weight (kg): 0.3 \| Stock: Yes
	RSXF08025ES	Max cutting dia DCX (mm): 25 \| Cutting dia DC (mm): 12 \| Shank dia DMM (mm): 25 \| Neck dia DN (mm): 21.9 \| Head length LH (mm): 40 \| Overall length LF (mm): 120 \| Teeth: 4 \| Weight (kg): 0.4 \| Stock: Yes
	RSX10025ES	Max cutting dia DCX (mm): 25 \| Cutting dia DC (mm): 15 \| Shank dia DMM (mm): 25 \| Neck dia DN (mm): 20.3 \| Head length LH (mm): 50 \| Overall length LF (mm): 130 \| Teeth: 2 \| Weight (kg): 0.4 \| Stock: Yes
	RSX10032ES	Max cutting dia DCX (mm): 32 \| Cutting dia DC (mm): 22 \| Shank dia DMM (mm): 32 \| Neck dia DN (mm): 27.1 \| Head length LH (mm): 50 \| Overall length LF (mm): 130 \| Teeth: 3 \| Weight (kg): 0.7 \| Stock: Yes
	RSXF10025ES	Max cutting dia DCX (mm): 25 \| Cutting dia DC (mm): 15 \| Shank dia DMM (mm): 25 \| Neck dia DN (mm): 20.3 \| Head length LH (mm): 50 \| Overall length LF (mm): 130 \| Teeth: 3 \| Weight (kg): 0.4 \| Stock: Yes
	RSXF10032ES	Max cutting dia DCX (mm): 32 \| Cutting dia DC (mm): 22 \| Shank dia DMM (mm): 32 \| Neck dia DN (mm): 27.1 \| Head length LH (mm): 50 \| Overall length LF (mm): 130 \| Teeth: 4 \| Weight (kg): 0.7 \| Stock: Yes
	RSX12032ES	Max cutting dia DCX (mm): 32 \| Cutting dia DC (mm): 20 \| Shank dia DMM (mm): 32 \| Neck dia DN (mm): 25.6 \| Head length LH (mm): 50 \| Overall length LF (mm): 130 \| Teeth: 2 \| Weight (kg): 0.7 \| Stock: Yes
	RSXF12032ES	Max cutting dia DCX (mm): 32 \| Cutting dia DC (mm): 20 \| Shank dia DMM (mm): 32 \| Neck dia DN (mm): 25.6 \| Head length LH (mm): 50 \| Overall length LF (mm): 130 \| Teeth: 3 \| Weight (kg): 0.7 \| Stock: Yes
