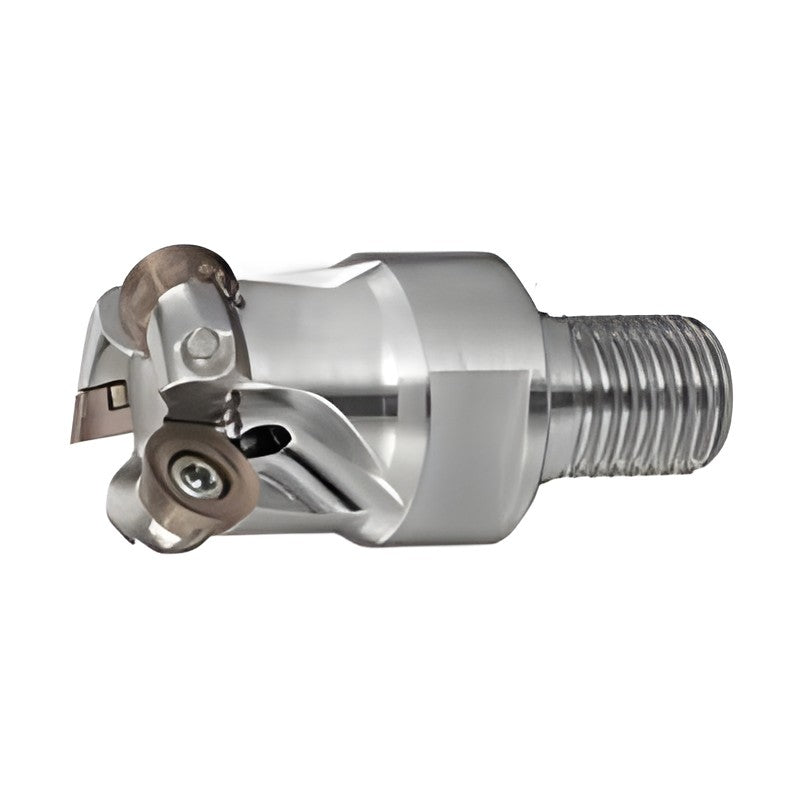

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 08000M/10000M/12000M Modular Head

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 08000M/10000M/12000M Modular Head

Exchangeable head of the SEC-Modular Tool system, screw-mounted on carbide, steel or BBT integrated arbors.

Key features

  • Screw-mounted exchangeable head
  • Combines with carbide, steel or BBT30 integrated arbors
RSX08020M10Z2 Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 2 | Weight (kg): 0.1 | Stock: Yes
RSX08025M12Z3 Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 3 | Weight (kg): 0.1 | Stock: Yes
RSX08032M16Z4 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24 | Boss dia DCSFMS (mm): 28.9 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Weight (kg): 0.2 | Stock: Yes
RSXF08020M10Z3 Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 3 | Weight (kg): 0.1 | Stock: Yes
RSXF08025M12Z4 Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 4 | Weight (kg): 0.1 | Stock: Yes
RSXF08032M16Z5 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24 | Boss dia DCSFMS (mm): 28.9 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 5 | Weight (kg): 0.2 | Stock: Yes
RSX10025M12Z2 Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Weight (kg): 0.1 | Stock: Yes
RSX10032M16Z3 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.2 | Stock: Yes
RSXF10025M12Z3 Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 3 | Weight (kg): 0.1 | Stock: Yes
RSXF10032M16Z4 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Weight (kg): 0.2 | Stock: Yes
RSX12032M16Z2 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 20 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Weight (kg): 0.2 | Stock: Yes
RSX12040M16Z3 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.3 | Stock: Yes
RSXF12032M16Z3 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 20 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.2 | Stock: Yes
RSXF12040M16Z4 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Weight (kg): 0.3 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 08000M/10000M/12000M Modular Head

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (14)

RSX08020M10Z2, RSX08025M12Z3, RSX08032M16Z4, RSXF08020M10Z3, RSXF08025M12Z4, RSXF08032M16Z5, RSX10025M12Z2, RSX10032M16Z3, RSXF10025M12Z3, RSXF10032M16Z4 + 4 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RSX08020M10Z2Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 2 | Weight (kg): 0.1 | Stock: Yes
RSX08025M12Z3Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 3 | Weight (kg): 0.1 | Stock: Yes
RSX08032M16Z4Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24 | Boss dia DCSFMS (mm): 28.9 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Weight (kg): 0.2 | Stock: Yes
RSXF08020M10Z3Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 3 | Weight (kg): 0.1 | Stock: Yes
RSXF08025M12Z4Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 4 | Weight (kg): 0.1 | Stock: Yes
RSXF08032M16Z5Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24 | Boss dia DCSFMS (mm): 28.9 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 5 | Weight (kg): 0.2 | Stock: Yes
RSX10025M12Z2Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Weight (kg): 0.1 | Stock: Yes
RSX10032M16Z3Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.2 | Stock: Yes
RSXF10025M12Z3Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 3 | Weight (kg): 0.1 | Stock: Yes
RSXF10032M16Z4Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Weight (kg): 0.2 | Stock: Yes
RSX12032M16Z2Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 20 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Weight (kg): 0.2 | Stock: Yes
RSX12040M16Z3Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.3 | Stock: Yes
RSXF12032M16Z3Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 20 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.2 | Stock: Yes
RSXF12040M16Z4Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Weight (kg): 0.3 | Stock: Yes
