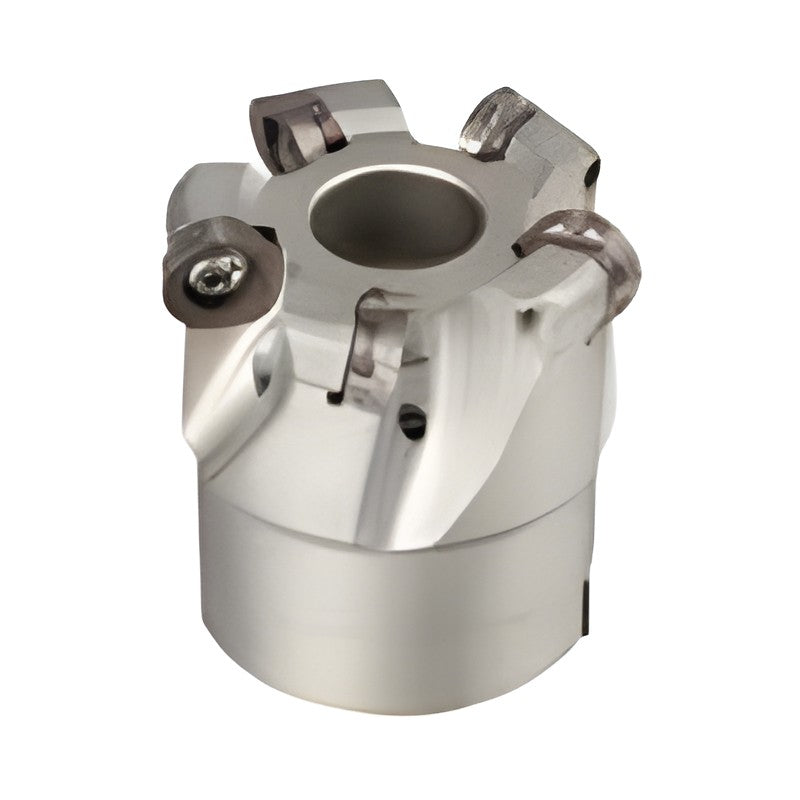

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 10000RS Radius Cutter

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 10000RS Radius Cutter

Radius (round insert) cutter for die cavity, ramping and helical milling at high efficiency.

Key features

  • Die cavity, ramping and helical milling
  • Round RDET inserts
RSX10040RS Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 34 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.2 | Stock: Yes
RSX10050RS Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.3 | Stock: Yes
RSX10052RS Max cutting dia DCX (mm): 52 | Cutting dia DC (mm): 42 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.4 | Stock: Yes
RSXF10040RS Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 34 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 5 | Weight (kg): 0.2 | Stock: Yes
RSXF10050RS Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.3 | Stock: Yes
RSXF10052RS Max cutting dia DCX (mm): 52 | Cutting dia DC (mm): 42 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.3 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 10000RS Radius Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (6)

RSX10040RS, RSX10050RS, RSX10052RS, RSXF10040RS, RSXF10050RS, RSXF10052RS

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RSX10040RSMax cutting dia DCX (mm): 40 | Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 34 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.2 | Stock: Yes
RSX10050RSMax cutting dia DCX (mm): 50 | Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.3 | Stock: Yes
RSX10052RSMax cutting dia DCX (mm): 52 | Cutting dia DC (mm): 42 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.4 | Stock: Yes
RSXF10040RSMax cutting dia DCX (mm): 40 | Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 34 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 5 | Weight (kg): 0.2 | Stock: Yes
RSXF10050RSMax cutting dia DCX (mm): 50 | Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.3 | Stock: Yes
RSXF10052RSMax cutting dia DCX (mm): 52 | Cutting dia DC (mm): 42 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.3 | Stock: Yes
