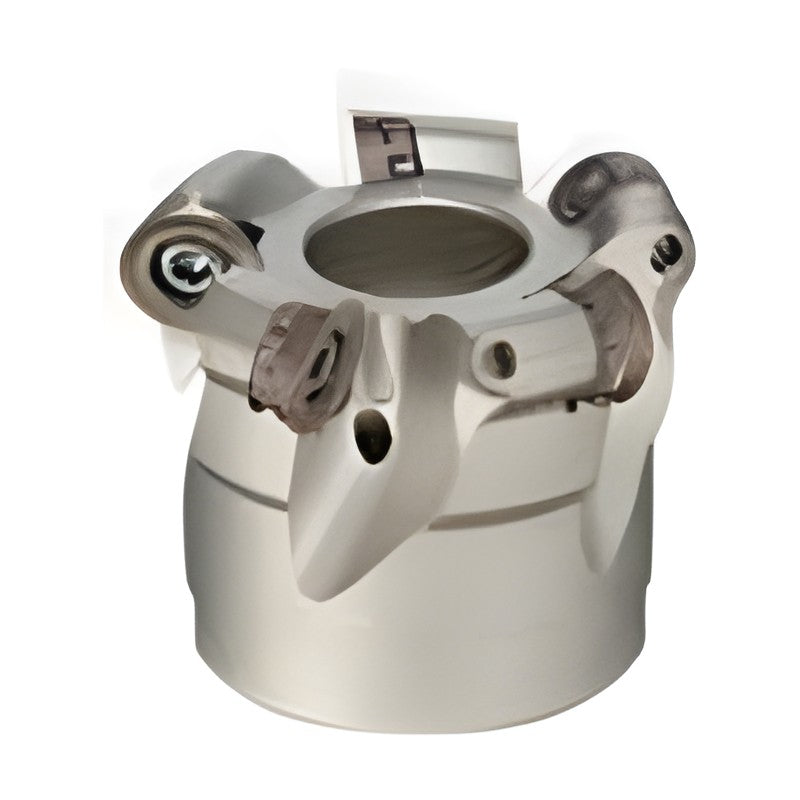

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 12000R(S) Radius Cutter

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 12000R(S) Radius Cutter

Radius (round insert) cutter for die cavity, ramping and helical milling at high efficiency.

Key features

  • Die cavity, ramping and helical milling
  • Round RDET inserts
RSX12040RS Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 32 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 13.5 | Bolt dia D2 (mm): 9 | Teeth: 3 | Weight (kg): 0.2 | Stock: Yes
RSX12050RS Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 38 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.3 | Stock: Yes
RSX12052RS Max cutting dia DCX (mm): 52 | Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.3 | Stock: Yes
RSX12063RS Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 51 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.4 | Stock: Yes
RSX12066RS Max cutting dia DCX (mm): 66 | Cutting dia DC (mm): 54 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 6 | Weight (kg): 0.7 | Stock: Yes
RSX12080RS Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 68 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 6 | Weight (kg): 1.0 | Stock: Yes
RSX12100RS Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 88 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 6 | Weight (kg): 1.4 | Stock: Yes
RSX12080R Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 68 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13 | Teeth: 6 | Weight (kg): 1.0 | Stock: Yes
RSX12100R Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 88 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 28 | Teeth: 6 | Weight (kg): 1.9 | Stock: Yes
RSXF12040RS Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 32 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 13.5 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.2 | Stock: Yes
RSXF12050RS Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 38 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.3 | Stock: Yes
RSXF12052RS Max cutting dia DCX (mm): 52 | Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.3 | Stock: Yes
RSXF12063RS Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 51 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.4 | Stock: Yes
RSXF12066RS Max cutting dia DCX (mm): 66 | Cutting dia DC (mm): 54 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 7 | Weight (kg): 0.7 | Stock: Yes
RSXF12080RS Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 68 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 7 | Weight (kg): 0.9 | Stock: Yes
RSXF12100RS Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 88 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 10 | Weight (kg): 1.3 | Stock: Yes
RSXF12080R Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 68 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13 | Teeth: 7 | Weight (kg): 1.0 | Stock: Yes
RSXF12100R Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 88 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 28 | Teeth: 10 | Weight (kg): 1.8 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 12000R(S) Radius Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (18)

RSX12040RS, RSX12050RS, RSX12052RS, RSX12063RS, RSX12066RS, RSX12080RS, RSX12100RS, RSX12080R, RSX12100R, RSXF12040RS + 8 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RSX12040RSMax cutting dia DCX (mm): 40 | Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 32 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 13.5 | Bolt dia D2 (mm): 9 | Teeth: 3 | Weight (kg): 0.2 | Stock: Yes
RSX12050RSMax cutting dia DCX (mm): 50 | Cutting dia DC (mm): 38 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.3 | Stock: Yes
RSX12052RSMax cutting dia DCX (mm): 52 | Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.3 | Stock: Yes
RSX12063RSMax cutting dia DCX (mm): 63 | Cutting dia DC (mm): 51 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.4 | Stock: Yes
RSX12066RSMax cutting dia DCX (mm): 66 | Cutting dia DC (mm): 54 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 6 | Weight (kg): 0.7 | Stock: Yes
RSX12080RSMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 68 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 6 | Weight (kg): 1.0 | Stock: Yes
RSX12100RSMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 88 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 6 | Weight (kg): 1.4 | Stock: Yes
RSX12080RMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 68 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13 | Teeth: 6 | Weight (kg): 1.0 | Stock: Yes
RSX12100RMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 88 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 28 | Teeth: 6 | Weight (kg): 1.9 | Stock: Yes
RSXF12040RSMax cutting dia DCX (mm): 40 | Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 32 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 13.5 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.2 | Stock: Yes
RSXF12050RSMax cutting dia DCX (mm): 50 | Cutting dia DC (mm): 38 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.3 | Stock: Yes
RSXF12052RSMax cutting dia DCX (mm): 52 | Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.3 | Stock: Yes
RSXF12063RSMax cutting dia DCX (mm): 63 | Cutting dia DC (mm): 51 | Boss dia DCSFMS (mm): 40 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.4 | Stock: Yes
RSXF12066RSMax cutting dia DCX (mm): 66 | Cutting dia DC (mm): 54 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 7 | Weight (kg): 0.7 | Stock: Yes
RSXF12080RSMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 68 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 7 | Weight (kg): 0.9 | Stock: Yes
RSXF12100RSMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 88 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 10 | Weight (kg): 1.3 | Stock: Yes
RSXF12080RMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 68 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13 | Teeth: 7 | Weight (kg): 1.0 | Stock: Yes
RSXF12100RMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 88 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 28 | Teeth: 10 | Weight (kg): 1.8 | Stock: Yes
