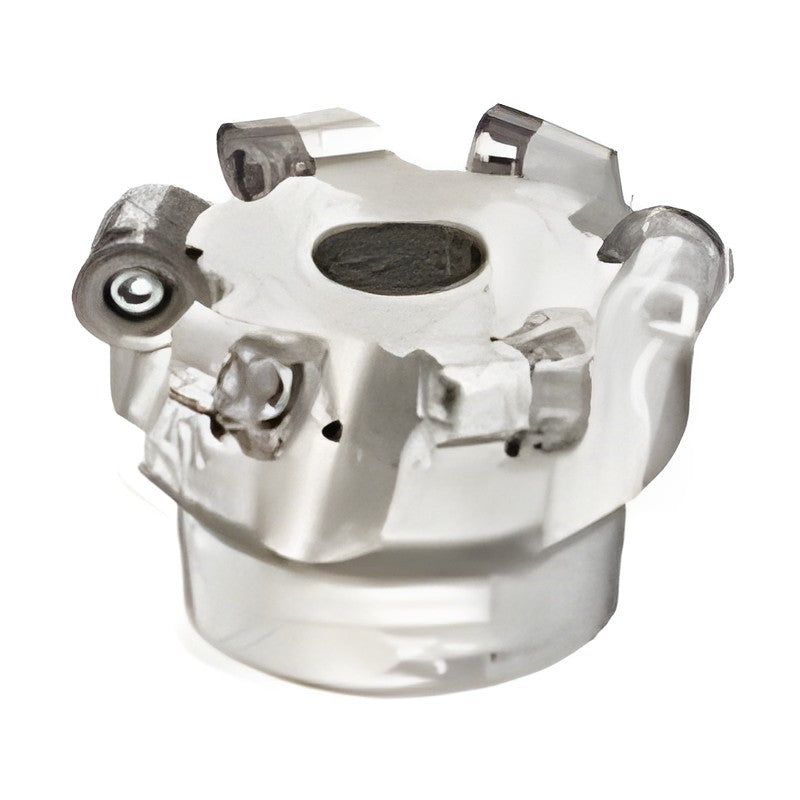

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 16000R(S) Radius Cutter

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 16000R(S) Radius Cutter

Radius (round insert) cutter for die cavity, ramping and helical milling at high efficiency.

Key features

  • Die cavity, ramping and helical milling
  • Round RDET inserts
RSX16063RS Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 47 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.5 | Stock: Yes
RSX16080RS Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 5 | Weight (kg): 0.9 | Stock: Yes
RSX16100RS Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 6 | Weight (kg): 1.3 | Stock: Yes
RSX16125RS Max cutting dia DCX (mm): 125 | Cutting dia DC (mm): 109 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 40 | Keyway width KWW (mm): 16.4 | Keyway depth KDP (mm): 9.5 | Counterbore depth CBDP (mm): 29 | Bolt dia D1 (mm): 52 | Bolt dia D2 (mm): 29 | Teeth: 6 | Weight (kg): 2.6 | Stock: Yes
RSX16080R Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13 | Teeth: 5 | Weight (kg): 0.9 | Stock: Yes
RSX16100R Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 28 | Teeth: 6 | Weight (kg): 1.8 | Stock: Yes
RSX16125R Max cutting dia DCX (mm): 125 | Cutting dia DC (mm): 109 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10.0 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 55 | Bolt dia D2 (mm): 30 | Teeth: 6 | Weight (kg): 2.7 | Stock: Yes
RSXF16063RS Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 47 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.4 | Stock: Yes
RSXF16080RS Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 6 | Weight (kg): 0.8 | Stock: Yes
RSXF16100RS Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 7 | Weight (kg): 1.3 | Stock: Yes
RSXF16125RS Max cutting dia DCX (mm): 125 | Cutting dia DC (mm): 109 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 40 | Keyway width KWW (mm): 16.4 | Keyway depth KDP (mm): 9.5 | Counterbore depth CBDP (mm): 29 | Bolt dia D1 (mm): 52 | Bolt dia D2 (mm): 29 | Teeth: 8 | Weight (kg): 2.5 | Stock: Yes
RSXF16160RS Max cutting dia DCX (mm): 160 | Cutting dia DC (mm): 144 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 40 | Keyway width KWW (mm): 16.4 | Keyway depth KDP (mm): 9.5 | Counterbore depth CBDP (mm): 29 | Bolt dia D1 (mm): 88 | Teeth: 10 | Weight (kg): 4.8 | Stock: Not marked
RSXF16080R Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13 | Teeth: 6 | Weight (kg): 0.8 | Stock: Yes
RSXF16100R Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 28 | Teeth: 7 | Weight (kg): 1.7 | Stock: Yes
RSXF16125R Max cutting dia DCX (mm): 125 | Cutting dia DC (mm): 109 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10.0 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 55 | Bolt dia D2 (mm): 30 | Teeth: 8 | Weight (kg): 2.6 | Stock: Yes
RSXF16160R Max cutting dia DCX (mm): 160 | Cutting dia DC (mm): 144 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11.0 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 72 | Teeth: 10 | Weight (kg): 4.3 | Stock: Not marked
Milling CuttersSumitomo Electric Hardmetal
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Radius Mill RSX(F) 16000R(S) Radius Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (16)

RSX16063RS, RSX16080RS, RSX16100RS, RSX16125RS, RSX16080R, RSX16100R, RSX16125R, RSXF16063RS, RSXF16080RS, RSXF16100RS + 6 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RSX16063RSMax cutting dia DCX (mm): 63 | Cutting dia DC (mm): 47 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.5 | Stock: Yes
RSX16080RSMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 5 | Weight (kg): 0.9 | Stock: Yes
RSX16100RSMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 6 | Weight (kg): 1.3 | Stock: Yes
RSX16125RSMax cutting dia DCX (mm): 125 | Cutting dia DC (mm): 109 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 40 | Keyway width KWW (mm): 16.4 | Keyway depth KDP (mm): 9.5 | Counterbore depth CBDP (mm): 29 | Bolt dia D1 (mm): 52 | Bolt dia D2 (mm): 29 | Teeth: 6 | Weight (kg): 2.6 | Stock: Yes
RSX16080RMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13 | Teeth: 5 | Weight (kg): 0.9 | Stock: Yes
RSX16100RMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 28 | Teeth: 6 | Weight (kg): 1.8 | Stock: Yes
RSX16125RMax cutting dia DCX (mm): 125 | Cutting dia DC (mm): 109 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10.0 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 55 | Bolt dia D2 (mm): 30 | Teeth: 6 | Weight (kg): 2.7 | Stock: Yes
RSXF16063RSMax cutting dia DCX (mm): 63 | Cutting dia DC (mm): 47 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.4 | Stock: Yes
RSXF16080RSMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 6 | Weight (kg): 0.8 | Stock: Yes
RSXF16100RSMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 7 | Weight (kg): 1.3 | Stock: Yes
RSXF16125RSMax cutting dia DCX (mm): 125 | Cutting dia DC (mm): 109 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 40 | Keyway width KWW (mm): 16.4 | Keyway depth KDP (mm): 9.5 | Counterbore depth CBDP (mm): 29 | Bolt dia D1 (mm): 52 | Bolt dia D2 (mm): 29 | Teeth: 8 | Weight (kg): 2.5 | Stock: Yes
RSXF16160RSMax cutting dia DCX (mm): 160 | Cutting dia DC (mm): 144 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 40 | Keyway width KWW (mm): 16.4 | Keyway depth KDP (mm): 9.5 | Counterbore depth CBDP (mm): 29 | Bolt dia D1 (mm): 88 | Teeth: 10 | Weight (kg): 4.8 | Stock: Not marked
RSXF16080RMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13 | Teeth: 6 | Weight (kg): 0.8 | Stock: Yes
RSXF16100RMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 28 | Teeth: 7 | Weight (kg): 1.7 | Stock: Yes
RSXF16125RMax cutting dia DCX (mm): 125 | Cutting dia DC (mm): 109 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10.0 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 55 | Bolt dia D2 (mm): 30 | Teeth: 8 | Weight (kg): 2.6 | Stock: Yes
RSXF16160RMax cutting dia DCX (mm): 160 | Cutting dia DC (mm): 144 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11.0 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 72 | Teeth: 10 | Weight (kg): 4.3 | Stock: Not marked
