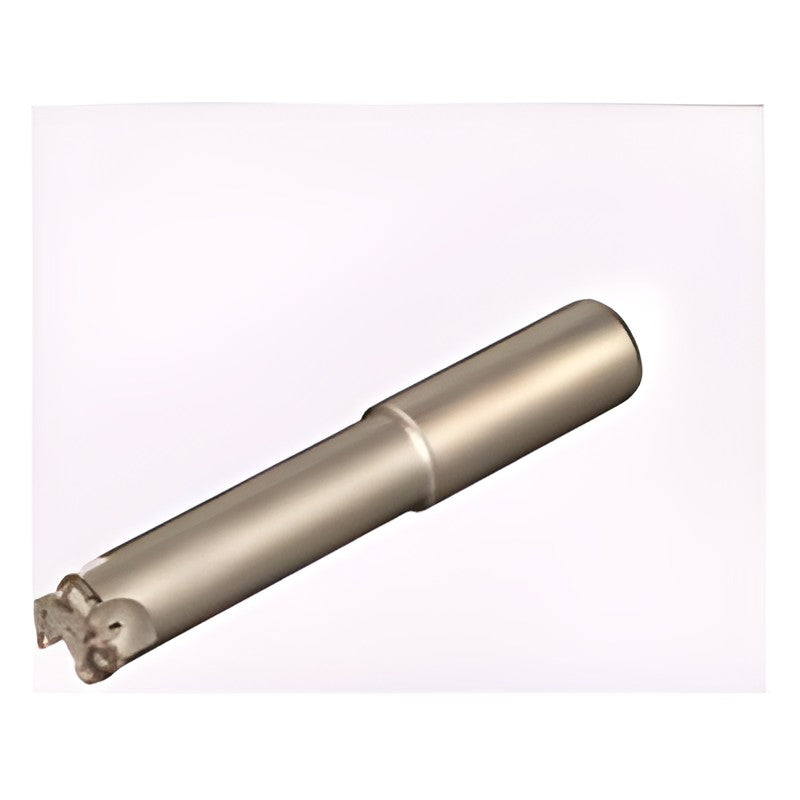

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX 08000E/10000E/16000E Shank Type Radius Cutter

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX 08000E/10000E/16000E Shank Type Radius Cutter

Multi-function radius cutter for die cavity, ramping and helical milling, with an insert range covering steel to non-ferrous metals.

Key features

  • Specially surface-treated high-durability body
  • Anti-vibration edge design
  • Air holes on all sizes for chip evacuation
  • Torque Plus screw clamping of inserts
WRCX08020ES Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12 | Shank dia DMM (mm): 20 | Neck dia DN (mm): 18 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 2 | Weight (kg): 0.2 | Stock: Yes
WRCX08020EM Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12 | Shank dia DMM (mm): 20 | Neck dia DN (mm): 18 | Head length LH (mm): 100 | Overall length LF (mm): 180 | Teeth: 2 | Weight (kg): 0.3 | Stock: Yes
WRCX08020EL Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12 | Shank dia DMM (mm): 20 | Neck dia DN (mm): 18 | Head length LH (mm): 130 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 0.5 | Stock: Not marked
WRCX08025ES Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 21 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.4 | Stock: Yes
WRCX08025EM Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 21 | Head length LH (mm): 100 | Overall length LF (mm): 180 | Teeth: 3 | Weight (kg): 0.5 | Stock: Yes
WRCX08025EL Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 21 | Head length LH (mm): 130 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 0.7 | Stock: Not marked
WRCX10025ES Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 21 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 2 | Weight (kg): 0.4 | Stock: Yes
WRCX10025EM Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 21 | Head length LH (mm): 100 | Overall length LF (mm): 180 | Teeth: 2 | Weight (kg): 0.5 | Stock: Yes
WRCX10025EL Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 21 | Head length LH (mm): 130 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 0.7 | Stock: Not marked
WRCX10032ES Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 28 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.7 | Stock: Yes
WRCX10032EM Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 28 | Head length LH (mm): 120 | Overall length LF (mm): 200 | Teeth: 3 | Weight (kg): 1.0 | Stock: Yes
WRCX10032EL Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 28 | Head length LH (mm): 180 | Overall length LF (mm): 300 | Teeth: 3 | Weight (kg): 1.5 | Stock: Not marked
WRCX16040ES Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 24 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 31.3 | Head length LH (mm): 50 | Overall length LF (mm): 170 | Teeth: 2 | Weight (kg): 0.9 | Stock: Yes
WRCX16040EM Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 24 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 31.3 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 1.4 | Stock: Yes
WRCX16050ES Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 34 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 40.8 | Head length LH (mm): 50 | Overall length LF (mm): 170 | Teeth: 3 | Weight (kg): 1.0 | Stock: Yes
WRCX16050EM Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 34 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 40.8 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 1.5 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX 08000E/10000E/16000E Shank Type Radius Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (16)

WRCX08020ES, WRCX08020EM, WRCX08020EL, WRCX08025ES, WRCX08025EM, WRCX08025EL, WRCX10025ES, WRCX10025EM, WRCX10025EL, WRCX10032ES + 6 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WRCX08020ESMax cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12 | Shank dia DMM (mm): 20 | Neck dia DN (mm): 18 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 2 | Weight (kg): 0.2 | Stock: Yes
WRCX08020EMMax cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12 | Shank dia DMM (mm): 20 | Neck dia DN (mm): 18 | Head length LH (mm): 100 | Overall length LF (mm): 180 | Teeth: 2 | Weight (kg): 0.3 | Stock: Yes
WRCX08020ELMax cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12 | Shank dia DMM (mm): 20 | Neck dia DN (mm): 18 | Head length LH (mm): 130 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 0.5 | Stock: Not marked
WRCX08025ESMax cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 21 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.4 | Stock: Yes
WRCX08025EMMax cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 21 | Head length LH (mm): 100 | Overall length LF (mm): 180 | Teeth: 3 | Weight (kg): 0.5 | Stock: Yes
WRCX08025ELMax cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 21 | Head length LH (mm): 130 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 0.7 | Stock: Not marked
WRCX10025ESMax cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 21 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 2 | Weight (kg): 0.4 | Stock: Yes
WRCX10025EMMax cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 21 | Head length LH (mm): 100 | Overall length LF (mm): 180 | Teeth: 2 | Weight (kg): 0.5 | Stock: Yes
WRCX10025ELMax cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 21 | Head length LH (mm): 130 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 0.7 | Stock: Not marked
WRCX10032ESMax cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 28 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.7 | Stock: Yes
WRCX10032EMMax cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 28 | Head length LH (mm): 120 | Overall length LF (mm): 200 | Teeth: 3 | Weight (kg): 1.0 | Stock: Yes
WRCX10032ELMax cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 28 | Head length LH (mm): 180 | Overall length LF (mm): 300 | Teeth: 3 | Weight (kg): 1.5 | Stock: Not marked
WRCX16040ESMax cutting dia DCX (mm): 40 | Cutting dia DC (mm): 24 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 31.3 | Head length LH (mm): 50 | Overall length LF (mm): 170 | Teeth: 2 | Weight (kg): 0.9 | Stock: Yes
WRCX16040EMMax cutting dia DCX (mm): 40 | Cutting dia DC (mm): 24 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 31.3 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 2 | Weight (kg): 1.4 | Stock: Yes
WRCX16050ESMax cutting dia DCX (mm): 50 | Cutting dia DC (mm): 34 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 40.8 | Head length LH (mm): 50 | Overall length LF (mm): 170 | Teeth: 3 | Weight (kg): 1.0 | Stock: Yes
WRCX16050EMMax cutting dia DCX (mm): 50 | Cutting dia DC (mm): 34 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 40.8 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 1.5 | Stock: Yes
