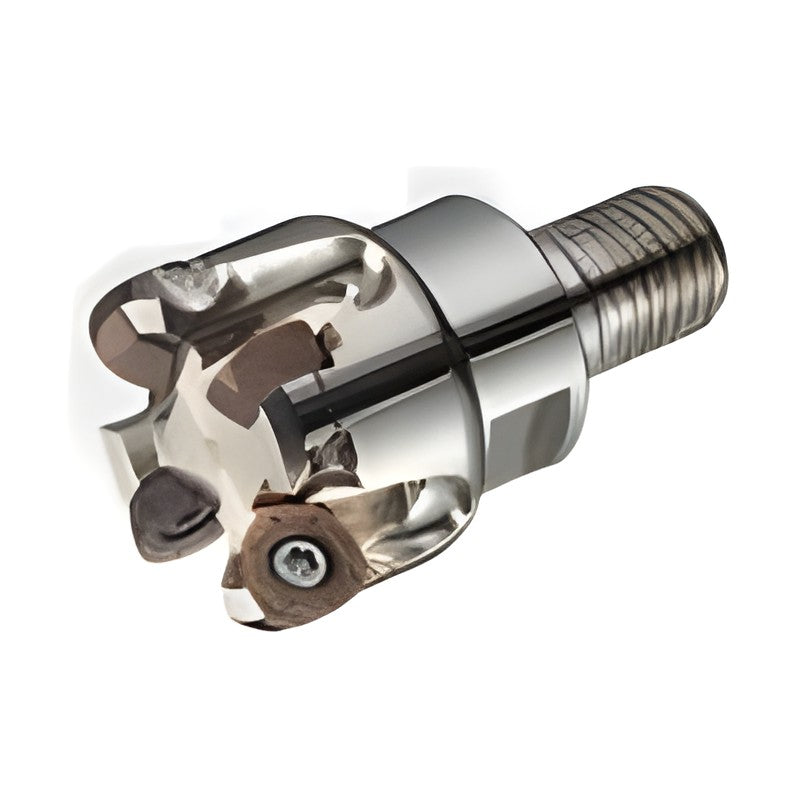

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX 08000M/10000M/12000M Modular Head

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX 08000M/10000M/12000M Modular Head

Exchangeable head of the SEC-Modular Tool system, screw-mounted on carbide, steel or BBT integrated arbors.

Key features

  • Screw-mounted exchangeable head
  • Combines with carbide, steel or BBT30 integrated arbors
WRCX08020M10Z2 Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 2 | Stock: Yes
WRCX08025M12Z3 Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 3 | Stock: Yes
WRCX10025M12Z2 Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Stock: Yes
WRCX10028M12Z2 Max cutting dia DCX (mm): 28 | Cutting dia DC (mm): 18 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Stock: Yes
WRCX10030M16Z3 Max cutting dia DCX (mm): 30 | Cutting dia DC (mm): 20 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Stock: Yes
WRCX10032M16Z3 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Stock: Yes
WRCX12040M16Z4 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX 08000M/10000M/12000M Modular Head

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (7)

WRCX08020M10Z2, WRCX08025M12Z3, WRCX10025M12Z2, WRCX10028M12Z2, WRCX10030M16Z3, WRCX10032M16Z3, WRCX12040M16Z4

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WRCX08020M10Z2Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 2 | Stock: Yes
WRCX08025M12Z3Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 3 | Stock: Yes
WRCX10025M12Z2Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 15 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Stock: Yes
WRCX10028M12Z2Max cutting dia DCX (mm): 28 | Cutting dia DC (mm): 18 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Stock: Yes
WRCX10030M16Z3Max cutting dia DCX (mm): 30 | Cutting dia DC (mm): 20 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Stock: Yes
WRCX10032M16Z3Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 22 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Stock: Yes
WRCX12040M16Z4Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Stock: Yes
