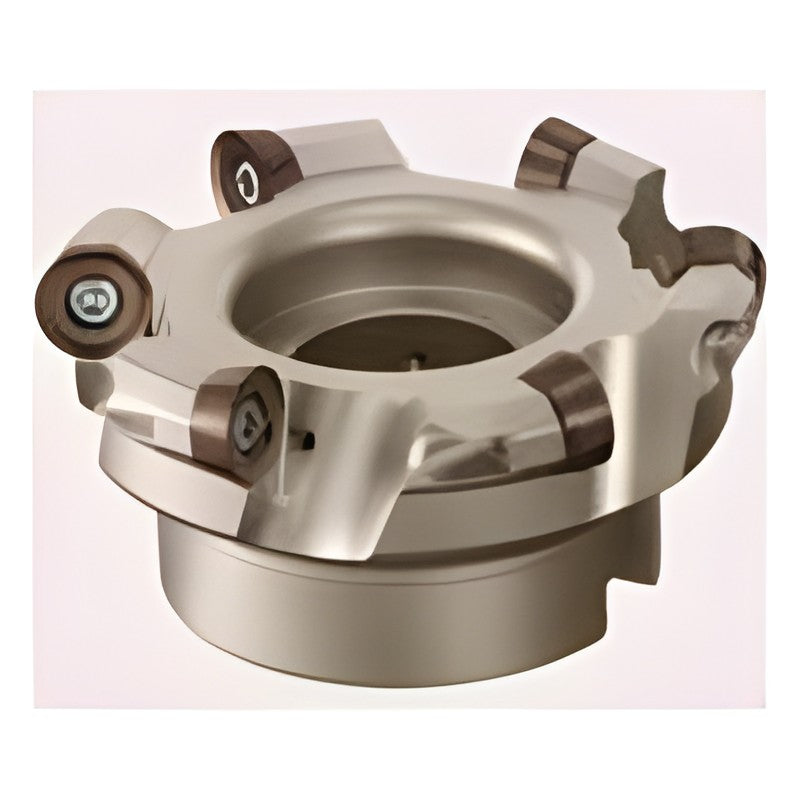

• Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX 20000R Radius Cutter
1 1

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX 20000R Radius Cutter

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX 20000R Radius Cutter

Multi-function radius cutter for die cavity, ramping and helical milling, with an insert range covering steel to non-ferrous metals.

Key features

  • Specially surface-treated high-durability body
  • Anti-vibration edge design
  • Air holes on all sizes for chip evacuation
  • Torque Plus screw clamping of inserts
WRCX20125R Max cutting dia DCX (mm): 125 | Cutting dia DC (mm): 105 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10.0 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 55 | Bolt dia D2 (mm): 30 | Teeth: 5 | Weight (kg): 2.3 | Stock: Yes
WRCX20160R Max cutting dia DCX (mm): 160 | Cutting dia DC (mm): 140 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11.0 | Counterbore depth CBDP (mm): 41.5 | Bolt dia D1 (mm): 72 | Teeth: 6 | Weight (kg): 4.0 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX 20000R Radius Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (2)

WRCX20125R, WRCX20160R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WRCX20125RMax cutting dia DCX (mm): 125 | Cutting dia DC (mm): 105 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10.0 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 55 | Bolt dia D2 (mm): 30 | Teeth: 5 | Weight (kg): 2.3 | Stock: Yes
WRCX20160RMax cutting dia DCX (mm): 160 | Cutting dia DC (mm): 140 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11.0 | Counterbore depth CBDP (mm): 41.5 | Bolt dia D1 (mm): 72 | Teeth: 6 | Weight (kg): 4.0 | Stock: Yes
