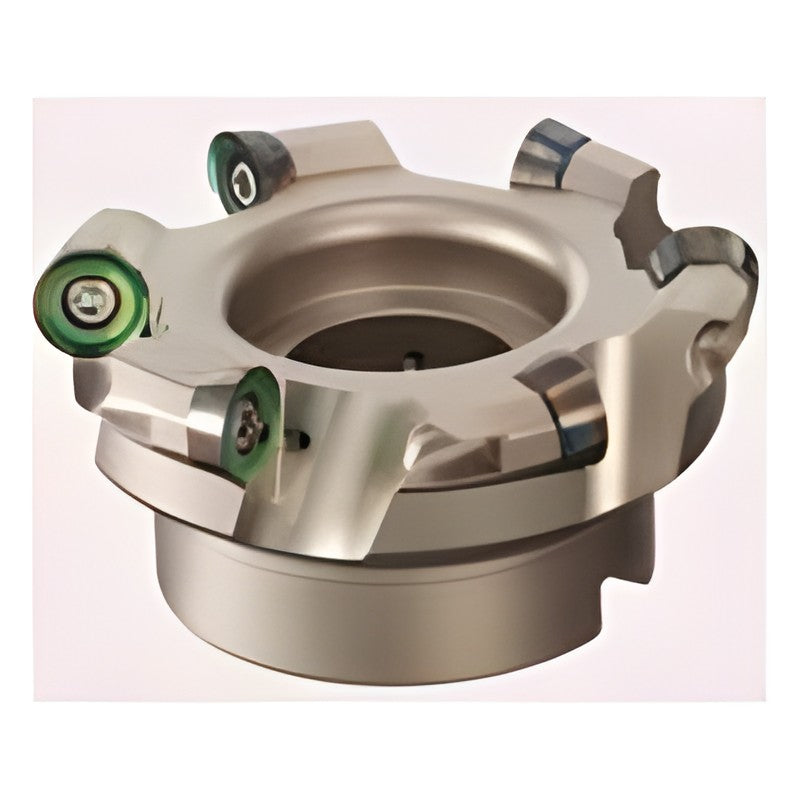

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX(F) 12000 Radius Cutter

Multi-function radius cutter for die cavity, ramping and helical milling, with an insert range covering steel to non-ferrous metals.

Key features

Specially surface-treated high-durability body
Anti-vibration edge design
Air holes on all sizes for chip evacuation
Torque Plus screw clamping of inserts

WRCX12040RS		Max cutting dia DCX (mm): 40 \| Cutting dia DC (mm): 28 \| Boss dia DCSFMS (mm): 36 \| Height LF (mm): 40 \| Bore dia DCB (mm): 16 \| Keyway width KWW (mm): 8.4 \| Keyway depth KDP (mm): 5.6 \| Counterbore depth CBDP (mm): 18 \| Bolt dia D1 (mm): 14 \| Bolt dia D2 (mm): 9 \| Teeth: 4 \| Weight (kg): 0.2 \| Stock: Yes
WRCX12050RS		Max cutting dia DCX (mm): 50 \| Cutting dia DC (mm): 38 \| Boss dia DCSFMS (mm): 40 \| Height LF (mm): 40 \| Bore dia DCB (mm): 22 \| Keyway width KWW (mm): 10.4 \| Keyway depth KDP (mm): 6.3 \| Counterbore depth CBDP (mm): 20 \| Bolt dia D1 (mm): 18 \| Bolt dia D2 (mm): 11 \| Teeth: 4 \| Weight (kg): 0.2 \| Stock: Yes
WRCX12063RS		Max cutting dia DCX (mm): 63 \| Cutting dia DC (mm): 51 \| Boss dia DCSFMS (mm): 40 \| Height LF (mm): 40 \| Bore dia DCB (mm): 22 \| Keyway width KWW (mm): 10.4 \| Keyway depth KDP (mm): 6.3 \| Counterbore depth CBDP (mm): 20 \| Bolt dia D1 (mm): 18 \| Bolt dia D2 (mm): 11 \| Teeth: 5 \| Weight (kg): 0.4 \| Stock: Yes
WRCX12080RS		Max cutting dia DCX (mm): 80 \| Cutting dia DC (mm): 68 \| Boss dia DCSFMS (mm): 55 \| Height LF (mm): 50 \| Bore dia DCB (mm): 27 \| Keyway width KWW (mm): 12.4 \| Keyway depth KDP (mm): 7.0 \| Counterbore depth CBDP (mm): 25 \| Bolt dia D1 (mm): 20 \| Bolt dia D2 (mm): 13.5 \| Teeth: 6 \| Weight (kg): 0.9 \| Stock: Yes
WRCXF12050RS		Max cutting dia DCX (mm): 50 \| Cutting dia DC (mm): 38 \| Boss dia DCSFMS (mm): 40 \| Height LF (mm): 40 \| Bore dia DCB (mm): 22 \| Keyway width KWW (mm): 10.4 \| Keyway depth KDP (mm): 6.3 \| Counterbore depth CBDP (mm): 20 \| Bolt dia D1 (mm): 18 \| Bolt dia D2 (mm): 11 \| Teeth: 5 \| Weight (kg): 0.2 \| Stock: Yes
WRCXF12063RS		Max cutting dia DCX (mm): 63 \| Cutting dia DC (mm): 51 \| Boss dia DCSFMS (mm): 40 \| Height LF (mm): 40 \| Bore dia DCB (mm): 22 \| Keyway width KWW (mm): 10.4 \| Keyway depth KDP (mm): 6.3 \| Counterbore depth CBDP (mm): 20 \| Bolt dia D1 (mm): 18 \| Bolt dia D2 (mm): 11 \| Teeth: 6 \| Weight (kg): 0.4 \| Stock: Yes

Milling CuttersSumitomo Electric Hardmetal

6 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX(F) 12000 Radius Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (6)

WRCX12040RS, WRCX12050RS, WRCX12063RS, WRCX12080RS, WRCXF12050RS, WRCXF12063RS

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	WRCX12040RS	Max cutting dia DCX (mm): 40 \| Cutting dia DC (mm): 28 \| Boss dia DCSFMS (mm): 36 \| Height LF (mm): 40 \| Bore dia DCB (mm): 16 \| Keyway width KWW (mm): 8.4 \| Keyway depth KDP (mm): 5.6 \| Counterbore depth CBDP (mm): 18 \| Bolt dia D1 (mm): 14 \| Bolt dia D2 (mm): 9 \| Teeth: 4 \| Weight (kg): 0.2 \| Stock: Yes
	WRCX12050RS	Max cutting dia DCX (mm): 50 \| Cutting dia DC (mm): 38 \| Boss dia DCSFMS (mm): 40 \| Height LF (mm): 40 \| Bore dia DCB (mm): 22 \| Keyway width KWW (mm): 10.4 \| Keyway depth KDP (mm): 6.3 \| Counterbore depth CBDP (mm): 20 \| Bolt dia D1 (mm): 18 \| Bolt dia D2 (mm): 11 \| Teeth: 4 \| Weight (kg): 0.2 \| Stock: Yes
	WRCX12063RS	Max cutting dia DCX (mm): 63 \| Cutting dia DC (mm): 51 \| Boss dia DCSFMS (mm): 40 \| Height LF (mm): 40 \| Bore dia DCB (mm): 22 \| Keyway width KWW (mm): 10.4 \| Keyway depth KDP (mm): 6.3 \| Counterbore depth CBDP (mm): 20 \| Bolt dia D1 (mm): 18 \| Bolt dia D2 (mm): 11 \| Teeth: 5 \| Weight (kg): 0.4 \| Stock: Yes
	WRCX12080RS	Max cutting dia DCX (mm): 80 \| Cutting dia DC (mm): 68 \| Boss dia DCSFMS (mm): 55 \| Height LF (mm): 50 \| Bore dia DCB (mm): 27 \| Keyway width KWW (mm): 12.4 \| Keyway depth KDP (mm): 7.0 \| Counterbore depth CBDP (mm): 25 \| Bolt dia D1 (mm): 20 \| Bolt dia D2 (mm): 13.5 \| Teeth: 6 \| Weight (kg): 0.9 \| Stock: Yes
	WRCXF12050RS	Max cutting dia DCX (mm): 50 \| Cutting dia DC (mm): 38 \| Boss dia DCSFMS (mm): 40 \| Height LF (mm): 40 \| Bore dia DCB (mm): 22 \| Keyway width KWW (mm): 10.4 \| Keyway depth KDP (mm): 6.3 \| Counterbore depth CBDP (mm): 20 \| Bolt dia D1 (mm): 18 \| Bolt dia D2 (mm): 11 \| Teeth: 5 \| Weight (kg): 0.2 \| Stock: Yes
	WRCXF12063RS	Max cutting dia DCX (mm): 63 \| Cutting dia DC (mm): 51 \| Boss dia DCSFMS (mm): 40 \| Height LF (mm): 40 \| Bore dia DCB (mm): 22 \| Keyway width KWW (mm): 10.4 \| Keyway depth KDP (mm): 6.3 \| Counterbore depth CBDP (mm): 20 \| Bolt dia D1 (mm): 18 \| Bolt dia D2 (mm): 11 \| Teeth: 6 \| Weight (kg): 0.4 \| Stock: Yes
