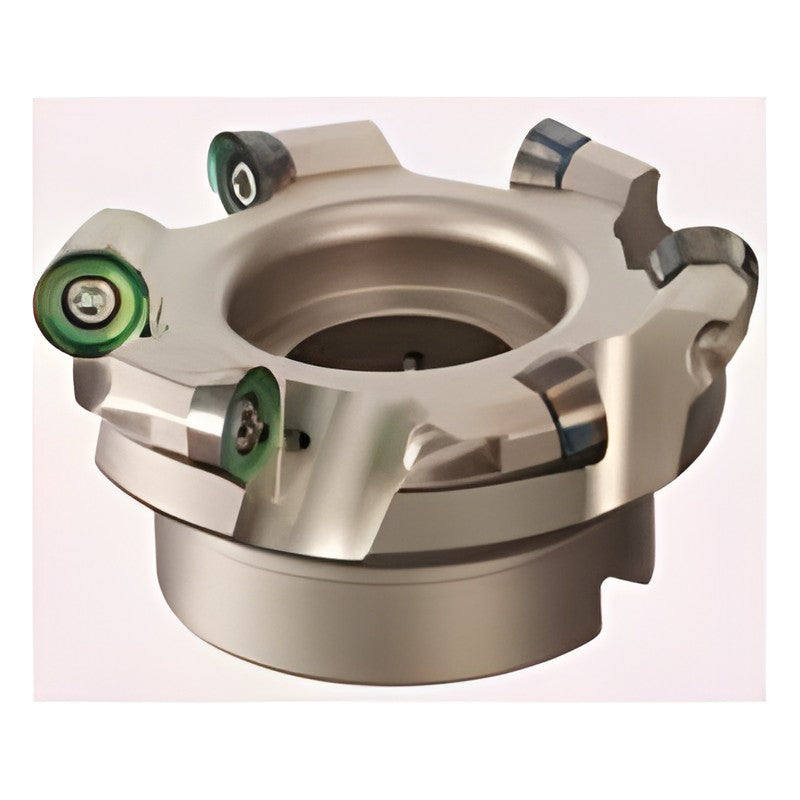

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX(F) 16000R(S) Radius Cutter

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX(F) 16000R(S) Radius Cutter

Multi-function radius cutter for die cavity, ramping and helical milling, with an insert range covering steel to non-ferrous metals.

Key features

  • Specially surface-treated high-durability body
  • Anti-vibration edge design
  • Air holes on all sizes for chip evacuation
  • Torque Plus screw clamping of inserts
WRCX16063RS Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 47 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 3 | Weight (kg): 0.4 | Stock: Yes
WRCX16080RS Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13.5 | Teeth: 4 | Weight (kg): 0.8 | Stock: Yes
WRCX16100RS Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 5 | Weight (kg): 1.2 | Stock: Yes
WRCX16080R Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13 | Teeth: 4 | Weight (kg): 0.8 | Stock: Yes
WRCX16100R Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 17 | Teeth: 5 | Weight (kg): 1.4 | Stock: Yes
WRCXF16063RS Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 47 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.4 | Stock: Yes
WRCXF16080RS Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13.5 | Teeth: 5 | Weight (kg): 0.7 | Stock: Yes
WRCXF16100RS Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 6 | Weight (kg): 1.2 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Radius Mill WRCX(F) 16000R(S) Radius Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (8)

WRCX16063RS, WRCX16080RS, WRCX16100RS, WRCX16080R, WRCX16100R, WRCXF16063RS, WRCXF16080RS, WRCXF16100RS

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WRCX16063RSMax cutting dia DCX (mm): 63 | Cutting dia DC (mm): 47 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 3 | Weight (kg): 0.4 | Stock: Yes
WRCX16080RSMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13.5 | Teeth: 4 | Weight (kg): 0.8 | Stock: Yes
WRCX16100RSMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 5 | Weight (kg): 1.2 | Stock: Yes
WRCX16080RMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13 | Teeth: 4 | Weight (kg): 0.8 | Stock: Yes
WRCX16100RMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8.0 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 17 | Teeth: 5 | Weight (kg): 1.4 | Stock: Yes
WRCXF16063RSMax cutting dia DCX (mm): 63 | Cutting dia DC (mm): 47 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.4 | Stock: Yes
WRCXF16080RSMax cutting dia DCX (mm): 80 | Cutting dia DC (mm): 64 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7.0 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 13.5 | Teeth: 5 | Weight (kg): 0.7 | Stock: Yes
WRCXF16100RSMax cutting dia DCX (mm): 100 | Cutting dia DC (mm): 84 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8.5 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 6 | Weight (kg): 1.2 | Stock: Yes
