• Sumitomo Electric Hardmetal Smart Damper Arbor (BBT50 / HSK-A100)
1 1

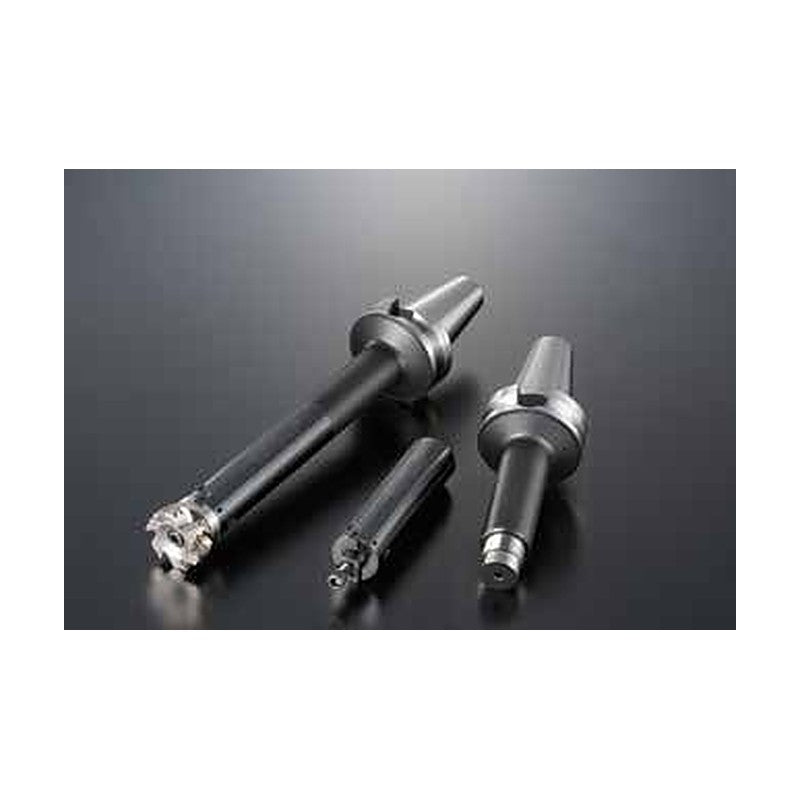

Sumitomo Electric Hardmetal Smart Damper Arbor (BBT50 / HSK-A100)

Sumitomo Electric Hardmetal Smart Damper Arbor (BBT50 / HSK-A100)

Smart Damper anti-vibration arbor in BBT50 and HSK-A100 for long-overhang milling with Smart Damper heads.

Key features

  • BBT50 and HSK-A100 shanks
  • Effective overhang up to 360 mm
S-SDF3647L170-BBT50 Body dia BD (mm): 47 | Length LF (mm): 350 | Length LF2 (mm): 170 | Effective overhang LUX (mm): 297 | Weight (kg): 5.6 | Stock: Yes
S-SDF3647L220-BBT50 Body dia BD (mm): 47 | Length LF (mm): 400 | Length LF2 (mm): 220 | Effective overhang LUX (mm): 347 | Weight (kg): 6.3 | Stock: Yes
S-SDF3660L170-BBT50 Body dia BD (mm): 60 | Length LF (mm): 350 | Length LF2 (mm): 170 | Effective overhang LUX (mm): 297 | Weight (kg): 6.7 | Stock: Yes
S-SDF3660L220-BBT50 Body dia BD (mm): 60 | Length LF (mm): 400 | Length LF2 (mm): 220 | Effective overhang LUX (mm): 347 | Weight (kg): 7.8 | Stock: Yes
S-SDF3647L170-HSKA100 Body dia BD (mm): 47 | Length LF (mm): 350 | Length LF2 (mm): 170 | Effective overhang LUX (mm): 310 | Weight (kg): 4.4 | Stock: Yes
S-SDF3647L220-HSKA100 Body dia BD (mm): 47 | Length LF (mm): 400 | Length LF2 (mm): 220 | Effective overhang LUX (mm): 360 | Weight (kg): 5.0 | Stock: Yes
S-SDF3660L170-HSKA100 Body dia BD (mm): 60 | Length LF (mm): 350 | Length LF2 (mm): 170 | Effective overhang LUX (mm): 310 | Weight (kg): 5.5 | Stock: Yes
S-SDF3660L220-HSKA100 Body dia BD (mm): 60 | Length LF (mm): 400 | Length LF2 (mm): 220 | Effective overhang LUX (mm): 360 | Weight (kg): 6.0 | Stock: Yes
Anti-Vibration ToolingSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Smart Damper Arbor (BBT50 / HSK-A100)

Brand Sumitomo Electric Hardmetal·Anti-Vibration Tooling

Available part numbers (8)

S-SDF3647L170-BBT50, S-SDF3647L220-BBT50, S-SDF3660L170-BBT50, S-SDF3660L220-BBT50, S-SDF3647L170-HSKA100, S-SDF3647L220-HSKA100, S-SDF3660L170-HSKA100, S-SDF3660L220-HSKA100

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S-SDF3647L170-BBT50Body dia BD (mm): 47 | Length LF (mm): 350 | Length LF2 (mm): 170 | Effective overhang LUX (mm): 297 | Weight (kg): 5.6 | Stock: Yes
S-SDF3647L220-BBT50Body dia BD (mm): 47 | Length LF (mm): 400 | Length LF2 (mm): 220 | Effective overhang LUX (mm): 347 | Weight (kg): 6.3 | Stock: Yes
S-SDF3660L170-BBT50Body dia BD (mm): 60 | Length LF (mm): 350 | Length LF2 (mm): 170 | Effective overhang LUX (mm): 297 | Weight (kg): 6.7 | Stock: Yes
S-SDF3660L220-BBT50Body dia BD (mm): 60 | Length LF (mm): 400 | Length LF2 (mm): 220 | Effective overhang LUX (mm): 347 | Weight (kg): 7.8 | Stock: Yes
S-SDF3647L170-HSKA100Body dia BD (mm): 47 | Length LF (mm): 350 | Length LF2 (mm): 170 | Effective overhang LUX (mm): 310 | Weight (kg): 4.4 | Stock: Yes
S-SDF3647L220-HSKA100Body dia BD (mm): 47 | Length LF (mm): 400 | Length LF2 (mm): 220 | Effective overhang LUX (mm): 360 | Weight (kg): 5.0 | Stock: Yes
S-SDF3660L170-HSKA100Body dia BD (mm): 60 | Length LF (mm): 350 | Length LF2 (mm): 170 | Effective overhang LUX (mm): 310 | Weight (kg): 5.5 | Stock: Yes
S-SDF3660L220-HSKA100Body dia BD (mm): 60 | Length LF (mm): 400 | Length LF2 (mm): 220 | Effective overhang LUX (mm): 360 | Weight (kg): 6.0 | Stock: Yes
