Sumitomo Electric Hardmetal Smart Damper Head

Sumitomo Electric Hardmetal Smart Damper Head

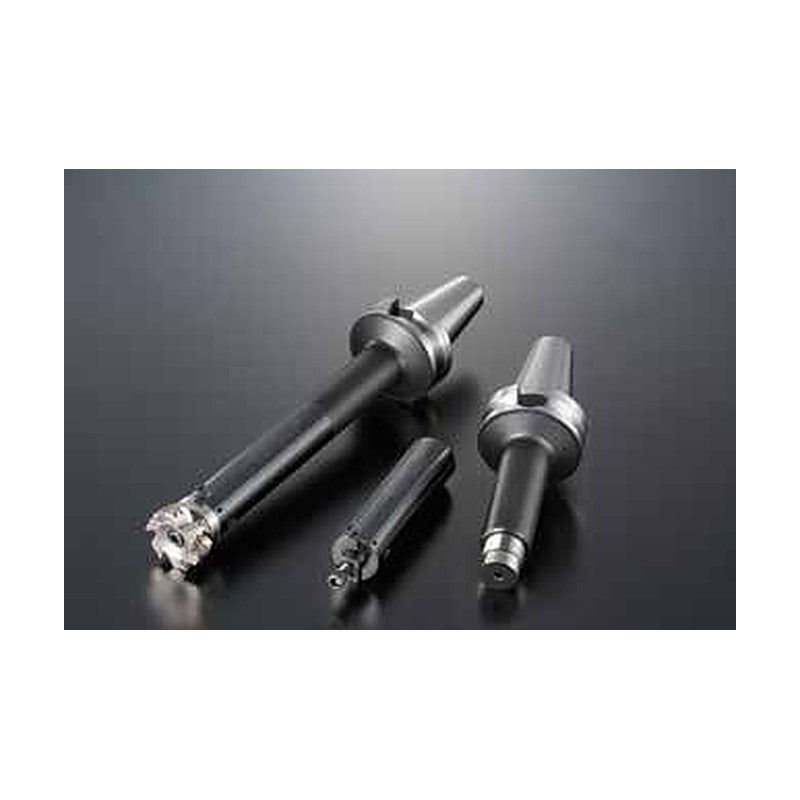

Smart Damper anti-vibration head with built-in damping mechanism for long-overhang milling.

Key features

  • Built-in vibration damper
  • For face mill and cutter mounting

Specifications

Length LF (mm) 180
S-SDF3647FMH22L180 Connection dia DMM (mm): 22 | Body dia BD (mm): 47 | Length LF (mm): 180 | Connection length LS (mm): 18 | Key slot width KWW (mm): 10 | Key slot depth KDP (mm): 5 | Weight (kg): 3.0 | Mounting dia DCSFMS (mm): 36~ | Stock: Yes
S-SDF3660FMH22L180 Connection dia DMM (mm): 22 | Body dia BD (mm): 60 | Length LF (mm): 180 | Connection length LS (mm): 18 | Key slot width KWW (mm): 10 | Key slot depth KDP (mm): 5 | Weight (kg): 4.5 | Mounting dia DCSFMS (mm): 49~ | Stock: Yes
S-SDF3660FMH27L180 Connection dia DMM (mm): 27 | Body dia BD (mm): 60 | Length LF (mm): 180 | Connection length LS (mm): 20 | Key slot width KWW (mm): 12 | Key slot depth KDP (mm): 6 | Weight (kg): 4.5 | Mounting dia DCSFMS (mm): 46~ | Stock: Yes
Anti-Vibration ToolingSumitomo Electric Hardmetal
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Smart Damper Head

Brand Sumitomo Electric Hardmetal·Anti-Vibration Tooling

Available part numbers (3)

S-SDF3647FMH22L180, S-SDF3660FMH22L180, S-SDF3660FMH27L180

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S-SDF3647FMH22L180Connection dia DMM (mm): 22 | Body dia BD (mm): 47 | Length LF (mm): 180 | Connection length LS (mm): 18 | Key slot width KWW (mm): 10 | Key slot depth KDP (mm): 5 | Weight (kg): 3.0 | Mounting dia DCSFMS (mm): 36~ | Stock: Yes
S-SDF3660FMH22L180Connection dia DMM (mm): 22 | Body dia BD (mm): 60 | Length LF (mm): 180 | Connection length LS (mm): 18 | Key slot width KWW (mm): 10 | Key slot depth KDP (mm): 5 | Weight (kg): 4.5 | Mounting dia DCSFMS (mm): 49~ | Stock: Yes
S-SDF3660FMH27L180Connection dia DMM (mm): 27 | Body dia BD (mm): 60 | Length LF (mm): 180 | Connection length LS (mm): 20 | Key slot width KWW (mm): 12 | Key slot depth KDP (mm): 6 | Weight (kg): 4.5 | Mounting dia DCSFMS (mm): 46~ | Stock: Yes
