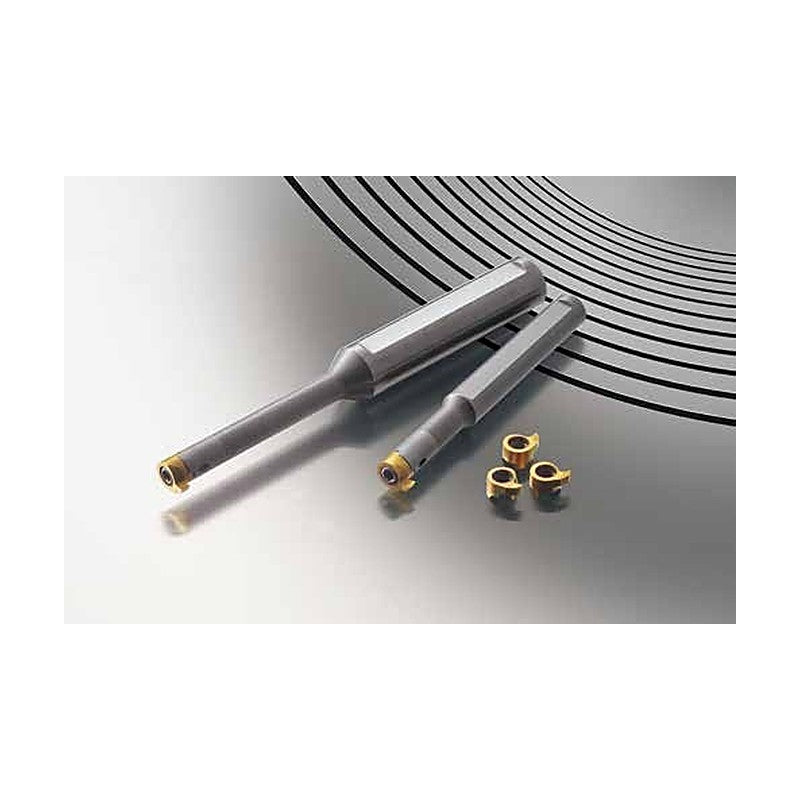

Sumitomo Electric Hardmetal SSH Small-Bore Grooving Insert (SSHG/SSHR/SSHC)

Sumitomo Electric Hardmetal SSH Small-Bore Grooving Insert (SSHG/SSHR/SSHC)

SSH series insert for small-bore internal grooving (SSHG), R-groove/profiling (SSHR) and chamfering (SSHC).

Key features

  • Grade AC1030U
  • Sizes 08, 09, 10 and 14
  • For SSHM grooving bars
SSHG R 0807400 AC1030U Cutting width CW (mm): 0.74 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.6 | E2 (mm): 0.4 | Grade: AC1030U | Stock: Yes
SSHG L 0807400 AC1030U Cutting width CW (mm): 0.74 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.6 | E2 (mm): 0.4 | Grade: AC1030U | Stock: Yes
SSHG R 0808400 AC1030U Cutting width CW (mm): 0.84 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.6 | E2 (mm): 0.4 | Grade: AC1030U | Stock: Yes
SSHG L 0808400 AC1030U Cutting width CW (mm): 0.84 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.6 | E2 (mm): 0.4 | Grade: AC1030U | Stock: Yes
SSHG R 0809400 AC1030U Cutting width CW (mm): 0.94 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.6 | E2 (mm): 0.4 | Grade: AC1030U | Stock: Yes
SSHG L 0809400 AC1030U Cutting width CW (mm): 0.94 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.6 | E2 (mm): 0.4 | Grade: AC1030U | Stock: Yes
SSHG R 0810000 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
SSHG L 0810000 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
SSHG R 0810010 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
SSHG L 0810010 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
SSHG R 0811900 AC1030U Cutting width CW (mm): 1.19 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
SSHG L 0811900 AC1030U Cutting width CW (mm): 1.19 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
SSHG R 0813900 AC1030U Cutting width CW (mm): 1.39 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG L 0813900 AC1030U Cutting width CW (mm): 1.39 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG R 0815000 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG L 0815000 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG R 0815010 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG L 0815010 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG R 0816900 AC1030U Cutting width CW (mm): 1.69 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG L 0816900 AC1030U Cutting width CW (mm): 1.69 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG R 0820000 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG L 0820000 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 1.0 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG R 0820010 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG L 0820010 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG R 0820020 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG L 0820020 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHG R 0910010 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 2.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.6 | WF (mm): 5.50 | Thickness S (mm): 3.5 | Grade: AC1030U | Stock: Yes
SSHG R 0915010 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 2.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.6 | WF (mm): 5.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHG R 0920010 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 2.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.6 | WF (mm): 5.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHG R 0920020 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 2.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 3.6 | WF (mm): 5.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHG R 0925010 AC1030U Cutting width CW (mm): 2.50 | Max cutting depth CDX (mm): 2.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.6 | WF (mm): 5.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHG R 0925020 AC1030U Cutting width CW (mm): 2.50 | Max cutting depth CDX (mm): 2.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 3.6 | WF (mm): 5.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHG R 0930010 AC1030U Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 2.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.6 | WF (mm): 5.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHG R 0930020 AC1030U Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 2.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 3.6 | WF (mm): 5.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHG R 1010010 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.6 | WF (mm): 6.50 | Thickness S (mm): 3.5 | Grade: AC1030U | Stock: Yes
SSHG R 1015010 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.6 | WF (mm): 6.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHG R 1020010 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.6 | WF (mm): 6.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHG R 1020020 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 3.6 | WF (mm): 6.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHG R 1025010 AC1030U Cutting width CW (mm): 2.50 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.6 | WF (mm): 6.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHG R 1025020 AC1030U Cutting width CW (mm): 2.50 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 3.6 | WF (mm): 6.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHG R 1030010 AC1030U Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 3.6 | WF (mm): 6.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHG R 1030020 AC1030U Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 3.6 | WF (mm): 6.50 | Thickness S (mm): 3.4 | Grade: AC1030U | Stock: Yes
SSHR R 08080 AC1030U Cutting width CW (mm): 0.80 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.40 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
SSHR L 08080 AC1030U Cutting width CW (mm): 0.80 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.40 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
SSHR R 08100 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.50 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
SSHR L 08100 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.50 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
SSHR R 08120 AC1030U Cutting width CW (mm): 1.20 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.60 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
SSHR L 08120 AC1030U Cutting width CW (mm): 1.20 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.60 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
SSHR R 08150 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.75 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHR L 08150 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.75 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHR R 08180 AC1030U Cutting width CW (mm): 1.80 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.90 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHR L 08180 AC1030U Cutting width CW (mm): 1.80 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 0.90 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHR R 08200 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 1.00 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHR L 08200 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 1.0 | Corner radius RE (mm): 1.00 | WF3 (mm): 3.2 | WF (mm): 4.80 | Thickness S (mm): 3.0 | Grade: AC1030U | Stock: Yes
SSHC R 08454502 AC1030U Max cutting depth CDX (mm): 1.4 | Corner radius RE (mm): 0.20 | WF3 (mm): 1.8 | WF (mm): 4.65 | Thickness S (mm): 3.6 | Grade: AC1030U | Stock: Yes
SSHC L 08454502 AC1030U Max cutting depth CDX (mm): 1.4 | Corner radius RE (mm): 0.20 | WF3 (mm): 1.8 | WF (mm): 4.65 | Thickness S (mm): 3.6 | Grade: AC1030U | Stock: Yes
SSHG R 1407400 AC1030U Cutting width CW (mm): 0.74 | Max cutting depth CDX (mm): 1.2 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | E2 (mm): 0.2 | Grade: AC1030U | Stock: Yes
SSHG L 1407400 AC1030U Cutting width CW (mm): 0.74 | Max cutting depth CDX (mm): 1.2 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | E2 (mm): 0.2 | Grade: AC1030U | Stock: Yes
SSHG R 1408400 AC1030U Cutting width CW (mm): 0.84 | Max cutting depth CDX (mm): 1.3 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | E2 (mm): 0.2 | Grade: AC1030U | Stock: Yes
SSHG L 1408400 AC1030U Cutting width CW (mm): 0.84 | Max cutting depth CDX (mm): 1.3 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | E2 (mm): 0.2 | Grade: AC1030U | Stock: Yes
SSHG R 1409400 AC1030U Cutting width CW (mm): 0.94 | Max cutting depth CDX (mm): 1.5 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | E2 (mm): 0.2 | Grade: AC1030U | Stock: Yes
SSHG L 1409400 AC1030U Cutting width CW (mm): 0.94 | Max cutting depth CDX (mm): 1.5 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | E2 (mm): 0.2 | Grade: AC1030U | Stock: Yes
SSHG R 1410000 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 1.6 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | E2 (mm): 0.2 | Grade: AC1030U | Stock: Yes
SSHG L 1410000 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 1.6 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | E2 (mm): 0.2 | Grade: AC1030U | Stock: Yes
SSHG R 1410010 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 1.6 | Corner radius RE (mm): 0.10 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | E2 (mm): 0.2 | Grade: AC1030U | Stock: Yes
SSHG L 1410010 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 1.6 | Corner radius RE (mm): 0.10 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | E2 (mm): 0.2 | Grade: AC1030U | Stock: Yes
SSHG R 1411900 AC1030U Cutting width CW (mm): 1.19 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.2 | Grade: AC1030U | Stock: Yes
SSHG L 1411900 AC1030U Cutting width CW (mm): 1.19 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.2 | Grade: AC1030U | Stock: Yes
SSHG R 1413900 AC1030U Cutting width CW (mm): 1.39 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG L 1413900 AC1030U Cutting width CW (mm): 1.39 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG R 1415000 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG L 1415000 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG R 1415010 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG L 1415010 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG R 1416900 AC1030U Cutting width CW (mm): 1.69 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG L 1416900 AC1030U Cutting width CW (mm): 1.69 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG R 1420000 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG L 1420000 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG R 1420010 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG L 1420010 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG R 1420020 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG L 1420020 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG R 1425000 AC1030U Cutting width CW (mm): 2.50 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG L 1425000 AC1030U Cutting width CW (mm): 2.50 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG R 1425010 AC1030U Cutting width CW (mm): 2.50 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG L 1425010 AC1030U Cutting width CW (mm): 2.50 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG R 1425020 AC1030U Cutting width CW (mm): 2.50 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG L 1425020 AC1030U Cutting width CW (mm): 2.50 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG R 1430000 AC1030U Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG L 1430000 AC1030U Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 4.0 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG R 1430010 AC1030U Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG L 1430010 AC1030U Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.10 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG R 1430020 AC1030U Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHG L 1430020 AC1030U Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHR R 14100 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 1.6 | Corner radius RE (mm): 0.50 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.2 | Grade: AC1030U | Stock: Yes
SSHR L 14100 AC1030U Cutting width CW (mm): 1.00 | Max cutting depth CDX (mm): 1.6 | Corner radius RE (mm): 0.50 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.2 | Grade: AC1030U | Stock: Yes
SSHR R 14120 AC1030U Cutting width CW (mm): 1.20 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.60 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.2 | Grade: AC1030U | Stock: Yes
SSHR L 14120 AC1030U Cutting width CW (mm): 1.20 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.60 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.2 | Grade: AC1030U | Stock: Yes
SSHR R 14150 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.75 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHR L 14150 AC1030U Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.75 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHR R 14180 AC1030U Cutting width CW (mm): 1.80 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.90 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHR L 14180 AC1030U Cutting width CW (mm): 1.80 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 0.90 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHR R 14200 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 1.00 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHR L 14200 AC1030U Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 1.00 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHR R 14220 AC1030U Cutting width CW (mm): 2.20 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 1.10 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHR L 14220 AC1030U Cutting width CW (mm): 2.20 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 1.10 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHR R 14250 AC1030U Cutting width CW (mm): 2.50 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 1.25 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHR L 14250 AC1030U Cutting width CW (mm): 2.50 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 1.25 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHR R 14300 AC1030U Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 1.50 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
SSHR L 14300 AC1030U Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 4.0 | Corner radius RE (mm): 1.50 | WF3 (mm): 5.3 | WF (mm): 9.0 | Thickness S (mm): 5.1 | Grade: AC1030U | Stock: Yes
Grooving InsertsSumitomo Electric Hardmetal
110 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SSH Small-Bore Grooving Insert (SSHG/SSHR/SSHC)

Brand Sumitomo Electric Hardmetal·Grooving Inserts

Available part numbers (110)

SSHG R 0807400 AC1030U, SSHG L 0807400 AC1030U, SSHG R 0808400 AC1030U, SSHG L 0808400 AC1030U, SSHG R 0809400 AC1030U, SSHG L 0809400 AC1030U, SSHG R 0810000 AC1030U, SSHG L 0810000 AC1030U, SSHG R 0810010 AC1030U, SSHG L 0810010 AC1030U + 100 more — see full table ↓
