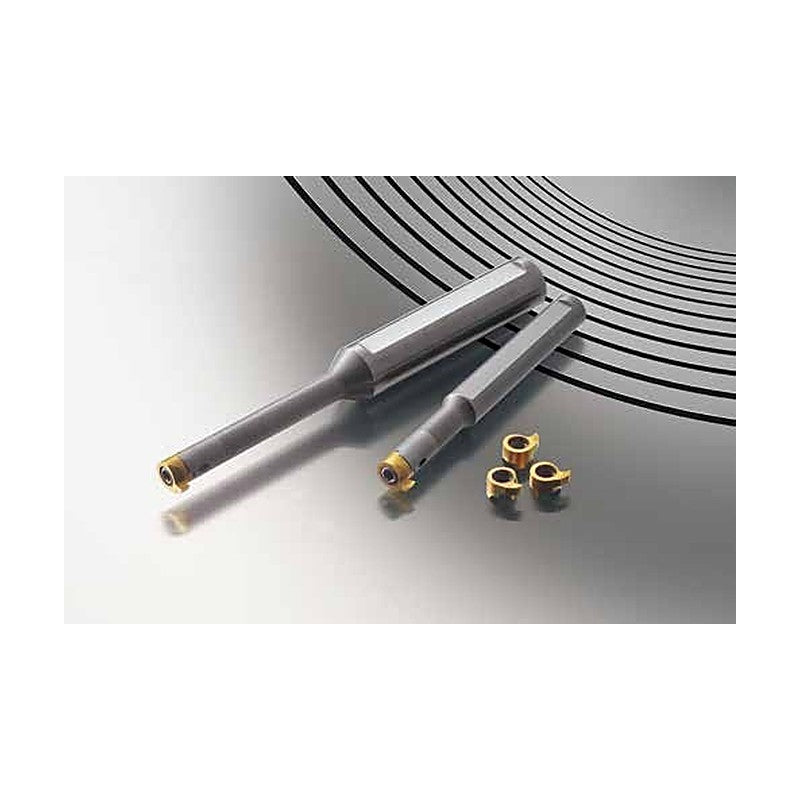

Sumitomo Electric Hardmetal SSH Small-Bore Internal Grooving Bar

Sumitomo Electric Hardmetal SSH Small-Bore Internal Grooving Bar

SEC grooving bar SSH type with carbide shank and internal coolant for internal grooving from 8 mm bore diameter.

Key features

  • Carbide shank suppresses vibration
  • Internal coolant
  • Minimum bore 8 mm
  • Uses SSHG, SSHR, SSHC and SSHT inserts

Specifications

Cutting width CW (mm) 0.74 ~ 3.00
E08D-SSHM N125-08 Shank dia DCON (mm): 8 | Neck dia DN (mm): 6 | Height H (mm): 7 | Length LF (mm): 60(60.4) | Head length LHD (mm): 12.5(12.9) | Min machining dia DMIN (mm): 8~ | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E08E-SSHM N210-08 Shank dia DCON (mm): 8 | Neck dia DN (mm): 6 | Height H (mm): 7 | Length LF (mm): 70(70.4) | Head length LHD (mm): 21.0(21.4) | Min machining dia DMIN (mm): 8~ | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12E-SSHM N125-08 Shank dia DCON (mm): 12 | Neck dia DN (mm): 6 | Height H (mm): 11 | Length LF (mm): 70(70.4) | Head length LHD (mm): 12.5(12.9) | Min machining dia DMIN (mm): 8~ | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12F-SSHM N210-08 Shank dia DCON (mm): 12 | Neck dia DN (mm): 6 | Height H (mm): 11 | Length LF (mm): 80(80.4) | Head length LHD (mm): 21.0(21.4) | Min machining dia DMIN (mm): 8~ | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12G-SSHM N300-08 Shank dia DCON (mm): 12 | Neck dia DN (mm): 6 | Height H (mm): 11 | Length LF (mm): 90(90.4) | Head length LHD (mm): 30.0(30.4) | Min machining dia DMIN (mm): 8~ | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12H-SSHM N420-08 Shank dia DCON (mm): 12 | Neck dia DN (mm): 6 | Height H (mm): 11 | Length LF (mm): 100 ( 100.4) | Head length LHD (mm): 42.0(42.4) | Min machining dia DMIN (mm): 8~ | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12X-SSHM N195-14 Shank dia DCON (mm): 12 | Neck dia DN (mm): 9 | Height H (mm): 11 | Length LF (mm): 75 | Head length LHD (mm): 19.5 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12H-SSHM N340-14 Shank dia DCON (mm): 12 | Neck dia DN (mm): 9 | Height H (mm): 11 | Length LF (mm): 100 | Head length LHD (mm): 34.0 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12J-SSHM N450-14 Shank dia DCON (mm): 12 | Neck dia DN (mm): 9 | Height H (mm): 11 | Length LF (mm): 110 | Head length LHD (mm): 45.0 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12X-SSHM N640-14 Shank dia DCON (mm): 12 | Neck dia DN (mm): 9 | Height H (mm): 11 | Length LF (mm): 130 | Head length LHD (mm): 64.0 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E16F-SSHM N195-14 Shank dia DCON (mm): 16 | Neck dia DN (mm): 9 | Height H (mm): 14 | Length LF (mm): 80 | Head length LHD (mm): 19.5 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E16H-SSHM N340-14 Shank dia DCON (mm): 16 | Neck dia DN (mm): 9 | Height H (mm): 14 | Length LF (mm): 100 | Head length LHD (mm): 34.0 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E16J-SSHM N450-14 Shank dia DCON (mm): 16 | Neck dia DN (mm): 9 | Height H (mm): 14 | Length LF (mm): 110 | Head length LHD (mm): 45.0 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E16X-SSHM N640-14 Shank dia DCON (mm): 16 | Neck dia DN (mm): 9 | Height H (mm): 14 | Length LF (mm): 130 | Head length LHD (mm): 64.0 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SSH Small-Bore Internal Grooving Bar

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (14)

E08D-SSHM N125-08, E08E-SSHM N210-08, E12E-SSHM N125-08, E12F-SSHM N210-08, E12G-SSHM N300-08, E12H-SSHM N420-08, E12X-SSHM N195-14, E12H-SSHM N340-14, E12J-SSHM N450-14, E12X-SSHM N640-14 + 4 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E08D-SSHM N125-08Shank dia DCON (mm): 8 | Neck dia DN (mm): 6 | Height H (mm): 7 | Length LF (mm): 60(60.4) | Head length LHD (mm): 12.5(12.9) | Min machining dia DMIN (mm): 8~ | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E08E-SSHM N210-08Shank dia DCON (mm): 8 | Neck dia DN (mm): 6 | Height H (mm): 7 | Length LF (mm): 70(70.4) | Head length LHD (mm): 21.0(21.4) | Min machining dia DMIN (mm): 8~ | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12E-SSHM N125-08Shank dia DCON (mm): 12 | Neck dia DN (mm): 6 | Height H (mm): 11 | Length LF (mm): 70(70.4) | Head length LHD (mm): 12.5(12.9) | Min machining dia DMIN (mm): 8~ | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12F-SSHM N210-08Shank dia DCON (mm): 12 | Neck dia DN (mm): 6 | Height H (mm): 11 | Length LF (mm): 80(80.4) | Head length LHD (mm): 21.0(21.4) | Min machining dia DMIN (mm): 8~ | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12G-SSHM N300-08Shank dia DCON (mm): 12 | Neck dia DN (mm): 6 | Height H (mm): 11 | Length LF (mm): 90(90.4) | Head length LHD (mm): 30.0(30.4) | Min machining dia DMIN (mm): 8~ | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12H-SSHM N420-08Shank dia DCON (mm): 12 | Neck dia DN (mm): 6 | Height H (mm): 11 | Length LF (mm): 100 ( 100.4) | Head length LHD (mm): 42.0(42.4) | Min machining dia DMIN (mm): 8~ | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12X-SSHM N195-14Shank dia DCON (mm): 12 | Neck dia DN (mm): 9 | Height H (mm): 11 | Length LF (mm): 75 | Head length LHD (mm): 19.5 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12H-SSHM N340-14Shank dia DCON (mm): 12 | Neck dia DN (mm): 9 | Height H (mm): 11 | Length LF (mm): 100 | Head length LHD (mm): 34.0 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12J-SSHM N450-14Shank dia DCON (mm): 12 | Neck dia DN (mm): 9 | Height H (mm): 11 | Length LF (mm): 110 | Head length LHD (mm): 45.0 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E12X-SSHM N640-14Shank dia DCON (mm): 12 | Neck dia DN (mm): 9 | Height H (mm): 11 | Length LF (mm): 130 | Head length LHD (mm): 64.0 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E16F-SSHM N195-14Shank dia DCON (mm): 16 | Neck dia DN (mm): 9 | Height H (mm): 14 | Length LF (mm): 80 | Head length LHD (mm): 19.5 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E16H-SSHM N340-14Shank dia DCON (mm): 16 | Neck dia DN (mm): 9 | Height H (mm): 14 | Length LF (mm): 100 | Head length LHD (mm): 34.0 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E16J-SSHM N450-14Shank dia DCON (mm): 16 | Neck dia DN (mm): 9 | Height H (mm): 14 | Length LF (mm): 110 | Head length LHD (mm): 45.0 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
E16X-SSHM N640-14Shank dia DCON (mm): 16 | Neck dia DN (mm): 9 | Height H (mm): 14 | Length LF (mm): 130 | Head length LHD (mm): 64.0 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 0.74 ~ 3.00 | Stock: Yes
