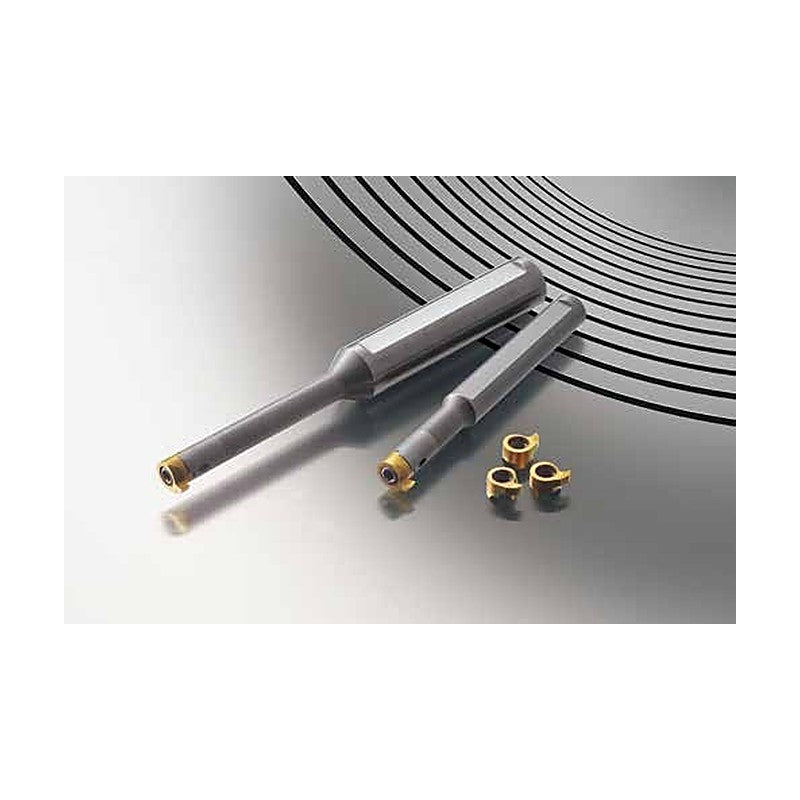

Sumitomo Electric Hardmetal SSHF Internal Face Grooving Bar

Sumitomo Electric Hardmetal SSHF Internal Face Grooving Bar

SEC grooving bar SSHF type for internal face grooving with SSHFI inserts.

Key features

  • Internal face grooving
  • Carbide shank with internal coolant

Specifications

Min machining dia DMIN (mm) 14
Shank dia DCON (mm) 16
Neck dia DN (mm) 9
Height H (mm) 14
Cutting width CW (mm) 1.0~3.0
E16H-SSHF R370-14 Shank dia DCON (mm): 16 | Neck dia DN (mm): 9 | Height H (mm): 14 | Length LF (mm): 108 | Head length LHD (mm): 37 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 1.0~3.0 | Stock: Yes
E16J-SSHF R480-14 Shank dia DCON (mm): 16 | Neck dia DN (mm): 9 | Height H (mm): 14 | Length LF (mm): 118 | Head length LHD (mm): 48 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 1.0~3.0 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SSHF Internal Face Grooving Bar

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (2)

E16H-SSHF R370-14, E16J-SSHF R480-14

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E16H-SSHF R370-14Shank dia DCON (mm): 16 | Neck dia DN (mm): 9 | Height H (mm): 14 | Length LF (mm): 108 | Head length LHD (mm): 37 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 1.0~3.0 | Stock: Yes
E16J-SSHF R480-14Shank dia DCON (mm): 16 | Neck dia DN (mm): 9 | Height H (mm): 14 | Length LF (mm): 118 | Head length LHD (mm): 48 | Min machining dia DMIN (mm): 14 | Cutting width CW (mm): 1.0~3.0 | Stock: Yes
