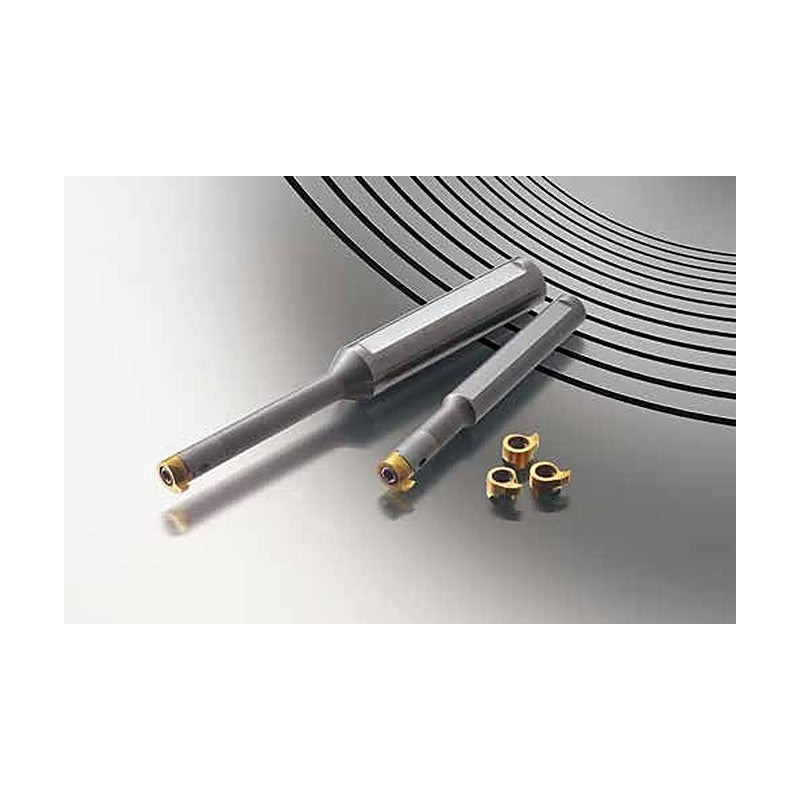

Sumitomo Electric Hardmetal SSHFI Internal Face Grooving Insert

Sumitomo Electric Hardmetal SSHFI Internal Face Grooving Insert

SSHFI insert for internal face grooving with SSHF type bars.

Key features

  • Grade AC1030U
  • Size 14

Specifications

WF3 (mm) 8.3
WF (mm) 9.0
SSHFI R1410000 AC1030U Cutting width CW (mm): 1.0 | Max cutting depth CDX (mm): 1.5 | Corner radius RE (mm): (C0.05) | WF3 (mm): 8.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | Grade: AC1030U | Stock: Yes
SSHFI R1415020 AC1030U Cutting width CW (mm): 1.5 | Max cutting depth CDX (mm): 2.5 | Corner radius RE (mm): 0.20 | WF3 (mm): 8.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | Grade: AC1030U | Stock: Yes
SSHFI R1420020 AC1030U Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 8.3 | WF (mm): 9.0 | Thickness S (mm): 4.9 | Grade: AC1030U | Stock: Yes
SSHFI R1425020 AC1030U Cutting width CW (mm): 2.5 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 8.3 | WF (mm): 9.0 | Thickness S (mm): 4.9 | Grade: AC1030U | Stock: Yes
SSHFI R1430020 AC1030U Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 8.3 | WF (mm): 9.0 | Thickness S (mm): 4.9 | Grade: AC1030U | Stock: Yes
Grooving InsertsSumitomo Electric Hardmetal
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SSHFI Internal Face Grooving Insert

Brand Sumitomo Electric Hardmetal·Grooving Inserts

Available part numbers (5)

SSHFI R1410000 AC1030U, SSHFI R1415020 AC1030U, SSHFI R1420020 AC1030U, SSHFI R1425020 AC1030U, SSHFI R1430020 AC1030U

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSHFI R1410000 AC1030UCutting width CW (mm): 1.0 | Max cutting depth CDX (mm): 1.5 | Corner radius RE (mm): (C0.05) | WF3 (mm): 8.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | Grade: AC1030U | Stock: Yes
SSHFI R1415020 AC1030UCutting width CW (mm): 1.5 | Max cutting depth CDX (mm): 2.5 | Corner radius RE (mm): 0.20 | WF3 (mm): 8.3 | WF (mm): 9.0 | Thickness S (mm): 5.5 | Grade: AC1030U | Stock: Yes
SSHFI R1420020 AC1030UCutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 8.3 | WF (mm): 9.0 | Thickness S (mm): 4.9 | Grade: AC1030U | Stock: Yes
SSHFI R1425020 AC1030UCutting width CW (mm): 2.5 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 8.3 | WF (mm): 9.0 | Thickness S (mm): 4.9 | Grade: AC1030U | Stock: Yes
SSHFI R1430020 AC1030UCutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 3.0 | Corner radius RE (mm): 0.20 | WF3 (mm): 8.3 | WF (mm): 9.0 | Thickness S (mm): 4.9 | Grade: AC1030U | Stock: Yes
