Sumitomo Electric Hardmetal SSHT Small-Bore Threading Insert

Sumitomo Electric Hardmetal SSHT Small-Bore Threading Insert

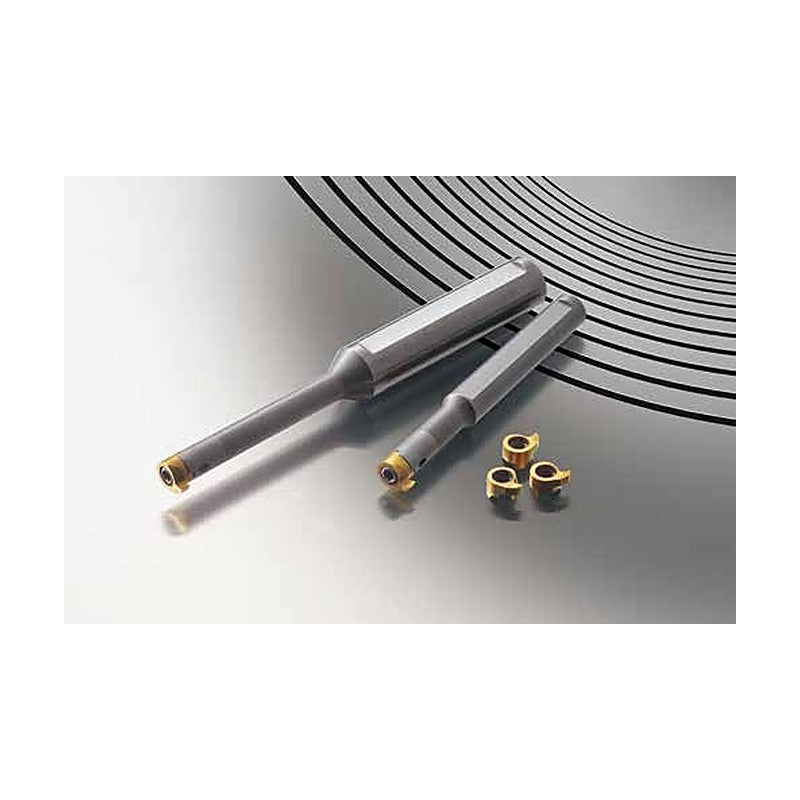

SSHT 60-degree threading insert for SSH small-bore grooving bars.

Key features

  • Grade AC1030U
  • Pitch 0.5-2.5 mm

Specifications

Thread angle PNA 60
SSHT R 086005 AC1030U Pitch (mm): 0.50 - 0.75 | CF (mm): 0.04 | WF3 (mm): 2.8 | WF (mm): 4.8 | Thread angle PNA: 60 | Thickness S (mm): 3.6 | Grade: AC1030U | Stock: Yes
SSHT R 086010 AC1030U Pitch (mm): 1.00 - 1.25 | CF (mm): 0.09 | WF3 (mm): 2.8 | WF (mm): 4.8 | Thread angle PNA: 60 | Thickness S (mm): 3.6 | Grade: AC1030U | Stock: Yes
SSHT R 086015 AC1030U Pitch (mm): 1.50 - 1.75 | CF (mm): 0.14 | WF3 (mm): 2.6 | WF (mm): 4.8 | Thread angle PNA: 60 | Thickness S (mm): 3.6 | Grade: AC1030U | Stock: Yes
SSHT R 146005 AC1030U Pitch (mm): 0.50 - 0.75 | CF (mm): 0.04 | WF3 (mm): 4.8 | WF (mm): 9.0 | Thread angle PNA: 60 | Thickness S (mm): 5.5 | Grade: AC1030U | Stock: Yes
SSHT R 146010 AC1030U Pitch (mm): 1.00 - 1.25 | CF (mm): 0.09 | WF3 (mm): 4.7 | WF (mm): 9.0 | Thread angle PNA: 60 | Thickness S (mm): 5.5 | Grade: AC1030U | Stock: Yes
SSHT R 146015 AC1030U Pitch (mm): 1.50 - 1.75 | CF (mm): 0.14 | WF3 (mm): 4.5 | WF (mm): 9.0 | Thread angle PNA: 60 | Thickness S (mm): 5.5 | Grade: AC1030U | Stock: Yes
SSHT R 146020 AC1030U Pitch (mm): 2.00 | CF (mm): 0.20 | WF3 (mm): 4.2 | WF (mm): 9.0 | Thread angle PNA: 60 | Thickness S (mm): 5.5 | Grade: AC1030U | Stock: Yes
SSHT R 146025 AC1030U Pitch (mm): 2.50 | CF (mm): 0.25 | WF3 (mm): 4.2 | WF (mm): 9.0 | Thread angle PNA: 60 | Thickness S (mm): 5.5 | Grade: AC1030U | Stock: Yes
Threading InsertsSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SSHT Small-Bore Threading Insert

Brand Sumitomo Electric Hardmetal·Threading Inserts

Available part numbers (8)

SSHT R 086005 AC1030U, SSHT R 086010 AC1030U, SSHT R 086015 AC1030U, SSHT R 146005 AC1030U, SSHT R 146010 AC1030U, SSHT R 146015 AC1030U, SSHT R 146020 AC1030U, SSHT R 146025 AC1030U

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
