• Sumitomo Electric Hardmetal STFH Cut-off Blade (Tsukkirikun Jr.)
1 1

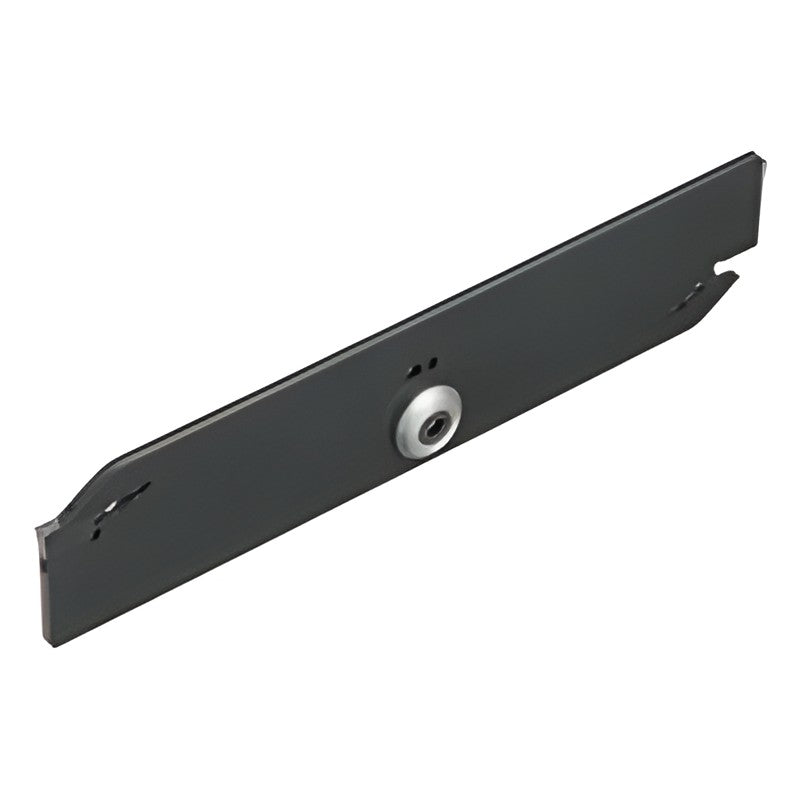

Sumitomo Electric Hardmetal STFH Cut-off Blade (Tsukkirikun Jr.)

Sumitomo Electric Hardmetal STFH Cut-off Blade (Tsukkirikun Jr.)

Tsukkirikun Jr. STFH steel cut-off blade for tool blocks.

Key features

  • Steel blade
  • Uses WCF inserts
STFH 26-2 Height H (mm): 26 | Width B (mm): 1.6 | Length LF (mm): 109 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 40 | Stock: Phase-out (check availability)
STFH 26-3 Height H (mm): 26 | Width B (mm): 2.4 | Length LF (mm): 109 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 70 | Stock: Phase-out (check availability)
STFH 26-4 Height H (mm): 26 | Width B (mm): 3.4 | Length LF (mm): 109 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 70 | Stock: Phase-out (check availability)
STFH 26-5 Height H (mm): 26 | Width B (mm): 4.3 | Length LF (mm): 109 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 70 | Stock: Phase-out (check availability)
STFH 32-2 Height H (mm): 32 | Width B (mm): 1.6 | Length LF (mm): 149 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 40 | Stock: Phase-out (check availability)
STFH 32-3 Height H (mm): 32 | Width B (mm): 2.4 | Length LF (mm): 149 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 100 | Stock: Phase-out (check availability)
STFH 32-4 Height H (mm): 32 | Width B (mm): 3.4 | Length LF (mm): 149 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 100 | Stock: Phase-out (check availability)
STFH 32-5 Height H (mm): 32 | Width B (mm): 4.3 | Length LF (mm): 149 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 100 | Stock: Phase-out (check availability)
Grooving HoldersSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal STFH Cut-off Blade (Tsukkirikun Jr.)

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (8)

STFH 26-2, STFH 26-3, STFH 26-4, STFH 26-5, STFH 32-2, STFH 32-3, STFH 32-4, STFH 32-5

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STFH 26-2Height H (mm): 26 | Width B (mm): 1.6 | Length LF (mm): 109 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 40 | Stock: Phase-out (check availability)
STFH 26-3Height H (mm): 26 | Width B (mm): 2.4 | Length LF (mm): 109 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 70 | Stock: Phase-out (check availability)
STFH 26-4Height H (mm): 26 | Width B (mm): 3.4 | Length LF (mm): 109 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 70 | Stock: Phase-out (check availability)
STFH 26-5Height H (mm): 26 | Width B (mm): 4.3 | Length LF (mm): 109 | Cutting height HF (mm): 21.4 | Length LF2 (mm): 108 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 70 | Stock: Phase-out (check availability)
STFH 32-2Height H (mm): 32 | Width B (mm): 1.6 | Length LF (mm): 149 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 40 | Stock: Phase-out (check availability)
STFH 32-3Height H (mm): 32 | Width B (mm): 2.4 | Length LF (mm): 149 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 100 | Stock: Phase-out (check availability)
STFH 32-4Height H (mm): 32 | Width B (mm): 3.4 | Length LF (mm): 149 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 100 | Stock: Phase-out (check availability)
STFH 32-5Height H (mm): 32 | Width B (mm): 4.3 | Length LF (mm): 149 | Cutting height HF (mm): 25.0 | Length LF2 (mm): 148 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 100 | Stock: Phase-out (check availability)
