Sumitomo Electric Hardmetal STFS Cut-off Shank Holder (Tsukkirikun Jr.)

Sumitomo Electric Hardmetal STFS Cut-off Shank Holder (Tsukkirikun Jr.)

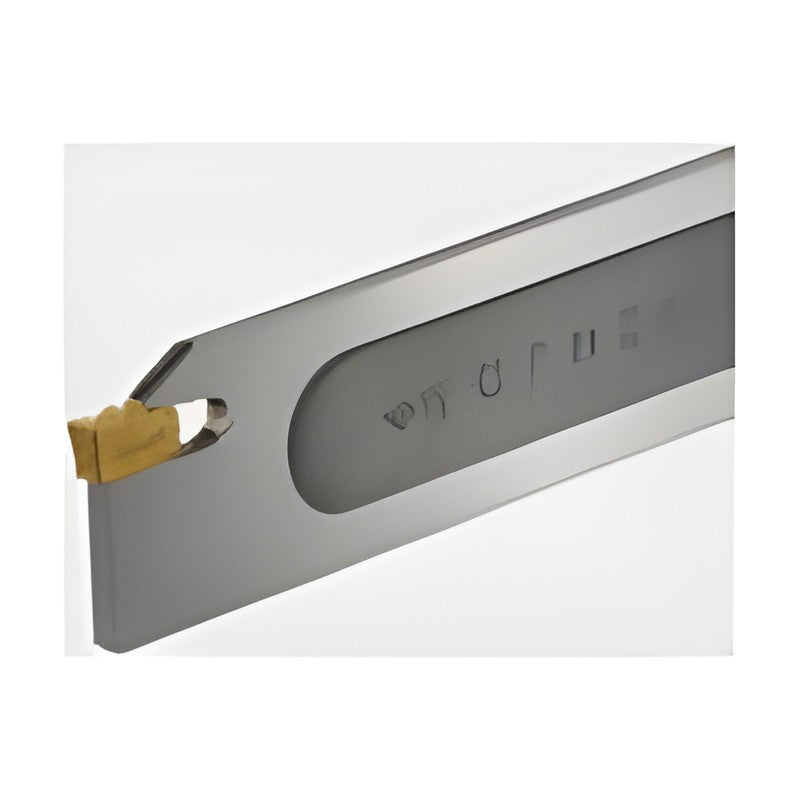

Tsukkirikun Jr. STFS steel shank-type cut-off holder.

Key features

  • Shank type
  • Uses WCF inserts
STFS R1010-2 Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 86 | WF (mm): 10 | Cutting height HF (mm): 10 | Head length LH (mm): 17 | LH2 (mm): 17 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 28 | Stock: Yes
STFS L1010-2 Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 86 | WF (mm): 10 | Cutting height HF (mm): 10 | Head length LH (mm): 17 | LH2 (mm): 17 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 28 | Stock: Yes
STFS R1212-2 Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 110 | WF (mm): 12 | Cutting height HF (mm): 12 | Head length LH (mm): 18 | LH2 (mm): 18 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 30 | Stock: Yes
STFS L1212-2 Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 110 | WF (mm): 12 | Cutting height HF (mm): 12 | Head length LH (mm): 18 | LH2 (mm): 18 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 30 | Stock: Yes
STFS R1616-2 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 110 | WF (mm): 16 | Cutting height HF (mm): 16 | LH2 (mm): 19 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 32 | Stock: Yes
STFS L1616-2 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 110 | WF (mm): 16 | Cutting height HF (mm): 16 | LH2 (mm): 19 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 32 | Stock: Yes
STFS R2020-2 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 24 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 40 | Stock: Yes
STFS L2020-2 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 24 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 40 | Stock: Yes
STFS R1616-3 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 110 | WF (mm): 16 | Cutting height HF (mm): 16 | Head length LH (mm): 20 | LH2 (mm): 22 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 35 | Stock: Yes
STFS L1616-3 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 110 | WF (mm): 16 | Cutting height HF (mm): 16 | Head length LH (mm): 20 | LH2 (mm): 22 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 35 | Stock: Yes
STFS R2012-3 Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 110 | WF (mm): 12 | Cutting height HF (mm): 20 | LH2 (mm): 24 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 40 | Stock: Yes
STFS L2012-3 Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 110 | WF (mm): 12 | Cutting height HF (mm): 20 | LH2 (mm): 24 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 40 | Stock: Yes
STFS R2020-3 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 30 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
STFS L2020-3 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 30 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
STFS R2525-3 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | LH2 (mm): 30 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
STFS L2525-3 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | LH2 (mm): 30 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
STFS R2020-4 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 33 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 55 | Stock: Yes
STFS L2020-4 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 33 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 55 | Stock: Yes
STFS R2525-4 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | LH2 (mm): 38 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 65 | Stock: Yes
STFS L2525-4 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | LH2 (mm): 38 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 65 | Stock: Yes
STFS R2020-5 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 35 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 60 | Stock: Yes
STFS L2020-5 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 35 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 60 | Stock: Yes
STFS R2525-5 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | LH2 (mm): 40 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 70 | Stock: Yes
STFS L2525-5 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | LH2 (mm): 40 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 70 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal STFS Cut-off Shank Holder (Tsukkirikun Jr.)

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (24)

STFS R1010-2, STFS L1010-2, STFS R1212-2, STFS L1212-2, STFS R1616-2, STFS L1616-2, STFS R2020-2, STFS L2020-2, STFS R1616-3, STFS L1616-3 + 14 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STFS R1010-2Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 86 | WF (mm): 10 | Cutting height HF (mm): 10 | Head length LH (mm): 17 | LH2 (mm): 17 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 28 | Stock: Yes
STFS L1010-2Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 86 | WF (mm): 10 | Cutting height HF (mm): 10 | Head length LH (mm): 17 | LH2 (mm): 17 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 28 | Stock: Yes
STFS R1212-2Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 110 | WF (mm): 12 | Cutting height HF (mm): 12 | Head length LH (mm): 18 | LH2 (mm): 18 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 30 | Stock: Yes
STFS L1212-2Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 110 | WF (mm): 12 | Cutting height HF (mm): 12 | Head length LH (mm): 18 | LH2 (mm): 18 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 30 | Stock: Yes
STFS R1616-2Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 110 | WF (mm): 16 | Cutting height HF (mm): 16 | LH2 (mm): 19 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 32 | Stock: Yes
STFS L1616-2Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 110 | WF (mm): 16 | Cutting height HF (mm): 16 | LH2 (mm): 19 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 32 | Stock: Yes
STFS R2020-2Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 24 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 40 | Stock: Yes
STFS L2020-2Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 24 | Cutting width CW (mm): 2.0 | Max cut-off dia (mm): 40 | Stock: Yes
STFS R1616-3Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 110 | WF (mm): 16 | Cutting height HF (mm): 16 | Head length LH (mm): 20 | LH2 (mm): 22 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 35 | Stock: Yes
STFS L1616-3Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 110 | WF (mm): 16 | Cutting height HF (mm): 16 | Head length LH (mm): 20 | LH2 (mm): 22 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 35 | Stock: Yes
STFS R2012-3Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 110 | WF (mm): 12 | Cutting height HF (mm): 20 | LH2 (mm): 24 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 40 | Stock: Yes
STFS L2012-3Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 110 | WF (mm): 12 | Cutting height HF (mm): 20 | LH2 (mm): 24 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 40 | Stock: Yes
STFS R2020-3Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 30 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
STFS L2020-3Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 30 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
STFS R2525-3Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | LH2 (mm): 30 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
STFS L2525-3Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | LH2 (mm): 30 | Cutting width CW (mm): 3.0 | Max cut-off dia (mm): 50 | Stock: Yes
STFS R2020-4Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 33 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 55 | Stock: Yes
STFS L2020-4Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 33 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 55 | Stock: Yes
STFS R2525-4Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | LH2 (mm): 38 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 65 | Stock: Yes
STFS L2525-4Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | LH2 (mm): 38 | Cutting width CW (mm): 4.0 | Max cut-off dia (mm): 65 | Stock: Yes
STFS R2020-5Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 35 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 60 | Stock: Yes
STFS L2020-5Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | LH2 (mm): 35 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 60 | Stock: Yes
STFS R2525-5Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | LH2 (mm): 40 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 70 | Stock: Yes
STFS L2525-5Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | LH2 (mm): 40 | Cutting width CW (mm): 5.0 | Max cut-off dia (mm): 70 | Stock: Yes
