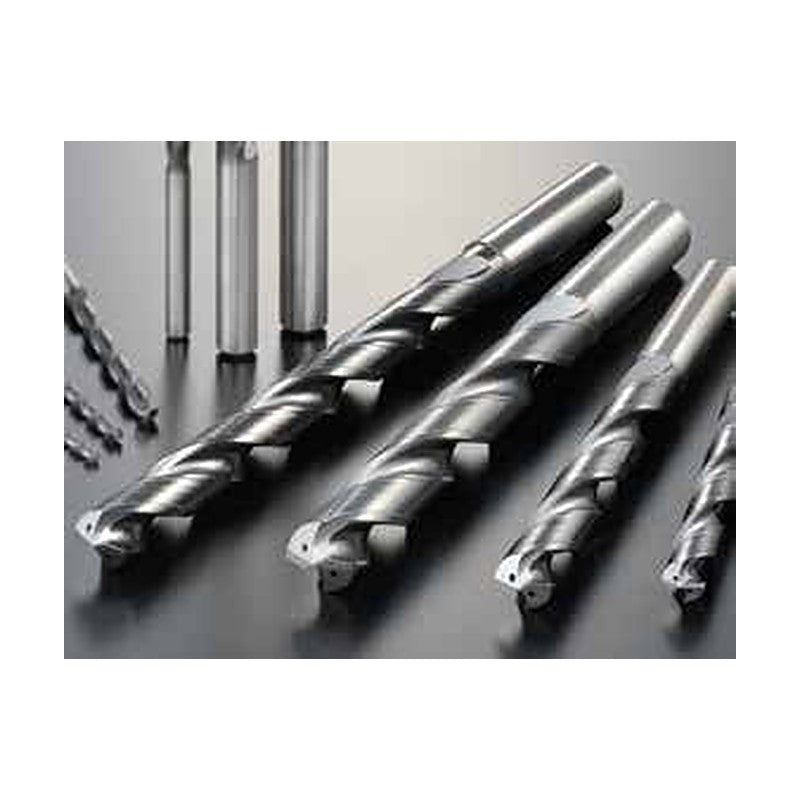

Sumitomo Electric Hardmetal Strong Multi Drill HX Type (Internal Coolant)

Sumitomo Electric Hardmetal Strong Multi Drill HX Type (Internal Coolant)

Solid carbide drill dedicated to cast iron, combining reduced cutting resistance (RX thinning) with high drill strength for high-efficiency drilling.

Key features

  • Thick web and special double margin
  • RX thinning reduces cutting resistance
  • DEX coating
  • Hole depth 3D, 5D and 8D

Specifications

Coolant Internal
Point angle 140 deg
Workpiece Cast iron
MDW0300HX3 DC (mm): 3.0 | L/D: 3 | LU (mm): 13.5 | LCF (mm): 18.0 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300HX5 DC (mm): 3.0 | L/D: 5 | LU (mm): 24.0 | LCF (mm): 28.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300HX8 DC (mm): 3.0 | L/D: 8 | LU (mm): 29.0 | LCF (mm): 33.5 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0310HX3 DC (mm): 3.1 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310HX5 DC (mm): 3.1 | L/D: 5 | LU (mm): 28.0 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310HX8 DC (mm): 3.1 | L/D: 8 | LU (mm): 34.5 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0320HX3 DC (mm): 3.2 | L/D: 3 | LU (mm): 15.8 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0320HX5 DC (mm): 3.2 | L/D: 5 | LU (mm): 27.8 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0320HX8 DC (mm): 3.2 | L/D: 8 | LU (mm): 34.3 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0330HX3 DC (mm): 3.3 | L/D: 3 | LU (mm): 15.7 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330HX5 DC (mm): 3.3 | L/D: 5 | LU (mm): 27.7 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330HX8 DC (mm): 3.3 | L/D: 8 | LU (mm): 34.2 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0340HX3 DC (mm): 3.4 | L/D: 3 | LU (mm): 15.5 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0340HX5 DC (mm): 3.4 | L/D: 5 | LU (mm): 27.5 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0340HX8 DC (mm): 3.4 | L/D: 8 | LU (mm): 34.0 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0350HX3 DC (mm): 3.5 | L/D: 3 | LU (mm): 15.4 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0350HX5 DC (mm): 3.5 | L/D: 5 | LU (mm): 27.4 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350HX8 DC (mm): 3.5 | L/D: 8 | LU (mm): 33.9 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0360HX3 DC (mm): 3.6 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360HX5 DC (mm): 3.6 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0360HX8 DC (mm): 3.6 | L/D: 8 | LU (mm): 39.3 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0370HX3 DC (mm): 3.7 | L/D: 3 | LU (mm): 17.7 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370HX5 DC (mm): 3.7 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0370HX8 DC (mm): 3.7 | L/D: 8 | LU (mm): 39.2 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0380HX3 DC (mm): 3.8 | L/D: 3 | LU (mm): 17.5 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0380HX5 DC (mm): 3.8 | L/D: 5 | LU (mm): 31.0 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0380HX8 DC (mm): 3.8 | L/D: 8 | LU (mm): 39.0 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0390HX3 DC (mm): 3.9 | L/D: 3 | LU (mm): 17.4 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0390HX5 DC (mm): 3.9 | L/D: 5 | LU (mm): 30.9 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0390HX8 DC (mm): 3.9 | L/D: 8 | LU (mm): 38.9 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0400HX3 DC (mm): 4.0 | L/D: 3 | LU (mm): 17.2 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400HX5 DC (mm): 4.0 | L/D: 5 | LU (mm): 30.7 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400HX8 DC (mm): 4.0 | L/D: 8 | LU (mm): 38.7 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0410HX3 DC (mm): 4.1 | L/D: 3 | LU (mm): 19.6 | LCF (mm): 25.7 | OAL (mm): 80.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0410HX5 DC (mm): 4.1 | L/D: 5 | LU (mm): 34.6 | LCF (mm): 40.7 | OAL (mm): 98.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDW0410HX8 DC (mm): 4.1 | L/D: 8 | LU (mm): 44.1 | LCF (mm): 50.2 | OAL (mm): 105.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Made to order
MDW0420HX3 DC (mm): 4.2 | L/D: 3 | LU (mm): 19.5 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420HX5 DC (mm): 4.2 | L/D: 5 | LU (mm): 34.5 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420HX8 DC (mm): 4.2 | L/D: 8 | LU (mm): 44.0 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0430HX3 DC (mm): 4.3 | L/D: 3 | LU (mm): 19.4 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0430HX5 DC (mm): 4.3 | L/D: 5 | LU (mm): 34.4 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0430HX8 DC (mm): 4.3 | L/D: 8 | LU (mm): 43.9 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0440HX3 DC (mm): 4.4 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0440HX5 DC (mm): 4.4 | L/D: 5 | LU (mm): 34.2 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0440HX8 DC (mm): 4.4 | L/D: 8 | LU (mm): 43.7 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0450HX3 DC (mm): 4.5 | L/D: 3 | LU (mm): 19.1 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450HX5 DC (mm): 4.5 | L/D: 5 | LU (mm): 34.1 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0450HX8 DC (mm): 4.5 | L/D: 8 | LU (mm): 43.6 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460HX3 DC (mm): 4.6 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 28.3 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0460HX5 DC (mm): 4.6 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460HX8 DC (mm): 4.6 | L/D: 8 | LU (mm): 48.9 | LCF (mm): 55.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0470HX3 DC (mm): 4.7 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0470HX5 DC (mm): 4.7 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0470HX8 DC (mm): 4.7 | L/D: 8 | LU (mm): 48.9 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0480HX3 DC (mm): 4.8 | L/D: 3 | LU (mm): 21.2 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0480HX5 DC (mm): 4.8 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0480HX8 DC (mm): 4.8 | L/D: 8 | LU (mm): 48.7 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0490HX3 DC (mm): 4.9 | L/D: 3 | LU (mm): 21.1 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0490HX5 DC (mm): 4.9 | L/D: 5 | LU (mm): 37.6 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0490HX8 DC (mm): 4.9 | L/D: 8 | LU (mm): 48.6 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0500HX3 DC (mm): 5.0 | L/D: 3 | LU (mm): 20.9 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500HX5 DC (mm): 5.0 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500HX8 DC (mm): 5.0 | L/D: 8 | LU (mm): 48.4 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0510HX3 DC (mm): 5.1 | L/D: 3 | LU (mm): 20.8 | LCF (mm): 28.4 | OAL (mm): 82.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0510HX5 DC (mm): 5.1 | L/D: 5 | LU (mm): 37.3 | LCF (mm): 44.9 | OAL (mm): 100.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0510HX8 DC (mm): 5.1 | L/D: 8 | LU (mm): 53.8 | LCF (mm): 61.4 | OAL (mm): 118.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520HX3 DC (mm): 5.2 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.4 | OAL (mm): 82.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0520HX5 DC (mm): 5.2 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 44.9 | OAL (mm): 100.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520HX8 DC (mm): 5.2 | L/D: 8 | LU (mm): 53.6 | LCF (mm): 61.4 | OAL (mm): 118.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Made to order
MDW0530HX3 DC (mm): 5.3 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0530HX5 DC (mm): 5.3 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0530HX8 DC (mm): 5.3 | L/D: 8 | LU (mm): 53.6 | LCF (mm): 61.5 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0540HX3 DC (mm): 5.4 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0540HX5 DC (mm): 5.4 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0540HX8 DC (mm): 5.4 | L/D: 8 | LU (mm): 53.4 | LCF (mm): 61.5 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0550HX3 DC (mm): 5.5 | L/D: 3 | LU (mm): 20.3 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550HX5 DC (mm): 5.5 | L/D: 5 | LU (mm): 36.8 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0550HX8 DC (mm): 5.5 | L/D: 8 | LU (mm): 53.3 | LCF (mm): 61.5 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560HX3 DC (mm): 5.6 | L/D: 3 | LU (mm): 22.6 | LCF (mm): 31.0 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560HX5 DC (mm): 5.6 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0560HX8 DC (mm): 5.6 | L/D: 8 | LU (mm): 58.6 | LCF (mm): 67.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0570HX3 DC (mm): 5.7 | L/D: 3 | LU (mm): 22.5 | LCF (mm): 31.0 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570HX5 DC (mm): 5.7 | L/D: 5 | LU (mm): 40.5 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570HX8 DC (mm): 5.7 | L/D: 8 | LU (mm): 58.5 | LCF (mm): 67.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0580HX3 DC (mm): 5.8 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0580HX5 DC (mm): 5.8 | L/D: 5 | LU (mm): 40.4 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0580HX8 DC (mm): 5.8 | L/D: 8 | LU (mm): 58.4 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590HX3 DC (mm): 5.9 | L/D: 3 | LU (mm): 22.3 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590HX5 DC (mm): 5.9 | L/D: 5 | LU (mm): 40.3 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590HX8 DC (mm): 5.9 | L/D: 8 | LU (mm): 58.3 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0600HX3 DC (mm): 6.0 | L/D: 3 | LU (mm): 22.1 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600HX5 DC (mm): 6.0 | L/D: 5 | LU (mm): 40.1 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600HX8 DC (mm): 6.0 | L/D: 8 | LU (mm): 58.1 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0610HX3 DC (mm): 6.1 | L/D: 3 | LU (mm): 24.5 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0610HX5 DC (mm): 6.1 | L/D: 5 | LU (mm): 44.0 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0610HX8 DC (mm): 6.1 | L/D: 8 | LU (mm): 63.5 | LCF (mm): 72.6 | OAL (mm): 131.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Made to order
MDW0620HX3 DC (mm): 6.2 | L/D: 3 | LU (mm): 24.3 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620HX5 DC (mm): 6.2 | L/D: 5 | LU (mm): 43.8 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620HX8 DC (mm): 6.2 | L/D: 8 | LU (mm): 63.3 | LCF (mm): 72.6 | OAL (mm): 131.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Made to order
MDW0630HX3 DC (mm): 6.3 | L/D: 3 | LU (mm): 24.2 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630HX5 DC (mm): 6.3 | L/D: 5 | LU (mm): 43.7 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630HX8 DC (mm): 6.3 | L/D: 8 | LU (mm): 63.2 | LCF (mm): 72.6 | OAL (mm): 131.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Made to order
MDW0640HX3 DC (mm): 6.4 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Phase-out (check availability)
MDW0640HX5 DC (mm): 6.4 | L/D: 5 | LU (mm): 43.6 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0640HX8 DC (mm): 6.4 | L/D: 8 | LU (mm): 63.1 | LCF (mm): 72.7 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Made to order
MDW0650HX3 DC (mm): 6.5 | L/D: 3 | LU (mm): 24.0 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Phase-out (check availability)
MDW0650HX5 DC (mm): 6.5 | L/D: 5 | LU (mm): 43.5 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Phase-out (check availability)
MDW0650HX8 DC (mm): 6.5 | L/D: 8 | LU (mm): 63.0 | LCF (mm): 72.7 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660HX3 DC (mm): 6.6 | L/D: 3 | LU (mm): 26.3 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660HX5 DC (mm): 6.6 | L/D: 5 | LU (mm): 47.3 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660HX8 DC (mm): 6.6 | L/D: 8 | LU (mm): 68.3 | LCF (mm): 78.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Made to order
MDW0670HX3 DC (mm): 6.7 | L/D: 3 | LU (mm): 26.2 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670HX5 DC (mm): 6.7 | L/D: 5 | LU (mm): 47.2 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670HX8 DC (mm): 6.7 | L/D: 8 | LU (mm): 68.2 | LCF (mm): 78.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680HX3 DC (mm): 6.8 | L/D: 3 | LU (mm): 26.0 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680HX5 DC (mm): 6.8 | L/D: 5 | LU (mm): 47.0 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680HX8 DC (mm): 6.8 | L/D: 8 | LU (mm): 68.0 | LCF (mm): 78.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0690HX3 DC (mm): 6.9 | L/D: 3 | LU (mm): 26.0 | LCF (mm): 36.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0690HX5 DC (mm): 6.9 | L/D: 5 | LU (mm): 47.0 | LCF (mm): 57.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0690HX8 DC (mm): 6.9 | L/D: 8 | LU (mm): 68.0 | LCF (mm): 78.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700HX3 DC (mm): 7.0 | L/D: 3 | LU (mm): 25.8 | LCF (mm): 36.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700HX5 DC (mm): 7.0 | L/D: 5 | LU (mm): 46.8 | LCF (mm): 57.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700HX8 DC (mm): 7.0 | L/D: 8 | LU (mm): 67.8 | LCF (mm): 78.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0710HX3 DC (mm): 7.1 | L/D: 3 | LU (mm): 28.2 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0710HX5 DC (mm): 7.1 | L/D: 5 | LU (mm): 50.7 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0710HX8 DC (mm): 7.1 | L/D: 8 | LU (mm): 73.2 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0720HX3 DC (mm): 7.2 | L/D: 3 | LU (mm): 28.0 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0720HX5 DC (mm): 7.2 | L/D: 5 | LU (mm): 50.5 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0720HX8 DC (mm): 7.2 | L/D: 8 | LU (mm): 73.0 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0730HX3 DC (mm): 7.3 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0730HX5 DC (mm): 7.3 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0730HX8 DC (mm): 7.3 | L/D: 8 | LU (mm): 72.9 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0740HX3 DC (mm): 7.4 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0740HX5 DC (mm): 7.4 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0740HX8 DC (mm): 7.4 | L/D: 8 | LU (mm): 72.7 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0750HX3 DC (mm): 7.5 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750HX5 DC (mm): 7.5 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750HX8 DC (mm): 7.5 | L/D: 8 | LU (mm): 72.7 | LCF (mm): 83.9 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760HX3 DC (mm): 7.6 | L/D: 3 | LU (mm): 30.0 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760HX5 DC (mm): 7.6 | L/D: 5 | LU (mm): 54.0 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0760HX8 DC (mm): 7.6 | L/D: 8 | LU (mm): 78.0 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0770HX3 DC (mm): 7.7 | L/D: 3 | LU (mm): 29.9 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770HX5 DC (mm): 7.7 | L/D: 5 | LU (mm): 53.9 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770HX8 DC (mm): 7.7 | L/D: 8 | LU (mm): 77.9 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0780HX3 DC (mm): 7.8 | L/D: 3 | LU (mm): 29.7 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780HX5 DC (mm): 7.8 | L/D: 5 | LU (mm): 53.7 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780HX8 DC (mm): 7.8 | L/D: 8 | LU (mm): 77.7 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0790HX3 DC (mm): 7.9 | L/D: 3 | LU (mm): 29.6 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0790HX5 DC (mm): 7.9 | L/D: 5 | LU (mm): 53.6 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0790HX8 DC (mm): 7.9 | L/D: 8 | LU (mm): 77.6 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0800HX3 DC (mm): 8.0 | L/D: 3 | LU (mm): 29.5 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800HX5 DC (mm): 8.0 | L/D: 5 | LU (mm): 53.5 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800HX8 DC (mm): 8.0 | L/D: 8 | LU (mm): 77.5 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0810HX3 DC (mm): 8.1 | L/D: 3 | LU (mm): 31.9 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0810HX5 DC (mm): 8.1 | L/D: 5 | LU (mm): 57.4 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0810HX8 DC (mm): 8.1 | L/D: 8 | LU (mm): 82.9 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Made to order
MDW0820HX3 DC (mm): 8.2 | L/D: 3 | LU (mm): 31.7 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0820HX5 DC (mm): 8.2 | L/D: 5 | LU (mm): 57.2 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0820HX8 DC (mm): 8.2 | L/D: 8 | LU (mm): 82.7 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Made to order
MDW0830HX3 DC (mm): 8.3 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0830HX5 DC (mm): 8.3 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0830HX8 DC (mm): 8.3 | L/D: 8 | LU (mm): 82.6 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Made to order
MDW0840HX3 DC (mm): 8.4 | L/D: 3 | LU (mm): 31.4 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0840HX5 DC (mm): 8.4 | L/D: 5 | LU (mm): 56.9 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0840HX8 DC (mm): 8.4 | L/D: 8 | LU (mm): 82.4 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Made to order
MDW0850HX3 DC (mm): 8.5 | L/D: 3 | LU (mm): 31.3 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850HX5 DC (mm): 8.5 | L/D: 5 | LU (mm): 56.8 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850HX8 DC (mm): 8.5 | L/D: 8 | LU (mm): 82.3 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0860HX3 DC (mm): 8.6 | L/D: 3 | LU (mm): 33.7 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0860HX5 DC (mm): 8.6 | L/D: 5 | LU (mm): 60.7 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0860HX8 DC (mm): 8.6 | L/D: 8 | LU (mm): 87.7 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Made to order
MDW0870HX3 DC (mm): 8.7 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0870HX5 DC (mm): 8.7 | L/D: 5 | LU (mm): 60.6 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0870HX8 DC (mm): 8.7 | L/D: 8 | LU (mm): 87.6 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Made to order
MDW0880HX3 DC (mm): 8.8 | L/D: 3 | LU (mm): 33.4 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0880HX5 DC (mm): 8.8 | L/D: 5 | LU (mm): 60.4 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0880HX8 DC (mm): 8.8 | L/D: 8 | LU (mm): 87.4 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0890HX3 DC (mm): 8.9 | L/D: 3 | LU (mm): 33.3 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0890HX5 DC (mm): 8.9 | L/D: 5 | LU (mm): 60.3 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0890HX8 DC (mm): 8.9 | L/D: 8 | LU (mm): 87.3 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Made to order
MDW0900HX3 DC (mm): 9.0 | L/D: 3 | LU (mm): 33.1 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900HX5 DC (mm): 9.0 | L/D: 5 | LU (mm): 60.1 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900HX8 DC (mm): 9.0 | L/D: 8 | LU (mm): 87.1 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0910HX3 DC (mm): 9.1 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0910HX5 DC (mm): 9.1 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0910HX8 DC (mm): 9.1 | L/D: 8 | LU (mm): 92.6 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDW0920HX3 DC (mm): 9.2 | L/D: 3 | LU (mm): 35.4 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0920HX5 DC (mm): 9.2 | L/D: 5 | LU (mm): 63.9 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0920HX8 DC (mm): 9.2 | L/D: 8 | LU (mm): 92.4 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDW0930HX3 DC (mm): 9.3 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0930HX5 DC (mm): 9.3 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0930HX8 DC (mm): 9.3 | L/D: 8 | LU (mm): 92.3 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDW0940HX3 DC (mm): 9.4 | L/D: 3 | LU (mm): 35.1 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0940HX5 DC (mm): 9.4 | L/D: 5 | LU (mm): 63.6 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0940HX8 DC (mm): 9.4 | L/D: 8 | LU (mm): 92.1 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDW0950HX3 DC (mm): 9.5 | L/D: 3 | LU (mm): 35.0 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950HX5 DC (mm): 9.5 | L/D: 5 | LU (mm): 63.5 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950HX8 DC (mm): 9.5 | L/D: 8 | LU (mm): 92.0 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0960HX3 DC (mm): 9.6 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.7 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0960HX5 DC (mm): 9.6 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0960HX8 DC (mm): 9.6 | L/D: 8 | LU (mm): 97.3 | LCF (mm): 111.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDW0970HX3 DC (mm): 9.7 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW0970HX5 DC (mm): 9.7 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW0970HX8 DC (mm): 9.7 | L/D: 8 | LU (mm): 97.3 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Made to order
MDW0980HX3 DC (mm): 9.8 | L/D: 3 | LU (mm): 37.1 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW0980HX5 DC (mm): 9.8 | L/D: 5 | LU (mm): 67.1 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0980HX8 DC (mm): 9.8 | L/D: 8 | LU (mm): 97.1 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Made to order
MDW0990HX3 DC (mm): 9.9 | L/D: 3 | LU (mm): 37.0 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0990HX5 DC (mm): 9.9 | L/D: 5 | LU (mm): 67.0 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0990HX8 DC (mm): 9.9 | L/D: 8 | LU (mm): 97.0 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Made to order
MDW1000HX3 DC (mm): 10.0 | L/D: 3 | LU (mm): 36.8 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000HX5 DC (mm): 10.0 | L/D: 5 | LU (mm): 66.8 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000HX8 DC (mm): 10.0 | L/D: 8 | LU (mm): 96.8 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1010HX3 DC (mm): 10.1 | L/D: 3 | LU (mm): 39.2 | LCF (mm): 54.3 | OAL (mm): 117.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1010HX5 DC (mm): 10.1 | L/D: 5 | LU (mm): 70.7 | LCF (mm): 85.8 | OAL (mm): 150.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDW1010HX8 DC (mm): 10.1 | L/D: 8 | LU (mm): 102.2 | LCF (mm): 117.3 | OAL (mm): 183.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Made to order
MDW1020HX3 DC (mm): 10.2 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1020HX5 DC (mm): 10.2 | L/D: 5 | LU (mm): 70.6 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1020HX8 DC (mm): 10.2 | L/D: 8 | LU (mm): 102.1 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Made to order
MDW1030HX3 DC (mm): 10.3 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1030HX5 DC (mm): 10.3 | L/D: 5 | LU (mm): 70.5 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1030HX8 DC (mm): 10.3 | L/D: 8 | LU (mm): 102.0 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1040HX3 DC (mm): 10.4 | L/D: 3 | LU (mm): 38.8 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1040HX5 DC (mm): 10.4 | L/D: 5 | LU (mm): 70.3 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1040HX8 DC (mm): 10.4 | L/D: 8 | LU (mm): 101.8 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Made to order
MDW1050HX3 DC (mm): 10.5 | L/D: 3 | LU (mm): 38.7 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1050HX5 DC (mm): 10.5 | L/D: 5 | LU (mm): 70.2 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1050HX8 DC (mm): 10.5 | L/D: 8 | LU (mm): 101.7 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1060HX3 DC (mm): 10.6 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 56.9 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1060HX5 DC (mm): 10.6 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 89.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1060HX8 DC (mm): 10.6 | L/D: 8 | LU (mm): 107.0 | LCF (mm): 122.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Made to order
MDW1070HX3 DC (mm): 10.7 | L/D: 3 | LU (mm): 40.9 | LCF (mm): 56.9 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1070HX5 DC (mm): 10.7 | L/D: 5 | LU (mm): 73.9 | LCF (mm): 89.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1070HX8 DC (mm): 10.7 | L/D: 8 | LU (mm): 106.9 | LCF (mm): 122.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Made to order
MDW1080HX3 DC (mm): 10.8 | L/D: 3 | LU (mm): 40.8 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1080HX5 DC (mm): 10.8 | L/D: 5 | LU (mm): 73.8 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1080HX8 DC (mm): 10.8 | L/D: 8 | LU (mm): 106.8 | LCF (mm): 123.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Made to order
MDW1090HX3 DC (mm): 10.9 | L/D: 3 | LU (mm): 40.7 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1090HX5 DC (mm): 10.9 | L/D: 5 | LU (mm): 73.7 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1090HX8 DC (mm): 10.9 | L/D: 8 | LU (mm): 106.7 | LCF (mm): 123.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Made to order
MDW1100HX3 DC (mm): 11.0 | L/D: 3 | LU (mm): 40.5 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1100HX5 DC (mm): 11.0 | L/D: 5 | LU (mm): 73.5 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1100HX8 DC (mm): 11.0 | L/D: 8 | LU (mm): 106.5 | LCF (mm): 123.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1110HX3 DC (mm): 11.1 | L/D: 3 | LU (mm): 42.9 | LCF (mm): 59.5 | OAL (mm): 124.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDW1110HX5 DC (mm): 11.1 | L/D: 5 | LU (mm): 77.4 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDW1110HX8 DC (mm): 11.1 | L/D: 8 | LU (mm): 111.9 | LCF (mm): 128.5 | OAL (mm): 196.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Made to order
MDW1120HX3 DC (mm): 11.2 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.5 | OAL (mm): 124.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1120HX5 DC (mm): 11.2 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDW1120HX8 DC (mm): 11.2 | L/D: 8 | LU (mm): 111.7 | LCF (mm): 128.5 | OAL (mm): 196.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Made to order
MDW1130HX3 DC (mm): 11.3 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1130HX5 DC (mm): 11.3 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1130HX8 DC (mm): 11.3 | L/D: 8 | LU (mm): 111.7 | LCF (mm): 128.6 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDW1140HX3 DC (mm): 11.4 | L/D: 3 | LU (mm): 42.5 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1140HX5 DC (mm): 11.4 | L/D: 5 | LU (mm): 77.0 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1140HX8 DC (mm): 11.4 | L/D: 8 | LU (mm): 111.5 | LCF (mm): 128.6 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDW1150HX3 DC (mm): 11.5 | L/D: 3 | LU (mm): 42.4 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1150HX5 DC (mm): 11.5 | L/D: 5 | LU (mm): 76.9 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1150HX8 DC (mm): 11.5 | L/D: 8 | LU (mm): 111.4 | LCF (mm): 128.6 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1160HX3 DC (mm): 11.6 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1160HX5 DC (mm): 11.6 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1160HX8 DC (mm): 11.6 | L/D: 8 | LU (mm): 116.7 | LCF (mm): 134.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDW1170HX3 DC (mm): 11.7 | L/D: 3 | LU (mm): 44.6 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1170HX5 DC (mm): 11.7 | L/D: 5 | LU (mm): 80.6 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1170HX8 DC (mm): 11.7 | L/D: 8 | LU (mm): 116.6 | LCF (mm): 134.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDW1180HX3 DC (mm): 11.8 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1180HX5 DC (mm): 11.8 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1180HX8 DC (mm): 11.8 | L/D: 8 | LU (mm): 116.4 | LCF (mm): 134.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDW1190HX3 DC (mm): 11.9 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1190HX5 DC (mm): 11.9 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1190HX8 DC (mm): 11.9 | L/D: 8 | LU (mm): 116.4 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Made to order
MDW1200HX3 DC (mm): 12.0 | L/D: 3 | LU (mm): 44.2 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1200HX5 DC (mm): 12.0 | L/D: 5 | LU (mm): 80.2 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1200HX8 DC (mm): 12.0 | L/D: 8 | LU (mm): 116.2 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1210HX3 DC (mm): 12.1 | L/D: 3 | LU (mm): 46.6 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1210HX5 DC (mm): 12.1 | L/D: 5 | LU (mm): 84.1 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1210HX8 DC (mm): 12.1 | L/D: 8 | LU (mm): 121.6 | LCF (mm): 139.7 | OAL (mm): 208.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1220HX3 DC (mm): 12.2 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1220HX5 DC (mm): 12.2 | L/D: 5 | LU (mm): 83.9 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1220HX8 DC (mm): 12.2 | L/D: 8 | LU (mm): 121.4 | LCF (mm): 139.7 | OAL (mm): 208.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1230HX3 DC (mm): 12.3 | L/D: 3 | LU (mm): 46.3 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1230HX5 DC (mm): 12.3 | L/D: 5 | LU (mm): 83.8 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1230HX8 DC (mm): 12.3 | L/D: 8 | LU (mm): 121.3 | LCF (mm): 139.7 | OAL (mm): 208.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1240HX3 DC (mm): 12.4 | L/D: 3 | LU (mm): 46.2 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1240HX5 DC (mm): 12.4 | L/D: 5 | LU (mm): 83.7 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1240HX8 DC (mm): 12.4 | L/D: 8 | LU (mm): 121.2 | LCF (mm): 139.8 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1250HX3 DC (mm): 12.5 | L/D: 3 | LU (mm): 46.1 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1250HX5 DC (mm): 12.5 | L/D: 5 | LU (mm): 83.6 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1250HX8 DC (mm): 12.5 | L/D: 8 | LU (mm): 121.1 | LCF (mm): 139.8 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1260HX3 DC (mm): 12.6 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1260HX5 DC (mm): 12.6 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1260HX8 DC (mm): 12.6 | L/D: 8 | LU (mm): 126.4 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1270HX3 DC (mm): 12.7 | L/D: 3 | LU (mm): 48.3 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1270HX5 DC (mm): 12.7 | L/D: 5 | LU (mm): 87.3 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1270HX8 DC (mm): 12.7 | L/D: 8 | LU (mm): 126.3 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1280HX3 DC (mm): 12.8 | L/D: 3 | LU (mm): 48.1 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1280HX5 DC (mm): 12.8 | L/D: 5 | LU (mm): 87.1 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1280HX8 DC (mm): 12.8 | L/D: 8 | LU (mm): 126.1 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1290HX3 DC (mm): 12.9 | L/D: 3 | LU (mm): 48.0 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1290HX5 DC (mm): 12.9 | L/D: 5 | LU (mm): 87.0 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1290HX8 DC (mm): 12.9 | L/D: 8 | LU (mm): 126.0 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1300HX3 DC (mm): 13.0 | L/D: 3 | LU (mm): 47.9 | LCF (mm): 67.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1300HX5 DC (mm): 13.0 | L/D: 5 | LU (mm): 86.9 | LCF (mm): 106.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1300HX8 DC (mm): 13.0 | L/D: 8 | LU (mm): 125.9 | LCF (mm): 145.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1310HX3 DC (mm): 13.1 | L/D: 3 | LU (mm): 50.3 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1310HX5 DC (mm): 13.1 | L/D: 5 | LU (mm): 90.8 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1310HX8 DC (mm): 13.1 | L/D: 8 | LU (mm): 131.3 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1320HX3 DC (mm): 13.2 | L/D: 3 | LU (mm): 50.1 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1320HX5 DC (mm): 13.2 | L/D: 5 | LU (mm): 90.6 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1320HX8 DC (mm): 13.2 | L/D: 8 | LU (mm): 131.1 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1330HX3 DC (mm): 13.3 | L/D: 3 | LU (mm): 50.0 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1330HX5 DC (mm): 13.3 | L/D: 5 | LU (mm): 90.5 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1330HX8 DC (mm): 13.3 | L/D: 8 | LU (mm): 131.0 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1340HX3 DC (mm): 13.4 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1340HX5 DC (mm): 13.4 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1340HX8 DC (mm): 13.4 | L/D: 8 | LU (mm): 130.8 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1350HX3 DC (mm): 13.5 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1350HX5 DC (mm): 13.5 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1350HX8 DC (mm): 13.5 | L/D: 8 | LU (mm): 130.8 | LCF (mm): 151.0 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1360HX3 DC (mm): 13.6 | L/D: 3 | LU (mm): 52.1 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1360HX5 DC (mm): 13.6 | L/D: 5 | LU (mm): 94.1 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1360HX8 DC (mm): 13.6 | L/D: 8 | LU (mm): 136.1 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1370HX3 DC (mm): 13.7 | L/D: 3 | LU (mm): 52.0 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1370HX5 DC (mm): 13.7 | L/D: 5 | LU (mm): 94.0 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1370HX8 DC (mm): 13.7 | L/D: 8 | LU (mm): 136.0 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1380HX3 DC (mm): 13.8 | L/D: 3 | LU (mm): 51.8 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1380HX5 DC (mm): 13.8 | L/D: 5 | LU (mm): 93.8 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1380HX8 DC (mm): 13.8 | L/D: 8 | LU (mm): 135.8 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1390HX3 DC (mm): 13.9 | L/D: 3 | LU (mm): 51.7 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1390HX5 DC (mm): 13.9 | L/D: 5 | LU (mm): 93.7 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1390HX8 DC (mm): 13.9 | L/D: 8 | LU (mm): 135.7 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1400HX3 DC (mm): 14.0 | L/D: 3 | LU (mm): 51.5 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1400HX5 DC (mm): 14.0 | L/D: 5 | LU (mm): 93.5 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1400HX8 DC (mm): 14.0 | L/D: 8 | LU (mm): 135.5 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1410HX3 DC (mm): 14.1 | L/D: 3 | LU (mm): 54.0 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1410HX5 DC (mm): 14.1 | L/D: 5 | LU (mm): 97.5 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1410HX8 DC (mm): 14.1 | L/D: 8 | LU (mm): 141.0 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1420HX3 DC (mm): 14.2 | L/D: 3 | LU (mm): 53.8 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1420HX5 DC (mm): 14.2 | L/D: 5 | LU (mm): 97.3 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1420HX8 DC (mm): 14.2 | L/D: 8 | LU (mm): 140.8 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1430HX3 DC (mm): 14.3 | L/D: 3 | LU (mm): 53.7 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1430HX5 DC (mm): 14.3 | L/D: 5 | LU (mm): 97.2 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1430HX8 DC (mm): 14.3 | L/D: 8 | LU (mm): 140.7 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1440HX3 DC (mm): 14.4 | L/D: 3 | LU (mm): 53.5 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1440HX5 DC (mm): 14.4 | L/D: 5 | LU (mm): 97.0 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1440HX8 DC (mm): 14.4 | L/D: 8 | LU (mm): 140.5 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1450HX3 DC (mm): 14.5 | L/D: 3 | LU (mm): 53.4 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDW1450HX5 DC (mm): 14.5 | L/D: 5 | LU (mm): 96.9 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDW1450HX8 DC (mm): 14.5 | L/D: 8 | LU (mm): 140.4 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1460HX3 DC (mm): 14.6 | L/D: 3 | LU (mm): 55.8 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1460HX5 DC (mm): 14.6 | L/D: 5 | LU (mm): 100.8 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1460HX8 DC (mm): 14.6 | L/D: 8 | LU (mm): 145.8 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1470HX3 DC (mm): 14.7 | L/D: 3 | LU (mm): 55.7 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1470HX5 DC (mm): 14.7 | L/D: 5 | LU (mm): 100.7 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1470HX8 DC (mm): 14.7 | L/D: 8 | LU (mm): 145.7 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1480HX3 DC (mm): 14.8 | L/D: 3 | LU (mm): 55.5 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1480HX5 DC (mm): 14.8 | L/D: 5 | LU (mm): 100.5 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1480HX8 DC (mm): 14.8 | L/D: 8 | LU (mm): 145.5 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1490HX3 DC (mm): 14.9 | L/D: 3 | LU (mm): 55.4 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1490HX5 DC (mm): 14.9 | L/D: 5 | LU (mm): 100.4 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1490HX8 DC (mm): 14.9 | L/D: 8 | LU (mm): 145.4 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1500HX3 DC (mm): 15.0 | L/D: 3 | LU (mm): 55.2 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDW1500HX5 DC (mm): 15.0 | L/D: 5 | LU (mm): 100.2 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDW1500HX8 DC (mm): 15.0 | L/D: 8 | LU (mm): 145.2 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDW1510HX3 DC (mm): 15.1 | L/D: 3 | LU (mm): 57.6 | LCF (mm): 80.2 | OAL (mm): 148.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Made to order
MDW1510HX5 DC (mm): 15.1 | L/D: 5 | LU (mm): 104.1 | LCF (mm): 126.7 | OAL (mm): 196.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Made to order
MDW1510HX8 DC (mm): 15.1 | L/D: 8 | LU (mm): 150.6 | LCF (mm): 173.2 | OAL (mm): 244.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Made to order
MDW1520HX3 DC (mm): 15.2 | L/D: 3 | LU (mm): 57.5 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1520HX5 DC (mm): 15.2 | L/D: 5 | LU (mm): 104.0 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1520HX8 DC (mm): 15.2 | L/D: 8 | LU (mm): 150.5 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1530HX3 DC (mm): 15.3 | L/D: 3 | LU (mm): 57.4 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1530HX5 DC (mm): 15.3 | L/D: 5 | LU (mm): 103.9 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1530HX8 DC (mm): 15.3 | L/D: 8 | LU (mm): 150.4 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1540HX3 DC (mm): 15.4 | L/D: 3 | LU (mm): 57.2 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1540HX5 DC (mm): 15.4 | L/D: 5 | LU (mm): 103.7 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1540HX8 DC (mm): 15.4 | L/D: 8 | LU (mm): 150.2 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1550HX3 DC (mm): 15.5 | L/D: 3 | LU (mm): 57.1 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDW1550HX5 DC (mm): 15.5 | L/D: 5 | LU (mm): 103.6 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDW1550HX8 DC (mm): 15.5 | L/D: 8 | LU (mm): 150.1 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1560HX3 DC (mm): 15.6 | L/D: 3 | LU (mm): 59.4 | LCF (mm): 82.8 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1560HX5 DC (mm): 15.6 | L/D: 5 | LU (mm): 107.4 | LCF (mm): 130.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1560HX8 DC (mm): 15.6 | L/D: 8 | LU (mm): 155.4 | LCF (mm): 178.8 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1570HX3 DC (mm): 15.7 | L/D: 3 | LU (mm): 59.4 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1570HX5 DC (mm): 15.7 | L/D: 5 | LU (mm): 107.4 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1570HX8 DC (mm): 15.7 | L/D: 8 | LU (mm): 155.4 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1580HX3 DC (mm): 15.8 | L/D: 3 | LU (mm): 59.2 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1580HX5 DC (mm): 15.8 | L/D: 5 | LU (mm): 107.2 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1580HX8 DC (mm): 15.8 | L/D: 8 | LU (mm): 155.2 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1590HX3 DC (mm): 15.9 | L/D: 3 | LU (mm): 59.1 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1590HX5 DC (mm): 15.9 | L/D: 5 | LU (mm): 107.1 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1590HX8 DC (mm): 15.9 | L/D: 8 | LU (mm): 155.1 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1600HX3 DC (mm): 16.0 | L/D: 3 | LU (mm): 58.9 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDW1600HX5 DC (mm): 16.0 | L/D: 5 | LU (mm): 106.9 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDW1600HX8 DC (mm): 16.0 | L/D: 8 | LU (mm): 154.9 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1610HX3 DC (mm): 16.1 | L/D: 3 | LU (mm): 61.3 | LCF (mm): 85.4 | OAL (mm): 154.9 | PL (mm): 2.9 | DCON (mm): 17.0 | Stock: Made to order
MDW1610HX5 DC (mm): 16.1 | L/D: 5 | LU (mm): 110.8 | LCF (mm): 134.9 | OAL (mm): 205.9 | PL (mm): 2.9 | DCON (mm): 17.0 | Stock: Made to order
MDW1610HX8 DC (mm): 16.1 | L/D: 8 | LU (mm): 160.3 | LCF (mm): 184.4 | OAL (mm): 256.9 | PL (mm): 2.9 | DCON (mm): 17.0 | Stock: Made to order
MDW1620HX3 DC (mm): 16.2 | L/D: 3 | LU (mm): 61.1 | LCF (mm): 85.4 | OAL (mm): 154.9 | PL (mm): 2.9 | DCON (mm): 17.0 | Stock: Made to order
MDW1620HX5 DC (mm): 16.2 | L/D: 5 | LU (mm): 110.6 | LCF (mm): 134.9 | OAL (mm): 205.9 | PL (mm): 2.9 | DCON (mm): 17.0 | Stock: Made to order
MDW1620HX8 DC (mm): 16.2 | L/D: 8 | LU (mm): 160.1 | LCF (mm): 184.4 | OAL (mm): 256.9 | PL (mm): 2.9 | DCON (mm): 17.0 | Stock: Made to order
MDW1630HX3 DC (mm): 16.3 | L/D: 3 | LU (mm): 61.1 | LCF (mm): 85.5 | OAL (mm): 155.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1630HX5 DC (mm): 16.3 | L/D: 5 | LU (mm): 110.6 | LCF (mm): 135.0 | OAL (mm): 206.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1630HX8 DC (mm): 16.3 | L/D: 8 | LU (mm): 160.1 | LCF (mm): 184.5 | OAL (mm): 257.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1640HX3 DC (mm): 16.4 | L/D: 3 | LU (mm): 60.9 | LCF (mm): 85.5 | OAL (mm): 155.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1640HX5 DC (mm): 16.4 | L/D: 5 | LU (mm): 110.4 | LCF (mm): 135.0 | OAL (mm): 206.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1640HX8 DC (mm): 16.4 | L/D: 8 | LU (mm): 159.9 | LCF (mm): 184.5 | OAL (mm): 257.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1650HX3 DC (mm): 16.5 | L/D: 3 | LU (mm): 60.8 | LCF (mm): 85.5 | OAL (mm): 155.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Yes
MDW1650HX5 DC (mm): 16.5 | L/D: 5 | LU (mm): 110.3 | LCF (mm): 135.0 | OAL (mm): 206.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Yes
MDW1650HX8 DC (mm): 16.5 | L/D: 8 | LU (mm): 159.8 | LCF (mm): 184.5 | OAL (mm): 257.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1660HX3 DC (mm): 16.6 | L/D: 3 | LU (mm): 63.1 | LCF (mm): 88.0 | OAL (mm): 155.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1660HX5 DC (mm): 16.6 | L/D: 5 | LU (mm): 114.1 | LCF (mm): 139.0 | OAL (mm): 206.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1660HX8 DC (mm): 16.6 | L/D: 8 | LU (mm): 165.1 | LCF (mm): 190.0 | OAL (mm): 257.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1670HX3 DC (mm): 16.7 | L/D: 3 | LU (mm): 63.0 | LCF (mm): 88.0 | OAL (mm): 155.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1670HX5 DC (mm): 16.7 | L/D: 5 | LU (mm): 114.0 | LCF (mm): 139.0 | OAL (mm): 206.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1670HX8 DC (mm): 16.7 | L/D: 8 | LU (mm): 165.0 | LCF (mm): 190.0 | OAL (mm): 257.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1680HX3 DC (mm): 16.8 | L/D: 3 | LU (mm): 62.9 | LCF (mm): 88.1 | OAL (mm): 155.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1680HX5 DC (mm): 16.8 | L/D: 5 | LU (mm): 113.9 | LCF (mm): 139.1 | OAL (mm): 206.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1680HX8 DC (mm): 16.8 | L/D: 8 | LU (mm): 164.9 | LCF (mm): 190.1 | OAL (mm): 257.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1690HX3 DC (mm): 16.9 | L/D: 3 | LU (mm): 62.8 | LCF (mm): 88.1 | OAL (mm): 155.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1690HX5 DC (mm): 16.9 | L/D: 5 | LU (mm): 113.8 | LCF (mm): 139.1 | OAL (mm): 206.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1690HX8 DC (mm): 16.9 | L/D: 8 | LU (mm): 164.8 | LCF (mm): 190.1 | OAL (mm): 257.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1700HX3 DC (mm): 17.0 | L/D: 3 | LU (mm): 62.6 | LCF (mm): 88.1 | OAL (mm): 155.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Yes
MDW1700HX5 DC (mm): 17.0 | L/D: 5 | LU (mm): 113.6 | LCF (mm): 139.1 | OAL (mm): 206.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Yes
MDW1700HX8 DC (mm): 17.0 | L/D: 8 | LU (mm): 164.6 | LCF (mm): 190.1 | OAL (mm): 257.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1710HX3 DC (mm): 17.1 | L/D: 3 | LU (mm): 65.0 | LCF (mm): 90.6 | OAL (mm): 161.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Yes
MDW1710HX5 DC (mm): 17.1 | L/D: 5 | LU (mm): 117.5 | LCF (mm): 143.1 | OAL (mm): 217.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Phase-out (check availability)
MDW1710HX8 DC (mm): 17.1 | L/D: 8 | LU (mm): 170.0 | LCF (mm): 195.6 | OAL (mm): 269.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Phase-out (check availability)
MDW1720HX3 DC (mm): 17.2 | L/D: 3 | LU (mm): 64.8 | LCF (mm): 90.6 | OAL (mm): 161.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Made to order
MDW1720HX5 DC (mm): 17.2 | L/D: 5 | LU (mm): 117.3 | LCF (mm): 143.1 | OAL (mm): 217.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Made to order
MDW1720HX8 DC (mm): 17.2 | L/D: 8 | LU (mm): 169.8 | LCF (mm): 195.6 | OAL (mm): 269.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Made to order
MDW1730HX3 DC (mm): 17.3 | L/D: 3 | LU (mm): 64.7 | LCF (mm): 90.6 | OAL (mm): 161.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Made to order
MDW1730HX5 DC (mm): 17.3 | L/D: 5 | LU (mm): 117.2 | LCF (mm): 143.1 | OAL (mm): 217.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Made to order
MDW1730HX8 DC (mm): 17.3 | L/D: 8 | LU (mm): 169.7 | LCF (mm): 195.6 | OAL (mm): 269.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Made to order
MDW1740HX3 DC (mm): 17.4 | L/D: 3 | LU (mm): 64.6 | LCF (mm): 90.7 | OAL (mm): 161.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1740HX5 DC (mm): 17.4 | L/D: 5 | LU (mm): 117.1 | LCF (mm): 143.2 | OAL (mm): 217.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1740HX8 DC (mm): 17.4 | L/D: 8 | LU (mm): 169.6 | LCF (mm): 195.7 | OAL (mm): 269.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1750HX3 DC (mm): 17.5 | L/D: 3 | LU (mm): 64.5 | LCF (mm): 90.7 | OAL (mm): 161.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Yes
MDW1750HX5 DC (mm): 17.5 | L/D: 5 | LU (mm): 117.0 | LCF (mm): 143.2 | OAL (mm): 217.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Yes
MDW1750HX8 DC (mm): 17.5 | L/D: 8 | LU (mm): 169.5 | LCF (mm): 195.7 | OAL (mm): 269.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1760HX3 DC (mm): 17.6 | L/D: 3 | LU (mm): 66.8 | LCF (mm): 93.2 | OAL (mm): 161.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1760HX5 DC (mm): 17.6 | L/D: 5 | LU (mm): 120.8 | LCF (mm): 147.2 | OAL (mm): 217.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1760HX8 DC (mm): 17.6 | L/D: 8 | LU (mm): 174.8 | LCF (mm): 201.2 | OAL (mm): 269.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1770HX3 DC (mm): 17.7 | L/D: 3 | LU (mm): 66.7 | LCF (mm): 93.2 | OAL (mm): 161.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1770HX5 DC (mm): 17.7 | L/D: 5 | LU (mm): 120.7 | LCF (mm): 147.2 | OAL (mm): 217.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1770HX8 DC (mm): 17.7 | L/D: 8 | LU (mm): 174.7 | LCF (mm): 201.2 | OAL (mm): 269.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1780HX3 DC (mm): 17.8 | L/D: 3 | LU (mm): 66.5 | LCF (mm): 93.2 | OAL (mm): 161.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1780HX5 DC (mm): 17.8 | L/D: 5 | LU (mm): 120.5 | LCF (mm): 147.2 | OAL (mm): 217.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1780HX8 DC (mm): 17.8 | L/D: 8 | LU (mm): 174.5 | LCF (mm): 201.2 | OAL (mm): 269.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1790HX3 DC (mm): 17.9 | L/D: 3 | LU (mm): 66.5 | LCF (mm): 93.3 | OAL (mm): 161.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Made to order
MDW1790HX5 DC (mm): 17.9 | L/D: 5 | LU (mm): 120.5 | LCF (mm): 147.3 | OAL (mm): 217.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Made to order
MDW1790HX8 DC (mm): 17.9 | L/D: 8 | LU (mm): 174.5 | LCF (mm): 201.3 | OAL (mm): 269.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Made to order
MDW1800HX3 DC (mm): 18.0 | L/D: 3 | LU (mm): 66.3 | LCF (mm): 93.3 | OAL (mm): 161.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Yes
MDW1800HX5 DC (mm): 18.0 | L/D: 5 | LU (mm): 120.3 | LCF (mm): 147.3 | OAL (mm): 217.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Yes
MDW1800HX8 DC (mm): 18.0 | L/D: 8 | LU (mm): 174.3 | LCF (mm): 201.3 | OAL (mm): 269.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Made to order
MDW1810HX3 DC (mm): 18.1 | L/D: 3 | LU (mm): 68.7 | LCF (mm): 95.8 | OAL (mm): 167.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1810HX5 DC (mm): 18.1 | L/D: 5 | LU (mm): 124.2 | LCF (mm): 151.3 | OAL (mm): 224.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1820HX3 DC (mm): 18.2 | L/D: 3 | LU (mm): 68.5 | LCF (mm): 95.8 | OAL (mm): 167.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1820HX5 DC (mm): 18.2 | L/D: 5 | LU (mm): 124.0 | LCF (mm): 151.3 | OAL (mm): 224.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1830HX3 DC (mm): 18.3 | L/D: 3 | LU (mm): 68.4 | LCF (mm): 95.8 | OAL (mm): 167.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1830HX5 DC (mm): 18.3 | L/D: 5 | LU (mm): 123.9 | LCF (mm): 151.3 | OAL (mm): 224.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1840HX3 DC (mm): 18.4 | L/D: 3 | LU (mm): 68.2 | LCF (mm): 95.8 | OAL (mm): 167.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1840HX5 DC (mm): 18.4 | L/D: 5 | LU (mm): 123.7 | LCF (mm): 151.3 | OAL (mm): 224.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1850HX3 DC (mm): 18.5 | L/D: 3 | LU (mm): 68.2 | LCF (mm): 95.9 | OAL (mm): 167.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDW1850HX5 DC (mm): 18.5 | L/D: 5 | LU (mm): 123.7 | LCF (mm): 151.4 | OAL (mm): 224.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDW1860HX3 DC (mm): 18.6 | L/D: 3 | LU (mm): 70.5 | LCF (mm): 98.4 | OAL (mm): 167.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1860HX5 DC (mm): 18.6 | L/D: 5 | LU (mm): 127.5 | LCF (mm): 155.4 | OAL (mm): 224.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1870HX3 DC (mm): 18.7 | L/D: 3 | LU (mm): 70.4 | LCF (mm): 98.4 | OAL (mm): 167.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1870HX5 DC (mm): 18.7 | L/D: 5 | LU (mm): 127.4 | LCF (mm): 155.4 | OAL (mm): 224.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1880HX3 DC (mm): 18.8 | L/D: 3 | LU (mm): 70.2 | LCF (mm): 98.4 | OAL (mm): 167.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1880HX5 DC (mm): 18.8 | L/D: 5 | LU (mm): 127.2 | LCF (mm): 155.4 | OAL (mm): 224.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1890HX3 DC (mm): 18.9 | L/D: 3 | LU (mm): 70.1 | LCF (mm): 98.4 | OAL (mm): 167.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1890HX5 DC (mm): 18.9 | L/D: 5 | LU (mm): 127.1 | LCF (mm): 155.4 | OAL (mm): 224.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1900HX3 DC (mm): 19.0 | L/D: 3 | LU (mm): 70.0 | LCF (mm): 98.5 | OAL (mm): 167.5 | PL (mm): 3.5 | DCON (mm): 19.0 | Stock: Yes
MDW1900HX5 DC (mm): 19.0 | L/D: 5 | LU (mm): 127.0 | LCF (mm): 155.5 | OAL (mm): 224.5 | PL (mm): 3.5 | DCON (mm): 19.0 | Stock: Yes
MDW1910HX3 DC (mm): 19.1 | L/D: 3 | LU (mm): 72.4 | LCF (mm): 101.0 | OAL (mm): 173.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1910HX5 DC (mm): 19.1 | L/D: 5 | LU (mm): 130.9 | LCF (mm): 159.5 | OAL (mm): 233.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1920HX3 DC (mm): 19.2 | L/D: 3 | LU (mm): 72.2 | LCF (mm): 101.0 | OAL (mm): 173.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1920HX5 DC (mm): 19.2 | L/D: 5 | LU (mm): 130.7 | LCF (mm): 159.5 | OAL (mm): 233.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1930HX3 DC (mm): 19.3 | L/D: 3 | LU (mm): 72.1 | LCF (mm): 101.0 | OAL (mm): 173.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1930HX5 DC (mm): 19.3 | L/D: 5 | LU (mm): 130.6 | LCF (mm): 159.5 | OAL (mm): 233.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1940HX3 DC (mm): 19.4 | L/D: 3 | LU (mm): 71.9 | LCF (mm): 101.0 | OAL (mm): 173.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1940HX5 DC (mm): 19.4 | L/D: 5 | LU (mm): 130.4 | LCF (mm): 159.5 | OAL (mm): 233.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1950HX3 DC (mm): 19.5 | L/D: 3 | LU (mm): 71.8 | LCF (mm): 101.0 | OAL (mm): 173.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Yes
MDW1950HX5 DC (mm): 19.5 | L/D: 5 | LU (mm): 130.3 | LCF (mm): 159.5 | OAL (mm): 233.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Phase-out (check availability)
MDW1960HX3 DC (mm): 19.6 | L/D: 3 | LU (mm): 74.2 | LCF (mm): 103.6 | OAL (mm): 173.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1960HX5 DC (mm): 19.6 | L/D: 5 | LU (mm): 134.2 | LCF (mm): 163.6 | OAL (mm): 233.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1970HX3 DC (mm): 19.7 | L/D: 3 | LU (mm): 74.1 | LCF (mm): 103.6 | OAL (mm): 173.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1970HX5 DC (mm): 19.7 | L/D: 5 | LU (mm): 134.1 | LCF (mm): 163.6 | OAL (mm): 233.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1980HX3 DC (mm): 19.8 | L/D: 3 | LU (mm): 73.9 | LCF (mm): 103.6 | OAL (mm): 173.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1980HX5 DC (mm): 19.8 | L/D: 5 | LU (mm): 133.9 | LCF (mm): 163.6 | OAL (mm): 233.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1990HX3 DC (mm): 19.9 | L/D: 3 | LU (mm): 73.8 | LCF (mm): 103.6 | OAL (mm): 173.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1990HX5 DC (mm): 19.9 | L/D: 5 | LU (mm): 133.8 | LCF (mm): 163.6 | OAL (mm): 233.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW2000HX3 DC (mm): 20.0 | L/D: 3 | LU (mm): 73.6 | LCF (mm): 103.6 | OAL (mm): 173.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes
MDW2000HX5 DC (mm): 20.0 | L/D: 5 | LU (mm): 133.6 | LCF (mm): 163.6 | OAL (mm): 233.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
493 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Strong Multi Drill HX Type (Internal Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (493)

MDW0300HX3, MDW0300HX5, MDW0300HX8, MDW0310HX3, MDW0310HX5, MDW0310HX8, MDW0320HX3, MDW0320HX5, MDW0320HX8, MDW0330HX3 + 483 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDW0300HX3DC (mm): 3.0 | L/D: 3 | LU (mm): 13.5 | LCF (mm): 18.0 | OAL (mm): 68.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300HX5DC (mm): 3.0 | L/D: 5 | LU (mm): 24.0 | LCF (mm): 28.5 | OAL (mm): 78.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0300HX8DC (mm): 3.0 | L/D: 8 | LU (mm): 29.0 | LCF (mm): 33.5 | OAL (mm): 81.5 | PL (mm): 0.5 | DCON (mm): 3.0 | Stock: Yes
MDW0310HX3DC (mm): 3.1 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310HX5DC (mm): 3.1 | L/D: 5 | LU (mm): 28.0 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0310HX8DC (mm): 3.1 | L/D: 8 | LU (mm): 34.5 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0320HX3DC (mm): 3.2 | L/D: 3 | LU (mm): 15.8 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0320HX5DC (mm): 3.2 | L/D: 5 | LU (mm): 27.8 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0320HX8DC (mm): 3.2 | L/D: 8 | LU (mm): 34.3 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0330HX3DC (mm): 3.3 | L/D: 3 | LU (mm): 15.7 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330HX5DC (mm): 3.3 | L/D: 5 | LU (mm): 27.7 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0330HX8DC (mm): 3.3 | L/D: 8 | LU (mm): 34.2 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0340HX3DC (mm): 3.4 | L/D: 3 | LU (mm): 15.5 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0340HX5DC (mm): 3.4 | L/D: 5 | LU (mm): 27.5 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0340HX8DC (mm): 3.4 | L/D: 8 | LU (mm): 34.0 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Made to order
MDW0350HX3DC (mm): 3.5 | L/D: 3 | LU (mm): 15.4 | LCF (mm): 20.6 | OAL (mm): 72.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0350HX5DC (mm): 3.5 | L/D: 5 | LU (mm): 27.4 | LCF (mm): 32.6 | OAL (mm): 86.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Yes
MDW0350HX8DC (mm): 3.5 | L/D: 8 | LU (mm): 33.9 | LCF (mm): 39.1 | OAL (mm): 92.6 | PL (mm): 0.6 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0360HX3DC (mm): 3.6 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0360HX5DC (mm): 3.6 | L/D: 5 | LU (mm): 31.3 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0360HX8DC (mm): 3.6 | L/D: 8 | LU (mm): 39.3 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0370HX3DC (mm): 3.7 | L/D: 3 | LU (mm): 17.7 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0370HX5DC (mm): 3.7 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0370HX8DC (mm): 3.7 | L/D: 8 | LU (mm): 39.2 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0380HX3DC (mm): 3.8 | L/D: 3 | LU (mm): 17.5 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0380HX5DC (mm): 3.8 | L/D: 5 | LU (mm): 31.0 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0380HX8DC (mm): 3.8 | L/D: 8 | LU (mm): 39.0 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0390HX3DC (mm): 3.9 | L/D: 3 | LU (mm): 17.4 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0390HX5DC (mm): 3.9 | L/D: 5 | LU (mm): 30.9 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Phase-out (check availability)
MDW0390HX8DC (mm): 3.9 | L/D: 8 | LU (mm): 38.9 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Made to order
MDW0400HX3DC (mm): 4.0 | L/D: 3 | LU (mm): 17.2 | LCF (mm): 23.2 | OAL (mm): 72.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400HX5DC (mm): 4.0 | L/D: 5 | LU (mm): 30.7 | LCF (mm): 36.7 | OAL (mm): 86.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0400HX8DC (mm): 4.0 | L/D: 8 | LU (mm): 38.7 | LCF (mm): 44.7 | OAL (mm): 92.7 | PL (mm): 0.7 | DCON (mm): 4.0 | Stock: Yes
MDW0410HX3DC (mm): 4.1 | L/D: 3 | LU (mm): 19.6 | LCF (mm): 25.7 | OAL (mm): 80.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0410HX5DC (mm): 4.1 | L/D: 5 | LU (mm): 34.6 | LCF (mm): 40.7 | OAL (mm): 98.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Yes
MDW0410HX8DC (mm): 4.1 | L/D: 8 | LU (mm): 44.1 | LCF (mm): 50.2 | OAL (mm): 105.7 | PL (mm): 0.7 | DCON (mm): 5.0 | Stock: Made to order
MDW0420HX3DC (mm): 4.2 | L/D: 3 | LU (mm): 19.5 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420HX5DC (mm): 4.2 | L/D: 5 | LU (mm): 34.5 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0420HX8DC (mm): 4.2 | L/D: 8 | LU (mm): 44.0 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0430HX3DC (mm): 4.3 | L/D: 3 | LU (mm): 19.4 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0430HX5DC (mm): 4.3 | L/D: 5 | LU (mm): 34.4 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0430HX8DC (mm): 4.3 | L/D: 8 | LU (mm): 43.9 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0440HX3DC (mm): 4.4 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0440HX5DC (mm): 4.4 | L/D: 5 | LU (mm): 34.2 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0440HX8DC (mm): 4.4 | L/D: 8 | LU (mm): 43.7 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0450HX3DC (mm): 4.5 | L/D: 3 | LU (mm): 19.1 | LCF (mm): 25.8 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0450HX5DC (mm): 4.5 | L/D: 5 | LU (mm): 34.1 | LCF (mm): 40.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0450HX8DC (mm): 4.5 | L/D: 8 | LU (mm): 43.6 | LCF (mm): 50.3 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460HX3DC (mm): 4.6 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 28.3 | OAL (mm): 80.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0460HX5DC (mm): 4.6 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.8 | OAL (mm): 98.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Yes
MDW0460HX8DC (mm): 4.6 | L/D: 8 | LU (mm): 48.9 | LCF (mm): 55.8 | OAL (mm): 105.8 | PL (mm): 0.8 | DCON (mm): 5.0 | Stock: Made to order
MDW0470HX3DC (mm): 4.7 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0470HX5DC (mm): 4.7 | L/D: 5 | LU (mm): 37.9 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0470HX8DC (mm): 4.7 | L/D: 8 | LU (mm): 48.9 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0480HX3DC (mm): 4.8 | L/D: 3 | LU (mm): 21.2 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0480HX5DC (mm): 4.8 | L/D: 5 | LU (mm): 37.7 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0480HX8DC (mm): 4.8 | L/D: 8 | LU (mm): 48.7 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0490HX3DC (mm): 4.9 | L/D: 3 | LU (mm): 21.1 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0490HX5DC (mm): 4.9 | L/D: 5 | LU (mm): 37.6 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0490HX8DC (mm): 4.9 | L/D: 8 | LU (mm): 48.6 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Made to order
MDW0500HX3DC (mm): 5.0 | L/D: 3 | LU (mm): 20.9 | LCF (mm): 28.4 | OAL (mm): 80.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500HX5DC (mm): 5.0 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 44.9 | OAL (mm): 98.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0500HX8DC (mm): 5.0 | L/D: 8 | LU (mm): 48.4 | LCF (mm): 55.9 | OAL (mm): 105.9 | PL (mm): 0.9 | DCON (mm): 5.0 | Stock: Yes
MDW0510HX3DC (mm): 5.1 | L/D: 3 | LU (mm): 20.8 | LCF (mm): 28.4 | OAL (mm): 82.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0510HX5DC (mm): 5.1 | L/D: 5 | LU (mm): 37.3 | LCF (mm): 44.9 | OAL (mm): 100.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0510HX8DC (mm): 5.1 | L/D: 8 | LU (mm): 53.8 | LCF (mm): 61.4 | OAL (mm): 118.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520HX3DC (mm): 5.2 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.4 | OAL (mm): 82.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0520HX5DC (mm): 5.2 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 44.9 | OAL (mm): 100.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Yes
MDW0520HX8DC (mm): 5.2 | L/D: 8 | LU (mm): 53.6 | LCF (mm): 61.4 | OAL (mm): 118.9 | PL (mm): 0.9 | DCON (mm): 6.0 | Stock: Made to order
MDW0530HX3DC (mm): 5.3 | L/D: 3 | LU (mm): 20.6 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0530HX5DC (mm): 5.3 | L/D: 5 | LU (mm): 37.1 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0530HX8DC (mm): 5.3 | L/D: 8 | LU (mm): 53.6 | LCF (mm): 61.5 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0540HX3DC (mm): 5.4 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0540HX5DC (mm): 5.4 | L/D: 5 | LU (mm): 36.9 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0540HX8DC (mm): 5.4 | L/D: 8 | LU (mm): 53.4 | LCF (mm): 61.5 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0550HX3DC (mm): 5.5 | L/D: 3 | LU (mm): 20.3 | LCF (mm): 28.5 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0550HX5DC (mm): 5.5 | L/D: 5 | LU (mm): 36.8 | LCF (mm): 45.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0550HX8DC (mm): 5.5 | L/D: 8 | LU (mm): 53.3 | LCF (mm): 61.5 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560HX3DC (mm): 5.6 | L/D: 3 | LU (mm): 22.6 | LCF (mm): 31.0 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0560HX5DC (mm): 5.6 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0560HX8DC (mm): 5.6 | L/D: 8 | LU (mm): 58.6 | LCF (mm): 67.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0570HX3DC (mm): 5.7 | L/D: 3 | LU (mm): 22.5 | LCF (mm): 31.0 | OAL (mm): 83.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570HX5DC (mm): 5.7 | L/D: 5 | LU (mm): 40.5 | LCF (mm): 49.0 | OAL (mm): 101.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Yes
MDW0570HX8DC (mm): 5.7 | L/D: 8 | LU (mm): 58.5 | LCF (mm): 67.0 | OAL (mm): 119.0 | PL (mm): 1.0 | DCON (mm): 6.0 | Stock: Made to order
MDW0580HX3DC (mm): 5.8 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0580HX5DC (mm): 5.8 | L/D: 5 | LU (mm): 40.4 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0580HX8DC (mm): 5.8 | L/D: 8 | LU (mm): 58.4 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590HX3DC (mm): 5.9 | L/D: 3 | LU (mm): 22.3 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590HX5DC (mm): 5.9 | L/D: 5 | LU (mm): 40.3 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0590HX8DC (mm): 5.9 | L/D: 8 | LU (mm): 58.3 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0600HX3DC (mm): 6.0 | L/D: 3 | LU (mm): 22.1 | LCF (mm): 31.1 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600HX5DC (mm): 6.0 | L/D: 5 | LU (mm): 40.1 | LCF (mm): 49.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0600HX8DC (mm): 6.0 | L/D: 8 | LU (mm): 58.1 | LCF (mm): 67.1 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Yes
MDW0610HX3DC (mm): 6.1 | L/D: 3 | LU (mm): 24.5 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0610HX5DC (mm): 6.1 | L/D: 5 | LU (mm): 44.0 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0610HX8DC (mm): 6.1 | L/D: 8 | LU (mm): 63.5 | LCF (mm): 72.6 | OAL (mm): 131.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Made to order
MDW0620HX3DC (mm): 6.2 | L/D: 3 | LU (mm): 24.3 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620HX5DC (mm): 6.2 | L/D: 5 | LU (mm): 43.8 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0620HX8DC (mm): 6.2 | L/D: 8 | LU (mm): 63.3 | LCF (mm): 72.6 | OAL (mm): 131.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Made to order
MDW0630HX3DC (mm): 6.3 | L/D: 3 | LU (mm): 24.2 | LCF (mm): 33.6 | OAL (mm): 89.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630HX5DC (mm): 6.3 | L/D: 5 | LU (mm): 43.7 | LCF (mm): 53.1 | OAL (mm): 110.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Yes
MDW0630HX8DC (mm): 6.3 | L/D: 8 | LU (mm): 63.2 | LCF (mm): 72.6 | OAL (mm): 131.1 | PL (mm): 1.1 | DCON (mm): 7.0 | Stock: Made to order
MDW0640HX3DC (mm): 6.4 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Phase-out (check availability)
MDW0640HX5DC (mm): 6.4 | L/D: 5 | LU (mm): 43.6 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0640HX8DC (mm): 6.4 | L/D: 8 | LU (mm): 63.1 | LCF (mm): 72.7 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Made to order
MDW0650HX3DC (mm): 6.5 | L/D: 3 | LU (mm): 24.0 | LCF (mm): 33.7 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Phase-out (check availability)
MDW0650HX5DC (mm): 6.5 | L/D: 5 | LU (mm): 43.5 | LCF (mm): 53.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Phase-out (check availability)
MDW0650HX8DC (mm): 6.5 | L/D: 8 | LU (mm): 63.0 | LCF (mm): 72.7 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660HX3DC (mm): 6.6 | L/D: 3 | LU (mm): 26.3 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660HX5DC (mm): 6.6 | L/D: 5 | LU (mm): 47.3 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0660HX8DC (mm): 6.6 | L/D: 8 | LU (mm): 68.3 | LCF (mm): 78.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Made to order
MDW0670HX3DC (mm): 6.7 | L/D: 3 | LU (mm): 26.2 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670HX5DC (mm): 6.7 | L/D: 5 | LU (mm): 47.2 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0670HX8DC (mm): 6.7 | L/D: 8 | LU (mm): 68.2 | LCF (mm): 78.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680HX3DC (mm): 6.8 | L/D: 3 | LU (mm): 26.0 | LCF (mm): 36.2 | OAL (mm): 89.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680HX5DC (mm): 6.8 | L/D: 5 | LU (mm): 47.0 | LCF (mm): 57.2 | OAL (mm): 110.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0680HX8DC (mm): 6.8 | L/D: 8 | LU (mm): 68.0 | LCF (mm): 78.2 | OAL (mm): 131.2 | PL (mm): 1.2 | DCON (mm): 7.0 | Stock: Yes
MDW0690HX3DC (mm): 6.9 | L/D: 3 | LU (mm): 26.0 | LCF (mm): 36.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0690HX5DC (mm): 6.9 | L/D: 5 | LU (mm): 47.0 | LCF (mm): 57.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0690HX8DC (mm): 6.9 | L/D: 8 | LU (mm): 68.0 | LCF (mm): 78.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700HX3DC (mm): 7.0 | L/D: 3 | LU (mm): 25.8 | LCF (mm): 36.3 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700HX5DC (mm): 7.0 | L/D: 5 | LU (mm): 46.8 | LCF (mm): 57.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0700HX8DC (mm): 7.0 | L/D: 8 | LU (mm): 67.8 | LCF (mm): 78.3 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Yes
MDW0710HX3DC (mm): 7.1 | L/D: 3 | LU (mm): 28.2 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0710HX5DC (mm): 7.1 | L/D: 5 | LU (mm): 50.7 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0710HX8DC (mm): 7.1 | L/D: 8 | LU (mm): 73.2 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0720HX3DC (mm): 7.2 | L/D: 3 | LU (mm): 28.0 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0720HX5DC (mm): 7.2 | L/D: 5 | LU (mm): 50.5 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0720HX8DC (mm): 7.2 | L/D: 8 | LU (mm): 73.0 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0730HX3DC (mm): 7.3 | L/D: 3 | LU (mm): 27.9 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0730HX5DC (mm): 7.3 | L/D: 5 | LU (mm): 50.4 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0730HX8DC (mm): 7.3 | L/D: 8 | LU (mm): 72.9 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0740HX3DC (mm): 7.4 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.8 | OAL (mm): 95.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0740HX5DC (mm): 7.4 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.3 | OAL (mm): 119.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Yes
MDW0740HX8DC (mm): 7.4 | L/D: 8 | LU (mm): 72.7 | LCF (mm): 83.8 | OAL (mm): 143.3 | PL (mm): 1.3 | DCON (mm): 8.0 | Stock: Made to order
MDW0750HX3DC (mm): 7.5 | L/D: 3 | LU (mm): 27.7 | LCF (mm): 38.9 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750HX5DC (mm): 7.5 | L/D: 5 | LU (mm): 50.2 | LCF (mm): 61.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0750HX8DC (mm): 7.5 | L/D: 8 | LU (mm): 72.7 | LCF (mm): 83.9 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760HX3DC (mm): 7.6 | L/D: 3 | LU (mm): 30.0 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0760HX5DC (mm): 7.6 | L/D: 5 | LU (mm): 54.0 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0760HX8DC (mm): 7.6 | L/D: 8 | LU (mm): 78.0 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0770HX3DC (mm): 7.7 | L/D: 3 | LU (mm): 29.9 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770HX5DC (mm): 7.7 | L/D: 5 | LU (mm): 53.9 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0770HX8DC (mm): 7.7 | L/D: 8 | LU (mm): 77.9 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0780HX3DC (mm): 7.8 | L/D: 3 | LU (mm): 29.7 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780HX5DC (mm): 7.8 | L/D: 5 | LU (mm): 53.7 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0780HX8DC (mm): 7.8 | L/D: 8 | LU (mm): 77.7 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0790HX3DC (mm): 7.9 | L/D: 3 | LU (mm): 29.6 | LCF (mm): 41.4 | OAL (mm): 95.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0790HX5DC (mm): 7.9 | L/D: 5 | LU (mm): 53.6 | LCF (mm): 65.4 | OAL (mm): 119.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Yes
MDW0790HX8DC (mm): 7.9 | L/D: 8 | LU (mm): 77.6 | LCF (mm): 89.4 | OAL (mm): 143.4 | PL (mm): 1.4 | DCON (mm): 8.0 | Stock: Made to order
MDW0800HX3DC (mm): 8.0 | L/D: 3 | LU (mm): 29.5 | LCF (mm): 41.5 | OAL (mm): 95.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800HX5DC (mm): 8.0 | L/D: 5 | LU (mm): 53.5 | LCF (mm): 65.5 | OAL (mm): 119.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0800HX8DC (mm): 8.0 | L/D: 8 | LU (mm): 77.5 | LCF (mm): 89.5 | OAL (mm): 143.5 | PL (mm): 1.5 | DCON (mm): 8.0 | Stock: Yes
MDW0810HX3DC (mm): 8.1 | L/D: 3 | LU (mm): 31.9 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0810HX5DC (mm): 8.1 | L/D: 5 | LU (mm): 57.4 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0810HX8DC (mm): 8.1 | L/D: 8 | LU (mm): 82.9 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Made to order
MDW0820HX3DC (mm): 8.2 | L/D: 3 | LU (mm): 31.7 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0820HX5DC (mm): 8.2 | L/D: 5 | LU (mm): 57.2 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0820HX8DC (mm): 8.2 | L/D: 8 | LU (mm): 82.7 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Made to order
MDW0830HX3DC (mm): 8.3 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0830HX5DC (mm): 8.3 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0830HX8DC (mm): 8.3 | L/D: 8 | LU (mm): 82.6 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Made to order
MDW0840HX3DC (mm): 8.4 | L/D: 3 | LU (mm): 31.4 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0840HX5DC (mm): 8.4 | L/D: 5 | LU (mm): 56.9 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0840HX8DC (mm): 8.4 | L/D: 8 | LU (mm): 82.4 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Made to order
MDW0850HX3DC (mm): 8.5 | L/D: 3 | LU (mm): 31.3 | LCF (mm): 44.0 | OAL (mm): 101.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850HX5DC (mm): 8.5 | L/D: 5 | LU (mm): 56.8 | LCF (mm): 69.5 | OAL (mm): 128.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0850HX8DC (mm): 8.5 | L/D: 8 | LU (mm): 82.3 | LCF (mm): 95.0 | OAL (mm): 155.5 | PL (mm): 1.5 | DCON (mm): 9.0 | Stock: Yes
MDW0860HX3DC (mm): 8.6 | L/D: 3 | LU (mm): 33.7 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0860HX5DC (mm): 8.6 | L/D: 5 | LU (mm): 60.7 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0860HX8DC (mm): 8.6 | L/D: 8 | LU (mm): 87.7 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Made to order
MDW0870HX3DC (mm): 8.7 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0870HX5DC (mm): 8.7 | L/D: 5 | LU (mm): 60.6 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0870HX8DC (mm): 8.7 | L/D: 8 | LU (mm): 87.6 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Made to order
MDW0880HX3DC (mm): 8.8 | L/D: 3 | LU (mm): 33.4 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0880HX5DC (mm): 8.8 | L/D: 5 | LU (mm): 60.4 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0880HX8DC (mm): 8.8 | L/D: 8 | LU (mm): 87.4 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0890HX3DC (mm): 8.9 | L/D: 3 | LU (mm): 33.3 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0890HX5DC (mm): 8.9 | L/D: 5 | LU (mm): 60.3 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0890HX8DC (mm): 8.9 | L/D: 8 | LU (mm): 87.3 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Made to order
MDW0900HX3DC (mm): 9.0 | L/D: 3 | LU (mm): 33.1 | LCF (mm): 46.6 | OAL (mm): 101.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900HX5DC (mm): 9.0 | L/D: 5 | LU (mm): 60.1 | LCF (mm): 73.6 | OAL (mm): 128.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0900HX8DC (mm): 9.0 | L/D: 8 | LU (mm): 87.1 | LCF (mm): 100.6 | OAL (mm): 155.6 | PL (mm): 1.6 | DCON (mm): 9.0 | Stock: Yes
MDW0910HX3DC (mm): 9.1 | L/D: 3 | LU (mm): 35.6 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0910HX5DC (mm): 9.1 | L/D: 5 | LU (mm): 64.1 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0910HX8DC (mm): 9.1 | L/D: 8 | LU (mm): 92.6 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDW0920HX3DC (mm): 9.2 | L/D: 3 | LU (mm): 35.4 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0920HX5DC (mm): 9.2 | L/D: 5 | LU (mm): 63.9 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0920HX8DC (mm): 9.2 | L/D: 8 | LU (mm): 92.4 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDW0930HX3DC (mm): 9.3 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0930HX5DC (mm): 9.3 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0930HX8DC (mm): 9.3 | L/D: 8 | LU (mm): 92.3 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDW0940HX3DC (mm): 9.4 | L/D: 3 | LU (mm): 35.1 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0940HX5DC (mm): 9.4 | L/D: 5 | LU (mm): 63.6 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0940HX8DC (mm): 9.4 | L/D: 8 | LU (mm): 92.1 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDW0950HX3DC (mm): 9.5 | L/D: 3 | LU (mm): 35.0 | LCF (mm): 49.2 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950HX5DC (mm): 9.5 | L/D: 5 | LU (mm): 63.5 | LCF (mm): 77.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0950HX8DC (mm): 9.5 | L/D: 8 | LU (mm): 92.0 | LCF (mm): 106.2 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Yes
MDW0960HX3DC (mm): 9.6 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.7 | OAL (mm): 107.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0960HX5DC (mm): 9.6 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.7 | OAL (mm): 137.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0960HX8DC (mm): 9.6 | L/D: 8 | LU (mm): 97.3 | LCF (mm): 111.7 | OAL (mm): 167.7 | PL (mm): 1.7 | DCON (mm): 10.0 | Stock: Made to order
MDW0970HX3DC (mm): 9.7 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW0970HX5DC (mm): 9.7 | L/D: 5 | LU (mm): 67.3 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW0970HX8DC (mm): 9.7 | L/D: 8 | LU (mm): 97.3 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Made to order
MDW0980HX3DC (mm): 9.8 | L/D: 3 | LU (mm): 37.1 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW0980HX5DC (mm): 9.8 | L/D: 5 | LU (mm): 67.1 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0980HX8DC (mm): 9.8 | L/D: 8 | LU (mm): 97.1 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Made to order
MDW0990HX3DC (mm): 9.9 | L/D: 3 | LU (mm): 37.0 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0990HX5DC (mm): 9.9 | L/D: 5 | LU (mm): 67.0 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0990HX8DC (mm): 9.9 | L/D: 8 | LU (mm): 97.0 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Made to order
MDW1000HX3DC (mm): 10.0 | L/D: 3 | LU (mm): 36.8 | LCF (mm): 51.8 | OAL (mm): 107.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000HX5DC (mm): 10.0 | L/D: 5 | LU (mm): 66.8 | LCF (mm): 81.8 | OAL (mm): 137.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1000HX8DC (mm): 10.0 | L/D: 8 | LU (mm): 96.8 | LCF (mm): 111.8 | OAL (mm): 167.8 | PL (mm): 1.8 | DCON (mm): 10.0 | Stock: Yes
MDW1010HX3DC (mm): 10.1 | L/D: 3 | LU (mm): 39.2 | LCF (mm): 54.3 | OAL (mm): 117.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1010HX5DC (mm): 10.1 | L/D: 5 | LU (mm): 70.7 | LCF (mm): 85.8 | OAL (mm): 150.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Yes
MDW1010HX8DC (mm): 10.1 | L/D: 8 | LU (mm): 102.2 | LCF (mm): 117.3 | OAL (mm): 183.8 | PL (mm): 1.8 | DCON (mm): 11.0 | Stock: Made to order
MDW1020HX3DC (mm): 10.2 | L/D: 3 | LU (mm): 39.1 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1020HX5DC (mm): 10.2 | L/D: 5 | LU (mm): 70.6 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1020HX8DC (mm): 10.2 | L/D: 8 | LU (mm): 102.1 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Made to order
MDW1030HX3DC (mm): 10.3 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1030HX5DC (mm): 10.3 | L/D: 5 | LU (mm): 70.5 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1030HX8DC (mm): 10.3 | L/D: 8 | LU (mm): 102.0 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1040HX3DC (mm): 10.4 | L/D: 3 | LU (mm): 38.8 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1040HX5DC (mm): 10.4 | L/D: 5 | LU (mm): 70.3 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1040HX8DC (mm): 10.4 | L/D: 8 | LU (mm): 101.8 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Made to order
MDW1050HX3DC (mm): 10.5 | L/D: 3 | LU (mm): 38.7 | LCF (mm): 54.4 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1050HX5DC (mm): 10.5 | L/D: 5 | LU (mm): 70.2 | LCF (mm): 85.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1050HX8DC (mm): 10.5 | L/D: 8 | LU (mm): 101.7 | LCF (mm): 117.4 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1060HX3DC (mm): 10.6 | L/D: 3 | LU (mm): 41.0 | LCF (mm): 56.9 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1060HX5DC (mm): 10.6 | L/D: 5 | LU (mm): 74.0 | LCF (mm): 89.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1060HX8DC (mm): 10.6 | L/D: 8 | LU (mm): 107.0 | LCF (mm): 122.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Made to order
MDW1070HX3DC (mm): 10.7 | L/D: 3 | LU (mm): 40.9 | LCF (mm): 56.9 | OAL (mm): 117.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1070HX5DC (mm): 10.7 | L/D: 5 | LU (mm): 73.9 | LCF (mm): 89.9 | OAL (mm): 150.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Yes
MDW1070HX8DC (mm): 10.7 | L/D: 8 | LU (mm): 106.9 | LCF (mm): 122.9 | OAL (mm): 183.9 | PL (mm): 1.9 | DCON (mm): 11.0 | Stock: Made to order
MDW1080HX3DC (mm): 10.8 | L/D: 3 | LU (mm): 40.8 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1080HX5DC (mm): 10.8 | L/D: 5 | LU (mm): 73.8 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1080HX8DC (mm): 10.8 | L/D: 8 | LU (mm): 106.8 | LCF (mm): 123.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Made to order
MDW1090HX3DC (mm): 10.9 | L/D: 3 | LU (mm): 40.7 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1090HX5DC (mm): 10.9 | L/D: 5 | LU (mm): 73.7 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1090HX8DC (mm): 10.9 | L/D: 8 | LU (mm): 106.7 | LCF (mm): 123.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Made to order
MDW1100HX3DC (mm): 11.0 | L/D: 3 | LU (mm): 40.5 | LCF (mm): 57.0 | OAL (mm): 118.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1100HX5DC (mm): 11.0 | L/D: 5 | LU (mm): 73.5 | LCF (mm): 90.0 | OAL (mm): 151.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1100HX8DC (mm): 11.0 | L/D: 8 | LU (mm): 106.5 | LCF (mm): 123.0 | OAL (mm): 184.0 | PL (mm): 2.0 | DCON (mm): 11.0 | Stock: Yes
MDW1110HX3DC (mm): 11.1 | L/D: 3 | LU (mm): 42.9 | LCF (mm): 59.5 | OAL (mm): 124.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDW1110HX5DC (mm): 11.1 | L/D: 5 | LU (mm): 77.4 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDW1110HX8DC (mm): 11.1 | L/D: 8 | LU (mm): 111.9 | LCF (mm): 128.5 | OAL (mm): 196.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Made to order
MDW1120HX3DC (mm): 11.2 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.5 | OAL (mm): 124.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1120HX5DC (mm): 11.2 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.0 | OAL (mm): 160.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Yes
MDW1120HX8DC (mm): 11.2 | L/D: 8 | LU (mm): 111.7 | LCF (mm): 128.5 | OAL (mm): 196.0 | PL (mm): 2.0 | DCON (mm): 12.0 | Stock: Made to order
MDW1130HX3DC (mm): 11.3 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1130HX5DC (mm): 11.3 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1130HX8DC (mm): 11.3 | L/D: 8 | LU (mm): 111.7 | LCF (mm): 128.6 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDW1140HX3DC (mm): 11.4 | L/D: 3 | LU (mm): 42.5 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1140HX5DC (mm): 11.4 | L/D: 5 | LU (mm): 77.0 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1140HX8DC (mm): 11.4 | L/D: 8 | LU (mm): 111.5 | LCF (mm): 128.6 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDW1150HX3DC (mm): 11.5 | L/D: 3 | LU (mm): 42.4 | LCF (mm): 59.6 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1150HX5DC (mm): 11.5 | L/D: 5 | LU (mm): 76.9 | LCF (mm): 94.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1150HX8DC (mm): 11.5 | L/D: 8 | LU (mm): 111.4 | LCF (mm): 128.6 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1160HX3DC (mm): 11.6 | L/D: 3 | LU (mm): 44.7 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1160HX5DC (mm): 11.6 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1160HX8DC (mm): 11.6 | L/D: 8 | LU (mm): 116.7 | LCF (mm): 134.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDW1170HX3DC (mm): 11.7 | L/D: 3 | LU (mm): 44.6 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1170HX5DC (mm): 11.7 | L/D: 5 | LU (mm): 80.6 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1170HX8DC (mm): 11.7 | L/D: 8 | LU (mm): 116.6 | LCF (mm): 134.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDW1180HX3DC (mm): 11.8 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.1 | OAL (mm): 124.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1180HX5DC (mm): 11.8 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.1 | OAL (mm): 160.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Yes
MDW1180HX8DC (mm): 11.8 | L/D: 8 | LU (mm): 116.4 | LCF (mm): 134.1 | OAL (mm): 196.1 | PL (mm): 2.1 | DCON (mm): 12.0 | Stock: Made to order
MDW1190HX3DC (mm): 11.9 | L/D: 3 | LU (mm): 44.4 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1190HX5DC (mm): 11.9 | L/D: 5 | LU (mm): 80.4 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1190HX8DC (mm): 11.9 | L/D: 8 | LU (mm): 116.4 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Made to order
MDW1200HX3DC (mm): 12.0 | L/D: 3 | LU (mm): 44.2 | LCF (mm): 62.2 | OAL (mm): 124.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1200HX5DC (mm): 12.0 | L/D: 5 | LU (mm): 80.2 | LCF (mm): 98.2 | OAL (mm): 160.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1200HX8DC (mm): 12.0 | L/D: 8 | LU (mm): 116.2 | LCF (mm): 134.2 | OAL (mm): 196.2 | PL (mm): 2.2 | DCON (mm): 12.0 | Stock: Yes
MDW1210HX3DC (mm): 12.1 | L/D: 3 | LU (mm): 46.6 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1210HX5DC (mm): 12.1 | L/D: 5 | LU (mm): 84.1 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1210HX8DC (mm): 12.1 | L/D: 8 | LU (mm): 121.6 | LCF (mm): 139.7 | OAL (mm): 208.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1220HX3DC (mm): 12.2 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1220HX5DC (mm): 12.2 | L/D: 5 | LU (mm): 83.9 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1220HX8DC (mm): 12.2 | L/D: 8 | LU (mm): 121.4 | LCF (mm): 139.7 | OAL (mm): 208.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1230HX3DC (mm): 12.3 | L/D: 3 | LU (mm): 46.3 | LCF (mm): 64.7 | OAL (mm): 130.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1230HX5DC (mm): 12.3 | L/D: 5 | LU (mm): 83.8 | LCF (mm): 102.2 | OAL (mm): 169.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1230HX8DC (mm): 12.3 | L/D: 8 | LU (mm): 121.3 | LCF (mm): 139.7 | OAL (mm): 208.2 | PL (mm): 2.2 | DCON (mm): 13.0 | Stock: Made to order
MDW1240HX3DC (mm): 12.4 | L/D: 3 | LU (mm): 46.2 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1240HX5DC (mm): 12.4 | L/D: 5 | LU (mm): 83.7 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1240HX8DC (mm): 12.4 | L/D: 8 | LU (mm): 121.2 | LCF (mm): 139.8 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1250HX3DC (mm): 12.5 | L/D: 3 | LU (mm): 46.1 | LCF (mm): 64.8 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1250HX5DC (mm): 12.5 | L/D: 5 | LU (mm): 83.6 | LCF (mm): 102.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1250HX8DC (mm): 12.5 | L/D: 8 | LU (mm): 121.1 | LCF (mm): 139.8 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Yes
MDW1260HX3DC (mm): 12.6 | L/D: 3 | LU (mm): 48.4 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1260HX5DC (mm): 12.6 | L/D: 5 | LU (mm): 87.4 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1260HX8DC (mm): 12.6 | L/D: 8 | LU (mm): 126.4 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1270HX3DC (mm): 12.7 | L/D: 3 | LU (mm): 48.3 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1270HX5DC (mm): 12.7 | L/D: 5 | LU (mm): 87.3 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1270HX8DC (mm): 12.7 | L/D: 8 | LU (mm): 126.3 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1280HX3DC (mm): 12.8 | L/D: 3 | LU (mm): 48.1 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1280HX5DC (mm): 12.8 | L/D: 5 | LU (mm): 87.1 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1280HX8DC (mm): 12.8 | L/D: 8 | LU (mm): 126.1 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1290HX3DC (mm): 12.9 | L/D: 3 | LU (mm): 48.0 | LCF (mm): 67.3 | OAL (mm): 130.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1290HX5DC (mm): 12.9 | L/D: 5 | LU (mm): 87.0 | LCF (mm): 106.3 | OAL (mm): 169.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1290HX8DC (mm): 12.9 | L/D: 8 | LU (mm): 126.0 | LCF (mm): 145.3 | OAL (mm): 208.3 | PL (mm): 2.3 | DCON (mm): 13.0 | Stock: Made to order
MDW1300HX3DC (mm): 13.0 | L/D: 3 | LU (mm): 47.9 | LCF (mm): 67.4 | OAL (mm): 130.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1300HX5DC (mm): 13.0 | L/D: 5 | LU (mm): 86.9 | LCF (mm): 106.4 | OAL (mm): 169.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1300HX8DC (mm): 13.0 | L/D: 8 | LU (mm): 125.9 | LCF (mm): 145.4 | OAL (mm): 208.4 | PL (mm): 2.4 | DCON (mm): 13.0 | Stock: Yes
MDW1310HX3DC (mm): 13.1 | L/D: 3 | LU (mm): 50.3 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1310HX5DC (mm): 13.1 | L/D: 5 | LU (mm): 90.8 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1310HX8DC (mm): 13.1 | L/D: 8 | LU (mm): 131.3 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1320HX3DC (mm): 13.2 | L/D: 3 | LU (mm): 50.1 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1320HX5DC (mm): 13.2 | L/D: 5 | LU (mm): 90.6 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1320HX8DC (mm): 13.2 | L/D: 8 | LU (mm): 131.1 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1330HX3DC (mm): 13.3 | L/D: 3 | LU (mm): 50.0 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1330HX5DC (mm): 13.3 | L/D: 5 | LU (mm): 90.5 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1330HX8DC (mm): 13.3 | L/D: 8 | LU (mm): 131.0 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1340HX3DC (mm): 13.4 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 69.9 | OAL (mm): 136.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1340HX5DC (mm): 13.4 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.4 | OAL (mm): 178.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1340HX8DC (mm): 13.4 | L/D: 8 | LU (mm): 130.8 | LCF (mm): 150.9 | OAL (mm): 220.4 | PL (mm): 2.4 | DCON (mm): 14.0 | Stock: Made to order
MDW1350HX3DC (mm): 13.5 | L/D: 3 | LU (mm): 49.8 | LCF (mm): 70.0 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1350HX5DC (mm): 13.5 | L/D: 5 | LU (mm): 90.3 | LCF (mm): 110.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1350HX8DC (mm): 13.5 | L/D: 8 | LU (mm): 130.8 | LCF (mm): 151.0 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1360HX3DC (mm): 13.6 | L/D: 3 | LU (mm): 52.1 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1360HX5DC (mm): 13.6 | L/D: 5 | LU (mm): 94.1 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1360HX8DC (mm): 13.6 | L/D: 8 | LU (mm): 136.1 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1370HX3DC (mm): 13.7 | L/D: 3 | LU (mm): 52.0 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1370HX5DC (mm): 13.7 | L/D: 5 | LU (mm): 94.0 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1370HX8DC (mm): 13.7 | L/D: 8 | LU (mm): 136.0 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1380HX3DC (mm): 13.8 | L/D: 3 | LU (mm): 51.8 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1380HX5DC (mm): 13.8 | L/D: 5 | LU (mm): 93.8 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1380HX8DC (mm): 13.8 | L/D: 8 | LU (mm): 135.8 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1390HX3DC (mm): 13.9 | L/D: 3 | LU (mm): 51.7 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1390HX5DC (mm): 13.9 | L/D: 5 | LU (mm): 93.7 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1390HX8DC (mm): 13.9 | L/D: 8 | LU (mm): 135.7 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1400HX3DC (mm): 14.0 | L/D: 3 | LU (mm): 51.5 | LCF (mm): 72.5 | OAL (mm): 136.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1400HX5DC (mm): 14.0 | L/D: 5 | LU (mm): 93.5 | LCF (mm): 114.5 | OAL (mm): 178.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Yes
MDW1400HX8DC (mm): 14.0 | L/D: 8 | LU (mm): 135.5 | LCF (mm): 156.5 | OAL (mm): 220.5 | PL (mm): 2.5 | DCON (mm): 14.0 | Stock: Made to order
MDW1410HX3DC (mm): 14.1 | L/D: 3 | LU (mm): 54.0 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1410HX5DC (mm): 14.1 | L/D: 5 | LU (mm): 97.5 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1410HX8DC (mm): 14.1 | L/D: 8 | LU (mm): 141.0 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1420HX3DC (mm): 14.2 | L/D: 3 | LU (mm): 53.8 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1420HX5DC (mm): 14.2 | L/D: 5 | LU (mm): 97.3 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1420HX8DC (mm): 14.2 | L/D: 8 | LU (mm): 140.8 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1430HX3DC (mm): 14.3 | L/D: 3 | LU (mm): 53.7 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1430HX5DC (mm): 14.3 | L/D: 5 | LU (mm): 97.2 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1430HX8DC (mm): 14.3 | L/D: 8 | LU (mm): 140.7 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1440HX3DC (mm): 14.4 | L/D: 3 | LU (mm): 53.5 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1440HX5DC (mm): 14.4 | L/D: 5 | LU (mm): 97.0 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1440HX8DC (mm): 14.4 | L/D: 8 | LU (mm): 140.5 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1450HX3DC (mm): 14.5 | L/D: 3 | LU (mm): 53.4 | LCF (mm): 75.1 | OAL (mm): 142.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDW1450HX5DC (mm): 14.5 | L/D: 5 | LU (mm): 96.9 | LCF (mm): 118.6 | OAL (mm): 187.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Yes
MDW1450HX8DC (mm): 14.5 | L/D: 8 | LU (mm): 140.4 | LCF (mm): 162.1 | OAL (mm): 232.6 | PL (mm): 2.6 | DCON (mm): 15.0 | Stock: Made to order
MDW1460HX3DC (mm): 14.6 | L/D: 3 | LU (mm): 55.8 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1460HX5DC (mm): 14.6 | L/D: 5 | LU (mm): 100.8 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1460HX8DC (mm): 14.6 | L/D: 8 | LU (mm): 145.8 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1470HX3DC (mm): 14.7 | L/D: 3 | LU (mm): 55.7 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1470HX5DC (mm): 14.7 | L/D: 5 | LU (mm): 100.7 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1470HX8DC (mm): 14.7 | L/D: 8 | LU (mm): 145.7 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1480HX3DC (mm): 14.8 | L/D: 3 | LU (mm): 55.5 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1480HX5DC (mm): 14.8 | L/D: 5 | LU (mm): 100.5 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1480HX8DC (mm): 14.8 | L/D: 8 | LU (mm): 145.5 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1490HX3DC (mm): 14.9 | L/D: 3 | LU (mm): 55.4 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1490HX5DC (mm): 14.9 | L/D: 5 | LU (mm): 100.4 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1490HX8DC (mm): 14.9 | L/D: 8 | LU (mm): 145.4 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Made to order
MDW1500HX3DC (mm): 15.0 | L/D: 3 | LU (mm): 55.2 | LCF (mm): 77.7 | OAL (mm): 142.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDW1500HX5DC (mm): 15.0 | L/D: 5 | LU (mm): 100.2 | LCF (mm): 122.7 | OAL (mm): 187.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDW1500HX8DC (mm): 15.0 | L/D: 8 | LU (mm): 145.2 | LCF (mm): 167.7 | OAL (mm): 232.7 | PL (mm): 2.7 | DCON (mm): 15.0 | Stock: Yes
MDW1510HX3DC (mm): 15.1 | L/D: 3 | LU (mm): 57.6 | LCF (mm): 80.2 | OAL (mm): 148.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Made to order
MDW1510HX5DC (mm): 15.1 | L/D: 5 | LU (mm): 104.1 | LCF (mm): 126.7 | OAL (mm): 196.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Made to order
MDW1510HX8DC (mm): 15.1 | L/D: 8 | LU (mm): 150.6 | LCF (mm): 173.2 | OAL (mm): 244.7 | PL (mm): 2.7 | DCON (mm): 16.0 | Stock: Made to order
MDW1520HX3DC (mm): 15.2 | L/D: 3 | LU (mm): 57.5 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1520HX5DC (mm): 15.2 | L/D: 5 | LU (mm): 104.0 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1520HX8DC (mm): 15.2 | L/D: 8 | LU (mm): 150.5 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1530HX3DC (mm): 15.3 | L/D: 3 | LU (mm): 57.4 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1530HX5DC (mm): 15.3 | L/D: 5 | LU (mm): 103.9 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1530HX8DC (mm): 15.3 | L/D: 8 | LU (mm): 150.4 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1540HX3DC (mm): 15.4 | L/D: 3 | LU (mm): 57.2 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1540HX5DC (mm): 15.4 | L/D: 5 | LU (mm): 103.7 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1540HX8DC (mm): 15.4 | L/D: 8 | LU (mm): 150.2 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1550HX3DC (mm): 15.5 | L/D: 3 | LU (mm): 57.1 | LCF (mm): 80.3 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDW1550HX5DC (mm): 15.5 | L/D: 5 | LU (mm): 103.6 | LCF (mm): 126.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Yes
MDW1550HX8DC (mm): 15.5 | L/D: 8 | LU (mm): 150.1 | LCF (mm): 173.3 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1560HX3DC (mm): 15.6 | L/D: 3 | LU (mm): 59.4 | LCF (mm): 82.8 | OAL (mm): 148.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1560HX5DC (mm): 15.6 | L/D: 5 | LU (mm): 107.4 | LCF (mm): 130.8 | OAL (mm): 196.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1560HX8DC (mm): 15.6 | L/D: 8 | LU (mm): 155.4 | LCF (mm): 178.8 | OAL (mm): 244.8 | PL (mm): 2.8 | DCON (mm): 16.0 | Stock: Made to order
MDW1570HX3DC (mm): 15.7 | L/D: 3 | LU (mm): 59.4 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1570HX5DC (mm): 15.7 | L/D: 5 | LU (mm): 107.4 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1570HX8DC (mm): 15.7 | L/D: 8 | LU (mm): 155.4 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1580HX3DC (mm): 15.8 | L/D: 3 | LU (mm): 59.2 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1580HX5DC (mm): 15.8 | L/D: 5 | LU (mm): 107.2 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1580HX8DC (mm): 15.8 | L/D: 8 | LU (mm): 155.2 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1590HX3DC (mm): 15.9 | L/D: 3 | LU (mm): 59.1 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1590HX5DC (mm): 15.9 | L/D: 5 | LU (mm): 107.1 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1590HX8DC (mm): 15.9 | L/D: 8 | LU (mm): 155.1 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1600HX3DC (mm): 16.0 | L/D: 3 | LU (mm): 58.9 | LCF (mm): 82.9 | OAL (mm): 148.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDW1600HX5DC (mm): 16.0 | L/D: 5 | LU (mm): 106.9 | LCF (mm): 130.9 | OAL (mm): 196.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Yes
MDW1600HX8DC (mm): 16.0 | L/D: 8 | LU (mm): 154.9 | LCF (mm): 178.9 | OAL (mm): 244.9 | PL (mm): 2.9 | DCON (mm): 16.0 | Stock: Made to order
MDW1610HX3DC (mm): 16.1 | L/D: 3 | LU (mm): 61.3 | LCF (mm): 85.4 | OAL (mm): 154.9 | PL (mm): 2.9 | DCON (mm): 17.0 | Stock: Made to order
MDW1610HX5DC (mm): 16.1 | L/D: 5 | LU (mm): 110.8 | LCF (mm): 134.9 | OAL (mm): 205.9 | PL (mm): 2.9 | DCON (mm): 17.0 | Stock: Made to order
MDW1610HX8DC (mm): 16.1 | L/D: 8 | LU (mm): 160.3 | LCF (mm): 184.4 | OAL (mm): 256.9 | PL (mm): 2.9 | DCON (mm): 17.0 | Stock: Made to order
MDW1620HX3DC (mm): 16.2 | L/D: 3 | LU (mm): 61.1 | LCF (mm): 85.4 | OAL (mm): 154.9 | PL (mm): 2.9 | DCON (mm): 17.0 | Stock: Made to order
MDW1620HX5DC (mm): 16.2 | L/D: 5 | LU (mm): 110.6 | LCF (mm): 134.9 | OAL (mm): 205.9 | PL (mm): 2.9 | DCON (mm): 17.0 | Stock: Made to order
MDW1620HX8DC (mm): 16.2 | L/D: 8 | LU (mm): 160.1 | LCF (mm): 184.4 | OAL (mm): 256.9 | PL (mm): 2.9 | DCON (mm): 17.0 | Stock: Made to order
MDW1630HX3DC (mm): 16.3 | L/D: 3 | LU (mm): 61.1 | LCF (mm): 85.5 | OAL (mm): 155.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1630HX5DC (mm): 16.3 | L/D: 5 | LU (mm): 110.6 | LCF (mm): 135.0 | OAL (mm): 206.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1630HX8DC (mm): 16.3 | L/D: 8 | LU (mm): 160.1 | LCF (mm): 184.5 | OAL (mm): 257.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1640HX3DC (mm): 16.4 | L/D: 3 | LU (mm): 60.9 | LCF (mm): 85.5 | OAL (mm): 155.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1640HX5DC (mm): 16.4 | L/D: 5 | LU (mm): 110.4 | LCF (mm): 135.0 | OAL (mm): 206.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1640HX8DC (mm): 16.4 | L/D: 8 | LU (mm): 159.9 | LCF (mm): 184.5 | OAL (mm): 257.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1650HX3DC (mm): 16.5 | L/D: 3 | LU (mm): 60.8 | LCF (mm): 85.5 | OAL (mm): 155.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Yes
MDW1650HX5DC (mm): 16.5 | L/D: 5 | LU (mm): 110.3 | LCF (mm): 135.0 | OAL (mm): 206.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Yes
MDW1650HX8DC (mm): 16.5 | L/D: 8 | LU (mm): 159.8 | LCF (mm): 184.5 | OAL (mm): 257.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1660HX3DC (mm): 16.6 | L/D: 3 | LU (mm): 63.1 | LCF (mm): 88.0 | OAL (mm): 155.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1660HX5DC (mm): 16.6 | L/D: 5 | LU (mm): 114.1 | LCF (mm): 139.0 | OAL (mm): 206.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1660HX8DC (mm): 16.6 | L/D: 8 | LU (mm): 165.1 | LCF (mm): 190.0 | OAL (mm): 257.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1670HX3DC (mm): 16.7 | L/D: 3 | LU (mm): 63.0 | LCF (mm): 88.0 | OAL (mm): 155.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1670HX5DC (mm): 16.7 | L/D: 5 | LU (mm): 114.0 | LCF (mm): 139.0 | OAL (mm): 206.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1670HX8DC (mm): 16.7 | L/D: 8 | LU (mm): 165.0 | LCF (mm): 190.0 | OAL (mm): 257.0 | PL (mm): 3.0 | DCON (mm): 17.0 | Stock: Made to order
MDW1680HX3DC (mm): 16.8 | L/D: 3 | LU (mm): 62.9 | LCF (mm): 88.1 | OAL (mm): 155.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1680HX5DC (mm): 16.8 | L/D: 5 | LU (mm): 113.9 | LCF (mm): 139.1 | OAL (mm): 206.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1680HX8DC (mm): 16.8 | L/D: 8 | LU (mm): 164.9 | LCF (mm): 190.1 | OAL (mm): 257.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1690HX3DC (mm): 16.9 | L/D: 3 | LU (mm): 62.8 | LCF (mm): 88.1 | OAL (mm): 155.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1690HX5DC (mm): 16.9 | L/D: 5 | LU (mm): 113.8 | LCF (mm): 139.1 | OAL (mm): 206.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1690HX8DC (mm): 16.9 | L/D: 8 | LU (mm): 164.8 | LCF (mm): 190.1 | OAL (mm): 257.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1700HX3DC (mm): 17.0 | L/D: 3 | LU (mm): 62.6 | LCF (mm): 88.1 | OAL (mm): 155.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Yes
MDW1700HX5DC (mm): 17.0 | L/D: 5 | LU (mm): 113.6 | LCF (mm): 139.1 | OAL (mm): 206.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Yes
MDW1700HX8DC (mm): 17.0 | L/D: 8 | LU (mm): 164.6 | LCF (mm): 190.1 | OAL (mm): 257.1 | PL (mm): 3.1 | DCON (mm): 17.0 | Stock: Made to order
MDW1710HX3DC (mm): 17.1 | L/D: 3 | LU (mm): 65.0 | LCF (mm): 90.6 | OAL (mm): 161.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Yes
MDW1710HX5DC (mm): 17.1 | L/D: 5 | LU (mm): 117.5 | LCF (mm): 143.1 | OAL (mm): 217.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Phase-out (check availability)
MDW1710HX8DC (mm): 17.1 | L/D: 8 | LU (mm): 170.0 | LCF (mm): 195.6 | OAL (mm): 269.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Phase-out (check availability)
MDW1720HX3DC (mm): 17.2 | L/D: 3 | LU (mm): 64.8 | LCF (mm): 90.6 | OAL (mm): 161.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Made to order
MDW1720HX5DC (mm): 17.2 | L/D: 5 | LU (mm): 117.3 | LCF (mm): 143.1 | OAL (mm): 217.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Made to order
MDW1720HX8DC (mm): 17.2 | L/D: 8 | LU (mm): 169.8 | LCF (mm): 195.6 | OAL (mm): 269.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Made to order
MDW1730HX3DC (mm): 17.3 | L/D: 3 | LU (mm): 64.7 | LCF (mm): 90.6 | OAL (mm): 161.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Made to order
MDW1730HX5DC (mm): 17.3 | L/D: 5 | LU (mm): 117.2 | LCF (mm): 143.1 | OAL (mm): 217.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Made to order
MDW1730HX8DC (mm): 17.3 | L/D: 8 | LU (mm): 169.7 | LCF (mm): 195.6 | OAL (mm): 269.1 | PL (mm): 3.1 | DCON (mm): 18.0 | Stock: Made to order
MDW1740HX3DC (mm): 17.4 | L/D: 3 | LU (mm): 64.6 | LCF (mm): 90.7 | OAL (mm): 161.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1740HX5DC (mm): 17.4 | L/D: 5 | LU (mm): 117.1 | LCF (mm): 143.2 | OAL (mm): 217.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1740HX8DC (mm): 17.4 | L/D: 8 | LU (mm): 169.6 | LCF (mm): 195.7 | OAL (mm): 269.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1750HX3DC (mm): 17.5 | L/D: 3 | LU (mm): 64.5 | LCF (mm): 90.7 | OAL (mm): 161.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Yes
MDW1750HX5DC (mm): 17.5 | L/D: 5 | LU (mm): 117.0 | LCF (mm): 143.2 | OAL (mm): 217.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Yes
MDW1750HX8DC (mm): 17.5 | L/D: 8 | LU (mm): 169.5 | LCF (mm): 195.7 | OAL (mm): 269.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1760HX3DC (mm): 17.6 | L/D: 3 | LU (mm): 66.8 | LCF (mm): 93.2 | OAL (mm): 161.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1760HX5DC (mm): 17.6 | L/D: 5 | LU (mm): 120.8 | LCF (mm): 147.2 | OAL (mm): 217.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1760HX8DC (mm): 17.6 | L/D: 8 | LU (mm): 174.8 | LCF (mm): 201.2 | OAL (mm): 269.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1770HX3DC (mm): 17.7 | L/D: 3 | LU (mm): 66.7 | LCF (mm): 93.2 | OAL (mm): 161.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1770HX5DC (mm): 17.7 | L/D: 5 | LU (mm): 120.7 | LCF (mm): 147.2 | OAL (mm): 217.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1770HX8DC (mm): 17.7 | L/D: 8 | LU (mm): 174.7 | LCF (mm): 201.2 | OAL (mm): 269.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1780HX3DC (mm): 17.8 | L/D: 3 | LU (mm): 66.5 | LCF (mm): 93.2 | OAL (mm): 161.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1780HX5DC (mm): 17.8 | L/D: 5 | LU (mm): 120.5 | LCF (mm): 147.2 | OAL (mm): 217.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1780HX8DC (mm): 17.8 | L/D: 8 | LU (mm): 174.5 | LCF (mm): 201.2 | OAL (mm): 269.2 | PL (mm): 3.2 | DCON (mm): 18.0 | Stock: Made to order
MDW1790HX3DC (mm): 17.9 | L/D: 3 | LU (mm): 66.5 | LCF (mm): 93.3 | OAL (mm): 161.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Made to order
MDW1790HX5DC (mm): 17.9 | L/D: 5 | LU (mm): 120.5 | LCF (mm): 147.3 | OAL (mm): 217.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Made to order
MDW1790HX8DC (mm): 17.9 | L/D: 8 | LU (mm): 174.5 | LCF (mm): 201.3 | OAL (mm): 269.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Made to order
MDW1800HX3DC (mm): 18.0 | L/D: 3 | LU (mm): 66.3 | LCF (mm): 93.3 | OAL (mm): 161.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Yes
MDW1800HX5DC (mm): 18.0 | L/D: 5 | LU (mm): 120.3 | LCF (mm): 147.3 | OAL (mm): 217.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Yes
MDW1800HX8DC (mm): 18.0 | L/D: 8 | LU (mm): 174.3 | LCF (mm): 201.3 | OAL (mm): 269.3 | PL (mm): 3.3 | DCON (mm): 18.0 | Stock: Made to order
MDW1810HX3DC (mm): 18.1 | L/D: 3 | LU (mm): 68.7 | LCF (mm): 95.8 | OAL (mm): 167.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1810HX5DC (mm): 18.1 | L/D: 5 | LU (mm): 124.2 | LCF (mm): 151.3 | OAL (mm): 224.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1820HX3DC (mm): 18.2 | L/D: 3 | LU (mm): 68.5 | LCF (mm): 95.8 | OAL (mm): 167.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1820HX5DC (mm): 18.2 | L/D: 5 | LU (mm): 124.0 | LCF (mm): 151.3 | OAL (mm): 224.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1830HX3DC (mm): 18.3 | L/D: 3 | LU (mm): 68.4 | LCF (mm): 95.8 | OAL (mm): 167.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1830HX5DC (mm): 18.3 | L/D: 5 | LU (mm): 123.9 | LCF (mm): 151.3 | OAL (mm): 224.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1840HX3DC (mm): 18.4 | L/D: 3 | LU (mm): 68.2 | LCF (mm): 95.8 | OAL (mm): 167.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1840HX5DC (mm): 18.4 | L/D: 5 | LU (mm): 123.7 | LCF (mm): 151.3 | OAL (mm): 224.3 | PL (mm): 3.3 | DCON (mm): 19.0 | Stock: Made to order
MDW1850HX3DC (mm): 18.5 | L/D: 3 | LU (mm): 68.2 | LCF (mm): 95.9 | OAL (mm): 167.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDW1850HX5DC (mm): 18.5 | L/D: 5 | LU (mm): 123.7 | LCF (mm): 151.4 | OAL (mm): 224.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Yes
MDW1860HX3DC (mm): 18.6 | L/D: 3 | LU (mm): 70.5 | LCF (mm): 98.4 | OAL (mm): 167.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1860HX5DC (mm): 18.6 | L/D: 5 | LU (mm): 127.5 | LCF (mm): 155.4 | OAL (mm): 224.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1870HX3DC (mm): 18.7 | L/D: 3 | LU (mm): 70.4 | LCF (mm): 98.4 | OAL (mm): 167.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1870HX5DC (mm): 18.7 | L/D: 5 | LU (mm): 127.4 | LCF (mm): 155.4 | OAL (mm): 224.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1880HX3DC (mm): 18.8 | L/D: 3 | LU (mm): 70.2 | LCF (mm): 98.4 | OAL (mm): 167.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1880HX5DC (mm): 18.8 | L/D: 5 | LU (mm): 127.2 | LCF (mm): 155.4 | OAL (mm): 224.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1890HX3DC (mm): 18.9 | L/D: 3 | LU (mm): 70.1 | LCF (mm): 98.4 | OAL (mm): 167.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1890HX5DC (mm): 18.9 | L/D: 5 | LU (mm): 127.1 | LCF (mm): 155.4 | OAL (mm): 224.4 | PL (mm): 3.4 | DCON (mm): 19.0 | Stock: Made to order
MDW1900HX3DC (mm): 19.0 | L/D: 3 | LU (mm): 70.0 | LCF (mm): 98.5 | OAL (mm): 167.5 | PL (mm): 3.5 | DCON (mm): 19.0 | Stock: Yes
MDW1900HX5DC (mm): 19.0 | L/D: 5 | LU (mm): 127.0 | LCF (mm): 155.5 | OAL (mm): 224.5 | PL (mm): 3.5 | DCON (mm): 19.0 | Stock: Yes
MDW1910HX3DC (mm): 19.1 | L/D: 3 | LU (mm): 72.4 | LCF (mm): 101.0 | OAL (mm): 173.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1910HX5DC (mm): 19.1 | L/D: 5 | LU (mm): 130.9 | LCF (mm): 159.5 | OAL (mm): 233.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1920HX3DC (mm): 19.2 | L/D: 3 | LU (mm): 72.2 | LCF (mm): 101.0 | OAL (mm): 173.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1920HX5DC (mm): 19.2 | L/D: 5 | LU (mm): 130.7 | LCF (mm): 159.5 | OAL (mm): 233.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1930HX3DC (mm): 19.3 | L/D: 3 | LU (mm): 72.1 | LCF (mm): 101.0 | OAL (mm): 173.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1930HX5DC (mm): 19.3 | L/D: 5 | LU (mm): 130.6 | LCF (mm): 159.5 | OAL (mm): 233.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1940HX3DC (mm): 19.4 | L/D: 3 | LU (mm): 71.9 | LCF (mm): 101.0 | OAL (mm): 173.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1940HX5DC (mm): 19.4 | L/D: 5 | LU (mm): 130.4 | LCF (mm): 159.5 | OAL (mm): 233.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Made to order
MDW1950HX3DC (mm): 19.5 | L/D: 3 | LU (mm): 71.8 | LCF (mm): 101.0 | OAL (mm): 173.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Yes
MDW1950HX5DC (mm): 19.5 | L/D: 5 | LU (mm): 130.3 | LCF (mm): 159.5 | OAL (mm): 233.5 | PL (mm): 3.5 | DCON (mm): 20.0 | Stock: Phase-out (check availability)
MDW1960HX3DC (mm): 19.6 | L/D: 3 | LU (mm): 74.2 | LCF (mm): 103.6 | OAL (mm): 173.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1960HX5DC (mm): 19.6 | L/D: 5 | LU (mm): 134.2 | LCF (mm): 163.6 | OAL (mm): 233.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1970HX3DC (mm): 19.7 | L/D: 3 | LU (mm): 74.1 | LCF (mm): 103.6 | OAL (mm): 173.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1970HX5DC (mm): 19.7 | L/D: 5 | LU (mm): 134.1 | LCF (mm): 163.6 | OAL (mm): 233.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1980HX3DC (mm): 19.8 | L/D: 3 | LU (mm): 73.9 | LCF (mm): 103.6 | OAL (mm): 173.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1980HX5DC (mm): 19.8 | L/D: 5 | LU (mm): 133.9 | LCF (mm): 163.6 | OAL (mm): 233.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1990HX3DC (mm): 19.9 | L/D: 3 | LU (mm): 73.8 | LCF (mm): 103.6 | OAL (mm): 173.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW1990HX5DC (mm): 19.9 | L/D: 5 | LU (mm): 133.8 | LCF (mm): 163.6 | OAL (mm): 233.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Made to order
MDW2000HX3DC (mm): 20.0 | L/D: 3 | LU (mm): 73.6 | LCF (mm): 103.6 | OAL (mm): 173.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes
MDW2000HX5DC (mm): 20.0 | L/D: 5 | LU (mm): 133.6 | LCF (mm): 163.6 | OAL (mm): 233.6 | PL (mm): 3.6 | DCON (mm): 20.0 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
