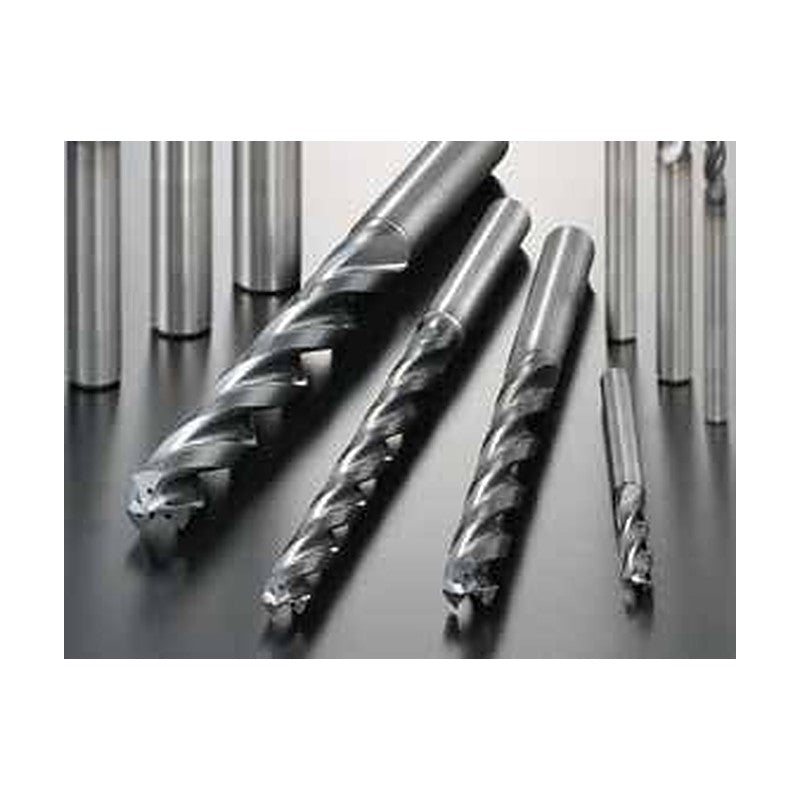

Sumitomo Electric Hardmetal Strong Multi Drill HY Type (Internal Coolant)

Sumitomo Electric Hardmetal Strong Multi Drill HY Type (Internal Coolant)

Three-flute solid carbide drill for high-efficiency drilling of steel and cast iron, with RY thinning and three-point margin design.

Key features

  • 3 flutes reduce load per edge
  • Three-point margin for hole accuracy
  • RY thinning
  • DEX coating
  • Hole depth 3D, 5D and 8D

Specifications

Coolant Internal
Point angle 135 deg
MDW0500HY3 DC (mm): 5.0 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 28.5 | OAL (mm): 81.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0500HY5 DC (mm): 5.0 | L/D: 5 | LU (mm): 37.5 | LCF (mm): 45.0 | OAL (mm): 99.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0500HY8 DC (mm): 5.0 | L/D: 8 | LU (mm): 48.5 | LCF (mm): 56.0 | OAL (mm): 106.0 | PL (mm): 1.0 | DCON (mm): 5.0 | Stock: Phase-out (check availability)
MDW0510HY3 DC (mm): 5.1 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 28.6 | OAL (mm): 83.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0510HY5 DC (mm): 5.1 | L/D: 5 | LU (mm): 37.5 | LCF (mm): 45.1 | OAL (mm): 101.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0510HY8 DC (mm): 5.1 | L/D: 8 | LU (mm): 54.0 | LCF (mm): 61.6 | OAL (mm): 119.1 | PL (mm): 1.1 | DCON (mm): 6.0 | Stock: Made to order
MDW0600HY3 DC (mm): 6.0 | L/D: 3 | LU (mm): 22.2 | LCF (mm): 31.2 | OAL (mm): 83.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0600HY5 DC (mm): 6.0 | L/D: 5 | LU (mm): 40.2 | LCF (mm): 49.2 | OAL (mm): 101.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0600HY8 DC (mm): 6.0 | L/D: 8 | LU (mm): 58.2 | LCF (mm): 67.2 | OAL (mm): 119.2 | PL (mm): 1.2 | DCON (mm): 6.0 | Stock: Phase-out (check availability)
MDW0650HY3 DC (mm): 6.5 | L/D: 3 | LU (mm): 24.1 | LCF (mm): 33.8 | OAL (mm): 89.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Phase-out (check availability)
MDW0650HY5 DC (mm): 6.5 | L/D: 5 | LU (mm): 43.6 | LCF (mm): 53.3 | OAL (mm): 110.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Phase-out (check availability)
MDW0650HY8 DC (mm): 6.5 | L/D: 8 | LU (mm): 63.1 | LCF (mm): 72.8 | OAL (mm): 131.3 | PL (mm): 1.3 | DCON (mm): 7.0 | Stock: Made to order
MDW0680HY3 DC (mm): 6.8 | L/D: 3 | LU (mm): 26.2 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Phase-out (check availability)
MDW0680HY5 DC (mm): 6.8 | L/D: 5 | LU (mm): 47.2 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Phase-out (check availability)
MDW0680HY8 DC (mm): 6.8 | L/D: 8 | LU (mm): 68.2 | LCF (mm): 78.4 | OAL (mm): 131.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Phase-out (check availability)
MDW0700HY3 DC (mm): 7.0 | L/D: 3 | LU (mm): 25.9 | LCF (mm): 36.4 | OAL (mm): 89.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Phase-out (check availability)
MDW0700HY5 DC (mm): 7.0 | L/D: 5 | LU (mm): 46.9 | LCF (mm): 57.4 | OAL (mm): 110.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Phase-out (check availability)
MDW0700HY8 DC (mm): 7.0 | L/D: 8 | LU (mm): 67.9 | LCF (mm): 78.4 | OAL (mm): 131.4 | PL (mm): 1.4 | DCON (mm): 7.0 | Stock: Made to order
MDW0800HY3 DC (mm): 8.0 | L/D: 3 | LU (mm): 29.7 | LCF (mm): 41.7 | OAL (mm): 95.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0800HY5 DC (mm): 8.0 | L/D: 5 | LU (mm): 53.7 | LCF (mm): 65.7 | OAL (mm): 119.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Phase-out (check availability)
MDW0800HY8 DC (mm): 8.0 | L/D: 8 | LU (mm): 77.7 | LCF (mm): 89.7 | OAL (mm): 143.7 | PL (mm): 1.7 | DCON (mm): 8.0 | Stock: Made to order
MDW0850HY3 DC (mm): 8.5 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 44.3 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0850HY5 DC (mm): 8.5 | L/D: 5 | LU (mm): 57.1 | LCF (mm): 69.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0850HY8 DC (mm): 8.5 | L/D: 8 | LU (mm): 82.6 | LCF (mm): 95.3 | OAL (mm): 155.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0860HY3 DC (mm): 8.6 | L/D: 3 | LU (mm): 33.9 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0860HY5 DC (mm): 8.6 | L/D: 5 | LU (mm): 60.9 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0860HY8 DC (mm): 8.6 | L/D: 8 | LU (mm): 87.9 | LCF (mm): 100.8 | OAL (mm): 155.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0880HY3 DC (mm): 8.8 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 46.8 | OAL (mm): 101.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0880HY5 DC (mm): 8.8 | L/D: 5 | LU (mm): 60.6 | LCF (mm): 73.8 | OAL (mm): 128.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0880HY8 DC (mm): 8.8 | L/D: 8 | LU (mm): 87.6 | LCF (mm): 100.8 | OAL (mm): 155.8 | PL (mm): 1.8 | DCON (mm): 9.0 | Stock: Made to order
MDW0900HY3 DC (mm): 9.0 | L/D: 3 | LU (mm): 33.4 | LCF (mm): 46.9 | OAL (mm): 101.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0900HY5 DC (mm): 9.0 | L/D: 5 | LU (mm): 60.4 | LCF (mm): 73.9 | OAL (mm): 128.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Phase-out (check availability)
MDW0900HY8 DC (mm): 9.0 | L/D: 8 | LU (mm): 87.4 | LCF (mm): 100.9 | OAL (mm): 155.9 | PL (mm): 1.9 | DCON (mm): 9.0 | Stock: Made to order
MDW0950HY3 DC (mm): 9.5 | L/D: 3 | LU (mm): 35.3 | LCF (mm): 49.5 | OAL (mm): 108.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0950HY5 DC (mm): 9.5 | L/D: 5 | LU (mm): 63.8 | LCF (mm): 78.0 | OAL (mm): 138.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW0950HY8 DC (mm): 9.5 | L/D: 8 | LU (mm): 92.3 | LCF (mm): 106.5 | OAL (mm): 168.0 | PL (mm): 2.0 | DCON (mm): 10.0 | Stock: Made to order
MDW1000HY3 DC (mm): 10.0 | L/D: 3 | LU (mm): 37.1 | LCF (mm): 52.1 | OAL (mm): 108.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW1000HY5 DC (mm): 10.0 | L/D: 5 | LU (mm): 67.1 | LCF (mm): 82.1 | OAL (mm): 138.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Phase-out (check availability)
MDW1000HY8 DC (mm): 10.0 | L/D: 8 | LU (mm): 97.1 | LCF (mm): 112.1 | OAL (mm): 168.1 | PL (mm): 2.1 | DCON (mm): 10.0 | Stock: Made to order
MDW1020HY3 DC (mm): 10.2 | L/D: 3 | LU (mm): 39.3 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1020HY5 DC (mm): 10.2 | L/D: 5 | LU (mm): 70.8 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1020HY8 DC (mm): 10.2 | L/D: 8 | LU (mm): 102.3 | LCF (mm): 117.6 | OAL (mm): 184.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Made to order
MDW1030HY3 DC (mm): 10.3 | L/D: 3 | LU (mm): 39.2 | LCF (mm): 54.6 | OAL (mm): 118.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1030HY5 DC (mm): 10.3 | L/D: 5 | LU (mm): 70.7 | LCF (mm): 86.1 | OAL (mm): 151.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1030HY8 DC (mm): 10.3 | L/D: 8 | LU (mm): 102.2 | LCF (mm): 117.6 | OAL (mm): 184.1 | PL (mm): 2.1 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1100HY3 DC (mm): 11.0 | L/D: 3 | LU (mm): 40.8 | LCF (mm): 57.3 | OAL (mm): 118.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1100HY5 DC (mm): 11.0 | L/D: 5 | LU (mm): 73.8 | LCF (mm): 90.3 | OAL (mm): 151.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Phase-out (check availability)
MDW1100HY8 DC (mm): 11.0 | L/D: 8 | LU (mm): 106.8 | LCF (mm): 123.3 | OAL (mm): 184.3 | PL (mm): 2.3 | DCON (mm): 11.0 | Stock: Made to order
MDW1140HY3 DC (mm): 11.4 | L/D: 3 | LU (mm): 42.8 | LCF (mm): 59.9 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1140HY5 DC (mm): 11.4 | L/D: 5 | LU (mm): 77.3 | LCF (mm): 94.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1140HY8 DC (mm): 11.4 | L/D: 8 | LU (mm): 111.8 | LCF (mm): 128.9 | OAL (mm): 196.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1150HY3 DC (mm): 11.5 | L/D: 3 | LU (mm): 42.7 | LCF (mm): 59.9 | OAL (mm): 124.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1150HY5 DC (mm): 11.5 | L/D: 5 | LU (mm): 77.2 | LCF (mm): 94.4 | OAL (mm): 160.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1150HY8 DC (mm): 11.5 | L/D: 8 | LU (mm): 111.7 | LCF (mm): 128.9 | OAL (mm): 196.4 | PL (mm): 2.4 | DCON (mm): 12.0 | Stock: Made to order
MDW1200HY3 DC (mm): 12.0 | L/D: 3 | LU (mm): 44.5 | LCF (mm): 62.5 | OAL (mm): 124.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1200HY5 DC (mm): 12.0 | L/D: 5 | LU (mm): 80.5 | LCF (mm): 98.5 | OAL (mm): 160.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Phase-out (check availability)
MDW1200HY8 DC (mm): 12.0 | L/D: 8 | LU (mm): 116.5 | LCF (mm): 134.5 | OAL (mm): 196.5 | PL (mm): 2.5 | DCON (mm): 12.0 | Stock: Made to order
MDW1250HY3 DC (mm): 12.5 | L/D: 3 | LU (mm): 46.4 | LCF (mm): 65.1 | OAL (mm): 130.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Phase-out (check availability)
MDW1250HY5 DC (mm): 12.5 | L/D: 5 | LU (mm): 83.9 | LCF (mm): 102.6 | OAL (mm): 169.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Phase-out (check availability)
MDW1250HY8 DC (mm): 12.5 | L/D: 8 | LU (mm): 121.4 | LCF (mm): 140.1 | OAL (mm): 208.6 | PL (mm): 2.6 | DCON (mm): 13.0 | Stock: Phase-out (check availability)
MDW1300HY3 DC (mm): 13.0 | L/D: 3 | LU (mm): 48.2 | LCF (mm): 67.7 | OAL (mm): 130.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Phase-out (check availability)
MDW1300HY5 DC (mm): 13.0 | L/D: 5 | LU (mm): 87.2 | LCF (mm): 106.7 | OAL (mm): 169.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Phase-out (check availability)
MDW1300HY8 DC (mm): 13.0 | L/D: 8 | LU (mm): 126.2 | LCF (mm): 145.7 | OAL (mm): 208.7 | PL (mm): 2.7 | DCON (mm): 13.0 | Stock: Made to order
MDW1400HY3 DC (mm): 14.0 | L/D: 3 | LU (mm): 51.9 | LCF (mm): 72.9 | OAL (mm): 136.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Phase-out (check availability)
MDW1400HY5 DC (mm): 14.0 | L/D: 5 | LU (mm): 93.9 | LCF (mm): 114.9 | OAL (mm): 178.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Phase-out (check availability)
MDW1400HY8 DC (mm): 14.0 | L/D: 8 | LU (mm): 135.9 | LCF (mm): 156.9 | OAL (mm): 220.9 | PL (mm): 2.9 | DCON (mm): 14.0 | Stock: Made to order
MDW1600HY3 DC (mm): 16.0 | L/D: 3 | LU (mm): 59.3 | LCF (mm): 83.3 | OAL (mm): 149.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Phase-out (check availability)
MDW1600HY5 DC (mm): 16.0 | L/D: 5 | LU (mm): 107.3 | LCF (mm): 131.3 | OAL (mm): 197.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Phase-out (check availability)
MDW1600HY8 DC (mm): 16.0 | L/D: 8 | LU (mm): 155.3 | LCF (mm): 179.3 | OAL (mm): 245.3 | PL (mm): 3.3 | DCON (mm): 16.0 | Stock: Made to order
DrillsSumitomo Electric Hardmetal
69 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Strong Multi Drill HY Type (Internal Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (69)

MDW0500HY3, MDW0500HY5, MDW0500HY8, MDW0510HY3, MDW0510HY5, MDW0510HY8, MDW0600HY3, MDW0600HY5, MDW0600HY8, MDW0650HY3 + 59 more — see full table ↓
