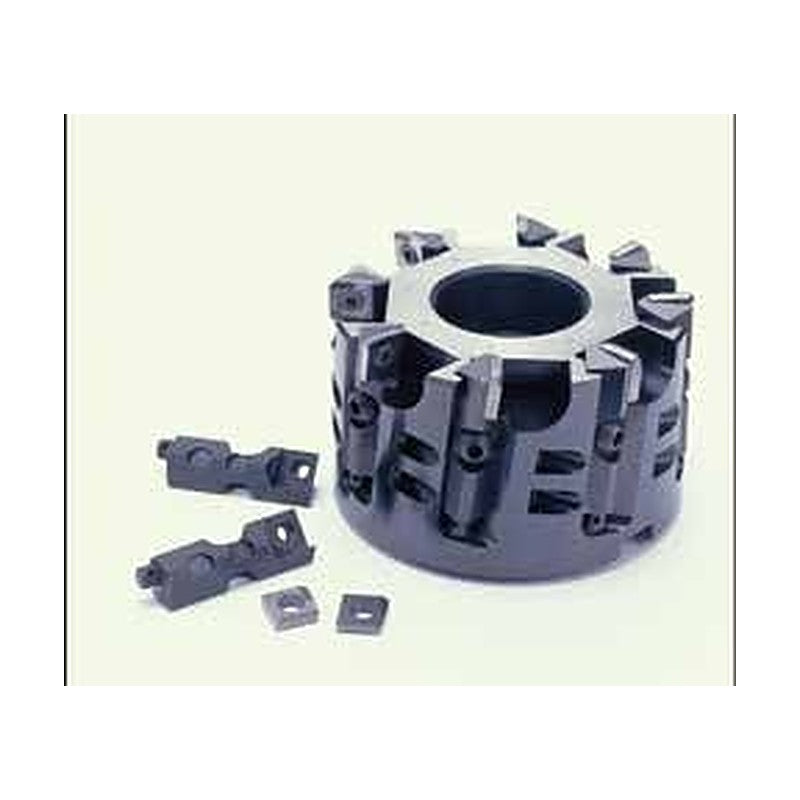

Sumitomo Electric Hardmetal SUMIBORON BN Finish Mill EASY FMU / FMU-E Cutter

Sumitomo Electric Hardmetal SUMIBORON BN Finish Mill EASY FMU / FMU-E Cutter

SUMIBORON BN finishing cutter for cast iron with max. depth of cut 0.5 mm and 45 degree insert geometry.

FMU4040ER Cutting dia DC (mm): 37.2 | Max cutting dia DCX (mm): 40 | Overall length LF (mm): 63 | Teeth: 2 | Weight (kg): 1.0 | Stock: Yes
FMU4050ER Cutting dia DC (mm): 47.2 | Max cutting dia DCX (mm): 50 | Overall length LF (mm): 63 | Teeth: 3 | Weight (kg): 1.2 | Stock: Yes
FMU4063ER Cutting dia DC (mm): 60.2 | Max cutting dia DCX (mm): 63 | Boss dia DCSFMS (mm): 60 | Overall length LF (mm): 63 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Teeth: 4 | Weight (kg): 1.0 | Stock: Yes
FMU4080R Cutting dia DC (mm): 80 | Max cutting dia DCX (mm): 82.8 | Boss dia DCSFMS (mm): 60 | Overall length LF (mm): 63 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Teeth: 6 | Weight (kg): 1.7 | Stock: Yes
FMU4100R Cutting dia DC (mm): 100 | Max cutting dia DCX (mm): 102.8 | Boss dia DCSFMS (mm): 76 | Overall length LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 38 | Teeth: 8 | Weight (kg): 2.5 | Stock: Yes
FMU4125R Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127.8 | Boss dia DCSFMS (mm): 75 | Overall length LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Teeth: 10 | Weight (kg): 3.9 | Stock: Yes
FMU4160R Cutting dia DC (mm): 160 | Max cutting dia DCX (mm): 162.8 | Boss dia DCSFMS (mm): 100 | Overall length LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Teeth: 12 | Weight (kg): 6.3 | Stock: Yes
FMU4200R Cutting dia DC (mm): 200 | Max cutting dia DCX (mm): 202.8 | Boss dia DCSFMS (mm): 130 | Overall length LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 16 | Weight (kg): 9.3 | Stock: Yes
FMU4250R Cutting dia DC (mm): 250 | Max cutting dia DCX (mm): 252.8 | Boss dia DCSFMS (mm): 130 | Overall length LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 20 | Weight (kg): 14.5 | Stock: Not marked
FMU4315R Cutting dia DC (mm): 315 | Max cutting dia DCX (mm): 317.8 | Boss dia DCSFMS (mm): 240 | Overall length LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 24 | Weight (kg): 25.0 | Stock: Not marked
Milling CuttersSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIBORON BN Finish Mill EASY FMU / FMU-E Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (10)

FMU4040ER, FMU4050ER, FMU4063ER, FMU4080R, FMU4100R, FMU4125R, FMU4160R, FMU4200R, FMU4250R, FMU4315R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FMU4040ERCutting dia DC (mm): 37.2 | Max cutting dia DCX (mm): 40 | Overall length LF (mm): 63 | Teeth: 2 | Weight (kg): 1.0 | Stock: Yes
FMU4050ERCutting dia DC (mm): 47.2 | Max cutting dia DCX (mm): 50 | Overall length LF (mm): 63 | Teeth: 3 | Weight (kg): 1.2 | Stock: Yes
FMU4063ERCutting dia DC (mm): 60.2 | Max cutting dia DCX (mm): 63 | Boss dia DCSFMS (mm): 60 | Overall length LF (mm): 63 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Teeth: 4 | Weight (kg): 1.0 | Stock: Yes
FMU4080RCutting dia DC (mm): 80 | Max cutting dia DCX (mm): 82.8 | Boss dia DCSFMS (mm): 60 | Overall length LF (mm): 63 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Teeth: 6 | Weight (kg): 1.7 | Stock: Yes
FMU4100RCutting dia DC (mm): 100 | Max cutting dia DCX (mm): 102.8 | Boss dia DCSFMS (mm): 76 | Overall length LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 38 | Teeth: 8 | Weight (kg): 2.5 | Stock: Yes
FMU4125RCutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127.8 | Boss dia DCSFMS (mm): 75 | Overall length LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Teeth: 10 | Weight (kg): 3.9 | Stock: Yes
FMU4160RCutting dia DC (mm): 160 | Max cutting dia DCX (mm): 162.8 | Boss dia DCSFMS (mm): 100 | Overall length LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Teeth: 12 | Weight (kg): 6.3 | Stock: Yes
FMU4200RCutting dia DC (mm): 200 | Max cutting dia DCX (mm): 202.8 | Boss dia DCSFMS (mm): 130 | Overall length LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 16 | Weight (kg): 9.3 | Stock: Yes
FMU4250RCutting dia DC (mm): 250 | Max cutting dia DCX (mm): 252.8 | Boss dia DCSFMS (mm): 130 | Overall length LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 20 | Weight (kg): 14.5 | Stock: Not marked
FMU4315RCutting dia DC (mm): 315 | Max cutting dia DCX (mm): 317.8 | Boss dia DCSFMS (mm): 240 | Overall length LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 24 | Weight (kg): 25.0 | Stock: Not marked
