Sumitomo Electric Hardmetal SUMIBORON BN Finish Mill FM(F) Cutter

Sumitomo Electric Hardmetal SUMIBORON BN Finish Mill FM(F) Cutter

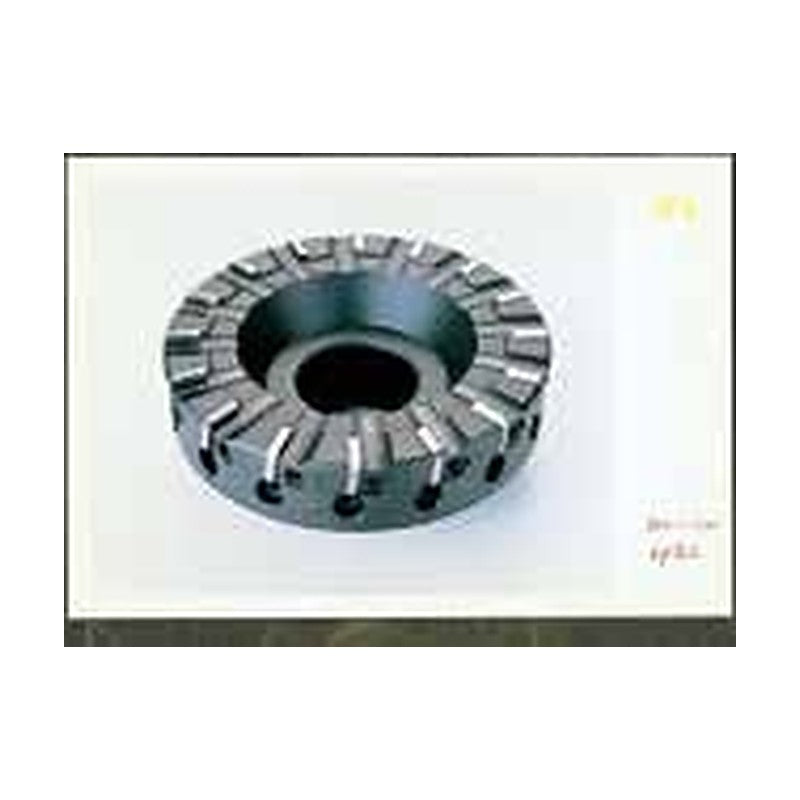

SUMIBORON BN finishing cutter for ultra-high-speed milling of grey cast iron combining a unique edge design with cBN grades.

FM5080R Cutting dia DC (mm): 80 | Max cutting dia DCX (mm): 82.8 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Teeth: 6 | Weight (kg): 1.6 | Stock: Yes
FM5100R Cutting dia DC (mm): 100 | Max cutting dia DCX (mm): 102.8 | Boss dia DCSFMS (mm): 75 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Teeth: 8 | Weight (kg): 2.4 | Stock: Yes
FM5125R Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127.8 | Boss dia DCSFMS (mm): 75 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Teeth: 10 | Weight (kg): 3.4 | Stock: Yes
FM5160R Cutting dia DC (mm): 160 | Max cutting dia DCX (mm): 162.8 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Teeth: 12 | Weight (kg): 5.6 | Stock: Yes
FM5200R Cutting dia DC (mm): 200 | Max cutting dia DCX (mm): 202.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 16 | Weight (kg): 8.3 | Stock: Not marked | Hand: Right
FM5200L Cutting dia DC (mm): 200 | Max cutting dia DCX (mm): 202.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 16 | Weight (kg): 8.3 | Stock: Not marked | Hand: Left
FM5250R Cutting dia DC (mm): 250 | Max cutting dia DCX (mm): 252.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 20 | Weight (kg): 14.3 | Stock: Not marked | Hand: Right
FM5250L Cutting dia DC (mm): 250 | Max cutting dia DCX (mm): 252.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 20 | Weight (kg): 14.3 | Stock: Not marked | Hand: Left
FM5315R Cutting dia DC (mm): 315 | Max cutting dia DCX (mm): 317.8 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 24 | Weight (kg): 27.8 | Stock: Not marked | Hand: Right
FM5315L Cutting dia DC (mm): 315 | Max cutting dia DCX (mm): 317.8 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 24 | Weight (kg): 27.8 | Stock: Not marked | Hand: Left
FMF5125R Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127.8 | Boss dia DCSFMS (mm): 75 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Teeth: 12 | Weight (kg): 3.4 | Stock: Not marked | Hand: Right
FMF5125L Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127.8 | Boss dia DCSFMS (mm): 75 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Teeth: 12 | Weight (kg): 3.4 | Stock: Not marked | Hand: Left
FMF5160R Cutting dia DC (mm): 160 | Max cutting dia DCX (mm): 162.8 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Teeth: 16 | Weight (kg): 5.6 | Stock: Not marked | Hand: Right
FMF5160L Cutting dia DC (mm): 160 | Max cutting dia DCX (mm): 162.8 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Teeth: 16 | Weight (kg): 5.6 | Stock: Not marked | Hand: Left
FMF5200R Cutting dia DC (mm): 200 | Max cutting dia DCX (mm): 202.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 20 | Weight (kg): 8.3 | Stock: Not marked | Hand: Right
FMF5200L Cutting dia DC (mm): 200 | Max cutting dia DCX (mm): 202.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 20 | Weight (kg): 8.3 | Stock: Not marked | Hand: Left
FMF5250R Cutting dia DC (mm): 250 | Max cutting dia DCX (mm): 252.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 24 | Weight (kg): 14.3 | Stock: Not marked | Hand: Right
FMF5250L Cutting dia DC (mm): 250 | Max cutting dia DCX (mm): 252.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 24 | Weight (kg): 14.3 | Stock: Not marked | Hand: Left
FMF5315R Cutting dia DC (mm): 315 | Max cutting dia DCX (mm): 317.8 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 28 | Weight (kg): 27.8 | Stock: Not marked | Hand: Right
FMF5315L Cutting dia DC (mm): 315 | Max cutting dia DCX (mm): 317.8 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 28 | Weight (kg): 27.8 | Stock: Not marked | Hand: Left
Milling CuttersSumitomo Electric Hardmetal
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIBORON BN Finish Mill FM(F) Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (20)

FM5080R, FM5100R, FM5125R, FM5160R, FM5200R, FM5200L, FM5250R, FM5250L, FM5315R, FM5315L + 10 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FM5080RCutting dia DC (mm): 80 | Max cutting dia DCX (mm): 82.8 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Teeth: 6 | Weight (kg): 1.6 | Stock: Yes
FM5100RCutting dia DC (mm): 100 | Max cutting dia DCX (mm): 102.8 | Boss dia DCSFMS (mm): 75 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Teeth: 8 | Weight (kg): 2.4 | Stock: Yes
FM5125RCutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127.8 | Boss dia DCSFMS (mm): 75 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Teeth: 10 | Weight (kg): 3.4 | Stock: Yes
FM5160RCutting dia DC (mm): 160 | Max cutting dia DCX (mm): 162.8 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Teeth: 12 | Weight (kg): 5.6 | Stock: Yes
FM5200RCutting dia DC (mm): 200 | Max cutting dia DCX (mm): 202.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 16 | Weight (kg): 8.3 | Stock: Not marked | Hand: Right
FM5200LCutting dia DC (mm): 200 | Max cutting dia DCX (mm): 202.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 16 | Weight (kg): 8.3 | Stock: Not marked | Hand: Left
FM5250RCutting dia DC (mm): 250 | Max cutting dia DCX (mm): 252.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 20 | Weight (kg): 14.3 | Stock: Not marked | Hand: Right
FM5250LCutting dia DC (mm): 250 | Max cutting dia DCX (mm): 252.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 20 | Weight (kg): 14.3 | Stock: Not marked | Hand: Left
FM5315RCutting dia DC (mm): 315 | Max cutting dia DCX (mm): 317.8 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 24 | Weight (kg): 27.8 | Stock: Not marked | Hand: Right
FM5315LCutting dia DC (mm): 315 | Max cutting dia DCX (mm): 317.8 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 24 | Weight (kg): 27.8 | Stock: Not marked | Hand: Left
FMF5125RCutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127.8 | Boss dia DCSFMS (mm): 75 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Teeth: 12 | Weight (kg): 3.4 | Stock: Not marked | Hand: Right
FMF5125LCutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127.8 | Boss dia DCSFMS (mm): 75 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Teeth: 12 | Weight (kg): 3.4 | Stock: Not marked | Hand: Left
FMF5160RCutting dia DC (mm): 160 | Max cutting dia DCX (mm): 162.8 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Teeth: 16 | Weight (kg): 5.6 | Stock: Not marked | Hand: Right
FMF5160LCutting dia DC (mm): 160 | Max cutting dia DCX (mm): 162.8 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Teeth: 16 | Weight (kg): 5.6 | Stock: Not marked | Hand: Left
FMF5200RCutting dia DC (mm): 200 | Max cutting dia DCX (mm): 202.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 20 | Weight (kg): 8.3 | Stock: Not marked | Hand: Right
FMF5200LCutting dia DC (mm): 200 | Max cutting dia DCX (mm): 202.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 20 | Weight (kg): 8.3 | Stock: Not marked | Hand: Left
FMF5250RCutting dia DC (mm): 250 | Max cutting dia DCX (mm): 252.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 24 | Weight (kg): 14.3 | Stock: Not marked | Hand: Right
FMF5250LCutting dia DC (mm): 250 | Max cutting dia DCX (mm): 252.8 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 24 | Weight (kg): 14.3 | Stock: Not marked | Hand: Left
FMF5315RCutting dia DC (mm): 315 | Max cutting dia DCX (mm): 317.8 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 28 | Weight (kg): 27.8 | Stock: Not marked | Hand: Right
FMF5315LCutting dia DC (mm): 315 | Max cutting dia DCX (mm): 317.8 | Boss dia DCSFMS (mm): 240 | Height LF (mm): 80 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 40 | Teeth: 28 | Weight (kg): 27.8 | Stock: Not marked | Hand: Left
