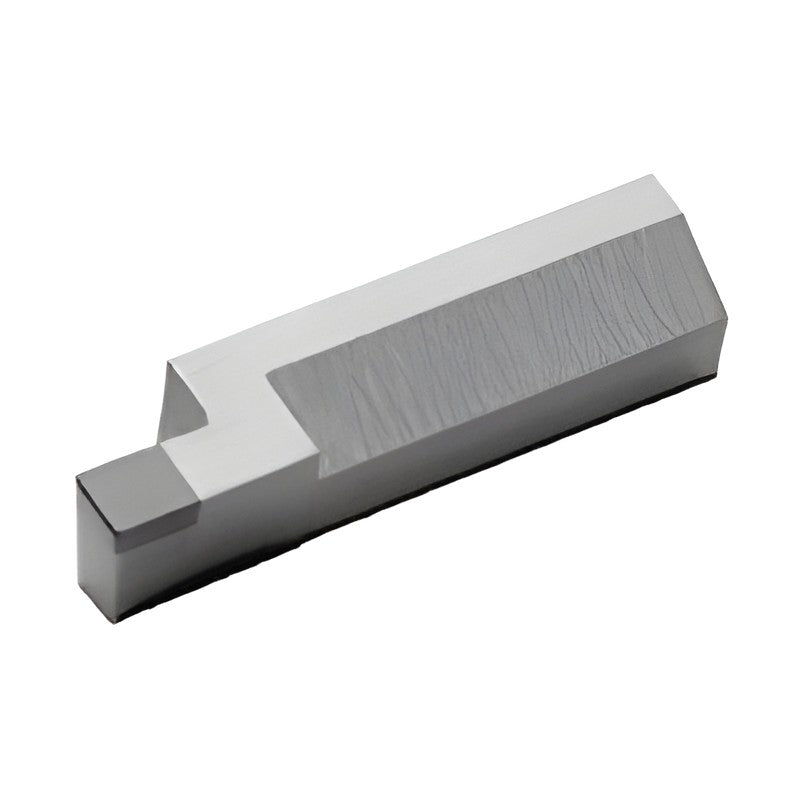

Sumitomo Electric Hardmetal SUMIBORON cBN Grooving and Threading Insert BNGNT/BNTT

Sumitomo Electric Hardmetal SUMIBORON cBN Grooving and Threading Insert BNGNT/BNTT

SUMIBORON cBN insert for grooving (BNGNT) and screw thread cutting (BNTT) with the BNGG type holder.

BNGNT0200R BN2000 CW (mm): 2.0 | CDX (mm): 4.0 | RE (mm): 0.2 | L (mm): 25 | WF3 (mm): 6.0 | Grade: BN2000 | Stock: Yes
BNGNT0200R BN350 CW (mm): 2.0 | CDX (mm): 4.0 | RE (mm): 0.2 | L (mm): 25 | WF3 (mm): 6.0 | Grade: BN350 | Stock: Yes
BNGNT0250R BN2000 CW (mm): 2.5 | CDX (mm): 4.0 | RE (mm): 0.2 | L (mm): 25 | WF3 (mm): 6.0 | Grade: BN2000 | Stock: Yes
BNGNT0250R BN350 CW (mm): 2.5 | CDX (mm): 4.0 | RE (mm): 0.2 | L (mm): 25 | WF3 (mm): 6.0 | Grade: BN350 | Stock: Yes
BNGNT0300R BN2000 CW (mm): 3.0 | CDX (mm): 5.0 | RE (mm): 0.4 | L (mm): 25 | WF3 (mm): 6.0 | Grade: BN2000 | Stock: Yes
BNGNT0300R BN350 CW (mm): 3.0 | CDX (mm): 5.0 | RE (mm): 0.4 | L (mm): 25 | WF3 (mm): 6.0 | Grade: BN350 | Stock: Yes
BNGNT0400R BN2000 CW (mm): 4.0 | CDX (mm): 6.0 | RE (mm): 0.4 | L (mm): 26 | WF3 (mm): 6.0 | Grade: BN2000 | Stock: Yes
BNGNT0400R BN350 CW (mm): 4.0 | CDX (mm): 6.0 | RE (mm): 0.4 | L (mm): 26 | WF3 (mm): 6.0 | Grade: BN350 | Stock: Yes
BNGNT0500R BN2000 CW (mm): 5.0 | CDX (mm): 6.0 | RE (mm): 0.4 | L (mm): 26 | WF3 (mm): 6.0 | Grade: BN2000 | Stock: Yes
BNGNT0500R BN350 CW (mm): 5.0 | CDX (mm): 6.0 | RE (mm): 0.4 | L (mm): 26 | WF3 (mm): 6.0 | Grade: BN350 | Stock: Yes
BNGNT0600R BN2000 CW (mm): 6.0 | CDX (mm): 7.0 | RE (mm): 0.4 | L (mm): 27 | WF3 (mm): 6.0 | Grade: BN2000 | Stock: Yes
BNGNT0600R BN350 CW (mm): 6.0 | CDX (mm): 7.0 | RE (mm): 0.4 | L (mm): 27 | WF3 (mm): 6.0 | Grade: BN350 | Stock: Yes
BNTT1020R BN2000 Pitch (mm): 1.0-2.0 | RE (mm): 0.14 | L (mm): 25 | WF3 (mm): 4.0 | Grade: BN2000 | Stock: Yes
Grooving InsertsSumitomo Electric Hardmetal
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIBORON cBN Grooving and Threading Insert BNGNT/BNTT

Brand Sumitomo Electric Hardmetal·Grooving Inserts

Available part numbers (13)

BNGNT0200R BN2000, BNGNT0200R BN350, BNGNT0250R BN2000, BNGNT0250R BN350, BNGNT0300R BN2000, BNGNT0300R BN350, BNGNT0400R BN2000, BNGNT0400R BN350, BNGNT0500R BN2000, BNGNT0500R BN350 + 3 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BNGNT0200R BN2000CW (mm): 2.0 | CDX (mm): 4.0 | RE (mm): 0.2 | L (mm): 25 | WF3 (mm): 6.0 | Grade: BN2000 | Stock: Yes
BNGNT0200R BN350CW (mm): 2.0 | CDX (mm): 4.0 | RE (mm): 0.2 | L (mm): 25 | WF3 (mm): 6.0 | Grade: BN350 | Stock: Yes
BNGNT0250R BN2000CW (mm): 2.5 | CDX (mm): 4.0 | RE (mm): 0.2 | L (mm): 25 | WF3 (mm): 6.0 | Grade: BN2000 | Stock: Yes
BNGNT0250R BN350CW (mm): 2.5 | CDX (mm): 4.0 | RE (mm): 0.2 | L (mm): 25 | WF3 (mm): 6.0 | Grade: BN350 | Stock: Yes
BNGNT0300R BN2000CW (mm): 3.0 | CDX (mm): 5.0 | RE (mm): 0.4 | L (mm): 25 | WF3 (mm): 6.0 | Grade: BN2000 | Stock: Yes
BNGNT0300R BN350CW (mm): 3.0 | CDX (mm): 5.0 | RE (mm): 0.4 | L (mm): 25 | WF3 (mm): 6.0 | Grade: BN350 | Stock: Yes
BNGNT0400R BN2000CW (mm): 4.0 | CDX (mm): 6.0 | RE (mm): 0.4 | L (mm): 26 | WF3 (mm): 6.0 | Grade: BN2000 | Stock: Yes
BNGNT0400R BN350CW (mm): 4.0 | CDX (mm): 6.0 | RE (mm): 0.4 | L (mm): 26 | WF3 (mm): 6.0 | Grade: BN350 | Stock: Yes
BNGNT0500R BN2000CW (mm): 5.0 | CDX (mm): 6.0 | RE (mm): 0.4 | L (mm): 26 | WF3 (mm): 6.0 | Grade: BN2000 | Stock: Yes
BNGNT0500R BN350CW (mm): 5.0 | CDX (mm): 6.0 | RE (mm): 0.4 | L (mm): 26 | WF3 (mm): 6.0 | Grade: BN350 | Stock: Yes
BNGNT0600R BN2000CW (mm): 6.0 | CDX (mm): 7.0 | RE (mm): 0.4 | L (mm): 27 | WF3 (mm): 6.0 | Grade: BN2000 | Stock: Yes
BNGNT0600R BN350CW (mm): 6.0 | CDX (mm): 7.0 | RE (mm): 0.4 | L (mm): 27 | WF3 (mm): 6.0 | Grade: BN350 | Stock: Yes
BNTT1020R BN2000Pitch (mm): 1.0-2.0 | RE (mm): 0.14 | L (mm): 25 | WF3 (mm): 4.0 | Grade: BN2000 | Stock: Yes
