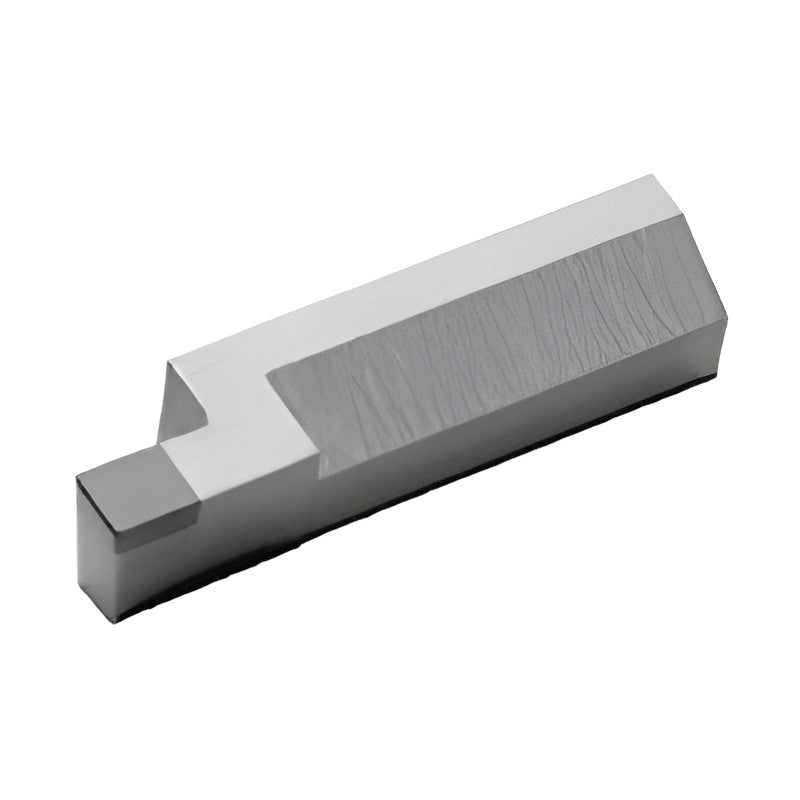

Sumitomo Electric Hardmetal SUMIBORON cBN Grooving Insert TGA/CGA

Sumitomo Electric Hardmetal SUMIBORON cBN Grooving Insert TGA/CGA

SUMIBORON cBN grooving insert for SEC grooving tools GWC, GWCS and GWCI types (TGA) and the GWB type (CGA).

TGAR4125 BN2000 IC (mm): 12.70 | CW (mm): 1.25 | RE (mm): 0.2 | CDX (mm): 2.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
TGAR4150 BN2000 IC (mm): 12.70 | CW (mm): 1.50 | RE (mm): 0.2 | CDX (mm): 3.5 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
TGAR4200 BN2000 IC (mm): 12.70 | CW (mm): 2.00 | RE (mm): 0.2 | CDX (mm): 3.5 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
TGAR4250 BN2000 IC (mm): 12.70 | CW (mm): 2.50 | RE (mm): 0.2 | CDX (mm): 4.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
TGAR4300 BN2000 IC (mm): 12.70 | CW (mm): 3.00 | RE (mm): 0.2 | CDX (mm): 4.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
TGAR4350 BN2000 IC (mm): 12.70 | CW (mm): 3.50 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
TGAR4400 BN2000 IC (mm): 12.70 | CW (mm): 4.00 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAR1504150 BN2000 IC (mm): 15.875 | CW (mm): 1.5 | RE (mm): 0.2 | CDX (mm): 3.5 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAL1504150 BN2000 IC (mm): 15.875 | CW (mm): 1.5 | RE (mm): 0.2 | CDX (mm): 3.5 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAR1504150 BNC30G IC (mm): 15.875 | CW (mm): 1.5 | RE (mm): 0.2 | CDX (mm): 3.5 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAL1504150 BNC30G IC (mm): 15.875 | CW (mm): 1.5 | RE (mm): 0.2 | CDX (mm): 3.5 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAR1504200 BN2000 IC (mm): 15.875 | CW (mm): 2.0 | RE (mm): 0.2 | CDX (mm): 3.5 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAL1504200 BN2000 IC (mm): 15.875 | CW (mm): 2.0 | RE (mm): 0.2 | CDX (mm): 3.5 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAR1504200 BNC30G IC (mm): 15.875 | CW (mm): 2.0 | RE (mm): 0.2 | CDX (mm): 3.5 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAL1504200 BNC30G IC (mm): 15.875 | CW (mm): 2.0 | RE (mm): 0.2 | CDX (mm): 3.5 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAR1504250 BN2000 IC (mm): 15.875 | CW (mm): 2.5 | RE (mm): 0.2 | CDX (mm): 4.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAL1504250 BN2000 IC (mm): 15.875 | CW (mm): 2.5 | RE (mm): 0.2 | CDX (mm): 4.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAR1504250 BNC30G IC (mm): 15.875 | CW (mm): 2.5 | RE (mm): 0.2 | CDX (mm): 4.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAL1504250 BNC30G IC (mm): 15.875 | CW (mm): 2.5 | RE (mm): 0.2 | CDX (mm): 4.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAR1504300 BN2000 IC (mm): 15.875 | CW (mm): 3.0 | RE (mm): 0.2 | CDX (mm): 4.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAL1504300 BN2000 IC (mm): 15.875 | CW (mm): 3.0 | RE (mm): 0.2 | CDX (mm): 4.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAR1504300 BNC30G IC (mm): 15.875 | CW (mm): 3.0 | RE (mm): 0.2 | CDX (mm): 4.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAL1504300 BNC30G IC (mm): 15.875 | CW (mm): 3.0 | RE (mm): 0.2 | CDX (mm): 4.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAR1504350 BN2000 IC (mm): 15.875 | CW (mm): 3.5 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAL1504350 BN2000 IC (mm): 15.875 | CW (mm): 3.5 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAR1504350 BNC30G IC (mm): 15.875 | CW (mm): 3.5 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAL1504350 BNC30G IC (mm): 15.875 | CW (mm): 3.5 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAR1504400 BN2000 IC (mm): 15.875 | CW (mm): 4.0 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAL1504400 BN2000 IC (mm): 15.875 | CW (mm): 4.0 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAR1504400 BNC30G IC (mm): 15.875 | CW (mm): 4.0 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAL1504400 BNC30G IC (mm): 15.875 | CW (mm): 4.0 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAR1504450 BN2000 IC (mm): 15.875 | CW (mm): 4.5 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAL1504450 BN2000 IC (mm): 15.875 | CW (mm): 4.5 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAR1504450 BNC30G IC (mm): 15.875 | CW (mm): 4.5 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAL1504450 BNC30G IC (mm): 15.875 | CW (mm): 4.5 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAR1506500 BN2000 IC (mm): 15.875 | CW (mm): 5.0 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAL1506500 BN2000 IC (mm): 15.875 | CW (mm): 5.0 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAR1506500 BNC30G IC (mm): 15.875 | CW (mm): 5.0 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAL1506500 BNC30G IC (mm): 15.875 | CW (mm): 5.0 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAR1506550 BN2000 IC (mm): 15.875 | CW (mm): 5.5 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAL1506550 BN2000 IC (mm): 15.875 | CW (mm): 5.5 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAR1506550 BNC30G IC (mm): 15.875 | CW (mm): 5.5 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAL1506550 BNC30G IC (mm): 15.875 | CW (mm): 5.5 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAR1506600 BN2000 IC (mm): 15.875 | CW (mm): 6.0 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAL1506600 BN2000 IC (mm): 15.875 | CW (mm): 6.0 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BN2000 | Stock: Yes
CGAR1506600 BNC30G IC (mm): 15.875 | CW (mm): 6.0 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
CGAL1506600 BNC30G IC (mm): 15.875 | CW (mm): 6.0 | RE (mm): 0.2 | CDX (mm): 5.0 | Hole diameter (mm): 5.5 | Grade: BNC30G | Stock: Yes
Grooving InsertsSumitomo Electric Hardmetal
47 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIBORON cBN Grooving Insert TGA/CGA

Brand Sumitomo Electric Hardmetal·Grooving Inserts

Available part numbers (47)

TGAR4125 BN2000, TGAR4150 BN2000, TGAR4200 BN2000, TGAR4250 BN2000, TGAR4300 BN2000, TGAR4350 BN2000, TGAR4400 BN2000, CGAR1504150 BN2000, CGAL1504150 BN2000, CGAR1504150 BNC30G + 37 more — see full table ↓
