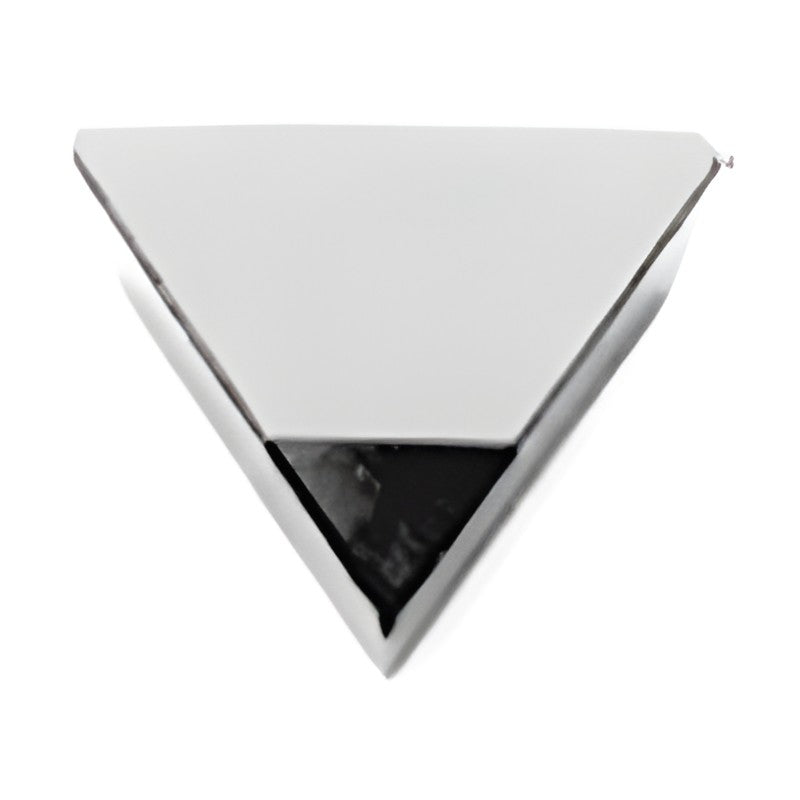

Sumitomo Electric Hardmetal SUMIBORON cBN Insert TPGN1603

Sumitomo Electric Hardmetal SUMIBORON cBN Insert TPGN1603

SUMIBORON cBN insert TPGN1603 (triangular, positive (11° clearance)) for turning hardened steel, cast iron, sintered alloys and heat-resistant alloys.

Key features

  • Grades: BN2000, BNX20, BN1000, BN350, BN500
  • NU- tipped single-corner types
NU-TPGN160302 BN2000 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.2 | Cutting edge length (mm): 2.4 | Grade: BN2000 | Stock: Yes
NU-TPGN160304 BNX20 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BNX20 | Stock: Yes
NU-TPGN160304 BN1000 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BN1000 | Stock: Yes
NU-TPGN160304 BN2000 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BN2000 | Stock: Yes
NU-TPGN160304 BN350 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BN350 | Stock: Yes
NU-TPGN160308 BNX20 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BNX20 | Stock: Yes
NU-TPGN160308 BN2000 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BN2000 | Stock: Yes
NU-TPGN160308 BN350 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BN350 | Stock: Yes
NU-TPGN160308 BN500 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BN500 | Stock: Yes
T-NU-TPGN160304 BNX20 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 10 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BNX20 | Stock: Yes
T-NU-TPGN160304 BN2000 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 10 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BN2000 | Stock: Yes
T-NU-TPGN160308 BNX20 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 10 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BNX20 | Stock: Yes
T-NU-TPGN160308 BN2000 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 10 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BN2000 | Stock: Yes
NU-TPGN160304LT BN2000 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BN2000 | Stock: Yes
NU-TPGN160308LT BN2000 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BN2000 | Stock: Yes
NU-TPGN160304HS BN2000 IC (mm): 9.525 | Thickness (mm): 3.18 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BN2000 | Stock: Yes
NU-TPGN160308HS BN2000 IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BN2000 | Stock: Yes
TPGN160304 BNX20 Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 3.5 | Grade: BNX20 | Stock: Yes
TPGN160304 BN2000 Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 3.5 | Grade: BN2000 | Stock: Yes
TPGN160304 BN500 Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 3.5 | Grade: BN500 | Stock: Yes
TPGN160308 BNX20 Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 3.2 | Grade: BNX20 | Stock: Yes
TPGN160308 BN2000 Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 3.2 | Grade: BN2000 | Stock: Yes
TPGN160304HS BN2000 RE (mm): 0.4 | Cutting edge length (mm): 3.5 | Grade: BN2000 | Stock: Yes
TPGN160308HS BN2000 Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 3.2 | Grade: BN2000 | Stock: Yes
cBN InsertsSumitomo Electric Hardmetal
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIBORON cBN Insert TPGN1603

Brand Sumitomo Electric Hardmetal·cBN Inserts

Available part numbers (24)

NU-TPGN160302 BN2000, NU-TPGN160304 BNX20, NU-TPGN160304 BN1000, NU-TPGN160304 BN2000, NU-TPGN160304 BN350, NU-TPGN160308 BNX20, NU-TPGN160308 BN2000, NU-TPGN160308 BN350, NU-TPGN160308 BN500, T-NU-TPGN160304 BNX20 + 14 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NU-TPGN160302 BN2000IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.2 | Cutting edge length (mm): 2.4 | Grade: BN2000 | Stock: Yes
NU-TPGN160304 BNX20IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BNX20 | Stock: Yes
NU-TPGN160304 BN1000IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BN1000 | Stock: Yes
NU-TPGN160304 BN2000IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BN2000 | Stock: Yes
NU-TPGN160304 BN350IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BN350 | Stock: Yes
NU-TPGN160308 BNX20IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BNX20 | Stock: Yes
NU-TPGN160308 BN2000IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BN2000 | Stock: Yes
NU-TPGN160308 BN350IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BN350 | Stock: Yes
NU-TPGN160308 BN500IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BN500 | Stock: Yes
T-NU-TPGN160304 BNX20IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 10 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BNX20 | Stock: Yes
T-NU-TPGN160304 BN2000IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 10 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BN2000 | Stock: Yes
T-NU-TPGN160308 BNX20IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 10 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BNX20 | Stock: Yes
T-NU-TPGN160308 BN2000IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 10 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BN2000 | Stock: Yes
NU-TPGN160304LT BN2000IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BN2000 | Stock: Yes
NU-TPGN160308LT BN2000IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BN2000 | Stock: Yes
NU-TPGN160304HS BN2000IC (mm): 9.525 | Thickness (mm): 3.18 | RE (mm): 0.4 | Cutting edge length (mm): 2.3 | Grade: BN2000 | Stock: Yes
NU-TPGN160308HS BN2000IC (mm): 9.525 | Thickness (mm): 3.18 | Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 2.0 | Grade: BN2000 | Stock: Yes
TPGN160304 BNX20Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 3.5 | Grade: BNX20 | Stock: Yes
TPGN160304 BN2000Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 3.5 | Grade: BN2000 | Stock: Yes
TPGN160304 BN500Pack unit: 1 | Corners: 1 | RE (mm): 0.4 | Cutting edge length (mm): 3.5 | Grade: BN500 | Stock: Yes
TPGN160308 BNX20Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 3.2 | Grade: BNX20 | Stock: Yes
TPGN160308 BN2000Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 3.2 | Grade: BN2000 | Stock: Yes
TPGN160304HS BN2000RE (mm): 0.4 | Cutting edge length (mm): 3.5 | Grade: BN2000 | Stock: Yes
TPGN160308HS BN2000Pack unit: 1 | Corners: 1 | RE (mm): 0.8 | Cutting edge length (mm): 3.2 | Grade: BN2000 | Stock: Yes
