Sumitomo Electric Hardmetal SUMIBORON CGA cBN Grooving Insert

Sumitomo Electric Hardmetal SUMIBORON CGA cBN Grooving Insert

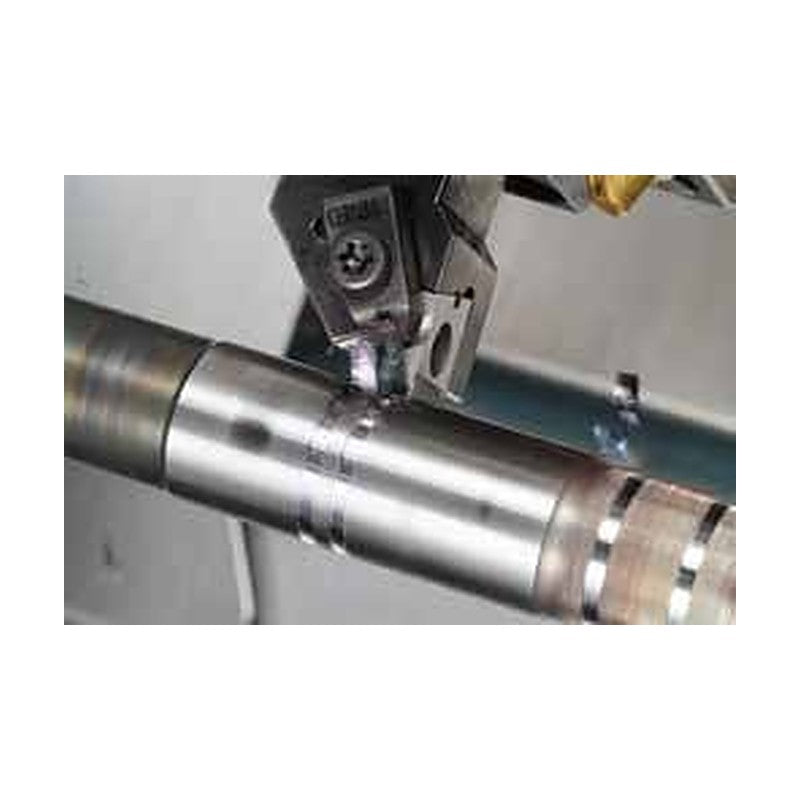

SUMIBORON CGA cBN grooving insert for GWB holders, for shallow grooving of hardened steel.

Key features

  • Grades BN2000 (continuous) and BNC30G (interrupted)
  • Widths 1.5-6.0 mm

Specifications

Inscribed circle IC (mm) 15.875
CGA R 1504150 BN2000 Cutting width CW (mm): 1.5 | Max cutting depth CDX (mm): 3.5 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504150 BN2000 Cutting width CW (mm): 1.5 | Max cutting depth CDX (mm): 3.5 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1504200 BN2000 Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 3.5 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504200 BN2000 Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 3.5 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1504250 BN2000 Cutting width CW (mm): 2.5 | Max cutting depth CDX (mm): 4.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504250 BN2000 Cutting width CW (mm): 2.5 | Max cutting depth CDX (mm): 4.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1504300 BN2000 Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 4.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504300 BN2000 Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 4.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1504350 BN2000 Cutting width CW (mm): 3.5 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504350 BN2000 Cutting width CW (mm): 3.5 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1504400 BN2000 Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504400 BN2000 Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1504450 BN2000 Cutting width CW (mm): 4.5 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504450 BN2000 Cutting width CW (mm): 4.5 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1506500 BN2000 Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 6.35 | Grade: BN2000 | Stock: Yes
CGA L 1506500 BN2000 Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 6.35 | Grade: BN2000 | Stock: Yes
CGA R 1506550 BN2000 Cutting width CW (mm): 5.5 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 6.35 | Grade: BN2000 | Stock: Yes
CGA L 1506550 BN2000 Cutting width CW (mm): 5.5 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 6.35 | Grade: BN2000 | Stock: Yes
CGA R 1506600 BN2000 Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 6.35 | Grade: BN2000 | Stock: Yes
CGA L 1506600 BN2000 Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 6.35 | Grade: BN2000 | Stock: Yes
cBN InsertsSumitomo Electric Hardmetal
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIBORON CGA cBN Grooving Insert

Brand Sumitomo Electric Hardmetal·cBN Inserts

Available part numbers (20)

CGA R 1504150 BN2000, CGA L 1504150 BN2000, CGA R 1504200 BN2000, CGA L 1504200 BN2000, CGA R 1504250 BN2000, CGA L 1504250 BN2000, CGA R 1504300 BN2000, CGA L 1504300 BN2000, CGA R 1504350 BN2000, CGA L 1504350 BN2000 + 10 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CGA R 1504150 BN2000Cutting width CW (mm): 1.5 | Max cutting depth CDX (mm): 3.5 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504150 BN2000Cutting width CW (mm): 1.5 | Max cutting depth CDX (mm): 3.5 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1504200 BN2000Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 3.5 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504200 BN2000Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 3.5 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1504250 BN2000Cutting width CW (mm): 2.5 | Max cutting depth CDX (mm): 4.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504250 BN2000Cutting width CW (mm): 2.5 | Max cutting depth CDX (mm): 4.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1504300 BN2000Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 4.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504300 BN2000Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 4.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1504350 BN2000Cutting width CW (mm): 3.5 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504350 BN2000Cutting width CW (mm): 3.5 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1504400 BN2000Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504400 BN2000Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1504450 BN2000Cutting width CW (mm): 4.5 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA L 1504450 BN2000Cutting width CW (mm): 4.5 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 4.76 | Grade: BN2000 | Stock: Yes
CGA R 1506500 BN2000Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 6.35 | Grade: BN2000 | Stock: Yes
CGA L 1506500 BN2000Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 6.35 | Grade: BN2000 | Stock: Yes
CGA R 1506550 BN2000Cutting width CW (mm): 5.5 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 6.35 | Grade: BN2000 | Stock: Yes
CGA L 1506550 BN2000Cutting width CW (mm): 5.5 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 6.35 | Grade: BN2000 | Stock: Yes
CGA R 1506600 BN2000Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 6.35 | Grade: BN2000 | Stock: Yes
CGA L 1506600 BN2000Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 5.0 | Inscribed circle IC (mm): 15.875 | Thickness S (mm): 6.35 | Grade: BN2000 | Stock: Yes
