Sumitomo Electric Hardmetal SUMIBORON GWB Grooving Holder for Hardened Steel

Sumitomo Electric Hardmetal SUMIBORON GWB Grooving Holder for Hardened Steel

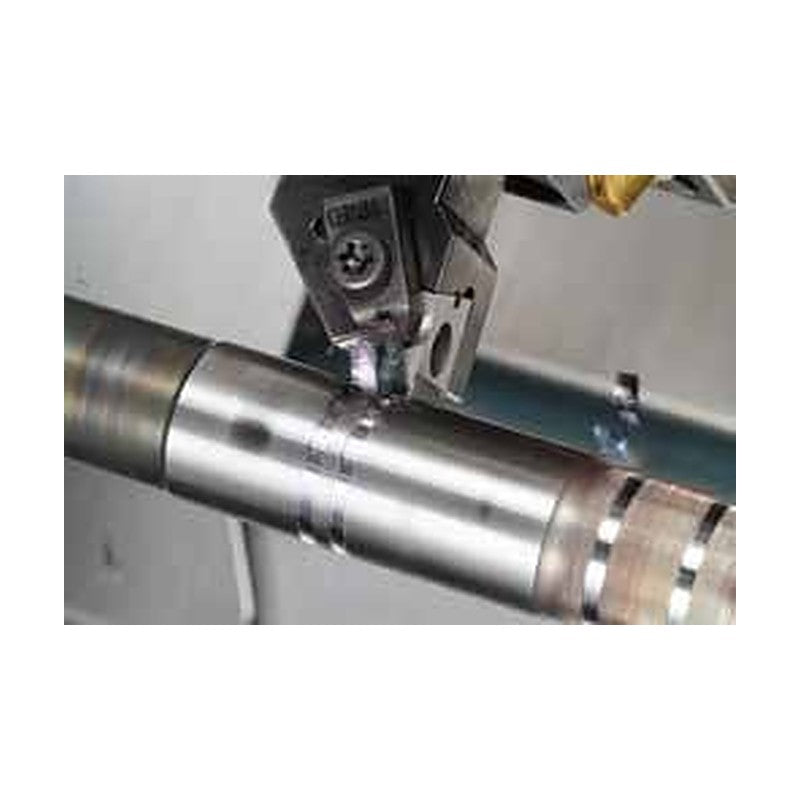

SUMIBORON grooving holder GWB type with double clamp for shallow grooving of hardened steel.

Key features

  • Double clamp for stable continuous and interrupted cuts
  • Uses CGA cBN inserts

Specifications

Cutting height HF (mm) 25
Height H (mm) 25
Width B (mm) 25
WF (mm) 30
GWB R 2525-45 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 151 （150） | WF (mm): 30 | Cutting height HF (mm): 25 | Cutting width CW (mm): 1.5-4.5 | Max cutting depth CDX (mm): 3.5~5.0 | Stock: Yes
GWB L 2525-45 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 151 （150） | WF (mm): 30 | Cutting height HF (mm): 25 | Cutting width CW (mm): 1.5-4.5 | Max cutting depth CDX (mm): 3.5~5.0 | Stock: Yes
GWB R 2525-60 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 151 | WF (mm): 30 | Cutting height HF (mm): 25 | Cutting width CW (mm): over 4.5-6.0 | Max cutting depth CDX (mm): 5.0 | Stock: Yes
GWB L 2525-60 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 151 | WF (mm): 30 | Cutting height HF (mm): 25 | Cutting width CW (mm): over 4.5-6.0 | Max cutting depth CDX (mm): 5.0 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIBORON GWB Grooving Holder for Hardened Steel

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (4)

GWB R 2525-45, GWB L 2525-45, GWB R 2525-60, GWB L 2525-60

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GWB R 2525-45Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 151 （150） | WF (mm): 30 | Cutting height HF (mm): 25 | Cutting width CW (mm): 1.5-4.5 | Max cutting depth CDX (mm): 3.5~5.0 | Stock: Yes
GWB L 2525-45Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 151 （150） | WF (mm): 30 | Cutting height HF (mm): 25 | Cutting width CW (mm): 1.5-4.5 | Max cutting depth CDX (mm): 3.5~5.0 | Stock: Yes
GWB R 2525-60Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 151 | WF (mm): 30 | Cutting height HF (mm): 25 | Cutting width CW (mm): over 4.5-6.0 | Max cutting depth CDX (mm): 5.0 | Stock: Yes
GWB L 2525-60Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 151 | WF (mm): 30 | Cutting height HF (mm): 25 | Cutting width CW (mm): over 4.5-6.0 | Max cutting depth CDX (mm): 5.0 | Stock: Yes
