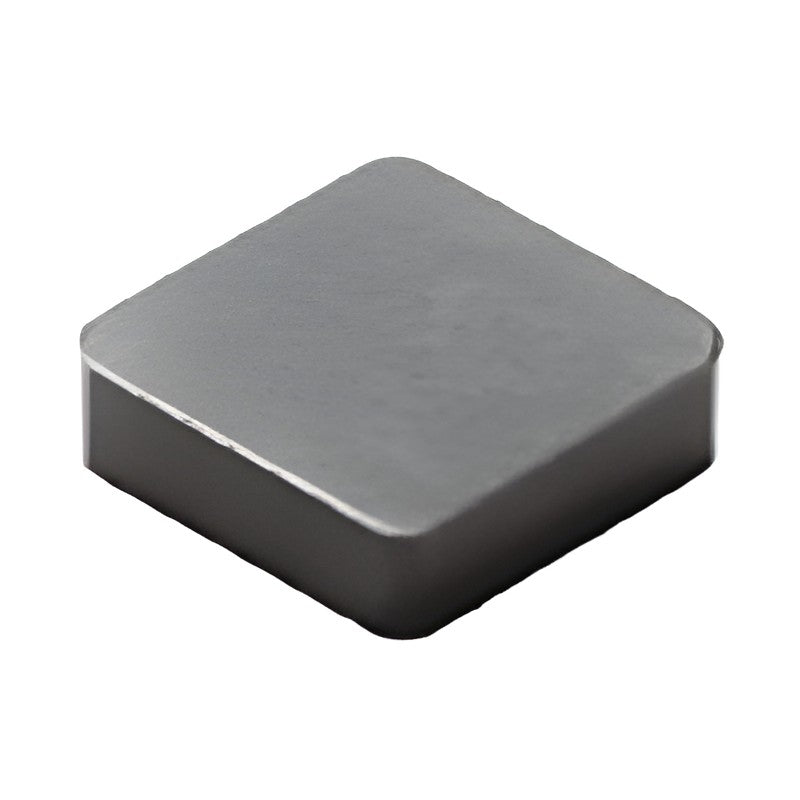

Sumitomo Electric Hardmetal SUMIBORON Solid cBN Turning Insert

Sumitomo Electric Hardmetal SUMIBORON Solid cBN Turning Insert

Solid sintered cBN negative turning inserts in grades BNC8115 and BNS8125 for cast iron and hardened steel.

Key features

  • Solid cBN body (no carbide substrate)
  • Grades: BNC8115, BNS8125
  • Wiper (W) and sharp-edge (LF) versions in the series

Specifications

Product line SUMIBORON
Clearance angle 0°
CNGN090308 BNC8115 Shape: 80° rhombic | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
CNGN090308 BNS8125 Shape: 80° rhombic | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
CNGN090312 BNC8115 Shape: 80° rhombic | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 1.2 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
CNGN090312 BNS8125 Shape: 80° rhombic | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 1.2 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
CNGN120408 BNC8115 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
CNGN120408 BNS8125 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
CNGN120412 BNC8115 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
CNGN120412 BNS8125 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
CNGN120416 BNC8115 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
CNGN120416 BNS8125 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
CNGA120408 BNC8115 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Hole: Yes | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
CNGA120408 BNS8125 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Hole: Yes | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
CNGA120412 BNC8115 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Hole: Yes | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
CNGA120412 BNS8125 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Hole: Yes | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
CNGX120412 BNC8115 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Hole: Dimple | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
CNGX120412 BNS8125 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Hole: Dimple | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
CNGX120416 BNC8115 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Hole: Dimple | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
CNGX120416 BNS8125 Shape: 80° rhombic | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Hole: Dimple | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
DNGN110308 BNC8115 Shape: 55° rhombic | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
DNGN110308 BNS8125 Shape: 55° rhombic | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
DNGN110312 BNC8115 Shape: 55° rhombic | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 1.2 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
DNGN110312 BNS8125 Shape: 55° rhombic | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 1.2 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
RNGN090300 BNC8115 Shape: Round | IC (mm): 9.525 | S (mm): 3.18 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
RNGN090300 BNS8125 Shape: Round | IC (mm): 9.525 | S (mm): 3.18 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
RNGN120300 BNC8115 Shape: Round | IC (mm): 12.70 | S (mm): 3.18 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
RNGN120300 BNS8125 Shape: Round | IC (mm): 12.70 | S (mm): 3.18 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
RNGN120400 BNC8115 Shape: Round | IC (mm): 12.70 | S (mm): 4.76 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
RNGN120400 BNS8125 Shape: Round | IC (mm): 12.70 | S (mm): 4.76 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN090308 BNC8115 Shape: Square | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN090308 BNS8125 Shape: Square | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
SNEN090308W BNC8115 Shape: Square | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | Hole: No | Edge: Wiper | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
SNEN090308W BNS8125 Shape: Square | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 0.8 | Hole: No | Edge: Wiper | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN090312 BNC8115 Shape: Square | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 1.2 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN090312 BNS8125 Shape: Square | IC (mm): 9.525 | S (mm): 3.18 | RE (mm): 1.2 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN120308 BNC8115 Shape: Square | IC (mm): 12.70 | S (mm): 3.18 | RE (mm): 0.8 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN120308 BNS8125 Shape: Square | IC (mm): 12.70 | S (mm): 3.18 | RE (mm): 0.8 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN120312 BNC8115 Shape: Square | IC (mm): 12.70 | S (mm): 3.18 | RE (mm): 1.2 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN120312 BNS8125 Shape: Square | IC (mm): 12.70 | S (mm): 3.18 | RE (mm): 1.2 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN120408 BNC8115 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN120408 BNS8125 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN120412 BNC8115 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN120412 BNS8125 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN120416 BNC8115 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN120416 BNS8125 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN120420 BNC8115 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.0 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
SNGN120420 BNS8125 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.0 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
SNGA120408 BNC8115 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Hole: Yes | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
SNGA120408 BNS8125 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Hole: Yes | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
SNGA120412 BNC8115 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Hole: Yes | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
SNGA120412 BNS8125 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Hole: Yes | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
SNGX120412 BNC8115 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Hole: Dimple | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
SNGX120412 BNS8125 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Hole: Dimple | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
SNGX120416 BNC8115 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Hole: Dimple | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
SNGX120416 BNS8125 Shape: Square | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Hole: Dimple | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
TNGN110308 BNC8115 Shape: Triangular | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
TNGN110308 BNS8125 Shape: Triangular | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 0.8 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
TNGN110312 BNC8115 Shape: Triangular | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 1.2 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
TNGN110312 BNS8125 Shape: Triangular | IC (mm): 6.35 | S (mm): 3.18 | RE (mm): 1.2 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
TNGN160408 BNC8115 Shape: Triangular | IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
TNGN160408 BNS8125 Shape: Triangular | IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
TNGN160412 BNC8115 Shape: Triangular | IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.2 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
TNGN160412 BNS8125 Shape: Triangular | IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.2 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
TNGN160416 BNC8115 Shape: Triangular | IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.6 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
TNGN160416 BNS8125 Shape: Triangular | IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.6 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
TNGN160420 BNC8115 Shape: Triangular | IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 2.0 | Hole: No | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
TNGN160420 BNS8125 Shape: Triangular | IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 2.0 | Hole: No | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
TNGA160408 BNC8115 Shape: Triangular | IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | Hole: Yes | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
TNGA160408 BNS8125 Shape: Triangular | IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 0.8 | Hole: Yes | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
TNGA160412 BNC8115 Shape: Triangular | IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.2 | Hole: Yes | Grade: BNC8115 | Grade material: SUMIBORON cBN | Stock: Yes
TNGA160412 BNS8125 Shape: Triangular | IC (mm): 9.525 | S (mm): 4.76 | RE (mm): 1.2 | Hole: Yes | Grade: BNS8125 | Grade material: SUMIBORON cBN | Stock: Yes
cBN InsertsSumitomo Electric Hardmetal
70 product codes available in this family
