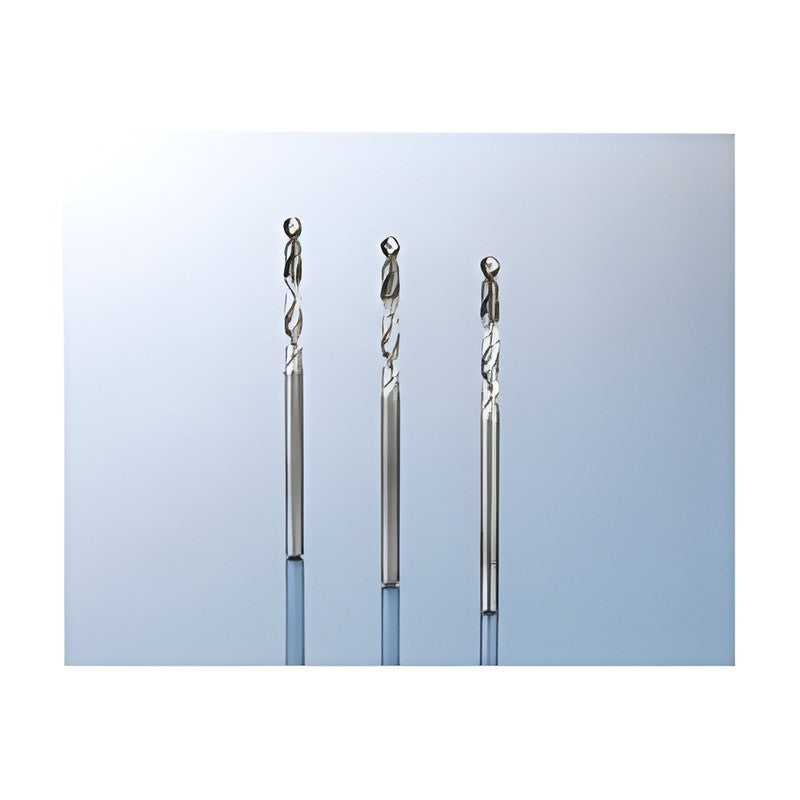

Sumitomo Electric Hardmetal SUMIDIA Coated Drill SDC Type for CFRP (External Coolant)

Sumitomo Electric Hardmetal SUMIDIA Coated Drill SDC Type for CFRP (External Coolant)

Diamond-coated drill for CFRP with a stepped multi-angle point that suppresses delamination and burrs.

Key features

  • SUMIDIA diamond coating
  • Multi-angle point suppresses delamination and burrs
  • Point angle 90 deg (2.0-4.0 mm) / 130 deg (4.851-10.0 mm)
  • Grade DCX20

Specifications

Coolant External
Grade DCX20
Workpiece CFRP, CFRP/aluminum stacks
MDS02000SDC3 DC (mm): 2.0 | L/D: 3 | LU (mm): 10.50 | LCF (mm): 13.5 | OAL (mm): 50.0 | PL (mm): 1.0 | DCON (mm): 2.0 | Stock: Yes
MDS02489SDC3 DC (mm): 2.489 | L/D: 3 | LU (mm): 12.47 | LCF (mm): 16.2 | OAL (mm): 50.2 | PL (mm): 1.2 | DCON (mm): 2.489 | Stock: Yes
MDS03000SDC3 DC (mm): 3.0 | L/D: 3 | LU (mm): 14.5 | LCF (mm): 19.0 | OAL (mm): 50.5 | PL (mm): 1.5 | DCON (mm): 3.0 | Stock: Yes
MDS03300SDC3 DC (mm): 3.300 | L/D: 3 | LU (mm): 16.8 | LCF (mm): 21.7 | OAL (mm): 61.7 | PL (mm): 1.7 | DCON (mm): 3.300 | Stock: Yes
MDS04000SDC3 DC (mm): 4.0 | L/D: 3 | LU (mm): 18.5 | LCF (mm): 24.5 | OAL (mm): 62.0 | PL (mm): 2.0 | DCON (mm): 4.0 | Stock: Yes
MDS04851SDC3 DC (mm): 4.851 | L/D: 3 | LU (mm): 21.3 | LCF (mm): 28.6 | OAL (mm): 77.1 | PL (mm): 1.1 | DCON (mm): 4.851 | Stock: Yes
MDS05000SDC3 DC (mm): 5.0 | L/D: 3 | LU (mm): 21.2 | LCF (mm): 28.7 | OAL (mm): 77.2 | PL (mm): 1.2 | DCON (mm): 5.0 | Stock: Yes
MDS05600SDC3 DC (mm): 5.6 | L/D: 3 | LU (mm): 22.9 | LCF (mm): 31.3 | OAL (mm): 82.3 | PL (mm): 1.3 | DCON (mm): 5.6 | Stock: Yes
MDS06000SDC3 DC (mm): 6.0 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.4 | OAL (mm): 82.4 | PL (mm): 1.4 | DCON (mm): 6.0 | Stock: Yes
MDS06375SDC3 DC (mm): 6.375 | L/D: 3 | LU (mm): 24.4 | LCF (mm): 34.0 | OAL (mm): 84.5 | PL (mm): 1.5 | DCON (mm): 6.375 | Stock: Yes
MDS07000SDC3 DC (mm): 7.0 | L/D: 3 | LU (mm): 26.1 | LCF (mm): 36.6 | OAL (mm): 84.6 | PL (mm): 1.6 | DCON (mm): 7.0 | Stock: Yes
MDS07938SDC3 DC (mm): 7.938 | L/D: 3 | LU (mm): 30.0 | LCF (mm): 41.9 | OAL (mm): 91.9 | PL (mm): 1.9 | DCON (mm): 7.938 | Stock: Yes
MDS08000SDC3 DC (mm): 8.0 | L/D: 3 | LU (mm): 29.9 | LCF (mm): 41.9 | OAL (mm): 91.9 | PL (mm): 1.9 | DCON (mm): 8.0 | Stock: Yes
MDS09000SDC3 DC (mm): 9.0 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 47.1 | OAL (mm): 100.1 | PL (mm): 2.1 | DCON (mm): 9.0 | Stock: Yes
MDS09550SDC3 DC (mm): 9.550 | L/D: 3 | LU (mm): 37.9 | LCF (mm): 52.2 | OAL (mm): 107.2 | PL (mm): 2.2 | DCON (mm): 9.550 | Stock: Yes
MDS10000SDC3 DC (mm): 10.0 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 52.3 | OAL (mm): 107.3 | PL (mm): 2.3 | DCON (mm): 10.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA Coated Drill SDC Type for CFRP (External Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (16)

MDS02000SDC3, MDS02489SDC3, MDS03000SDC3, MDS03300SDC3, MDS04000SDC3, MDS04851SDC3, MDS05000SDC3, MDS05600SDC3, MDS06000SDC3, MDS06375SDC3 + 6 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDS02000SDC3DC (mm): 2.0 | L/D: 3 | LU (mm): 10.50 | LCF (mm): 13.5 | OAL (mm): 50.0 | PL (mm): 1.0 | DCON (mm): 2.0 | Stock: Yes
MDS02489SDC3DC (mm): 2.489 | L/D: 3 | LU (mm): 12.47 | LCF (mm): 16.2 | OAL (mm): 50.2 | PL (mm): 1.2 | DCON (mm): 2.489 | Stock: Yes
MDS03000SDC3DC (mm): 3.0 | L/D: 3 | LU (mm): 14.5 | LCF (mm): 19.0 | OAL (mm): 50.5 | PL (mm): 1.5 | DCON (mm): 3.0 | Stock: Yes
MDS03300SDC3DC (mm): 3.300 | L/D: 3 | LU (mm): 16.8 | LCF (mm): 21.7 | OAL (mm): 61.7 | PL (mm): 1.7 | DCON (mm): 3.300 | Stock: Yes
MDS04000SDC3DC (mm): 4.0 | L/D: 3 | LU (mm): 18.5 | LCF (mm): 24.5 | OAL (mm): 62.0 | PL (mm): 2.0 | DCON (mm): 4.0 | Stock: Yes
MDS04851SDC3DC (mm): 4.851 | L/D: 3 | LU (mm): 21.3 | LCF (mm): 28.6 | OAL (mm): 77.1 | PL (mm): 1.1 | DCON (mm): 4.851 | Stock: Yes
MDS05000SDC3DC (mm): 5.0 | L/D: 3 | LU (mm): 21.2 | LCF (mm): 28.7 | OAL (mm): 77.2 | PL (mm): 1.2 | DCON (mm): 5.0 | Stock: Yes
MDS05600SDC3DC (mm): 5.6 | L/D: 3 | LU (mm): 22.9 | LCF (mm): 31.3 | OAL (mm): 82.3 | PL (mm): 1.3 | DCON (mm): 5.6 | Stock: Yes
MDS06000SDC3DC (mm): 6.0 | L/D: 3 | LU (mm): 22.4 | LCF (mm): 31.4 | OAL (mm): 82.4 | PL (mm): 1.4 | DCON (mm): 6.0 | Stock: Yes
MDS06375SDC3DC (mm): 6.375 | L/D: 3 | LU (mm): 24.4 | LCF (mm): 34.0 | OAL (mm): 84.5 | PL (mm): 1.5 | DCON (mm): 6.375 | Stock: Yes
MDS07000SDC3DC (mm): 7.0 | L/D: 3 | LU (mm): 26.1 | LCF (mm): 36.6 | OAL (mm): 84.6 | PL (mm): 1.6 | DCON (mm): 7.0 | Stock: Yes
MDS07938SDC3DC (mm): 7.938 | L/D: 3 | LU (mm): 30.0 | LCF (mm): 41.9 | OAL (mm): 91.9 | PL (mm): 1.9 | DCON (mm): 7.938 | Stock: Yes
MDS08000SDC3DC (mm): 8.0 | L/D: 3 | LU (mm): 29.9 | LCF (mm): 41.9 | OAL (mm): 91.9 | PL (mm): 1.9 | DCON (mm): 8.0 | Stock: Yes
MDS09000SDC3DC (mm): 9.0 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 47.1 | OAL (mm): 100.1 | PL (mm): 2.1 | DCON (mm): 9.0 | Stock: Yes
MDS09550SDC3DC (mm): 9.550 | L/D: 3 | LU (mm): 37.9 | LCF (mm): 52.2 | OAL (mm): 107.2 | PL (mm): 2.2 | DCON (mm): 9.550 | Stock: Yes
MDS10000SDC3DC (mm): 10.0 | L/D: 3 | LU (mm): 37.3 | LCF (mm): 52.3 | OAL (mm): 107.3 | PL (mm): 2.3 | DCON (mm): 10.0 | Stock: Yes
