Sumitomo Electric Hardmetal SUMIDIA Coated End Mill for CFRP AVIX

Sumitomo Electric Hardmetal SUMIDIA Coated End Mill for CFRP AVIX

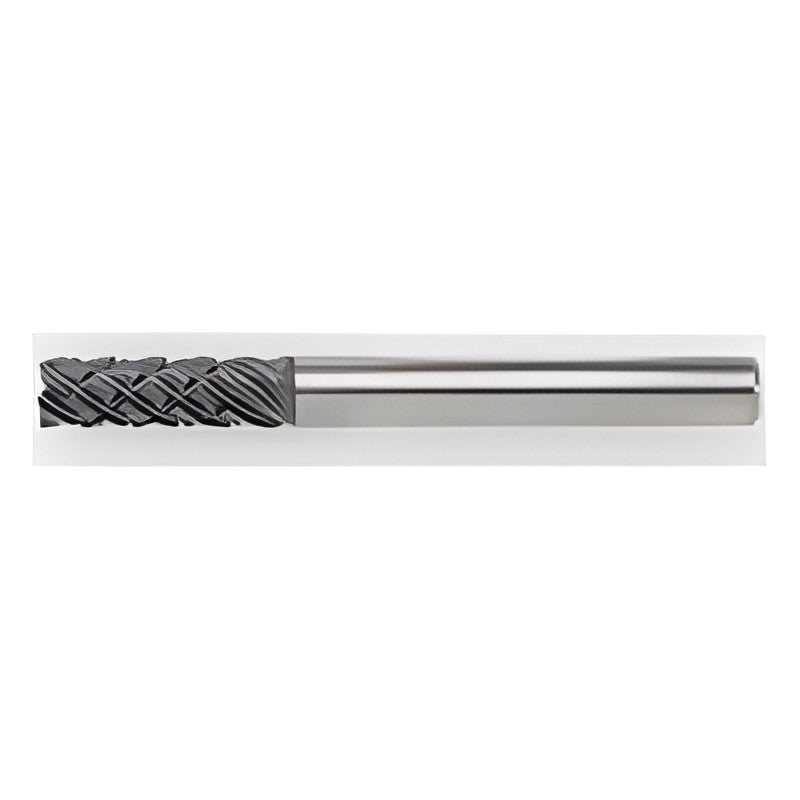

SUMIDIA diamond-coated end mill for CFRP machining with corner radius R0.3.

Key features

  • Complex cross-structure cutting edge reduces cutting resistance
  • Sharp edge and uniform diamond coating thickness for quality and long tool life

Specifications

Grade DCT30X
Workpiece Graphite, CFRP
AVIX404000-R03 DC (mm): 4.0 | RE (mm): 0.3 | APMX (mm): 12 | LF (mm): 60 | DMM (mm): 4 | Flutes: 4 | End teeth: 4 | Stock: Yes
AVIX506000-R03 DC (mm): 6.0 | RE (mm): 0.3 | APMX (mm): 18 | LF (mm): 70 | DMM (mm): 6 | Flutes: 5 | End teeth: 5 | Stock: Yes
AVIX508000-R03 DC (mm): 8.0 | RE (mm): 0.3 | APMX (mm): 24 | LF (mm): 80 | DMM (mm): 8 | Flutes: 5 | End teeth: 5 | Stock: Yes
AVIX510000-R03 DC (mm): 10.0 | RE (mm): 0.3 | APMX (mm): 30 | LF (mm): 80 | DMM (mm): 10 | Flutes: 5 | End teeth: 5 | Stock: Yes
AVIX612000-R03 DC (mm): 12.0 | RE (mm): 0.3 | APMX (mm): 36 | LF (mm): 90 | DMM (mm): 12 | Flutes: 6 | End teeth: 6 | Stock: Yes
AVIX403175-R03 DC (mm): 3.175 | RE (mm): 0.3 | APMX (mm): 10 | LF (mm): 60 | DMM (mm): 3.175 | Flutes: 4 | End teeth: 4 | Stock: Yes
AVIX506350-R03 DC (mm): 6.35 | RE (mm): 0.3 | APMX (mm): 19 | LF (mm): 70 | DMM (mm): 6.35 | Flutes: 5 | End teeth: 5 | Stock: Yes
AVIX509525-R03 DC (mm): 9.525 | RE (mm): 0.3 | APMX (mm): 28 | LF (mm): 80 | DMM (mm): 9.525 | Flutes: 5 | End teeth: 5 | Stock: Yes
AVIX612700-R03 DC (mm): 12.7 | RE (mm): 0.3 | APMX (mm): 38 | LF (mm): 90 | DMM (mm): 12.7 | Flutes: 6 | End teeth: 6 | Stock: Yes
End MillsSumitomo Electric Hardmetal
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA Coated End Mill for CFRP AVIX

Brand Sumitomo Electric Hardmetal·End Mills

Available part numbers (9)

AVIX404000-R03, AVIX506000-R03, AVIX508000-R03, AVIX510000-R03, AVIX612000-R03, AVIX403175-R03, AVIX506350-R03, AVIX509525-R03, AVIX612700-R03

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AVIX404000-R03DC (mm): 4.0 | RE (mm): 0.3 | APMX (mm): 12 | LF (mm): 60 | DMM (mm): 4 | Flutes: 4 | End teeth: 4 | Stock: Yes
AVIX506000-R03DC (mm): 6.0 | RE (mm): 0.3 | APMX (mm): 18 | LF (mm): 70 | DMM (mm): 6 | Flutes: 5 | End teeth: 5 | Stock: Yes
AVIX508000-R03DC (mm): 8.0 | RE (mm): 0.3 | APMX (mm): 24 | LF (mm): 80 | DMM (mm): 8 | Flutes: 5 | End teeth: 5 | Stock: Yes
AVIX510000-R03DC (mm): 10.0 | RE (mm): 0.3 | APMX (mm): 30 | LF (mm): 80 | DMM (mm): 10 | Flutes: 5 | End teeth: 5 | Stock: Yes
AVIX612000-R03DC (mm): 12.0 | RE (mm): 0.3 | APMX (mm): 36 | LF (mm): 90 | DMM (mm): 12 | Flutes: 6 | End teeth: 6 | Stock: Yes
AVIX403175-R03DC (mm): 3.175 | RE (mm): 0.3 | APMX (mm): 10 | LF (mm): 60 | DMM (mm): 3.175 | Flutes: 4 | End teeth: 4 | Stock: Yes
AVIX506350-R03DC (mm): 6.35 | RE (mm): 0.3 | APMX (mm): 19 | LF (mm): 70 | DMM (mm): 6.35 | Flutes: 5 | End teeth: 5 | Stock: Yes
AVIX509525-R03DC (mm): 9.525 | RE (mm): 0.3 | APMX (mm): 28 | LF (mm): 80 | DMM (mm): 9.525 | Flutes: 5 | End teeth: 5 | Stock: Yes
AVIX612700-R03DC (mm): 12.7 | RE (mm): 0.3 | APMX (mm): 38 | LF (mm): 90 | DMM (mm): 12.7 | Flutes: 6 | End teeth: 6 | Stock: Yes
