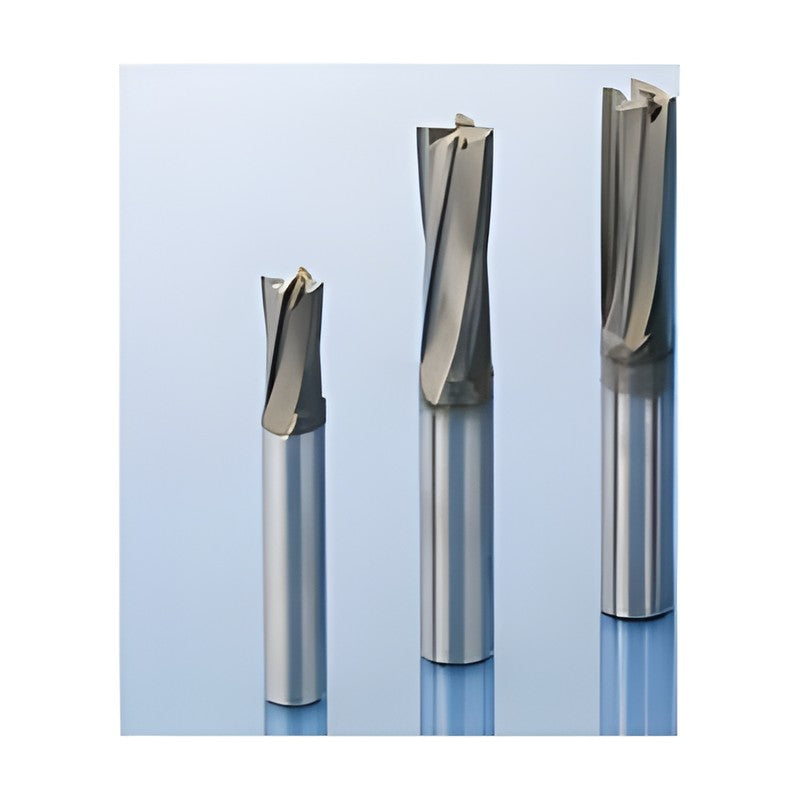

Sumitomo Electric Hardmetal SUMIDIA Coated End Mill for CFRP SSDC4000 (Right-Hand Helix)

Sumitomo Electric Hardmetal SUMIDIA Coated End Mill for CFRP SSDC4000 (Right-Hand Helix)

SUMIDIA diamond-coated 4-flute end mill for CFRP machining.

Key features

  • Right-hand helix type
  • Optimised rake and relief angles with low helix angle

Specifications

Flutes 4
Grade DCX20
Workpiece Graphite, CFRP, GFRP
SSDC4060 DC (mm): 6.0 | APMX (mm): 20 | LF (mm): 70 | DMM (mm): 6 | Stock: Yes (to be replaced / phased out; check stock)
SSDC4080 DC (mm): 8.0 | APMX (mm): 30 | LF (mm): 80 | DMM (mm): 8 | Stock: Yes (to be replaced / phased out; check stock)
SSDC4100 DC (mm): 10.0 | APMX (mm): 30 | LF (mm): 90 | DMM (mm): 10 | Stock: Yes (to be replaced / phased out; check stock)
SSDC4120 DC (mm): 12.0 | APMX (mm): 30 | LF (mm): 100 | DMM (mm): 12 | Stock: Yes (to be replaced / phased out; check stock)
End MillsSumitomo Electric Hardmetal
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA Coated End Mill for CFRP SSDC4000 (Right-Hand Helix)

Brand Sumitomo Electric Hardmetal·End Mills

Available part numbers (4)

SSDC4060, SSDC4080, SSDC4100, SSDC4120

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSDC4060DC (mm): 6.0 | APMX (mm): 20 | LF (mm): 70 | DMM (mm): 6 | Stock: Yes (to be replaced / phased out; check stock)
SSDC4080DC (mm): 8.0 | APMX (mm): 30 | LF (mm): 80 | DMM (mm): 8 | Stock: Yes (to be replaced / phased out; check stock)
SSDC4100DC (mm): 10.0 | APMX (mm): 30 | LF (mm): 90 | DMM (mm): 10 | Stock: Yes (to be replaced / phased out; check stock)
SSDC4120DC (mm): 12.0 | APMX (mm): 30 | LF (mm): 100 | DMM (mm): 12 | Stock: Yes (to be replaced / phased out; check stock)
