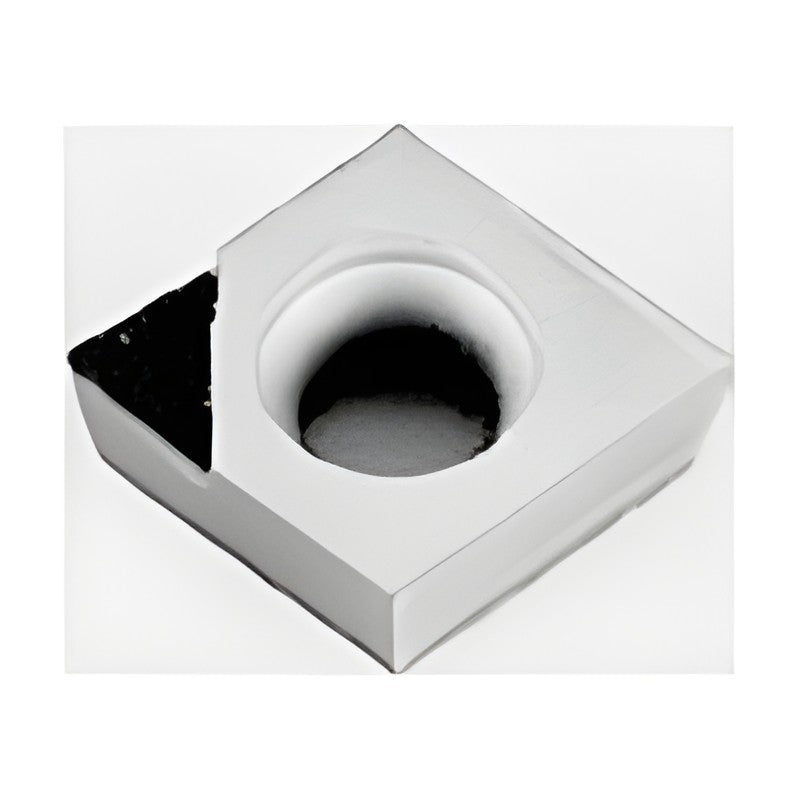

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMT0602

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMT0602

SUMIDIA diamond insert CCMT0602 (80° rhombic, positive (7° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1000, DA150
  • NF- full-face types
NF-CCMT060201 DA1000 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.1 | Cutting edge length (mm): 2.8 | Grade: DA1000 | Stock: Yes
NF-CCMT060202 DA1000 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 2.8 | Grade: DA1000 | Stock: Yes
NF-CCMT060204 DA1000 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.8 | Grade: DA1000 | Stock: Yes
NF-CCMT060202N-LD DA1000 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NF-CCMT060204N-LD DA1000 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NF-CCMT060202N-GD DA1000 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NF-CCMT060204N-GD DA1000 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NU-CCMT060202R-DM DA150 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 2.5 | Grade: DA150 | Stock: Yes
NU-CCMT060202L-DM DA150 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 2.5 | Grade: DA150 | Stock: Yes
NU-CCMT060204R-DM DA150 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.5 | Grade: DA150 | Stock: Yes
NU-CCMT060204L-DM DA150 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.5 | Grade: DA150 | Stock: Yes
CCMT060201 DA150 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.1 | Cutting edge length (mm): 3.3 | Grade: DA150 | Stock: Yes
CCMT060202 DA150 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 3.2 | Grade: DA150 | Stock: Yes
CCMT060204 DA150 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 3.1 | Grade: DA150 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMT0602

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (14)

NF-CCMT060201 DA1000, NF-CCMT060202 DA1000, NF-CCMT060204 DA1000, NF-CCMT060202N-LD DA1000, NF-CCMT060204N-LD DA1000, NF-CCMT060202N-GD DA1000, NF-CCMT060204N-GD DA1000, NU-CCMT060202R-DM DA150, NU-CCMT060202L-DM DA150, NU-CCMT060204R-DM DA150 + 4 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-CCMT060201 DA1000IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.1 | Cutting edge length (mm): 2.8 | Grade: DA1000 | Stock: Yes
NF-CCMT060202 DA1000IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 2.8 | Grade: DA1000 | Stock: Yes
NF-CCMT060204 DA1000IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.8 | Grade: DA1000 | Stock: Yes
NF-CCMT060202N-LD DA1000IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NF-CCMT060204N-LD DA1000IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NF-CCMT060202N-GD DA1000IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NF-CCMT060204N-GD DA1000IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.9 | Grade: DA1000 | Stock: Yes
NU-CCMT060202R-DM DA150IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 2.5 | Grade: DA150 | Stock: Yes
NU-CCMT060202L-DM DA150IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 2.5 | Grade: DA150 | Stock: Yes
NU-CCMT060204R-DM DA150IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.5 | Grade: DA150 | Stock: Yes
NU-CCMT060204L-DM DA150IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.5 | Grade: DA150 | Stock: Yes
CCMT060201 DA150IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.1 | Cutting edge length (mm): 3.3 | Grade: DA150 | Stock: Yes
CCMT060202 DA150IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 3.2 | Grade: DA150 | Stock: Yes
CCMT060204 DA150IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 3.1 | Grade: DA150 | Stock: Yes
