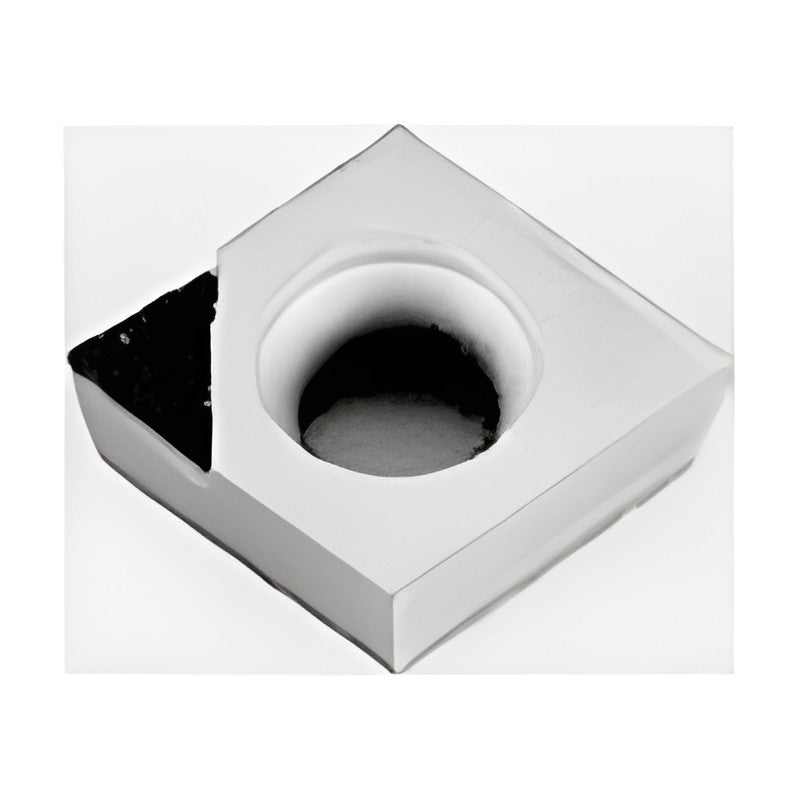

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMT09T3

SUMIDIA diamond insert CCMT09T3 (80° rhombic, positive (7° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

Grades: DA1000, DA150
NF- full-face types

NF-CCMT09T301 DA1000		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.1 \| Cutting edge length (mm): 2.8 \| Grade: DA1000 \| Stock: Yes
NF-CCMT09T302 DA1000		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.2 \| Cutting edge length (mm): 2.8 \| Grade: DA1000 \| Stock: Yes
NF-CCMT09T304 DA1000		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.8 \| Grade: DA1000 \| Stock: Yes
NF-CCMT09T308 DA1000		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.8 \| Cutting edge length (mm): 2.7 \| Grade: DA1000 \| Stock: Yes
NF-CCMT09T302N-LD DA1000		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.2 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
NF-CCMT09T304N-LD DA1000		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
NF-CCMT09T308N-LD DA1000		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.8 \| Cutting edge length (mm): 2.8 \| Grade: DA1000 \| Stock: Yes
NF-CCMT09T302N-GD DA1000		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.2 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
NF-CCMT09T304N-GD DA1000		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
NF-CCMT09T308N-GD DA1000		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.8 \| Cutting edge length (mm): 2.8 \| Grade: DA1000 \| Stock: Yes
NU-CCMT09T302R-DM DA150		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.2 \| Cutting edge length (mm): 2.5 \| Grade: DA150 \| Stock: Yes
NU-CCMT09T302L-DM DA150		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.2 \| Cutting edge length (mm): 2.5 \| Grade: DA150 \| Stock: Yes
NU-CCMT09T304R-DM DA150		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.5 \| Grade: DA150 \| Stock: Yes
NU-CCMT09T304L-DM DA150		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.5 \| Grade: DA150 \| Stock: Yes
CCMT09T301 DA150		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.1 \| Cutting edge length (mm): 4.2 \| Grade: DA150 \| Stock: Yes
CCMT09T302 DA150		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.2 \| Cutting edge length (mm): 4.2 \| Grade: DA150 \| Stock: Yes
CCMT09T304 DA150		IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.4 \| Cutting edge length (mm): 4.2 \| Grade: DA150 \| Stock: Yes

PCD InsertsSumitomo Electric Hardmetal

17 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMT09T3

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (17)

NF-CCMT09T301 DA1000, NF-CCMT09T302 DA1000, NF-CCMT09T304 DA1000, NF-CCMT09T308 DA1000, NF-CCMT09T302N-LD DA1000, NF-CCMT09T304N-LD DA1000, NF-CCMT09T308N-LD DA1000, NF-CCMT09T302N-GD DA1000, NF-CCMT09T304N-GD DA1000, NF-CCMT09T308N-GD DA1000 + 7 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	NF-CCMT09T301 DA1000	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.1 \| Cutting edge length (mm): 2.8 \| Grade: DA1000 \| Stock: Yes
	NF-CCMT09T302 DA1000	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.2 \| Cutting edge length (mm): 2.8 \| Grade: DA1000 \| Stock: Yes
	NF-CCMT09T304 DA1000	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.8 \| Grade: DA1000 \| Stock: Yes
	NF-CCMT09T308 DA1000	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.8 \| Cutting edge length (mm): 2.7 \| Grade: DA1000 \| Stock: Yes
	NF-CCMT09T302N-LD DA1000	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.2 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
	NF-CCMT09T304N-LD DA1000	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
	NF-CCMT09T308N-LD DA1000	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.8 \| Cutting edge length (mm): 2.8 \| Grade: DA1000 \| Stock: Yes
	NF-CCMT09T302N-GD DA1000	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.2 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
	NF-CCMT09T304N-GD DA1000	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.9 \| Grade: DA1000 \| Stock: Yes
	NF-CCMT09T308N-GD DA1000	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.8 \| Cutting edge length (mm): 2.8 \| Grade: DA1000 \| Stock: Yes
	NU-CCMT09T302R-DM DA150	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.2 \| Cutting edge length (mm): 2.5 \| Grade: DA150 \| Stock: Yes
	NU-CCMT09T302L-DM DA150	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.2 \| Cutting edge length (mm): 2.5 \| Grade: DA150 \| Stock: Yes
	NU-CCMT09T304R-DM DA150	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.5 \| Grade: DA150 \| Stock: Yes
	NU-CCMT09T304L-DM DA150	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.4 \| Cutting edge length (mm): 2.5 \| Grade: DA150 \| Stock: Yes
	CCMT09T301 DA150	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.1 \| Cutting edge length (mm): 4.2 \| Grade: DA150 \| Stock: Yes
	CCMT09T302 DA150	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.2 \| Cutting edge length (mm): 4.2 \| Grade: DA150 \| Stock: Yes
	CCMT09T304 DA150	IC (mm): 9.525 \| Thickness (mm): 3.97 \| Hole diameter (mm): 4.4 \| RE (mm): 0.4 \| Cutting edge length (mm): 4.2 \| Grade: DA150 \| Stock: Yes
