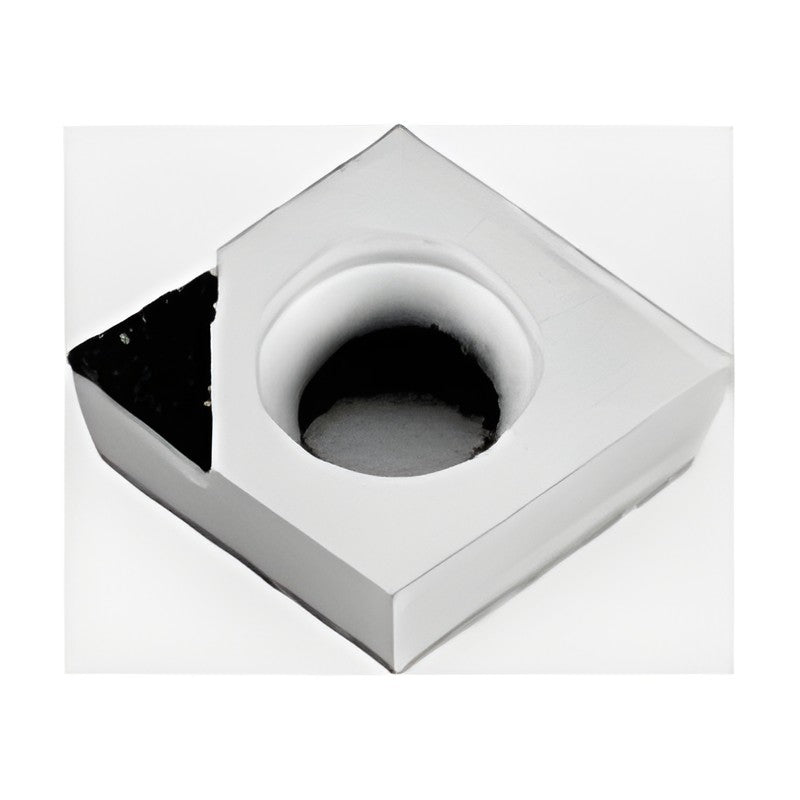

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMW03X1

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMW03X1

SUMIDIA diamond insert CCMW03X1 (80° rhombic, positive (7° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1090, DA90, NPD10
  • Binderless nano-polycrystalline diamond (NPD10) types
  • NF- full-face types
NF-CCMW03X102 DA1090 IC (mm): 3.5 | Thickness (mm): 1.4 | Hole diameter (mm): 1.9 | RE (mm): 0.2 | Cutting edge length (mm): 1.1 | Grade: DA1090 | Stock: Yes
NF-CCMW03X102 DA90 IC (mm): 3.5 | Thickness (mm): 1.4 | Hole diameter (mm): 1.9 | RE (mm): 0.2 | Cutting edge length (mm): 1.1 | Grade: DA90 | Stock: Yes
NF-CCMW03X104 DA1090 IC (mm): 3.5 | Thickness (mm): 1.4 | Hole diameter (mm): 1.9 | RE (mm): 0.4 | Cutting edge length (mm): 1.1 | Grade: DA1090 | Stock: Yes
NF-CCMW03X104 DA90 IC (mm): 3.5 | Thickness (mm): 1.4 | Hole diameter (mm): 1.9 | RE (mm): 0.4 | Cutting edge length (mm): 1.1 | Grade: DA90 | Stock: Yes
CCMW03X102RH NPD10 IC (mm): 3.5 | Thickness (mm): 1.4 | Hole diameter (mm): 1.9 | RE (mm): 0.2 | Cutting edge length (mm): 1.3 | Grade: NPD10 | Stock: Yes
CCMW03X104RH NPD10 IC (mm): 3.5 | Thickness (mm): 1.4 | Hole diameter (mm): 1.9 | RE (mm): 0.4 | Cutting edge length (mm): 1.3 | Grade: NPD10 | Stock: Yes
CCMW03X102RH DA1090 Cutting edge length (mm): 1.3 | RE (mm): 0.2 | Grade: DA1090 | Stock: Yes
CCMW03X102RH DA90 Cutting edge length (mm): 1.3 | RE (mm): 0.2 | Grade: DA90 | Stock: Yes
CCMW03X104RH DA1090 Cutting edge length (mm): 1.3 | RE (mm): 0.4 | Grade: DA1090 | Stock: Yes
CCMW03X104RH DA90 Cutting edge length (mm): 1.3 | RE (mm): 0.4 | Grade: DA90 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMW03X1

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (10)

NF-CCMW03X102 DA1090, NF-CCMW03X102 DA90, NF-CCMW03X104 DA1090, NF-CCMW03X104 DA90, CCMW03X102RH NPD10, CCMW03X104RH NPD10, CCMW03X102RH DA1090, CCMW03X102RH DA90, CCMW03X104RH DA1090, CCMW03X104RH DA90

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-CCMW03X102 DA1090IC (mm): 3.5 | Thickness (mm): 1.4 | Hole diameter (mm): 1.9 | RE (mm): 0.2 | Cutting edge length (mm): 1.1 | Grade: DA1090 | Stock: Yes
NF-CCMW03X102 DA90IC (mm): 3.5 | Thickness (mm): 1.4 | Hole diameter (mm): 1.9 | RE (mm): 0.2 | Cutting edge length (mm): 1.1 | Grade: DA90 | Stock: Yes
NF-CCMW03X104 DA1090IC (mm): 3.5 | Thickness (mm): 1.4 | Hole diameter (mm): 1.9 | RE (mm): 0.4 | Cutting edge length (mm): 1.1 | Grade: DA1090 | Stock: Yes
NF-CCMW03X104 DA90IC (mm): 3.5 | Thickness (mm): 1.4 | Hole diameter (mm): 1.9 | RE (mm): 0.4 | Cutting edge length (mm): 1.1 | Grade: DA90 | Stock: Yes
CCMW03X102RH NPD10IC (mm): 3.5 | Thickness (mm): 1.4 | Hole diameter (mm): 1.9 | RE (mm): 0.2 | Cutting edge length (mm): 1.3 | Grade: NPD10 | Stock: Yes
CCMW03X104RH NPD10IC (mm): 3.5 | Thickness (mm): 1.4 | Hole diameter (mm): 1.9 | RE (mm): 0.4 | Cutting edge length (mm): 1.3 | Grade: NPD10 | Stock: Yes
CCMW03X102RH DA1090Cutting edge length (mm): 1.3 | RE (mm): 0.2 | Grade: DA1090 | Stock: Yes
CCMW03X102RH DA90Cutting edge length (mm): 1.3 | RE (mm): 0.2 | Grade: DA90 | Stock: Yes
CCMW03X104RH DA1090Cutting edge length (mm): 1.3 | RE (mm): 0.4 | Grade: DA1090 | Stock: Yes
CCMW03X104RH DA90Cutting edge length (mm): 1.3 | RE (mm): 0.4 | Grade: DA90 | Stock: Yes
