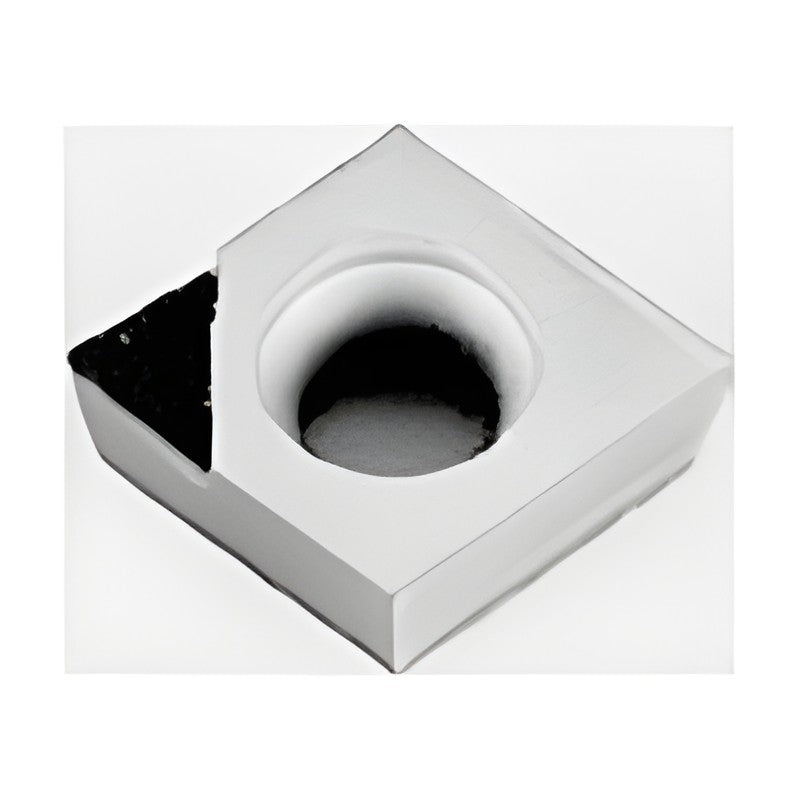

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMW0602

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMW0602

SUMIDIA diamond insert CCMW0602 (80° rhombic, positive (7° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1090, DA90, NPD10
  • Binderless nano-polycrystalline diamond (NPD10) types
  • NF- full-face types
NF-CCMW060204 DA1090 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA1090 | Stock: Yes
NF-CCMW060204 DA90 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA90 | Stock: Yes
CCMW060202RH NPD10 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 1.7 | Grade: NPD10 | Stock: Yes
CCMW060204RH NPD10 IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 1.7 | Grade: NPD10 | Stock: Yes
CCMW060202RH DA1090 Cutting edge length (mm): 1.7 | RE (mm): 0.2 | Grade: DA1090 | Stock: Yes
CCMW060202RH DA90 Cutting edge length (mm): 1.7 | RE (mm): 0.2 | Grade: DA90 | Stock: Yes
CCMW060204RH DA1090 Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA1090 | Stock: Yes
CCMW060204RH DA90 Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA90 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMW0602

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (8)

NF-CCMW060204 DA1090, NF-CCMW060204 DA90, CCMW060202RH NPD10, CCMW060204RH NPD10, CCMW060202RH DA1090, CCMW060202RH DA90, CCMW060204RH DA1090, CCMW060204RH DA90

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-CCMW060204 DA1090IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA1090 | Stock: Yes
NF-CCMW060204 DA90IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA90 | Stock: Yes
CCMW060202RH NPD10IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.2 | Cutting edge length (mm): 1.7 | Grade: NPD10 | Stock: Yes
CCMW060204RH NPD10IC (mm): 6.35 | Thickness (mm): 2.38 | Hole diameter (mm): 2.8 | RE (mm): 0.4 | Cutting edge length (mm): 1.7 | Grade: NPD10 | Stock: Yes
CCMW060202RH DA1090Cutting edge length (mm): 1.7 | RE (mm): 0.2 | Grade: DA1090 | Stock: Yes
CCMW060202RH DA90Cutting edge length (mm): 1.7 | RE (mm): 0.2 | Grade: DA90 | Stock: Yes
CCMW060204RH DA1090Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA1090 | Stock: Yes
CCMW060204RH DA90Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA90 | Stock: Yes
