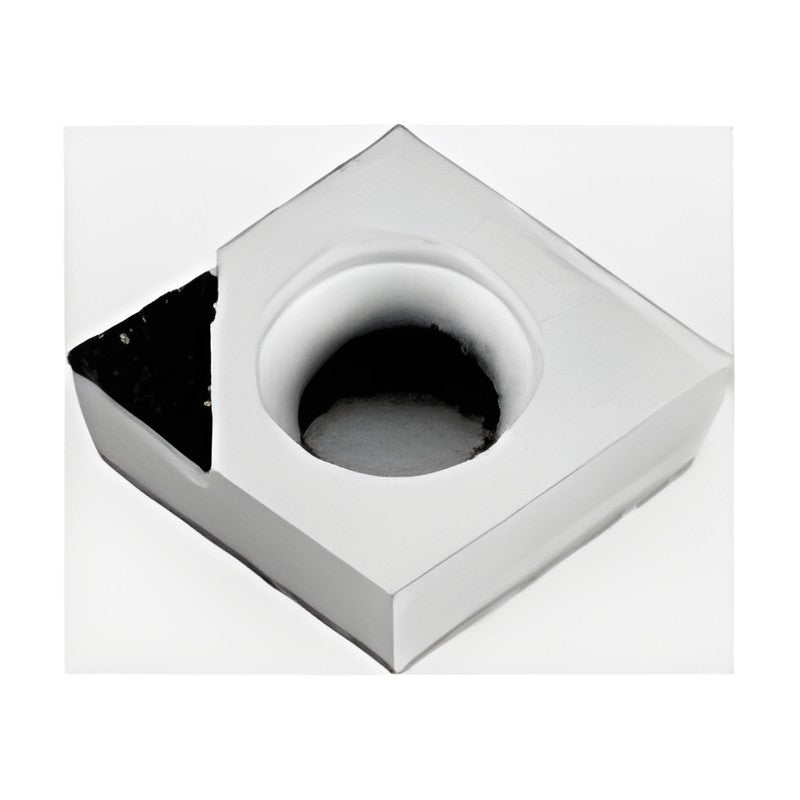

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMW09T3

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMW09T3

SUMIDIA diamond insert CCMW09T3 (80° rhombic, positive (7° clearance)) for machining aluminum alloys, non-ferrous metals and cemented carbide.

Key features

  • Grades: DA1090, DA90, NPD10
  • Binderless nano-polycrystalline diamond (NPD10) types
  • NF- full-face types
NF-CCMW09T302 DA1090 IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.4 | Grade: DA1090 | Stock: Yes
NF-CCMW09T302 DA90 IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.4 | Grade: DA90 | Stock: Yes
NF-CCMW09T304 DA1090 IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA1090 | Stock: Yes
NF-CCMW09T304 DA90 IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA90 | Stock: Yes
NF-CCMW09T308 DA1090 IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.3 | Grade: DA1090 | Stock: Yes
NF-CCMW09T308 DA90 IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.3 | Grade: DA90 | Stock: Yes
CCMW09T302RH NPD10 IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 1.7 | Grade: NPD10 | Stock: Yes
CCMW09T304RH NPD10 IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 1.7 | Grade: NPD10 | Stock: Yes
CCMW09T308RH NPD10 IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 1.6 | Grade: NPD10 | Stock: Yes
CCMW09T302RH DA1090 Cutting edge length (mm): 1.7 | RE (mm): 0.2 | Grade: DA1090 | Stock: Yes
CCMW09T302RH DA90 Cutting edge length (mm): 1.7 | RE (mm): 0.2 | Grade: DA90 | Stock: Yes
CCMW09T304RH DA1090 Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA1090 | Stock: Yes
CCMW09T304RH DA90 Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA90 | Stock: Yes
CCMW09T308RH DA1090 Cutting edge length (mm): 1.6 | RE (mm): 0.8 | Grade: DA1090 | Stock: Yes
CCMW09T308RH DA90 Cutting edge length (mm): 1.6 | RE (mm): 0.8 | Grade: DA90 | Stock: Yes
PCD InsertsSumitomo Electric Hardmetal
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SUMIDIA PCD Insert CCMW09T3

Brand Sumitomo Electric Hardmetal·PCD Inserts

Available part numbers (15)

NF-CCMW09T302 DA1090, NF-CCMW09T302 DA90, NF-CCMW09T304 DA1090, NF-CCMW09T304 DA90, NF-CCMW09T308 DA1090, NF-CCMW09T308 DA90, CCMW09T302RH NPD10, CCMW09T304RH NPD10, CCMW09T308RH NPD10, CCMW09T302RH DA1090 + 5 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF-CCMW09T302 DA1090IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.4 | Grade: DA1090 | Stock: Yes
NF-CCMW09T302 DA90IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 2.4 | Grade: DA90 | Stock: Yes
NF-CCMW09T304 DA1090IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA1090 | Stock: Yes
NF-CCMW09T304 DA90IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 2.4 | Grade: DA90 | Stock: Yes
NF-CCMW09T308 DA1090IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.3 | Grade: DA1090 | Stock: Yes
NF-CCMW09T308 DA90IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 2.3 | Grade: DA90 | Stock: Yes
CCMW09T302RH NPD10IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.2 | Cutting edge length (mm): 1.7 | Grade: NPD10 | Stock: Yes
CCMW09T304RH NPD10IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.4 | Cutting edge length (mm): 1.7 | Grade: NPD10 | Stock: Yes
CCMW09T308RH NPD10IC (mm): 9.525 | Thickness (mm): 3.97 | Hole diameter (mm): 4.4 | RE (mm): 0.8 | Cutting edge length (mm): 1.6 | Grade: NPD10 | Stock: Yes
CCMW09T302RH DA1090Cutting edge length (mm): 1.7 | RE (mm): 0.2 | Grade: DA1090 | Stock: Yes
CCMW09T302RH DA90Cutting edge length (mm): 1.7 | RE (mm): 0.2 | Grade: DA90 | Stock: Yes
CCMW09T304RH DA1090Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA1090 | Stock: Yes
CCMW09T304RH DA90Cutting edge length (mm): 1.7 | RE (mm): 0.4 | Grade: DA90 | Stock: Yes
CCMW09T308RH DA1090Cutting edge length (mm): 1.6 | RE (mm): 0.8 | Grade: DA1090 | Stock: Yes
CCMW09T308RH DA90Cutting edge length (mm): 1.6 | RE (mm): 0.8 | Grade: DA90 | Stock: Yes
